Comfort and Convenience Features

The heating and air conditioning* system in your car provides a com-
fortable driving environment in all

weather conditions.

The audio sound system is very
versatile. To get the most from thissystem, take the time to learn what
the controls do.
Some models have an anti-theft
system that requires a code
number to enable it.
* Air conditioner is optional on S

model.
Heating and Cooling...................... 68
What Each Control Does .......... 70
How to Use the System............. 71

Controlling Air Flow
Direction............................. .
71
Ventilation...............................
71
To Cool.................................... .
72

To Dehumidify and Defog

with
A/C...............................
73

To Heat.................................... 74
To Defrost............................... 74
To Turn Everything off ....... 74

Audio System (S)............................ 75
Adjusting the Sound.................. 76Operating the Radio.................. 77

Presetting.................................... 79

Radio Frequencies..................... 80Operating the Cassette
Player........................................ 81

Cassette Search Functions ...... 82 Audio Syste
m
(Si, SR)................... 84
Adjusting the Sound.................. 85
Operating the Radio.................. 86
Presetting.................................... 88

Radio Frequencies..................... 90

Operating the Cassette Player. 91
Cassette Search Functions....... 92
Caring for the Cassettes Player .. 94
Theft Protection............................. 95

Comfort and Convenience FeaturesProCarManuals.comMain Menu s t

Audio System (S)

Adjusting the soundUse the Balance and Fader controls
to adjust the sound "direction".
The Balance control moves it left-
to-right. The Fader control moves it front-to-back.
To use either control, push on the
knob to get it to pop out. Adjust the
front-to-back sound to your liking
with the outside ring.
Adjust side-to-side sound balance
with the knob. Push the knob back

in when you are done.

The illuminatio n
for the radio con-
trols comes on with the instrument panel lights, even if the radio is off.
You can use the Balance control to
turn off the radio panel illumina-
tion even with the radio on. Push
the control knob so it pops out, then
pull it out slightly further. Check
this control if the control panel
lights do not come on with the in-
strument panel lights. Use the Bass and Treble controls to
adjust the tone quality to your
liking. Push on the knob to get the controls to pop out. Adjust the bass
level with the outer ring and the
treble level with the knob. When
finished, push the knobs back in so
there is less chance of accidentally
changing your settings.

Comfort and Convenience Features
FADER

CONTROL

BALANCE

CONTROL

BASS

CONTROL

TREBLE

CONTROLProCarManuals.comMain Menu Table of Contents s t

Audio System (S)

You can use any of three methods
to find radio stations on the
selected band: TUNE, SEEK, or
the Preset buttons.
Use the TUNE bar to change the
frequency in small increments. Push the right side to tune to a
higher frequency, and the left side to tune to a lower frequency.
Press and release to change the
frequency to the next number.
Press the TUNE bar and hold it to
go to a frequency that is far away.
The frequency display will begin to
count rapidly. It will stop counting
when you release the bar.
TUNE BAR

The SEEK function searches the
band for stations with a strong sig- nal. Depending on which way you
push the SEEK switch, the system
searches up or down from the
current frequency. Push the switch,
then release it. The system
searches until it finds a station with
a strong signal, then stops. If you SEEK SWITCH
do not want to listen to that station,
push SEEK again.
Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System (S)

Presetting

The preset buttons allow you to
store radio frequencies for later
selection. Each button will store
one frequency on the AM band, and
one on the FM band.
To store a frequency:
1. Select the desired band, AM or
FM.

2. Use
the TUNE or SEEK func-

tion to tune the radio to a desired
station.

3. Pic
k
the Preset button you want

for that station. Press the button
and hold it until you hear a beep.

4. Repea
t
steps 1 to 3 to store a
total of six stations each on AM

and

FM.
Once tha
t
station's frequency is

stored, simply press and release the

proper preset button to tune to it. If
you want to change any preset

button's selection, store another fre-
quency as described. The frequen-

cies you preset will be lost if your

car's battery goes dead or is discon-

nected.

Comfort and Convenience Features
TUNE BAR
SEEK SWITCH
PRESET BUTTONSProCarManuals.comMain Menu Table of Contents s t

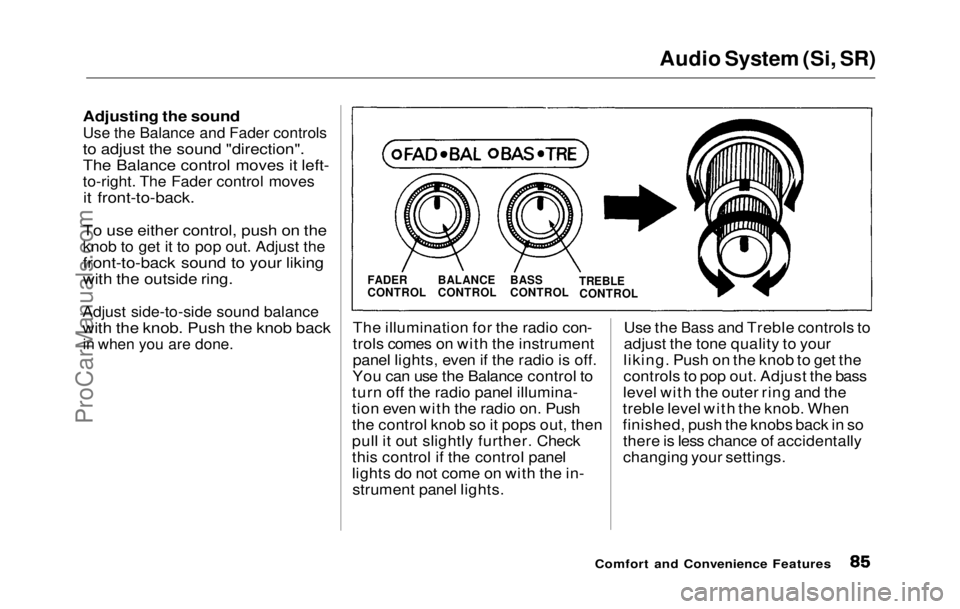

Audio System (Si, SR)

Adjusting the soundUse the Balance and Fader controls
to adjust the sound "direction".
The Balance control moves it left-
to-right. The Fader control moves
it front-to-back.
To use either control, push on the
knob to get it to pop out. Adjust the
front-to-back sound to your liking
with the outside ring.
Adjust side-to-side sound balance
with the knob. Push the knob back

in when you are done.

The illuminatio n
for the radio con-
trols comes on with the instrument
panel lights, even if the radio is off.
You can use the Balance control to
turn off the radio panel illumina-
tion even with the radio on. Push
the control knob so it pops out, then
pull it out slightly further. Check
this control if the control panel
lights do not come on with the in- strument panel lights. Use the
Bass and Treble controls to
adjust th e
tone quality to your
liking. Push on the knob to get the
controls to pop out. Adjust the bass
level with the outer ring and the
treble level with the knob. When
finished, push the knobs back in so there is less chance of accidentally
changing your settings.

Comfort and Convenience Features

FADER

CONTROL

BALANCE

CONTROL
BASS

CONTROL

TREBLE

CONTROLProCarManuals.comMain Menu Table of Contents s t

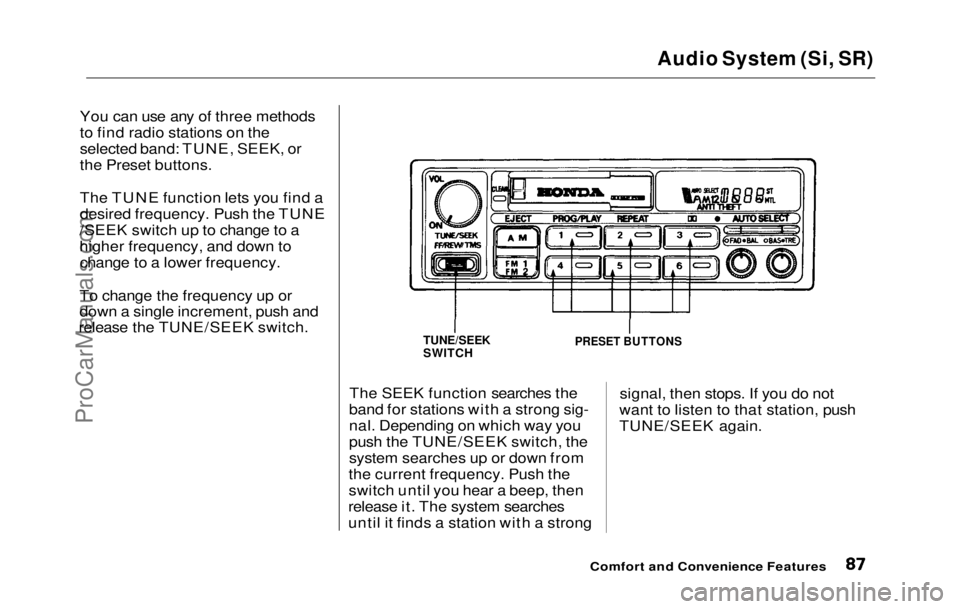

Audio System (Si, SR)

You can use any of three methods
to find radio stations on the
selected band: TUNE, SEEK, or
the Preset buttons.
The TUNE function lets you find a
desired frequency. Push the TUNE
/SEEK switch up to change to a
higher frequency, and down to change to a lower frequency.
To change the frequency up or
down a single increment, push and
release the TUNE/SEEK switch.
The SEEK function searches the
band for stations with a strong sig-
nal. Depending on which way you
push the TUNE/SEEK switch, the
system searches up or down from
the current frequency. Push the
switch until you hear a beep, then
release it. The system searches
until it finds a station with a strong signal, then stops. If you do not
want to listen to that station, push
TUNE/SEEK again.

Comfort and Convenience Features

TUNE/SEEK
SWITCH

PRESET BUTTONSProCarManuals.comMain Menu Table of Contents s t

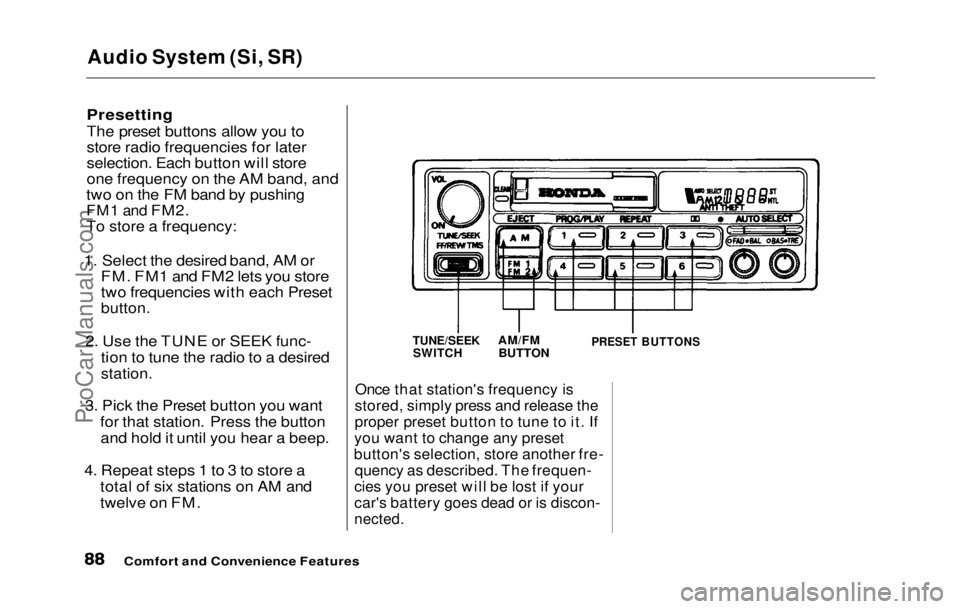

Audio System (Si, SR)

Presetting

The preset buttons allow you to
store radio frequencies for later
selection. Each button will store
one frequency on the AM band, and
two on the FM band by pushing

FM1 and
FM2.
To store a frequency:
1. Select the desired band, AM or FM. FM1 and FM2 lets you store
two frequencies with each Preset

button.

2. Use the TUNE or SEEK func- tion to tune the radio to a desired

station.

3. Pick the Preset button you want for that station. Press the buttonand hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and
twelve on FM.
Once that station's frequency is
stored, simply press and release the
proper preset button to tune to it. If
you want to change any preset
button's selection, store another fre- quency as described. The frequen-
cies you preset will be lost if your
car's battery goes dead or is discon-

nected.

Comfort and Convenience Features
TUNE/SEEK
SWITCH
AM/FM

BUTTON
PRESET BUTTONSProCarManuals.comMain Menu Table of Contents s t

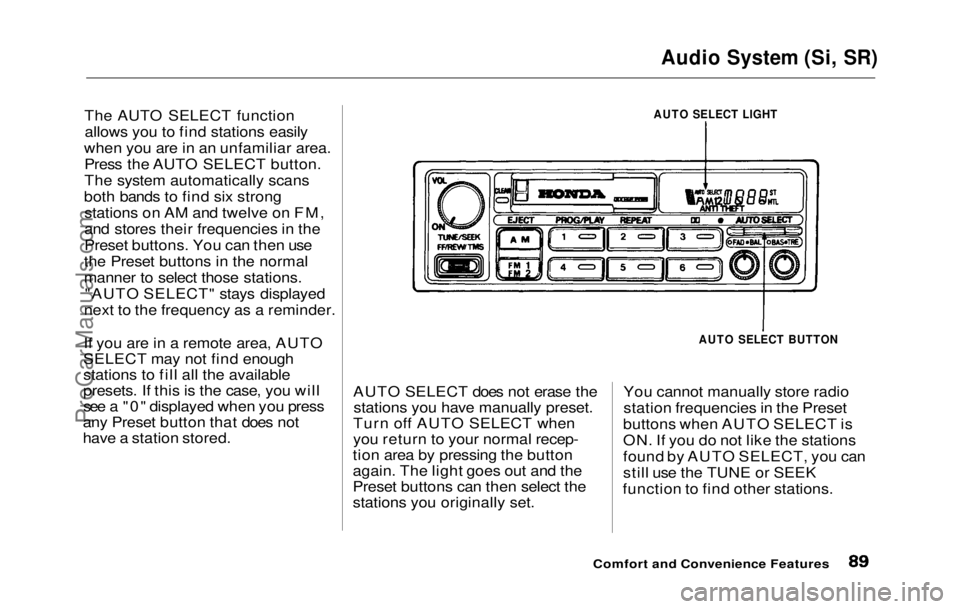

Audio System (Si, SR)

The AUTO SELECT function allows you to find stations easily
when you are in an unfamiliar area. Press the AUTO SELECT button.
The system automatically scans
both bands to find six strong stations on AM and twelve on FM,
and stores their frequencies in the
Preset buttons. You can then use
the Preset buttons in the normal
manner to select those stations. "AUTO SELECT" stays displayed
next to the frequency as a reminder.
If you are in a remote area, AUTO
SELECT may not find enough
stations to fill all the available
presets. If this is the case, you will
see a "0" displayed when you press
any Preset button that does not
have a station stored. AUTO SELECT does not erase the
stations you have manually preset.
Turn off AUTO SELECT when
you return to your normal recep-
tion area by pressing the button
again. The light goes out and the
Preset buttons can then select the
stations you originally set. You cannot manually store radio
station frequencies in the Preset
buttons when AUTO SELECT is
ON. If you do not like the stations
found by AUTO SELECT, you can
still use the TUNE or SEEK
function to find other stations.

Comfort and Convenience Features
AUTO SELECT LIGHT
AUTO SELECT BUTTONProCarManuals.comMain Menu Table of Contents s t
