1990 VOLVO 240 window

Volvo 1990 240 Model
pg. 6 240 DL Sedan
pg. 7 Before you drive
pg. 8Instruments and controls
pg. 10Instruments
pg. 11Warning lights
pg. 12Clock, ambient temperature gauge
pg. 13Oil pressure gauge, voltmeter
pg. 14Ignition switch, turn signals
pg. 15Lighting
pg. 16Windshield wipers, washer nozzles
pg. 18Washer fluid reservoir
pg. 18Rear window demister, heated seat, hazard warning flasher
pg. 19Parking brake
pg. 20Cigarette lighter, ash trays
pg. 21Electrically operated windows
pg. 22Heating and ventilation
pg. 24Air conditioning
pg. 25Audio systems
pg. 26Child safety
pg. 28Seat belts
pg. 30SRS (Supplemental Restraint System)
pg. 32Doors and locks
pg. 33Trunk lid
file:///K|/ownersdocs/1990/1990_240/90240_01.htm (1 of 5)12/30/2006 8:\
25:01 AM

Volvo 1990 240 Model
5 Instruments 10
6 Wiper/washer, tailgate window wiper/washer (wagon) 16
7 Starting (ignition) switch/steering wheel lock 14
8 Air louver 23
9 Radio location 25
10 Air louver 23
11 Glove box -
12 Air louver 23
13 Fuse box 81
14 Hood release handle 34
15 Horn -
16 Cigarette lighter 20
17 Rear window demister 18
18 Hazard warning flashers 18
19 Air conditioning (some models) 24
20 Seat belt reminder light 28
21 Heating and ventilation 22
22 Gear lever or gear selector 45, 46
23 Ash tray 20
24 Storage compartment -
25 Electrically-operated windows (certain models only) 21
26 Control for electrically operated side mirrors (certain models only)\
-
27 Parking brake 19
28 Electrically-operated window, right front door (certain models only)\
21
29 Seat belt release buttons 28
30 Seat heaters 19
31 Seat belt reminder light 28
32 Ash tray 20

The pages in this section provide a detailed description of the vehicle'\
s instruments and controls.
Note that some vehicles may be equipped differently, depending on model,\
special legal requirements,
etc. pg. 10 Instruments
file:///K|/ownersdocs/1990/1990_240/90240_01.htm (3 of 5)12/30/2006 8:\
25:01 AM

Volvo 1990 240 Model
starting (ignition) switch is switched on.


A chime will sound if the starting (ignition) key is in the switch loc\
k when the door is open. The chime
goes off when the driver's door is closed. If the headlight switch is in\
position
, all lights will go out
when starting (ignition) switch is switched off.

Instrument panel lamps rheostat

Clockwise - brighter
Counterclockwise - dimmer
pg. 16 Windshield wipers, Tailgate window wiper, Washer nozzles

Wiper/washer

1 Intermittent wiper
file:///K|/ownersdocs/1990/1990_240/90240_03.htm (4 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model
With switch in this position, the wipers will make a stroke approx. ever\
y seventh second.

2 "Single stroke" position
Switch returns automatically when released.

3 Wipers, low speed

4 Wipers, high speed

5 Windshield wiper/washer
The wiper will make 2-3 complete stroking cycles after the lever is rele\
ased


Tailgate window wiper/washer, wagon

Operated by the switch at the end of the windshield wiper/washer operati\
ng lever.

1 Tailgate wiper ON

2 Interval position
With the switch in this position, there is one stroking cycle approx. ev\
ery fifteen seconds.

3 Tailgate washer
Depress the button to start the wiper/washer. The wiper will complete 2-\
3 stroking cycles after the
button is released.
file:///K|/ownersdocs/1990/1990_240/90240_03.htm (5 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model
pg. 18 Washer fluid reservoir, Rear window demister, Hazard warning flas\
her

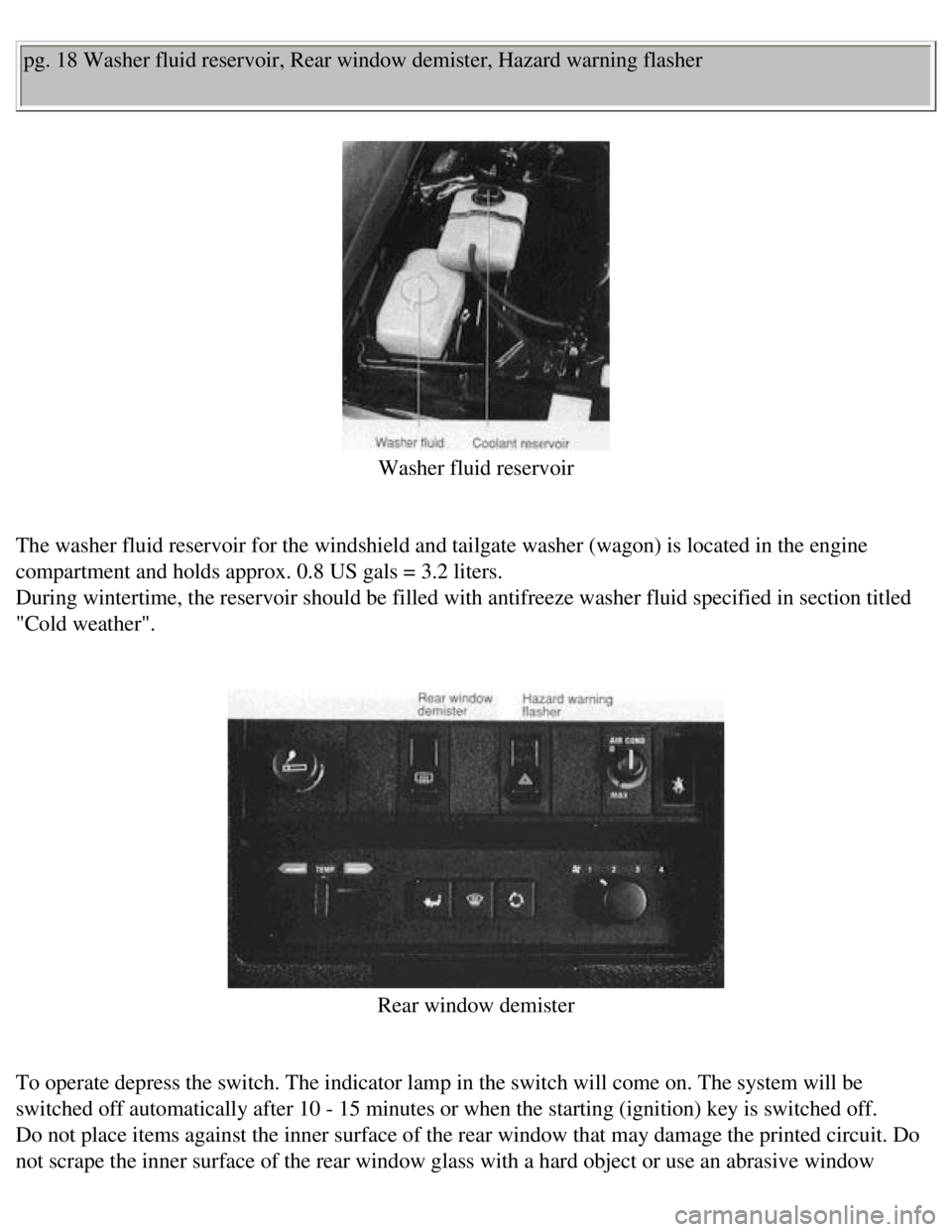

Washer fluid reservoir

The washer fluid reservoir for the windshield and tailgate washer (wago\
n) is located in the engine
compartment and holds approx. 0.8 US gals = 3.2 liters.
During wintertime, the reservoir should be filled with antifreeze washer\
fluid specified in section titled
"Cold weather".


Rear window demister

To operate depress the switch. The indicator lamp in the switch will com\
e on. The system will be
switched off automatically after 10 - 15 minutes or when the starting (\
ignition) key is switched off.
Do not place items against the inner surface of the rear window that may\
damage the printed circuit. Do
not scrape the inner surface of the rear window glass with a hard object\
or use an abrasive window
file:///K|/ownersdocs/1990/1990_240/90240_04.htm (1 of 5)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model

Ash trays

To remove the ash trays depress the center spring and remove.
pg. 21 Electrically-operated windows

Electrically-operated windows
(standard on certain models)

The electrically-operated windows are controlled by switches set in the \
door arm rests. All the windows
can be controlled from the driver's arm rest as shown in the above illus\
tration.
The starting (ignition) switch must be ON for the electrically-operate\
d windows to function. The
window is lowered if the rear part of the switch is pressed and raided i\
f the front part of the switch is
pressed.

file:///K|/ownersdocs/1990/1990_240/90240_04.htm (4 of 5)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model
Warning: Remove the starting (ignition) key from the car when children\
are left alone in the
car.

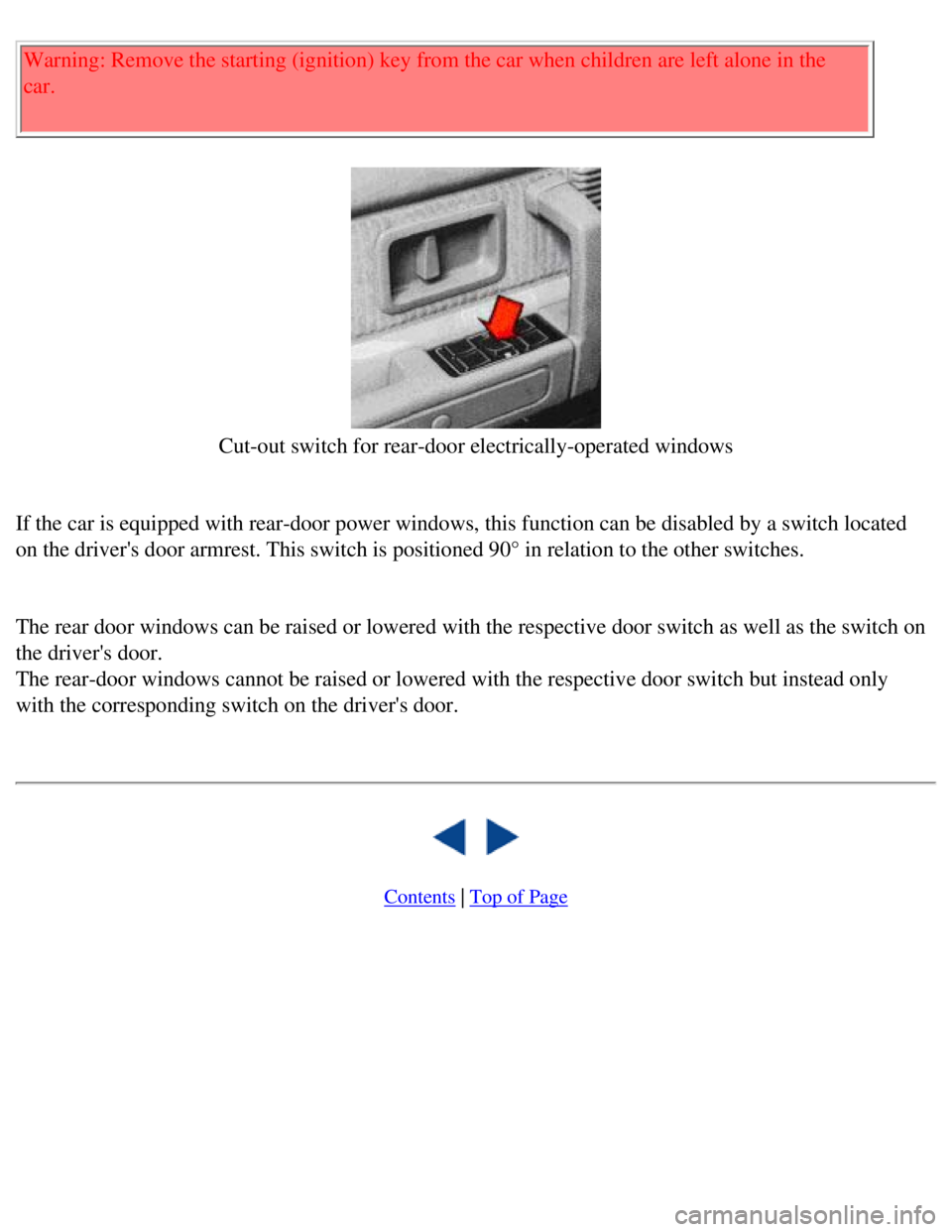

Cut-out switch for rear-door electrically-operated windows

If the car is equipped with rear-door power windows, this function can b\
e disabled by a switch located
on the driver's door armrest. This switch is positioned 90° in relati\
on to the other switches.

The rear door windows can be raised or lowered with the respective door \
switch as well as the switch on
the driver's door.
The rear-door windows cannot be raised or lowered with the respective do\
or switch but instead only
with the corresponding switch on the driver's door.




Contents | Top of Page
file:///K|/ownersdocs/1990/1990_240/90240_04.htm (5 of 5)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model
How to use the air conditioner:

1
Fan
Position 4 for rapid cooling.

2 AIR COND
Start the air conditioning compressor by turning the control knob clockw\
ise toward MAX.
For rapid cooling, position the knob into the orange range beyond MAX. A\
fter desired temperature is
reached re-position the control knob into the blue range.

At cruising speeds, the knob should be kept within the blue range. If it\
remains in the orange range, icing
may occur resulting in decreased cooling capacity.

3
Recirculation
Push in for rapid cooling and during high humidity conditions.

4 TEMP
When using the air conditioner for cooling, the TEMP control should be s\
et to COOL position, fully left.
Use the AIR COND control to regulate the temperature.

To obtain rapid cooling, all windows must be closed and buttons
and out. Cool air will then be
discharged through the four dash outlets which should be fully open.

Note: For rapid removal of condensation from inside glass surfaces, the \
air conditioner can be
switched on even when not required for interior cooling. The air conditi\
oner will dehumidify the air
inside the vehicle.

Have your Volvo dealer check the system for correct operation yearly. Th\
e air conditioning system
should be operated periodically to ensure trouble-free performance year \
round.
pg. 25 Audio systems
Operating instructions
file:///K|/ownersdocs/1990/1990_240/90240_05.htm (4 of 6)12/30/2006 8:\
25:03 AM
