Volvo 1990 240 Model
pg. 32 Doors and locks, Child safety lock


Unlocking front doors

Both front doors can be unlocked by using the starting (ignition) key.\
Turning the key 1/4 turn counter-
clockwise (right door: clockwise) lifts the lock buttons on the window\
ledge and the door can be opened
by pulling the handle.
To open a door from inside, the lock button must first be pulled up.

Central lock

The vehicle is equipped with a central lock system. This means the lock \
on the driver's door
automatically controls the locks on the other doors (including the trun\
k on Sedan models and the tailgate
on the wagon model).
If the drivers door is locked or unlocked, the other doors will automati\
cally be locked or unlocked.

Locking doors

Both front doors can be locked by using the key. Turning the key 1/4 tur\
n clockwise (left door) or
counter-clockwise (right door) locks the door.

file:///K|/ownersdocs/1990/1990_240/90240_07.htm (1 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

Pull the release handle (located under the left side of the dash).
Lift the hood slightly, insert a hand under the center line of the hood \
and depress the safety catch handle.
Open the hood.
Check that the hood locks properly when closing.



Long load storage (except wagon)

A flap in the rear seat makes it possible to carry "long loads" such as \
skis, etc.

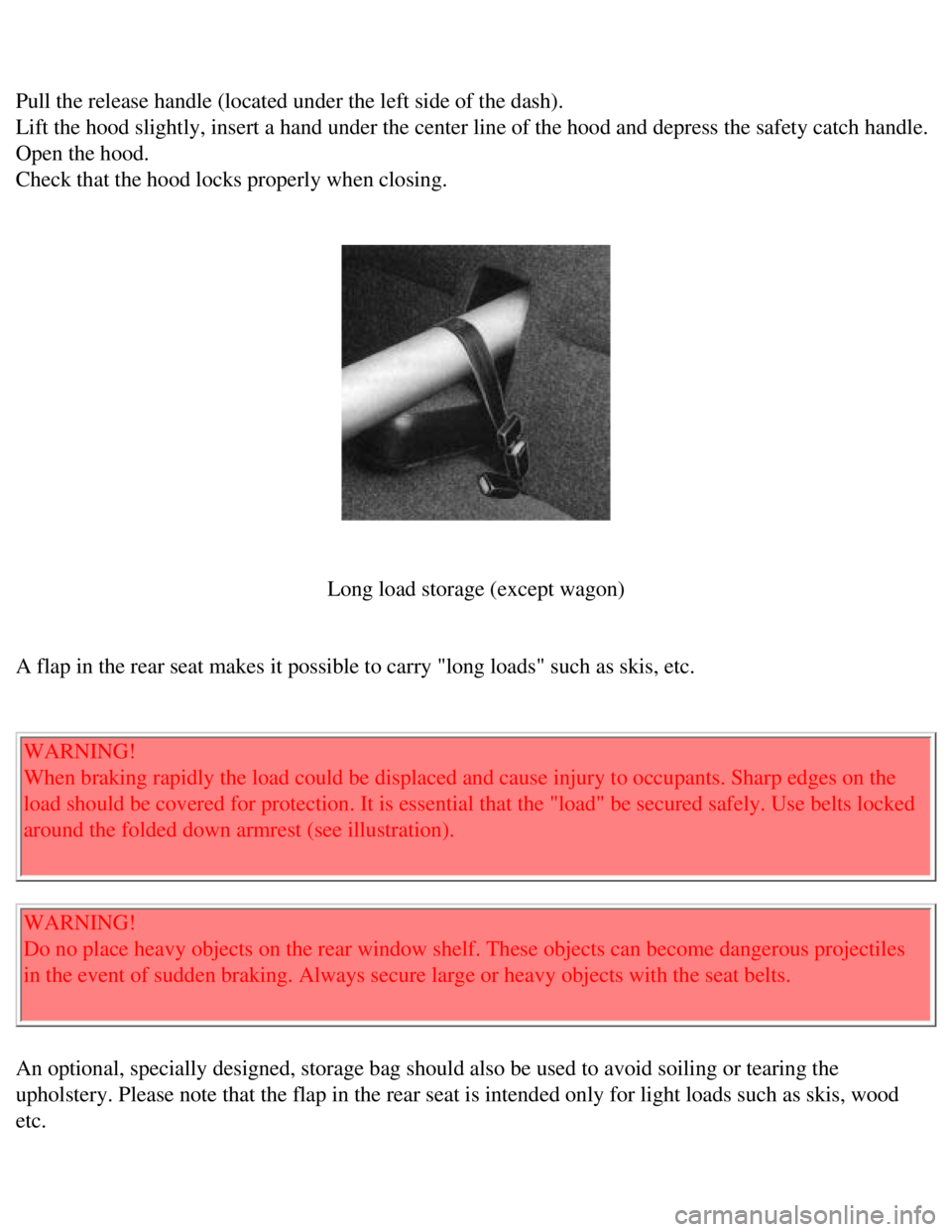

WARNING!
When braking rapidly the load could be displaced and cause injury to occ\
upants. Sharp edges on the
load should be covered for protection. It is essential that the "load" b\
e secured safely. Use belts locked
around the folded down armrest (see illustration).
WARNING!
Do no place heavy objects on the rear window shelf. These objects can be\
come dangerous projectiles
in the event of sudden braking. Always secure large or heavy objects wit\
h the seat belts.

An optional, specially designed, storage bag should also be used to avoi\
d soiling or tearing the
upholstery. Please note that the flap in the rear seat is intended only \
for light loads such as skis, wood
etc.
file:///K|/ownersdocs/1990/1990_240/90240_07.htm (5 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model
l It is necessary to balance trailer brakes with the towing vehicle brakes\
to provide a safe stop (check
and observe State regulations).
l More frequent vehicle maintenance is required.
l Remove the ball and drawbar assembly when the hitch is not being used.
l Increase tire pressure to recommended full-load pressure. See section 'W\
heels and Tires."
Note: Refer to section entitled "Automatic transmission" for additional \
trailer hauling
tips.
Warning: Do not drive with trunk lid or tailgate
open!

Poisonous exhaust gases may enter via the open trunk lid or tailgate. (\
This is especially true for wagon
models.)
If the trunk lid or tailgate for any reason must be open, proceed as fol\
lows:
l Close the windows.
l Set the heating system controls for floor and defroster to max. and the \
blower to full speed (4). See
section titled "Heating and Ventilation".

Handling, roadholding

Vehicle load, tire design and inflation pressure are important for prope\
r handling. Therefore check that
the tires are inflated to the recommended pressure according to the vehi\
cle load.
Loads should be distributed so that capacity weight or maximum permissib\
le axle loads are not
exceeded.
It is recommended to use tires of the same make and dimensions on all fo\
ur wheels.

Warning: Do not mix radial ply and bias ply tires as this will adversely\
alter the vehicle handling
characteristics.

Roof rack

Permanent and removable roof racks are available from Volvo Accessories.\

file:///K|/ownersdocs/1990/1990_240/90240_11.htm (2 of 6)12/30/2006 8:\
25:06 AM

Volvo 1990 240 Model


Door hinges (lower) and door stop

A grease B oil

No. Lubricating point Lubricant
1 Trunk lid lock keyhole Low temperature grease
2 Trunk lid hinges Oil
3 Door lock keyhole
outer sliding surfaces Oil
4 Sunroof wind deflector Oil
5 Hood hinges Oil
6 Hood lock Oil
7 Front seat slide rails
and latch devices Oil
8 Window regulator Oil, grease
Locking device Silicon grease
(Accessible after door
upholstery panels
removed)
9 Door hinges Grease
Door stop Oil
pg. 74 Cooling system
file:///K|/ownersdocs/1990/1990_240/90240_15.htm (6 of 10)12/30/2006 8\
:25:09 AM

Volvo 1990 240 Model
Warning: Turn starting (ignition) switch OFF before replacing fuses. E\
xcessive heat may be created by
a short circuit. Care must be exercised while replacing blown fuses.

Some of the equipment listed below is optional

Refer to the fuse location chart at fuse box for fuses specific to your \
car.

1 Cigarette lighter, Power mirrors, Radio, Tailgate wiper/washer 8A
2 Windshield wiper/washer, Horn 16A
3 Heater blower 25A
4 Fuel feed (in-tank) pump, Lambda-sond heating element 8A
5 Turn signals, Back-up lights 16A
6 Main fuel pump relay 16A
7 Brake lights 8A
8 Central locking, Interior and glove compartment lights, Trunk and engi\
ne
compartment lights, Radio, Power antenna, Clock, Daytime running lights \
(Canada)* 8A
9 Hazard warning Flashers 8A
10 Power windows 16A
11 Heated rear window, 4th gear (automatic transmission) 16A
12 Air conditioning (with blower control), Power windows (relay),
Heated rear window (relay), Seat belt reminder, Cruise control 8A
13 Heated front seats, Daytime running lights - relay (Canada)* 16A
14 Rear fog lights 8A
15 Parking lights (left side), License plate light 8A
16 Parking lights (right side), Instruments and control panel lights, \
Shift indicator light 8A
Blade type fuse, serving LH-Jetronic fuel injection system. Located on t\
he left
wheel housing by the ignition coil 25A

* Note: Early production Canadian vehicles are not equipped with Daytime\
Running Lights.




Contents | Top of Page
file:///K|/ownersdocs/1990/1990_240/90240_16.htm (10 of 10)12/30/2006 \
8:25:10 AM

Volvo 1990 240 Model

During the winter, multigrade oil 10W-30 should be used in the engine. \
The viscosity of the engine oil is important. Oil with low viscosity (t\
hinner oil) improves cold-weather
starting as well as decreasing fuel consumption while the engine is warm\
ing up. To avoid difficult cold
start conditions (during extreme winter weather), use of 5W-30 oil, pa\
rticularly the synthetic type, is
recommended.
Be sure to use good quality oil but do not use this cold-weather oil for\
hard driving or in warm weather.
See section "Engine oil" for more information.

Electrical system

The electrical system is subject to greater stresses during the winter. \
Lighting and starter motor are used
more often. The battery capacity is reduced at low air temperature. The \
state of charge must be checked
more frequently, and if necessary the battery should be recharged. The b\
attery can freeze if the state of
charge is too low.

Windshield washers

Anti-freeze washer fluid should also be added to the washer fluid contai\
ner for the windshield and rear
window (tailgate, wagon model) washer.
This is particularly important during the winter because the windshield \
frequently becomes dirty and is
often splashed with water which freezes rapidly. This may necessitate th\
e frequent use of the windshield
washer and wipers. Your Volvo dealer can supply you with suitable anti-f\
reeze for this purpose. Suitable
mixtures of anti-freeze and water are:
Down to +14 ° F (-10 ° C) 1 part anti-freeze 4 parts water.
Down to + 7 ° F (-14 ° C) 1 part anti-freeze 3 parts water.
Down to 0 ° F (-18 ° C) 1 part anti-freeze 2 parts water.
Down to -18 ° F (-28 ° C) 1 part anti-freeze 1 part water.
Use Volvo Teflon lock spray or grease in the locks. They can be purchase\
d from your Volvo dealer
Note: Avoid the use of de-icing sprays as they can cause damage to the
locks.
pg. 92 Service diagnosis
The diagnoses outlined below are intended to serve only as a guide to lo\
cate and temporarily correct
minor faults. Causes of unsatisfactory performance should be investigate\
d and corrected by your Volvo
file:///K|/ownersdocs/1990/1990_240/90240_19.htm (2 of 7)12/30/2006 8:\
25:13 AM

Volvo 1990 240 Model
Overdrive off (auto
trans.) 1.2 W
W2x4.6d 1
Warning flashers 1.2 W W2x4.6d 1
El. heated window 1.2 W W2x4.6d 1
Seat belts 2 W Ba 9 s 2
Bulb failure 1.2 W W2x4.6d 1
pg. 103 Specifications
Recommended max. and min. speeds†, mph (km/h)

Manual transmission M47 II
1st gear 2nd gear 3rd gear 4th gear 5th gear
-25 (-
40) 10-44 (20-
70) 20-70 (30-
110) 25-
(44-) 44-
(70-)

† always observe posted speed limits.

Vehicle Loading

The tires on your Volvo will perform to specifications at all normal loa\
ds when inflated as
recommended on the tire information label located on the rear facing sid\
e of the right front door.
This label lists both tire and vehicle design limits.
Do not load your car beyond the load limits indicated.
