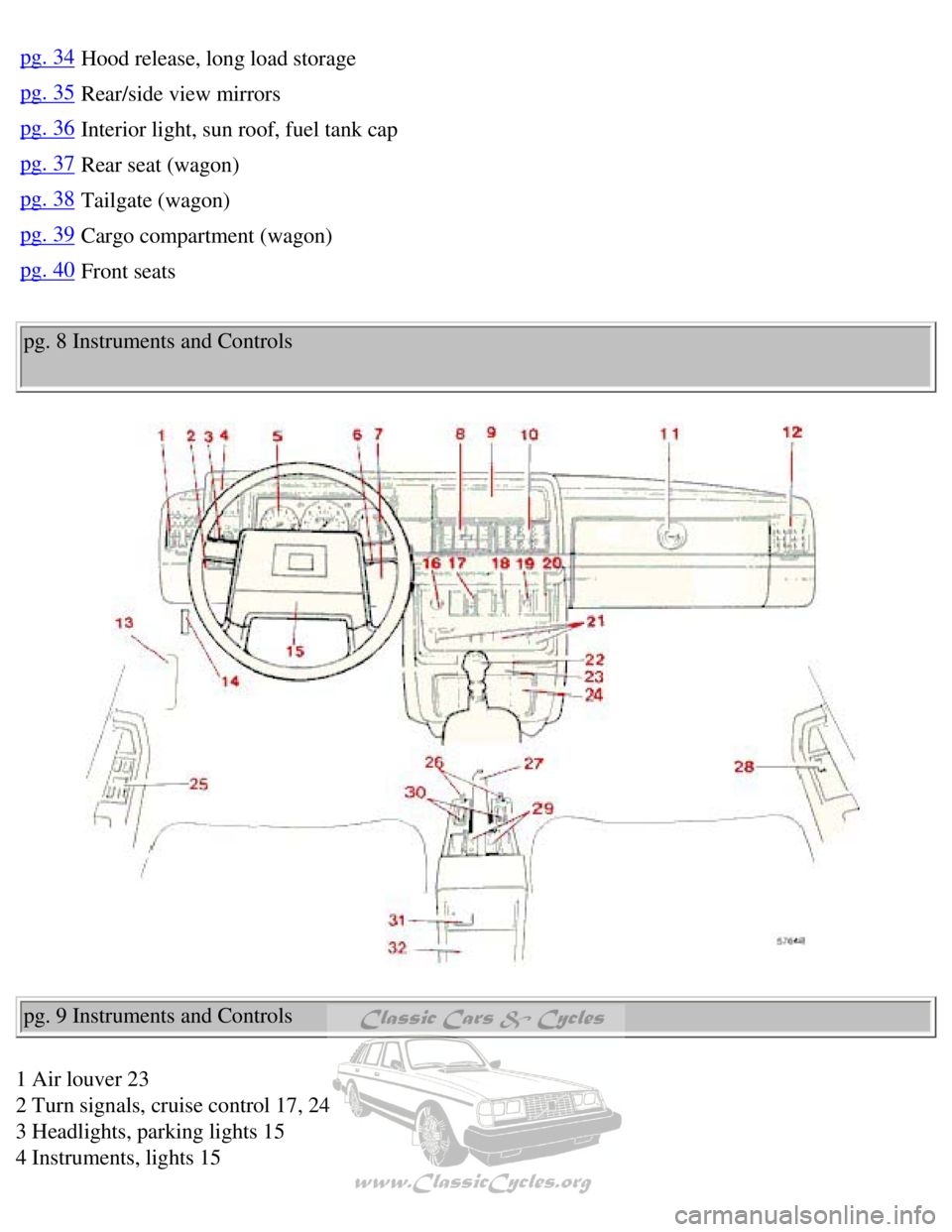

pg. 8 Instruments and Controls
pg. 9 Instruments and Controls
1 Air louver 23
2 Turn signals, cruise control 17, 24
3 Headlights, parking lights 15
4 Instruments, lights 15
file:///K|/ownersdocs/1990/1990_240/90240_01.htm (2 of 5)12/30/2006 8:\
25:01 AM

Volvo 1990 240 Model
pg. 14 Starting (ignition) switch, Turn signals
Starting (ignition) switch/steering wheel lock

O Locked position: remove the key to lock the steering wheel.
I Intermediate position: certain circuits (heater blower, cigarette lig\
hter, accessories, etc.) on.
II Drive position: key position when engine is running.
III Starting position: release the key when engine starts. The key retur\
ns automatically to
drive position.
The steering wheel lock may be under tension when the car is parked. Tur\
n the steering wheel slightly to
free the ignition key.
A chime will sound if the starting key is in the ignition lock and the f\
ront door on the driver's side is
open. The chime will also sound if the headlights or parking lights are \
on when the door is open. The
chime goes off when the front door is closed.

file:///K|/ownersdocs/1990/1990_240/90240_03.htm (1 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model

Turn signals

1 Signal lever engaged for normal turns.
Note: A defective turn signal bulb will cause turn signal indicator and \
remaining signal lights to flash
more rapidly than normal.

2 Lane change position. In maneuvers such as lane changing, the driver c\
an flash the turn signals by
moving the turn signal lever to the first stop and holding it there. The\
lever will return to the neutral
position when released.

3 High and low beam switching (Headlight switch in position
).
Move the lever towards the steering wheel and release it.

3 Headlight flasher (Headlight switch in position
or 0).
Move the lever towards the steering wheel. The headlight high beam will \
be on until the lever is
released.
pg. 15 Rear fog lights, Lighting
file:///K|/ownersdocs/1990/1990_240/90240_03.htm (2 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model


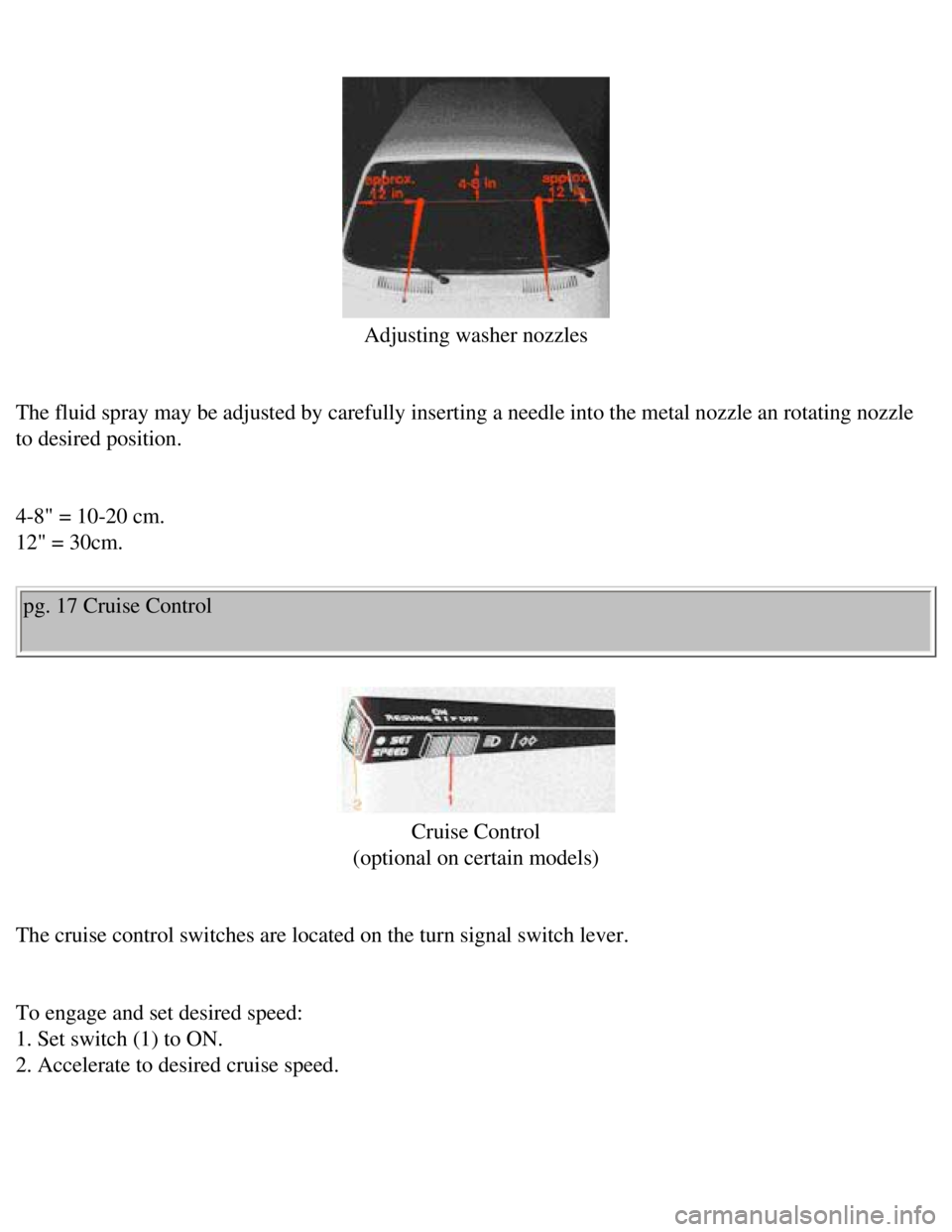

Adjusting washer nozzles

The fluid spray may be adjusted by carefully inserting a needle into the\
metal nozzle an rotating nozzle
to desired position.

4-8" = 10-20 cm.
12" = 30cm.
pg. 17 Cruise Control

Cruise Control
(optional on certain models)

The cruise control switches are located on the turn signal switch lever.\


To engage and set desired speed:
1. Set switch (1) to ON.
2. Accelerate to desired cruise speed.

file:///K|/ownersdocs/1990/1990_240/90240_03.htm (6 of 7)12/30/2006 8:\
25:02 AM

Volvo 1990 240 Model


Front light bulbs

Loosen the Phillips screws and remove the lens. The bulbs can now be rem\
oved by pressing them
inwards and turning them slightly counterclockwise.
When re-installing lens, check that the gasket is in position.

Bulbs Power Socket
CP(W)
1 Front position 24/2.2(21/5) BaY15d
Side marker lights
2 Front turn signal 24/2.2(21/5) BaY15d 1) US Bulb No. 1157NA

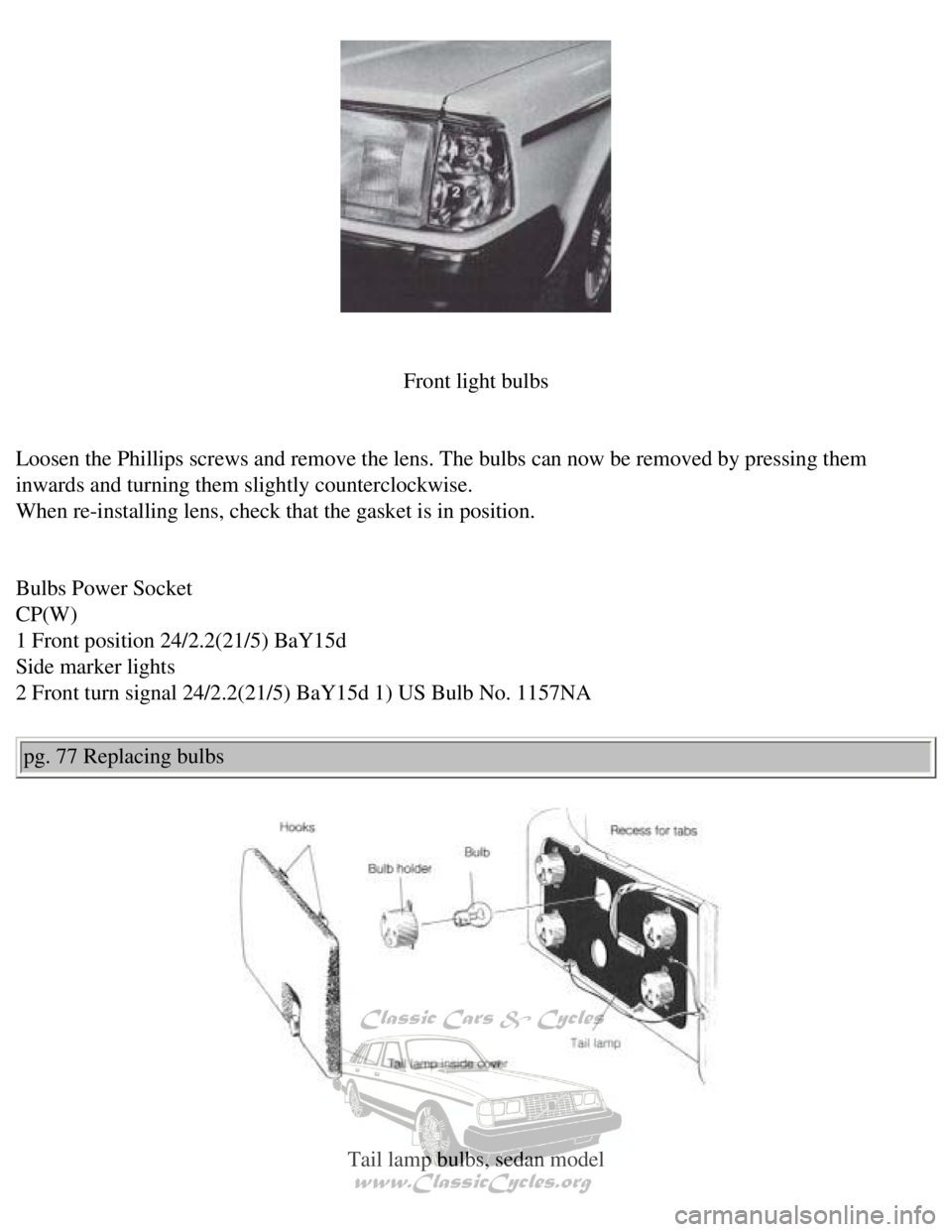

pg. 77 Replacing bulbs


Tail lamp bulbs, sedan model
file:///K|/ownersdocs/1990/1990_240/90240_16.htm (2 of 10)12/30/2006 8\
:25:10 AM

Volvo 1990 240 Model
3 Rear turn signal 32 21 Ba 15s 1156
4 Tail light 4 5 Ba 15s 67
5 Reflector - - - -
6 Brake light/tail
light* 32/3
21/5 BaY
15d 1157

*Right side lamp holders are white. Left side lamp holders are black. pg. 78 Replacing bulbs


Tail lamp bulbs, wagon model

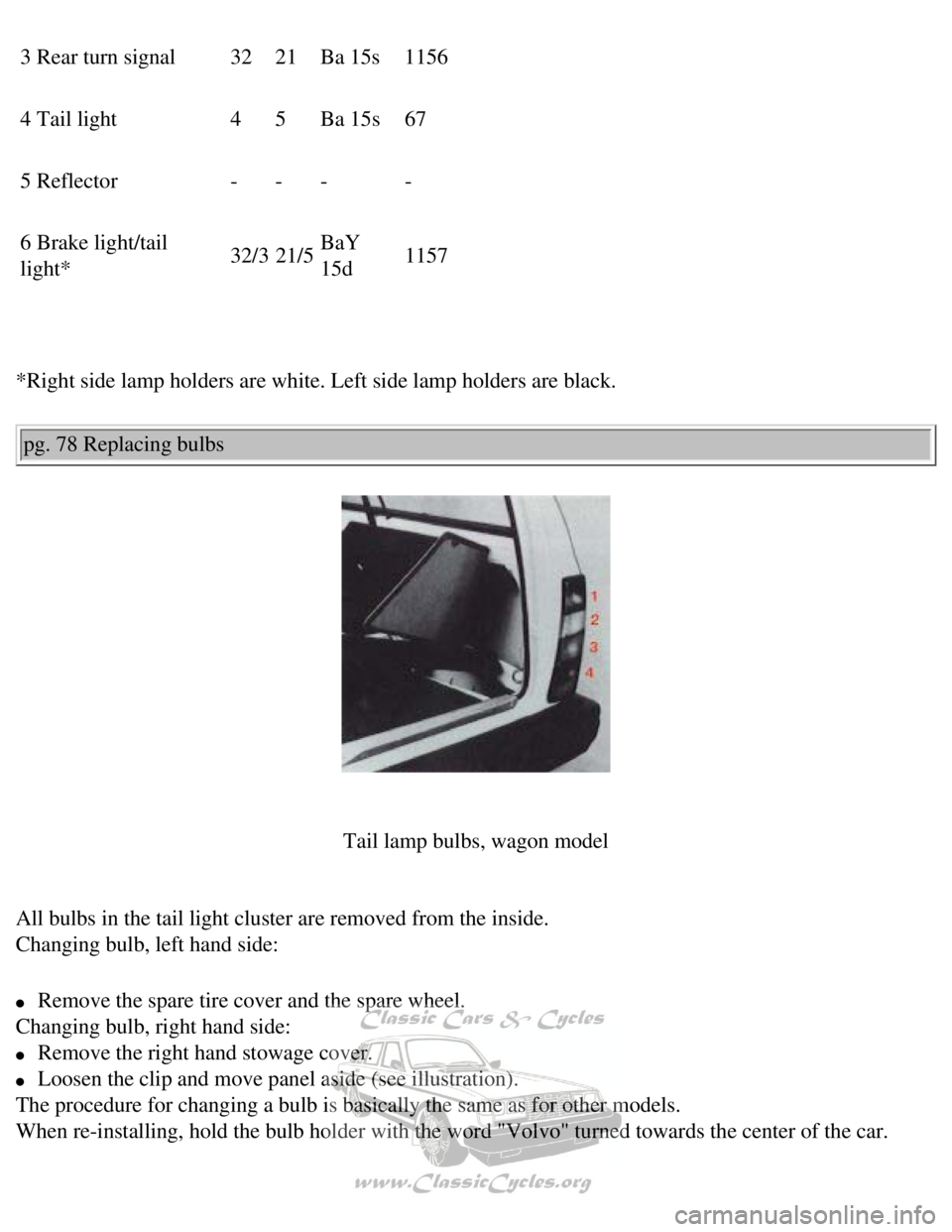

All bulbs in the tail light cluster are removed from the inside.
Changing bulb, left hand side:
l Remove the spare tire cover and the spare wheel.
Changing bulb, right hand side:
l Remove the right hand stowage cover.
l Loosen the clip and move panel aside (see illustration).

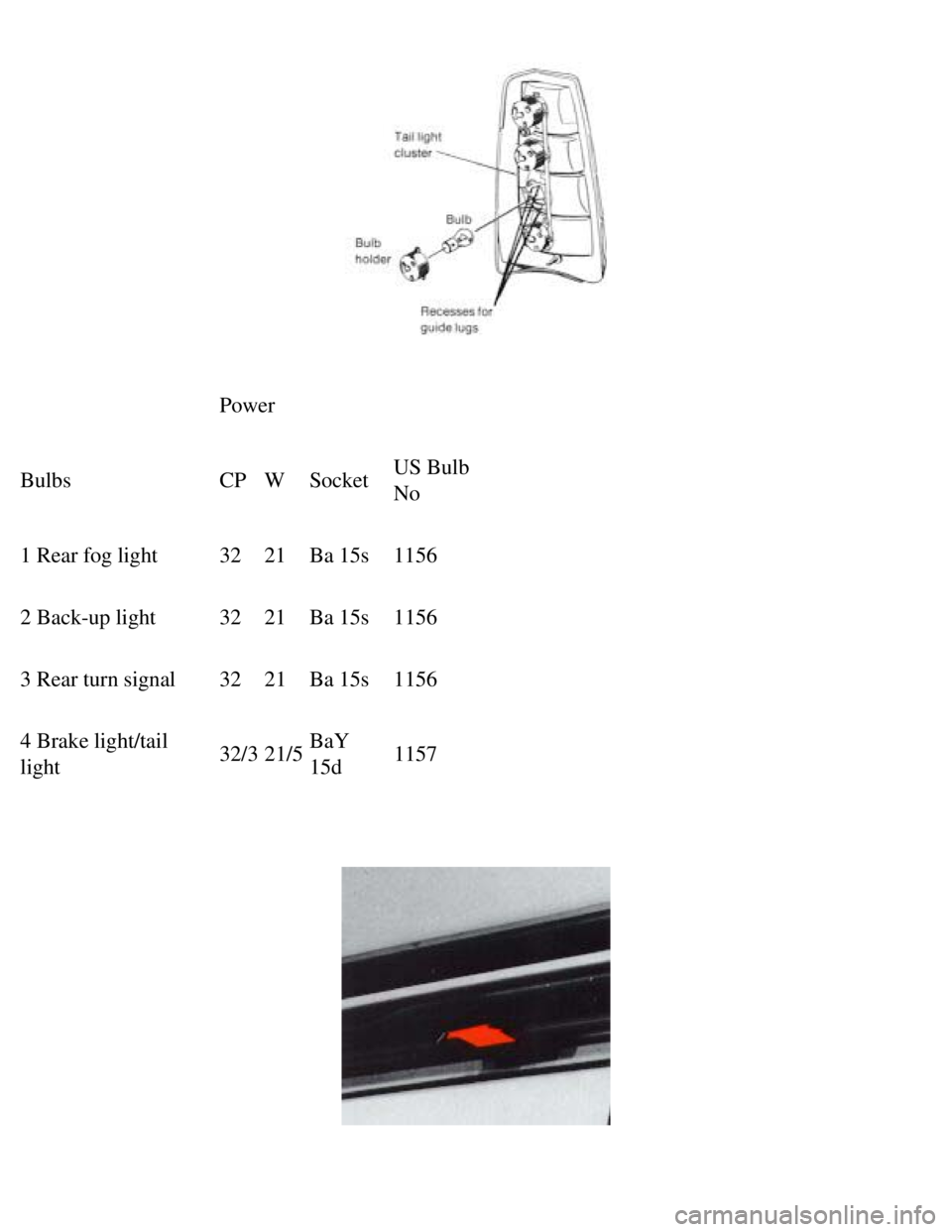

The procedure for changing a bulb is basically the same as for other mod\
els.
When re-installing, hold the bulb holder with the word "Volvo" turned to\
wards the center of the car.
file:///K|/ownersdocs/1990/1990_240/90240_16.htm (4 of 10)12/30/2006 8\
:25:10 AM

Volvo 1990 240 Model

Power
Bulbs CP W Socket US Bulb
No
1 Rear fog light 32 21 Ba 15s 1156
2 Back-up light 32 21 Ba 15s 1156
3 Rear turn signal 32 21 Ba 15s 1156
4 Brake light/tail
light 32/3
21/5 BaY
15d 1157


file:///K|/ownersdocs/1990/1990_240/90240_16.htm (5 of 10)12/30/2006 8\
