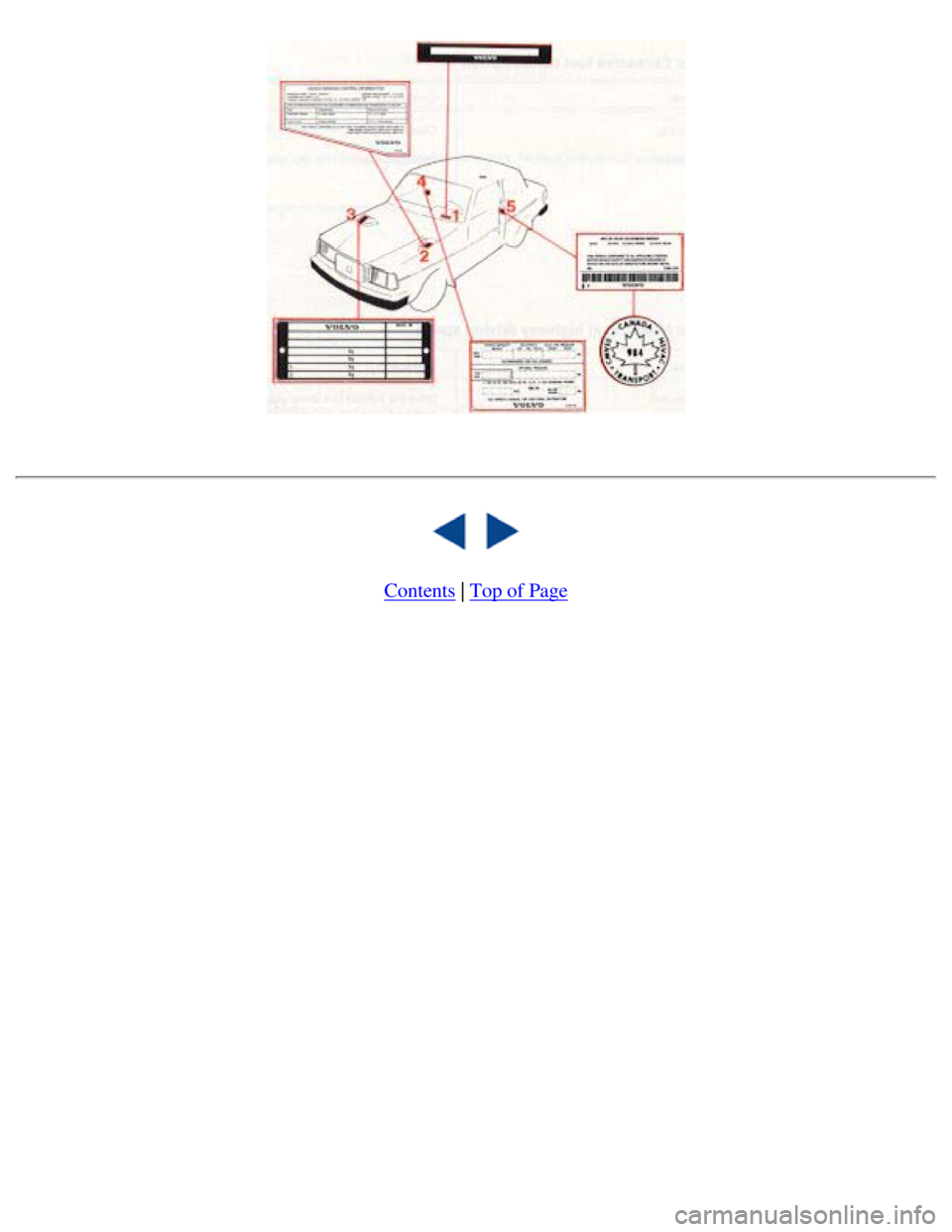

Volvo 1990 240 Model
pg. 97 Specifications
98Dimensions and weights
98Cargo space
99Engine
100Cooling system
100Fuel system
100Ignition system
101Power transmission
101Front suspension
102Capacities
102Electrical system
pg. 98 Specifications
Dimensions and weights Sedan models Wagon models
Length 189.9" (482 cm) 190.7" (484 cm)
Width 67.3" (171 cm) 67.3" (171 cm)
Height, curb weight 56.3" (143 cm) 57.5" (146 cm)
Wheelbase 104.3" (265 cm) 104.3" (265 cm)
Ground clearance (full load) 4.7" (12 cm) 4.7" (12 cm)
Track, front
rear 56.3" (143 cm)
53.5"(136cm) 56.3" (143 cm)
53.5" (136cm)
file:///K|/ownersdocs/1990/1990_240/90240_20.htm (1 of 14)12/30/2006 8\
:25:15 AM

Volvo 1990 240 Model
Turning circle (between curbs) 32.2' (9.8 m) 32.2' (9.8 m)
Curb weight (depending on type) 2934-3009 lbs (1331-1365
kg) 3073-3115 lbs (1394-1413
kg)
Gross vehicle weight (GVW) 4030 lbs (1830 kg) 4300 lbs (1950 kg)
Capacity weight 948 lbs (430 kg) 1080 lbs (490 kg)
Permissible axle weight, front
rear 1885 lbs (855 kg)
2180 lbs (990 kg) 1885 lbs (855 kg)
2600 lbs (1180 kg)
Max. trailer weight (trailer equipped
with service brakes) 3300 lbs (1500 kg)
3300 lbs (1500 kg)
Max. hitch load 200 lbs (90 kg) 200 lbs (90 kg)
Cargo Space Wagon models
Length with rear seat up 44.5" (113 cm)
Length with rear seat down 74.0" (188 cm)
Maximum width 53.1" (135 cm)
Height 32.9" (84 cm)
Volume with rear seat up 41 cu. ft. (1.2 m3)
Volume with rear seat down 76 cu. ft. (2.151
m3)
file:///K|/ownersdocs/1990/1990_240/90240_20.htm (2 of 14)12/30/2006 8\
:25:15 AM

Volvo 1990 240 Model
Cargo opening, maximum width 45.7" (116 cm)
Cargo opening, maximum
height 30.7" (78 cm)
WARNING: When adding accessories, equipment, luggage and other cargo to \
your vehicle, the total
loaded weight capacity of the vehicle must not be exceeded. Consult your\
dealer for information.
Dimensions and weights for Canadian models
4 door Wagon
Length 482 cm 484 cm
Curb weight (depending on
type) 1306-1321
kg 1373- 1388
kg
Gross vehicle weight 1830 kg 1950 kg
Capacity weight 440 kg 540 kg
Permissible axle weight, front
rear 855 kg
990 kg 855 kg
1180 kg
pg. 99 Specifications
Engine B230F (2.3 liters; 141 cu. in.)

Liquid-cooled, gasoline, 4-cylinder in-line engine. Cast-iron cylinder b\
lock with cylinders bored directly
in block. Aluminum-alloy cylinder head with single overhead camshaft and\
separate intake and outlet
channels. Engine lubrication is provided by a gear pump driven from the \
crankshaft. Full-flow type oil
file:///K|/ownersdocs/1990/1990_240/90240_20.htm (3 of 14)12/30/2006 8\
:25:15 AM

Volvo 1990 240 Model
filter. Exhaust-emission control accomplished by fuel injection, Lambda-\
sond system and catalytic
converter.
Output (SAE J1349) 114 hp at 5400 rpm (85 kW at 90 rps)
Max. torque (SAE J1349) 136 ft. lbs. (185 Nm) at 2700 rpm
Number of cylinders 4
Bore 3.78" (96 mm)
Stroke 3.15" (80 mm)
Displacement 2.32 liters (141 cu. in.)
Compression ratio 9.8:1
Valve clearance, cold engine
inlet and exhaust Checking:
0.012-0.016"
(0.30-0.40 mm) Adjusting:
0.014-0.016"
(0.35-0.40 mm)
Valve clearance, warm
engine
inlet and exhaust 0.014-0.018"
(0.35-0.45 mm)
0.016-0.018"
(0.40-0.45 mm)

All specifications are subject to change without notice. pg. 100 Specifications
Engine B230F

Cooling System
file:///K|/ownersdocs/1990/1990_240/90240_20.htm (4 of 14)12/30/2006 8\
:25:15 AM

Volvo 1990 240 Model

Type Positive pressure, closed system
Thermostat begins to open at 188.6 ° F
Fan belts, designation HC-38 x 918 (two)

Coolant: Volvo Coolant type C (blue-green)

Fuel system

The engine is equipped with an electronic fuel injection system.

Ignition System

Firing order 1-3-4-2
Ignition setting (12 ° B.T.D.C. at 750 rpm)
Spark plugs Bosch WR7DC (or equivalent)
Spark plug gap 0.028-0.032" (0.7-0.8 mm)
Tightening torque 15-22 ft. lbs. (20-30 Nm)
Distributor, direction of rotation Clockwise pg. 101 Specifications
POWER TRANSMISSION

Manual or automatic transmission. Hypoid type final drive.

Manual transmission M47 II
Reduction ratios:
1st gear 4.03:1
2nd gear 2.16:1
3rd gear 1.37:1 Rear axle reduction ratio:
4th gear 1.00:1 3.31:1
5th gear 0.82:1
Reverse 3.68:1
file:///K|/ownersdocs/1990/1990_240/90240_20.htm (5 of 14)12/30/2006 8\
:25:15 AM

Volvo 1990 240 Model

Automatic transmission AW70
Reduction ratios:
1st gear 2.45:1
2nd gear 2.45:1 Rear axle reduction ratio:
3rd gear 2.45:1 3.73:1
Overdrive 0.69:1
Reverse 2.22:1
Vehicle speed/1000 engine rpm (manual transmission)

Rear axle ratio 3.31:1
mph km/h
1st gear 5.4 8.7
2nd gear 10.0 16.2
3rd gear 15.8 25.5
4th gear 21.7 34.9
5th gear 26.4 42.5
Reverse 5.9 9.5

Front suspension

McPherson type spring and strut suspension. Shock absorbers housed in st\
rut casing. Rack and pinion
steering.
Safety-type steering column.
The alignment specifications apply to an unloaded car but include fuel, \
coolant and spare wheel.

Toe-in, measured on the wheel rim: 1/16" ± 3/64" (1.5 ± 1.0 mm) \

Camber (not to exceed 1/2 ° difference between sides):
- All +1/4° to + 3/4°
(Reduce camber if excessive wear on tire outer shoulder is observed) \
Caster: not adjustable pg. 102 Specifications
file:///K|/ownersdocs/1990/1990_240/90240_20.htm (6 of 14)12/30/2006 8\
:25:15 AM

Volvo 1990 240 Model
Capacities
Fuel tank 15.8 US
gals 60 liters
Cooling system
-manual transmission
-automatic transmission
-expansion tank
separately
9.9 US qts
9.7 US qts
0.7 US qts

9.4 liters
9.2 liters
0.6 liters
Engine:
-oil and filter change
-oil changed separately
4.0 US qts
3.5 US qts
3.85
liters
3.35
liters
Transmission:
-manual, M47 II
-automatic, AW70
1.6 US qts
7.8 US qts

1.5 liters
7.4 liters
Rear axle -1030
-1031 1.4 US qts
1.7 US qts 1.3 liters
1.6 liters
Power steering gear 0.8 US qts 0.75
liters
Windshield washer fluid 3.4 US qts 3.2 liters

ELECTRICAL SYSTEM

12 V, negative ground. Voltage-controlled alternator.
Single-wire system with chassis and engine used as conductors.

Voltage 12 V
