1989 MAZDA 323 Factory Repair Manual

TRUNK LID S
TRUNK LID
COMPONENTS
Removal / Installation
1. Disconnect the negative battery cable.
2. Remove in the order shown in the figure, referring to
Removal Note.
3. Install in the reverse order of removal, referrina to Installation Note.
m-kg, 69-95 in-lb)
1. Lid lock protector 6. High-mount stoplight (Interior mounted)
2. Trunk ooener cable Removal / Installation . . . . . . . . . . . . . . . . . . . . . Section T
3. Rear harness
4. Trunk lid
Adjustment Note . . . . . . . . . . . . . . . . . . . . . . . . . page S-34
5. Balance spring
Removal Note.. . . . . . . . . . . . . . . page S-34
Installation Note . .._. ._._.._.____...r..__ page S-34
Adjustment Note.. . . . . . . . . page S-34 7. Rear package trim
Removal / Installation . . . . . . . . . . . . . . . . . . page S-97
8. Lid hinge assembly
s-33

S TRUNK LID
03uosx-04’
HINGE (L.H.)
RIGHT SPRING -1
I
,i I
II
1
k
TRUNK LID
TRUNK LID
SEC.B--8
6 * 1.5 (0.31 * 0.06)
SECA-A mm (in)
03uosx-01

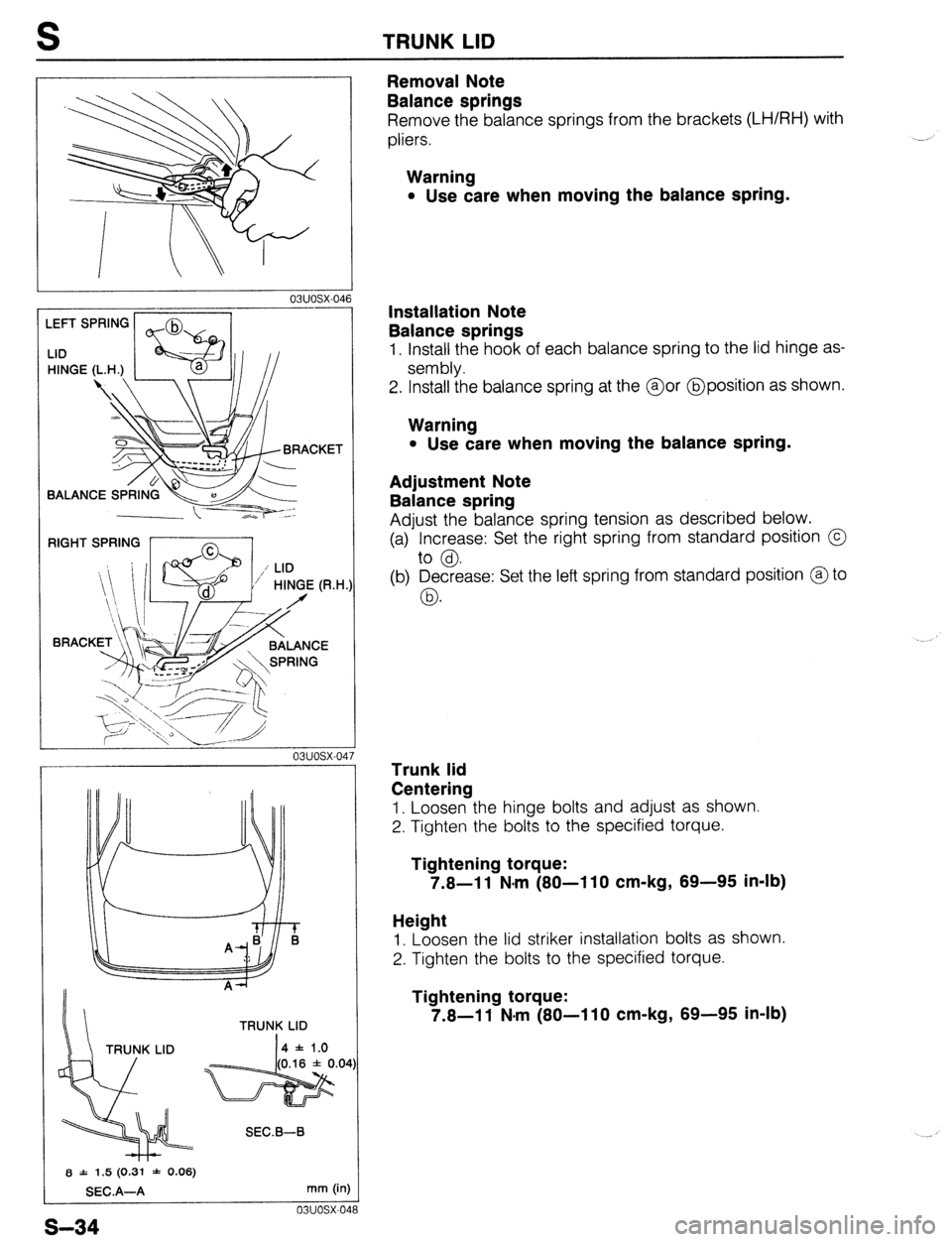

Removal Note
Balance springs
Remove the balance springs from the brackets (LH/RH) with
pliers.
Warning
l Use care when moving the balance spring.
Installation Note
Balance springs
1. Install the hook of each balance spring to the lid hinge as-
sembly.
2. Install the balance spring at the @or @position as shown.
Warning
l Use care when moving the balance spring.
Adjustment Note
Balance spring
Adjust the balance spring tension as described below.
(a) Increase: Set the right spring from standard position @
to @.
(b) Decrease: Set the left spring from standard position @to
03.
Trunk lid
Centering
1. Loosen the hinge bolts and adjust as shown.
2. Tighten the bolts to the specified torque.
Tightening torque:
7.8-l 1 N-m (80-l 10 cm-kg, 89-95 in-lb)
Height
1. Loosen the lid striker installation bolts as shown.
2. Tighten the bolts to the specified torque.
Tightening torque:
7.8-11 N-m (80-110 cm-kg, 89-95 in-lb)
s-34

TRUNK LID LOCK AND OPENER S
TRUNK LID LOCK AND OPENER

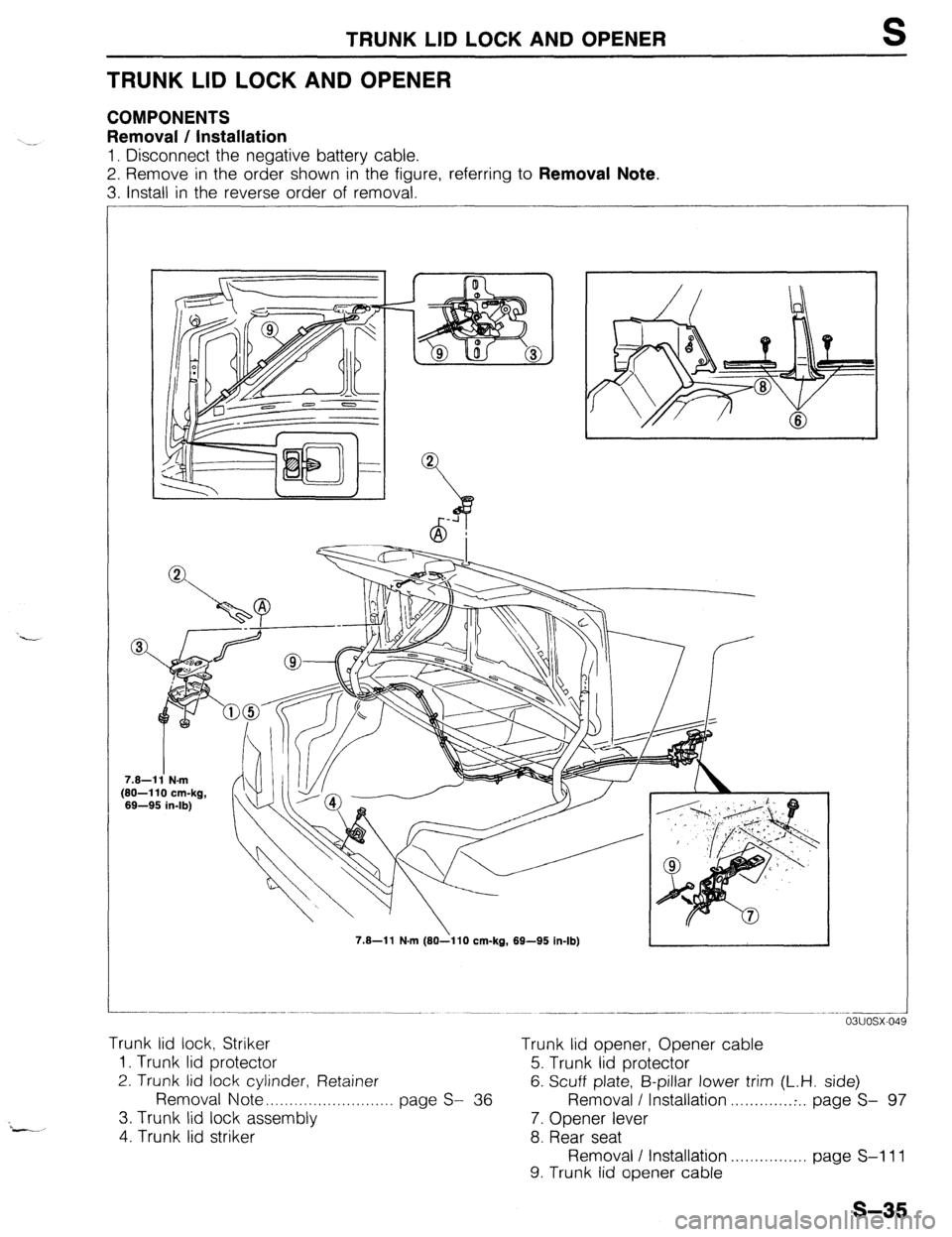

COMPONENTS
-_ Removal / Installation
1. Disconnect the negative battery cable.
2. Remove in the order shown in the figure, referring to Removal Note.
3. Install in the reverse order of removal.
-.
*--
7.8-11 N-m
(60-110 cm-kg,
69-95 in-lb)
7.6-l 1 N.m (80-l 10 cm-kg, 69-95 in-lb)
03uosx-04
Trunk lid lock, Striker
Trunk lid opener, Opener cable
1. Trunk lid protector
5. Trunk lid protector
2. Trunk lid lock cylinder, Retainer
6. Scuff plate, B-pillar lower trim (L.H. side)
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . page S-
36
Removal I Installation . . . . . . . :.. page S-
97
3. Trunk lid lock assembly
7. Opener lever
4. Trunk lid striker
8. Rear seat
Removal / Installation . . . . . . . . . . . . . . . . page S-l 11
9. Trunk lid opener cable
s-35

S TRUNK LID LOCK AND OPENER

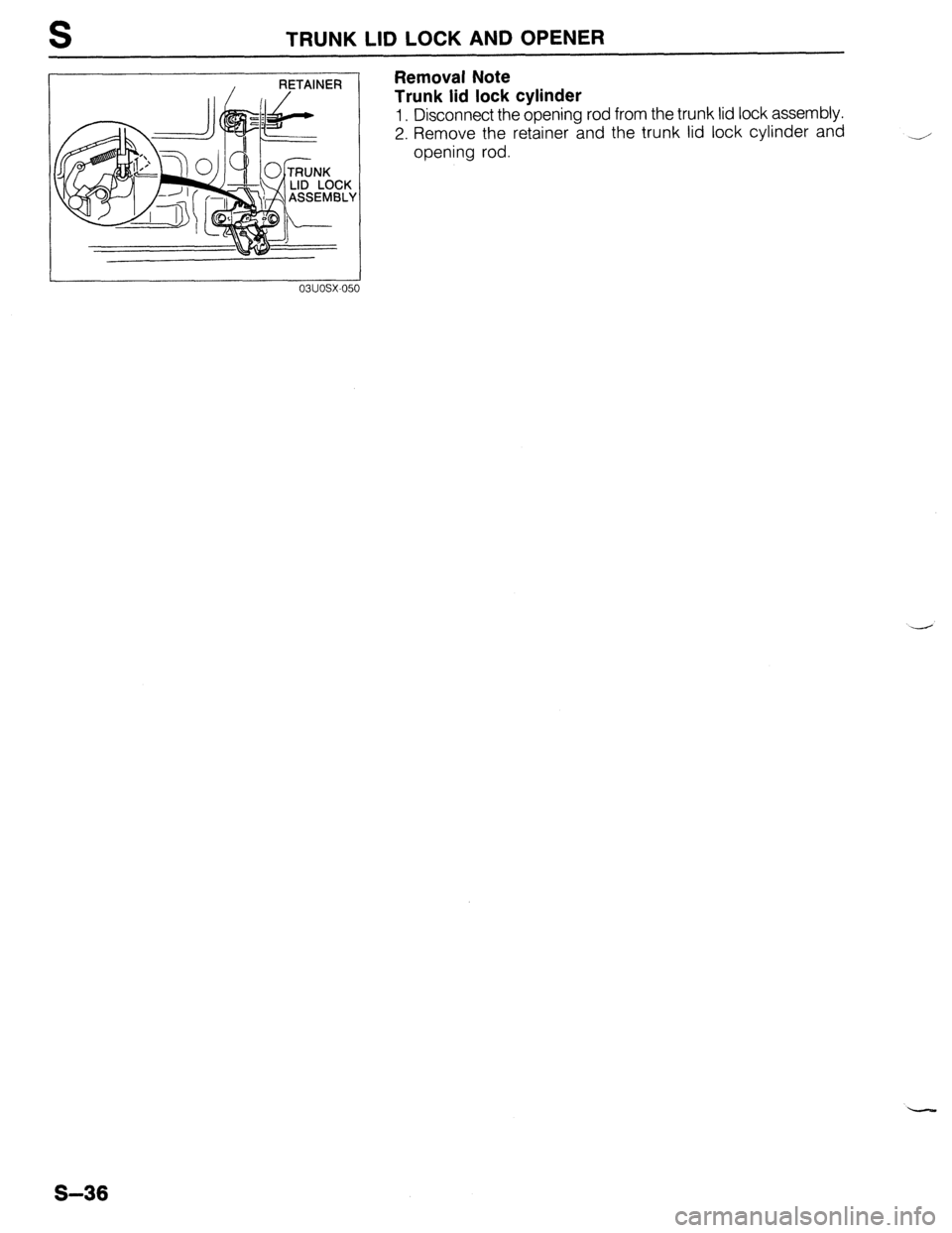

Removal Note
Trunk lid lock cylinder
1. Disconnect the opening rod from the trunk lid lock assembly.
2. Remove the retainer and the trunk lid lock cylinder and
-/
opening rod.
S-36

FUEL FILLER LID AND OPENER s
FUEL FILLER LID AND OPENER

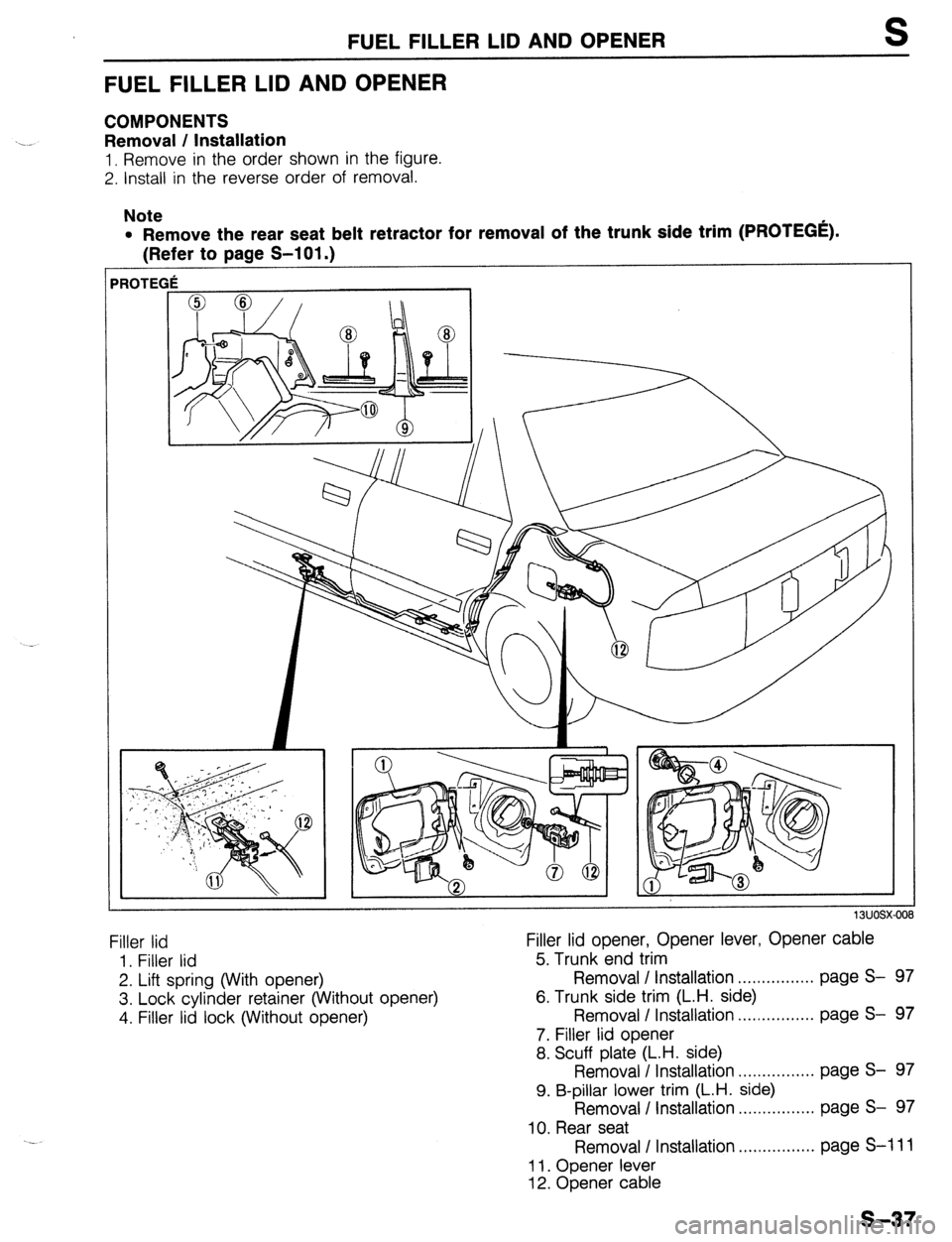

COMPONENTS
Removal / Installation
1, Remove in the order shown in the figure.
2. Install in the reverse order of removal.
Note
l Remove the rear seat belt retractor for removal of the trunk side trim (PROTEGe).
(Refer to page S-101 .)
Filler lid Filler lid opener, Opener lever, Opener cable
1 . Filler lid 5. Trunk end trim
2.
3.
4. Lift spring (With opener) Removal / Installation . . . . . . . . . . . . . . . . page S- 97
Lock cylinder retainer (Without opener) 6. Trunk side trim (L.H. side)
Filler lid lock (Without opener) Removal I Installation . . . . . . . . . . . . . . . . page S- 97
7. Filler lid opener
8. Scuff plate (L.H. side)
Removal / Installation . . . . . . . . . . . . . . . . page S- 97
9. B-pillar lower trim (L.H. side)
Removal / Installation . . . . . . . . . . . . . . . . page S- 97
10. Rear seat
Removal I Installation .,.............. page S-l 11
11. Opener lever
12. Opener cable
s-37

S FUEL FILLER LID AND OPENER

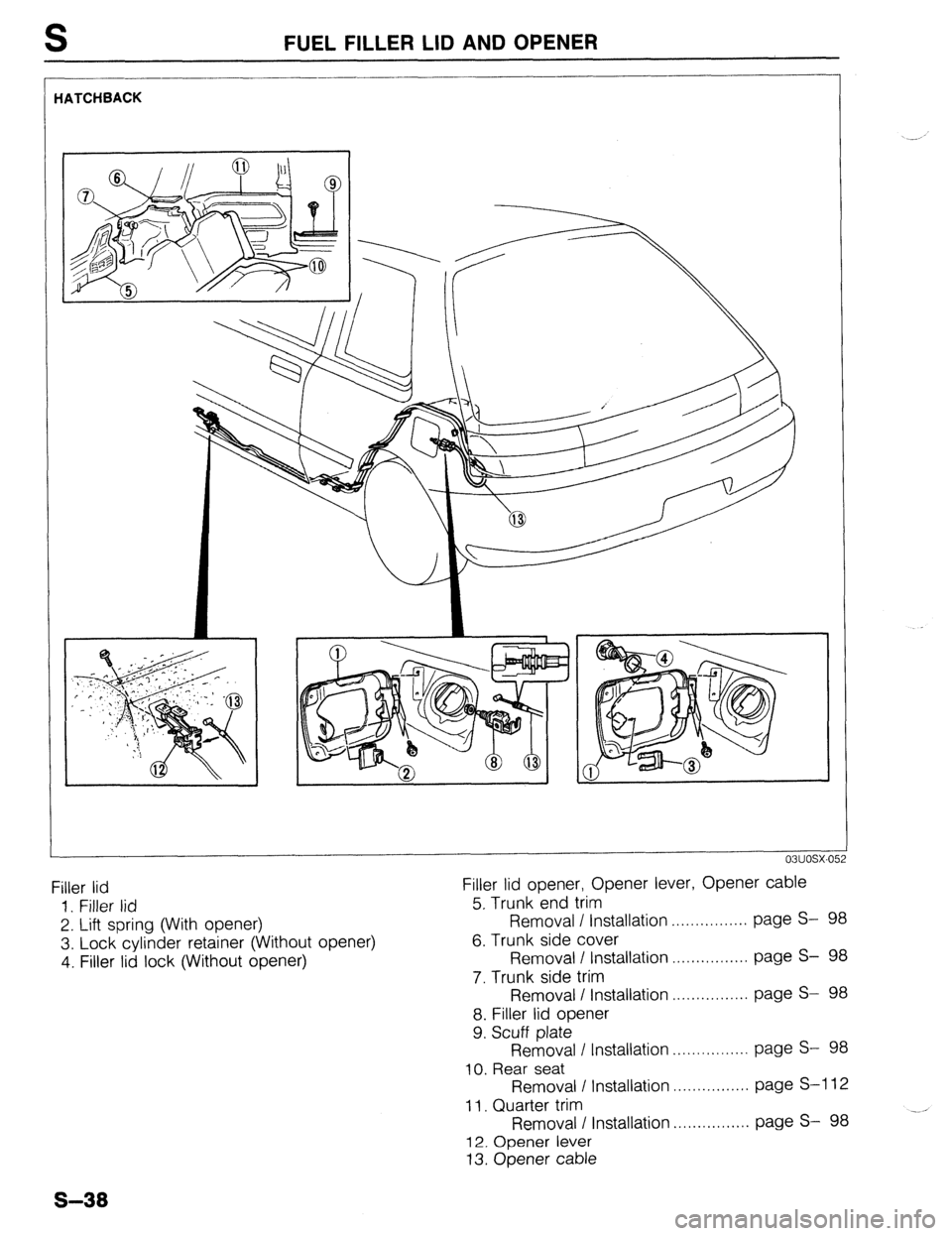

-iATCHBACK
Filler lid
1 Filler lid
2. Lift spring (With opener)
3. Lock cylinder retainer (Without opener)
4. Filler lid lock (Without opener) Filler lid opener, Opener lever, Opener cable
5. Trunk end trim
Removal / Installation . . . . . . . . . . . . . . . . page S- 98
6. Trunk side cover
Removal I Installation . . . . . . . . . . . . . . . . page S- 98
7. Trunk side trim
Removal I Installation . . . . . . . . . . . . . . . . page S- 98
8. Filler lid opener
9. Scuff plate
Removal I Installation . . . . . . . . . . . . . . . . page S- 98
10. Rear seat
Removal I Installation . . . . . . . . . . . . . . . . page S-l 12
11. Quarter trim
Removal / Installation . . . . . . . . . . . . . . . . page S- 98
12. Opener lever
13. Opener cable
S-38

FRONT BUMPER S
FRONT BUMPER
COMPONENTS
Removal / Installation
1. Disconnect the negative battery cable.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.
16-23 (1.6-2.3, 12-17
6.9-9.6 N.m (70-100 cc-kg,
61-67 in-lb) 16-23 (1.6-2.3, 12-17) /
6.9-9.6 N.m (70-100 cm-kg, 61-67 in-lb)
N.m (m-kg, Mb)
1. Front combination light
Removal / Installation . . . . . . . . . . . . . . . . . . . . . Section
T
2. Radiator grille
Removal I Installation . . . . . . . . . . . . . . . . . . page S-51
3. Headlight and lower grille molding
Removal / Installation . . . . . . . . . . . . . . . . . . . . . Section
T
4. Front bumper assembly
a. Front bumper reinforcement and bracket
b. Energy absorbing foam
c. Front bumper facia
5. License plate holder
6. Front bumper bracket
s-39

REAR BUMPER
REAR BUMPER
COMPONENTS
Removal / Installation
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
16- -23 (1.6-2.3, 12-17)
16-23 (1.6-2.3, 12-17)
1 HATCHBACK
A
1’ : PROTEG&
N.m (m-kg, ft-lb)
13uosx-01
1. Trunk end trim 5. Rear bumper assembly
Removal / Installation . . . . . . . . . .
pa
2. Bumper bracket cover (PROTEG ii es S-97, 98 a. Rear bumper retainer
) b. Rear bumper reinforcement
3. Rear reflector light c. Energy absorbing foam
4. Licence plate light (Hatchback) d. License plate light harness (Hatchback)
e. License plate light holder (Hatchback)
f. Rear bumper facia
6. Rear flap
s-40
