WARNING LIGHT AND SENDER 1 5

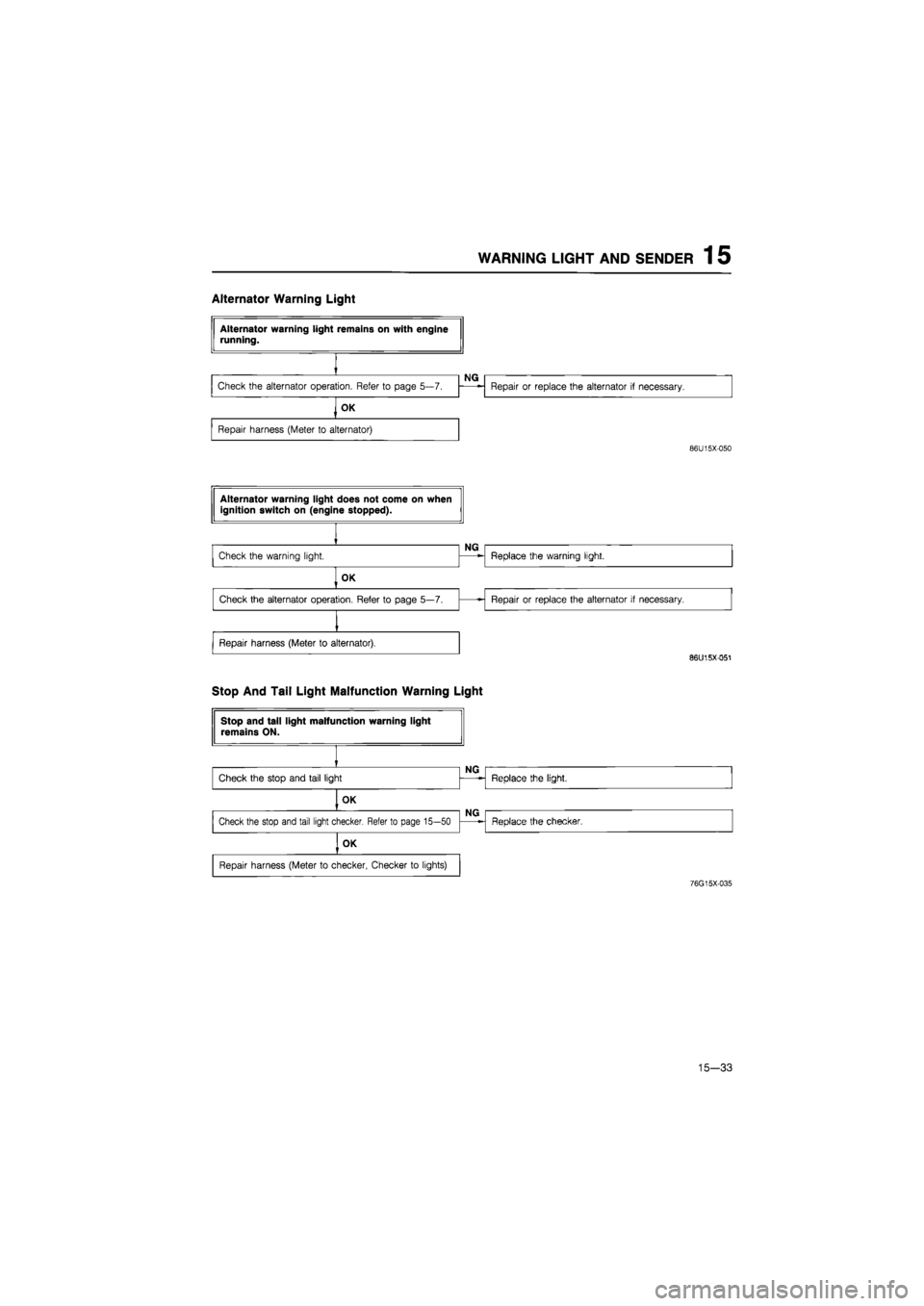

Alternator Warning Light
86U15X-050
S6U15X-051
Stop And Tail Light Malfunction Warning Light
76G15X-035
15-33

1 5 WARNING LIGHT AND SENDER
76G15X-036

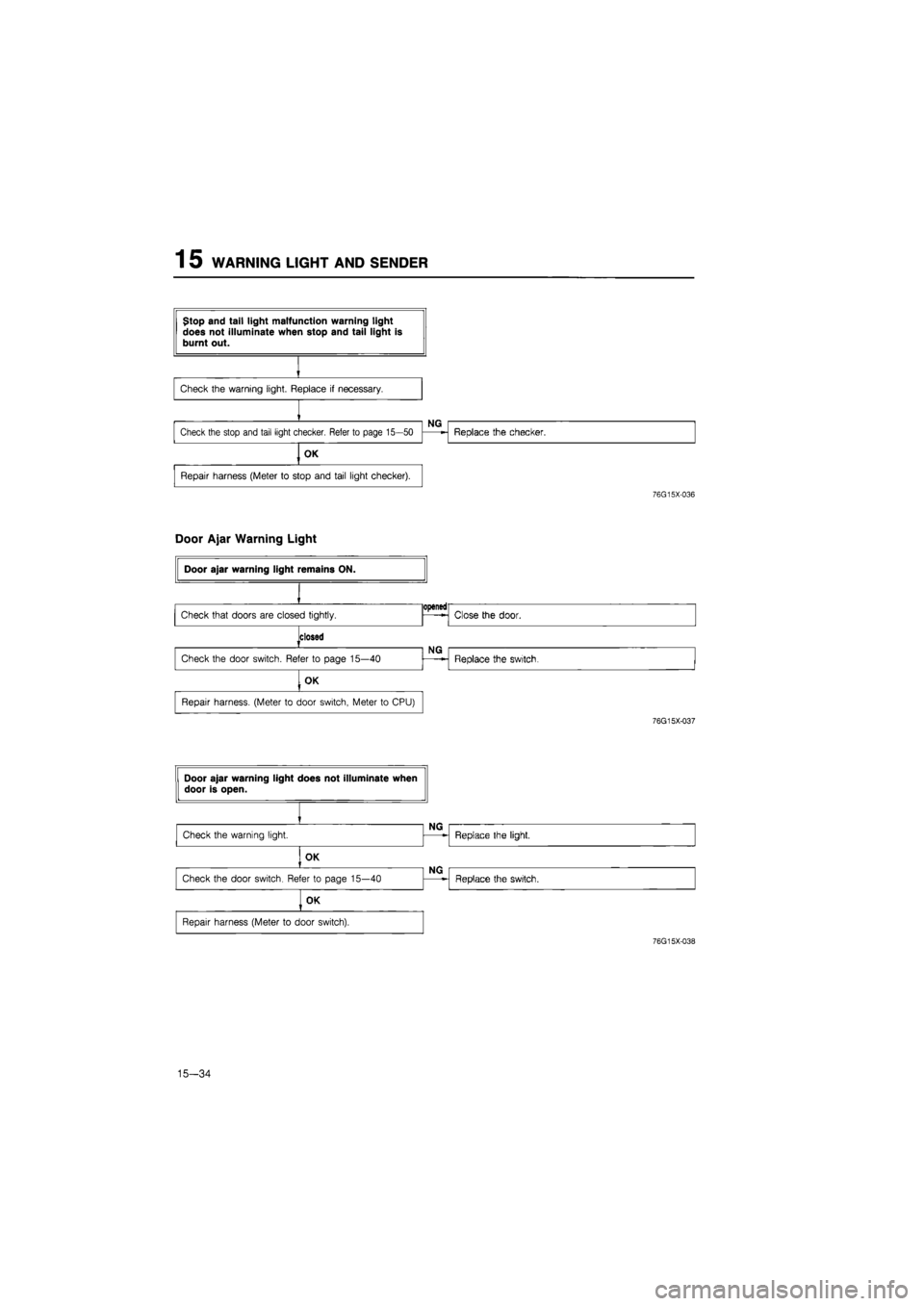

Door Ajar Warning Light
Door ajar warning light remains ON.
opened
Check that doors are closed tightly.
opened
Close the door.

closed
NG
Check the door switch. Refer
to
page 15—40
NG
Replace the switch.

OK

Repair harness. (Meter
to
door switch, Meter
to
CPU)

76G15X-037
76G15X-038
15—34

WARNING LIGHT AND SENDER 1 5

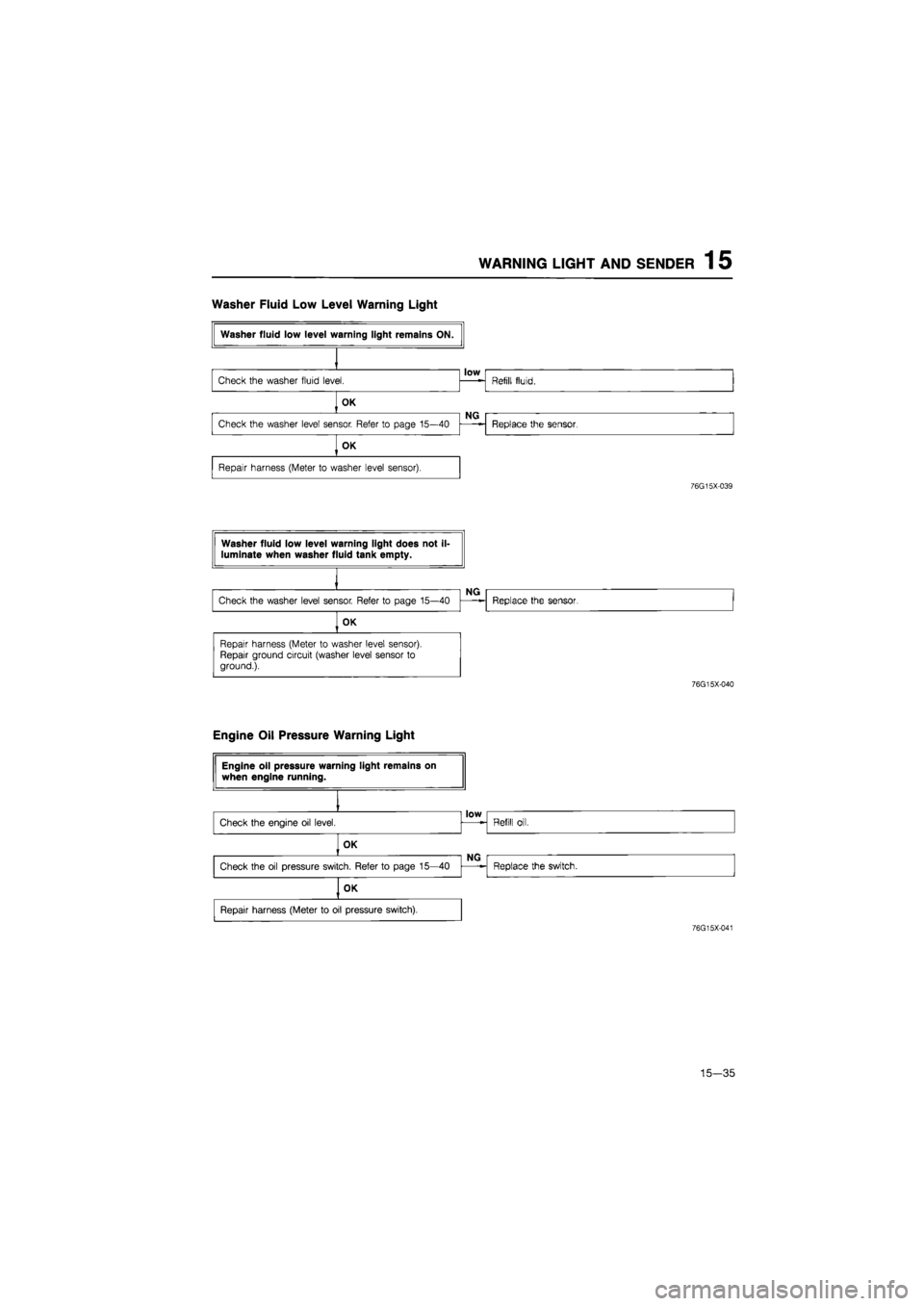

Washer Fluid Low Level Warning Light
76G15X-039
76G15X-040
Engine Oil Pressure Warning Light
76G15X-041
15—35

1 5 WARNING LIGHT AND SENDER
76G15X-042

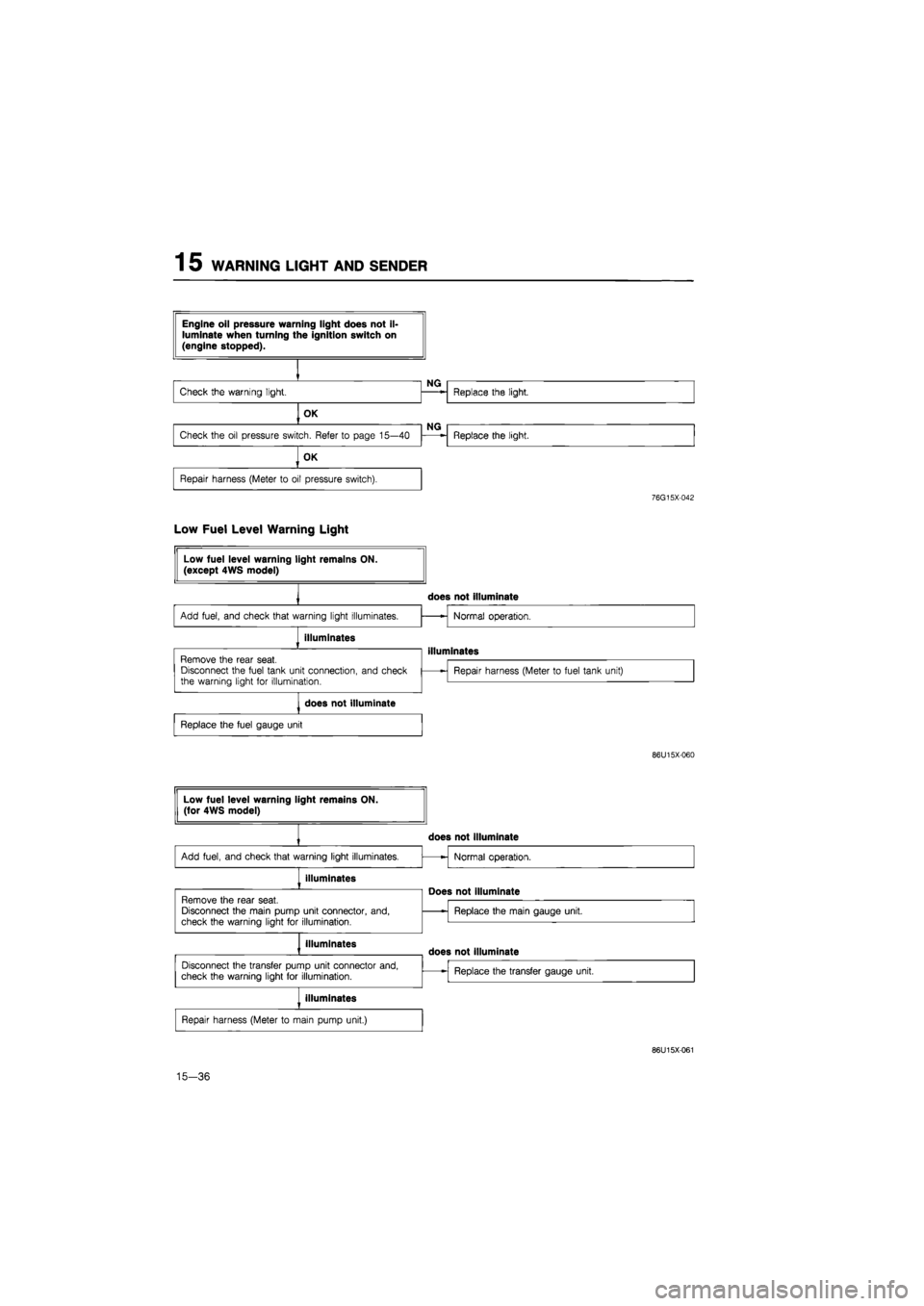

Low Fuel Level Warning Light
does not illuminate

Replace the fuel gauge unit

86U15X-060
86U15X-061
15-36

WARNING LIGHT AND SENDER 1 5
76G15X-090

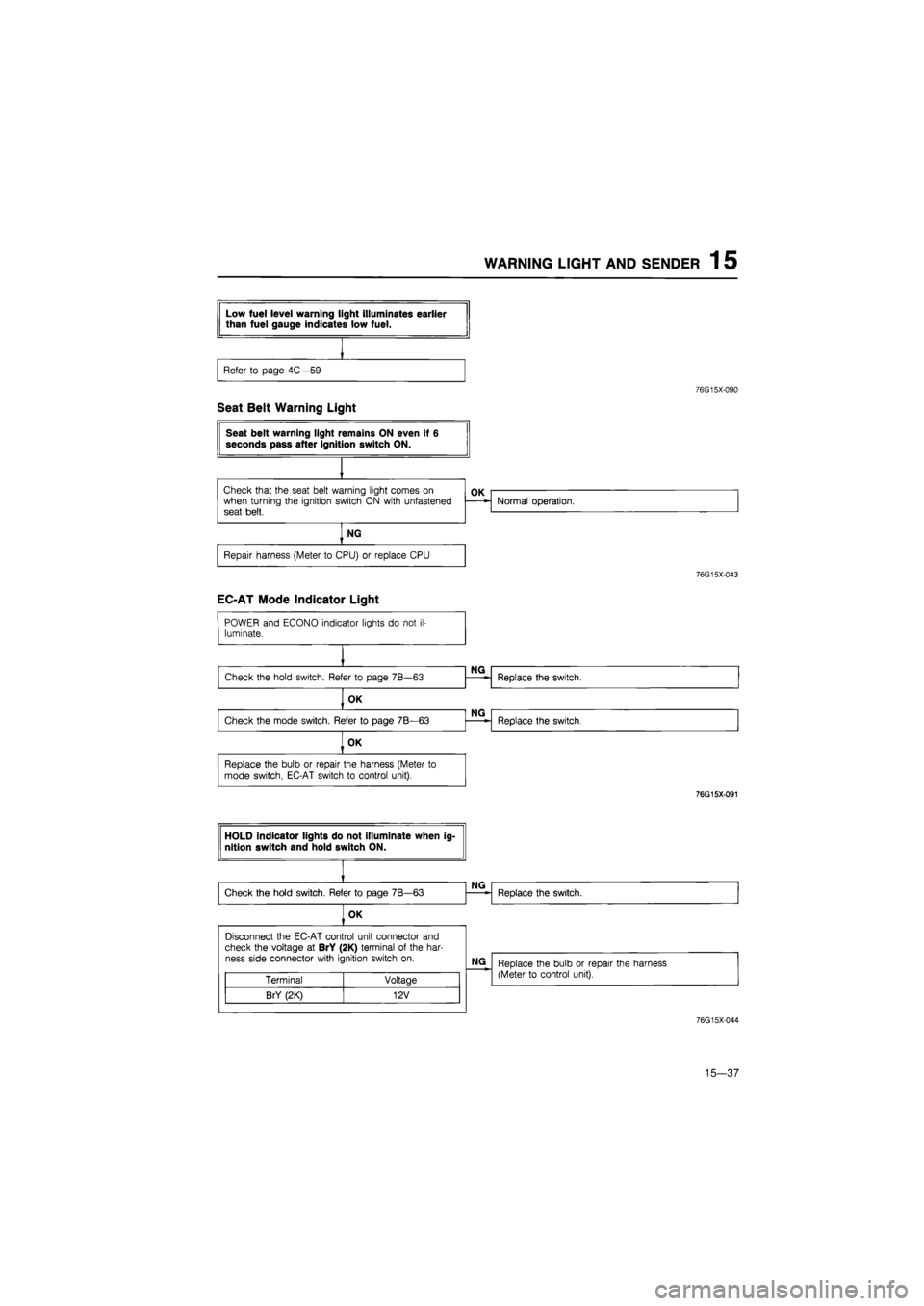

Seat Belt Warning Light
76G15X-043
EC-AT Mode Indicator Light

POWER and ECONO indicator lights
do
not
il-
luminate.

NG
Check the hold switch. Refer
to
page 7B—63
NG
Replace the switch.

OK
NG
Check the mode switch. Refer
to
page 7B—63
NG
Replace the switch.

fOK

Replace the bulb
or
repair the harness (Meter
to
mode switch, EC-AT switch
to
control unit).

76G15X-091
76G15X-044
15—37

1 5 WARNING AND SENDER
Shift Indicator Light
All shift indicator lights do not Illuminate when ignition switch on. (other warning light are all right.)

Check the voltage
at BY
terminal
of
the inhibitor switch connector with ignition switch
on.

Terminal Voltage
BY 12V

NG
Repair the harness (Fuse box
to
inhibitor switch).

OK

Check the inhibitor switch. Refer
to
page 7B—65
NG
Replace the inhibitor switch. Check the inhibitor switch. Refer
to
page 7B—65 Replace the inhibitor switch.

OK
NG
Check the bulbs
of
the shift indicator lights.
NG
Replace the bulb.

OK

Turn the ignition switch on, and check the voltage
at
each terminal
of
the meter connector with each con-dition.
Terminal Selector lever Voltage
YL (2J) P 12V
RG (1L) R 12V
YR (2L) N 12V
Y(1V) D 12V
YB (1S) 2 12V
YW (1M) 1 12V

NG
Repair the harness (Inhibitor switch
to
meter).

76G15X-087
O/D OFF Indicator Light
OK

Repair the harness (O/D OFF switch
to
ground).

76G15X092
15-38

WARNING AND SENDER 15
Coolant Level Warning Light
OK

Repair harness (Meter
to
coolant level sensor).

76G15X093
INSPECTION
Brake Fluid Level Sensor
1. Check for continuity of the sensor with an
ohmmeter.

Float level Continuity
Below
min
Yes
Above
min
No

2. If continuity is not as specified, replace the sensor.
86U15X-065
86U14X-066
Parking Brake Switch
1. Check for continuity between (R) terminal and a
body ground with an ohmmeter.

Lever Continuity
Pulled one notch Yes
Released No

2. If continuity is not as specified, adjust the switch
or replace the switch.
15—39

15 WARNING AND SENDER
86U15X-068
86U15X069
86U15X-070
Door Switch
1. Check for continuity of the switch with an
ohmmeter.
2. If continuity is not as specified, replace the switch.
Washer Level Sensor
1. Check for continuity between C (LY) terminal and
D (B) terminal of the washer level sensor con-
nector.
Oil Pressure Switch
1. Disconnect the connector from the oil pressure
switch.
2. Check for continuity between the switch and a
body ground with each condition.
Coolant Level Sensor
1. Remove the level sensor and connect the con-
nector.
2. With the sensor not grounded to the body, start
the engine.
3. After checking that the warning light illuminates,
ground the threaded part of the sensor.
4. If the warning light remains illuminated, the sen-
sor is faulty and replace it.
73G15X-013
15—40

Engine Continuity
Running Yes
Stop No
Terminals Float level Continuity
C (LY)—D
(B)
Bottom Yes C (LY)—D
(B)
Above bottom No

2. If continuity is not as specified, replace the sensor.
