IN0JF-01
BO4111
Negative Cable
IN-10
- INTRODUCTIONFOR ALL OF VEHICLES
10 Author: Date:
2004 LAND CRUISER (RM1071U)
FOR ALL OF VEHICLES
PRECAUTION
1. FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND
SEAT BELT PRETENSIONER
(a) The LAND CRUISER is equipped with an SRS (Supple-
mental Restraint System), such as the driver airbag, front
passenger airbag assembly and seat belt pretensioner.
Failure to carry out service operations in the correct se-
quence could cause the supplemental restraint system to
unexpectedly deploy during servicing, possibly leading to
a serious accident.
Further, if a mistake is made in servicing the supplemental
restraint system, it is possible the SRS may fail to operate
when required. Before servicing (including removal or
installation of parts, inspection or replacement), be sure
to read the following items carefully, then follow the cor-
rect procedure described in this manual.
(b) GENERAL NOTICE
(1) Malfunction symptoms of the supplemental re-
straint system are difficult to confirm, so the diag-
nostic trouble codes become the most important
source of information when troubleshooting. When
troubleshooting the supplemental restraint system,
always inspect the diagnostic trouble codes before
disconnecting the battery (See page DI-692).
(2) Work must be started after 90 seconds from the
time the ignition switch is turned to the ºLOCKº posi-
tion and the negative (-) terminal cable is discon-
nected from the battery.
(The supplemental restraint system is equipped
with a back-up power source so that if work is
started within 90 seconds of disconnecting the neg-
ative (-) terminal cable from the battery, the SRS
may deploy.)
When the negative (-) terminal cable is discon-
nected from the battery, memory of the clock and
audio systems will be cancelled. So before starting
work, make a record of the contents memorized by
the each memory system. Then when work is fin-
ished, reset the clock and audio systems as before.
To avoid erasing the memory of each memory sys-
tem, never use a back-up power supply from anoth-
er battery.
RS0B6-06
- SUPPLEMENTAL RESTRAINT SYSTEMSRS AIRBAG
RS-1
2276 Author: Date:
2004 LAND CRUISER (RM1071U)
SRS AIRBAG
PRECAUTION
CAUTION:
The LAND CRUISER is equipped with SRS, which comprises a driver airbag, front passenger
airbag, side airbag and curtain shield airbag. Failure to carry out service operations in the cor-
rect sequence could cause the SRS to unexpectedly deploy during servicing, possibly leading
to a serious accident. Further, if a mistake is made in servicing the SRS, it is possible that the
SRS may fail to operate when required. Before performing servicing (including removal or
installation of parts, inspection or replacement), be sure to read the following items carefully,
then follow the correct procedures described in the repair manual.
Work must be started 90 seconds after the ignition switch is turned to the ºLOCKº position and
the negative (-) terminal cable is disconnected from the battery.
(The SRS is equipped with a back-up power source so that if work is started within 90 seconds
from disconnecting the negative (-) terminal cable of the battery, the SRS may be deployed.)
Do not expose the steering wheel pad, front passenger airbag assembly, side airbag assembly,
curtain shield airbag assembly, airbag sensor assembly, front airbag sensor, side and curtain
shield airbag sensor assembly, curtain shield airbag sensor assembly or seat position sensor
assembly directly to hot air or flames.
NOTICE:
Malfunction symptoms of the SRS are difficult to confirm, so the DTCs become the most impor-
tant source of information when troubleshooting. When troubleshooting the SRS, always in-
spect the DTCs before disconnecting the battery.
Even in the case of a minor collision where the SRS does not deploy, the steering wheel pad,
front passenger airbag assembly, side airbag assembly, curtain shield airbag assembly, airbag
sensor assembly, front airbag sensor, side and curtain shield airbag sensor assembly, curtain
shield airbag sensor assembly and seat position sensor assembly should be inspected (See
page RS-18, RS-32, RS-47, RS-60, RS-71, RS-76, RS-81, RS-87 and RS-92).
Before repairs, remove the airbag sensor if shocks are likely to be applied to the sensor during
repairs.
Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
Never disassemble and repair the steering wheel pad, front passenger airbag assembly, side
airbag assembly, curtain shield airbag assembly, airbag sensor assembly, front airbag sensor,
side and curtain shield airbag sensor assembly, curtain shield airbag sensor assembly or seat
position sensor assembly in order to reuse it.
If the steering wheel pad, front passenger airbag assembly, side airbag assembly, curtain
shield airbag assembly, airbag sensor assembly, front airbag sensor, side and curtain shield
airbag sensor assembly, curtain shield airbag sensor assembly or seat position sensor assem-
bly has been dropped, or if there are cracks, dents or other defects in the case, bracket or con-
nector, replace it with new one.
Use a volt/ohmmeter with high impedance (10 kW/V minimum) for troubleshooting the system's
electrical circuits.
Information labels are attached to the periphery of the SRS components. Follow the instruc-
tions on the notice.
After work on the SRS is completed, perform the SRS warning light check (See page DI-692).

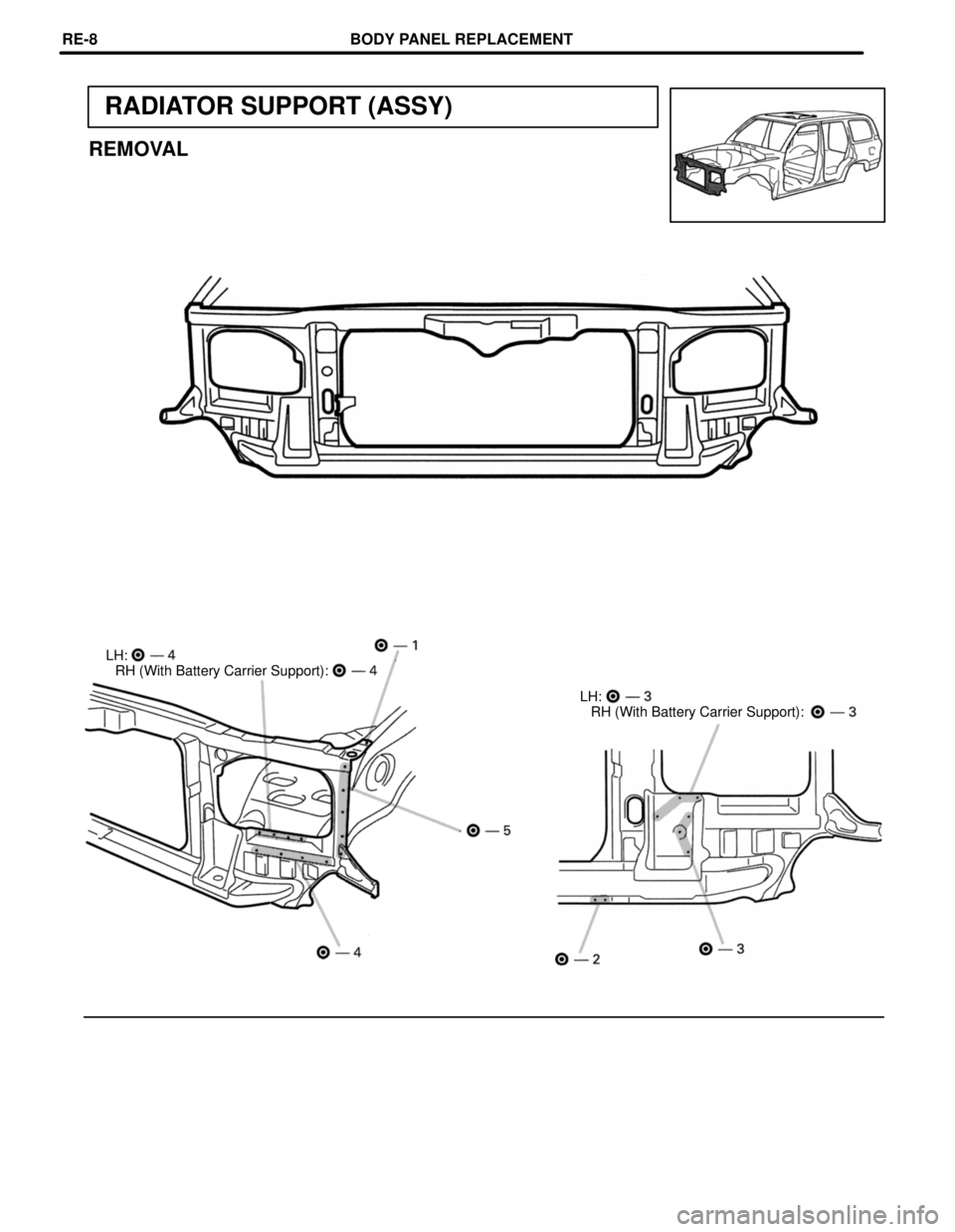

![TOYOTA LAND CRUISER 1986 Factory Repair Manual INSTALLATION
