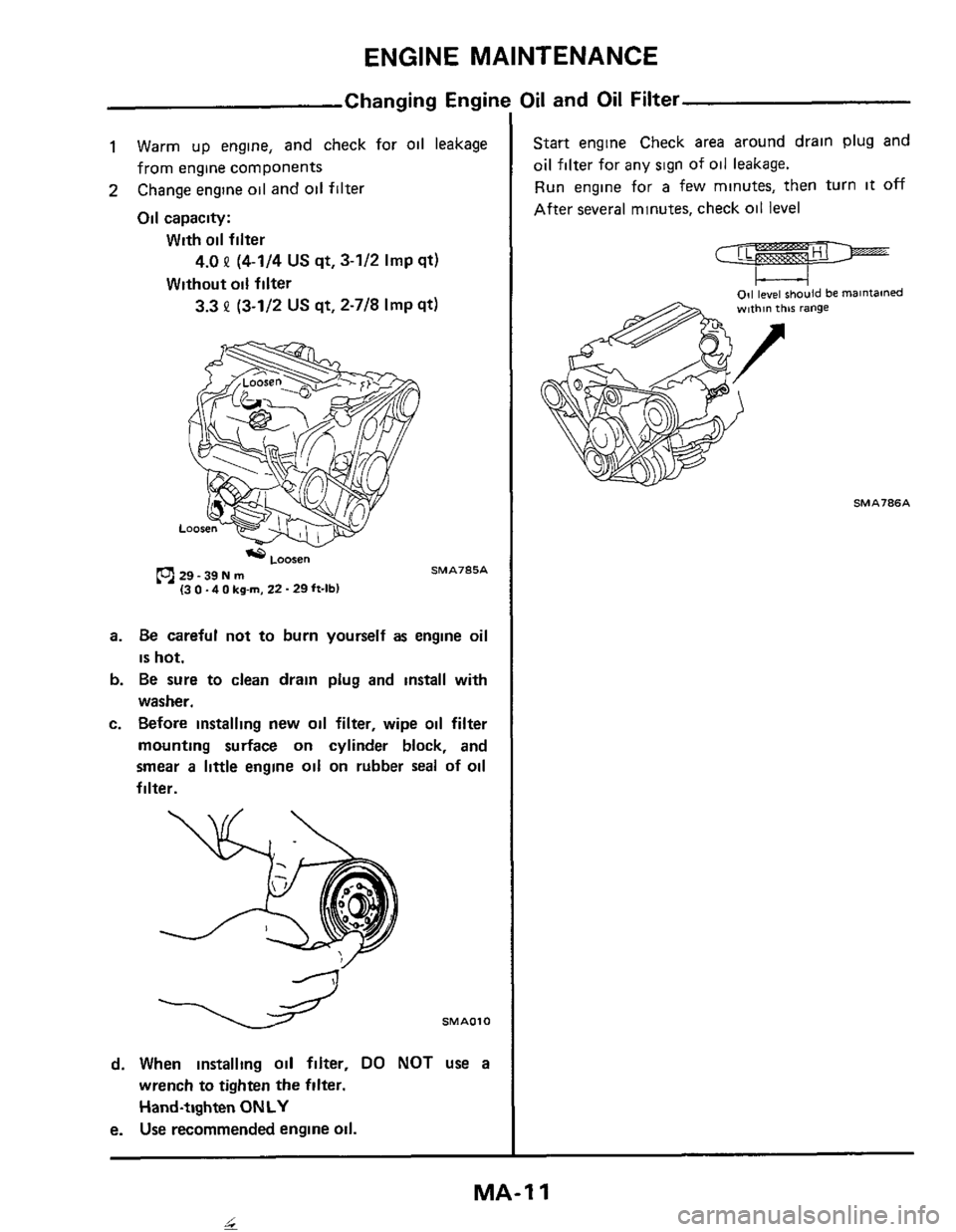

ENGINE MAINTENANCE
Changing Engine Oil and Oil Filter
1
2
Warm up engine, and check for oil leakage
from engine components
Change engine
oil and oil filter
Oil capacity:
With oil filter
Without
oil filter
4.0 p (4-1/4 US qt, 3-1/2 Imp qt)
3.3 2 (3-1/2 US qt, 2-7/8 Imp qt)
* Loose" SMA785A 29 - 39 N m (3 0 .4 0 kg-m, 22 . 29 ft-lbl
a. Be careful not to burn yourself as engine oil
is hot.
b. Be sure to clean drain plug and install with
washer.
c. Before installing new oil filter, wipe oil filter
mounting surface
on cylinder block, and
smear
a little engine oil on rubber seal of oil
filter.
d. When installing oil filter, DO NOT use a
wrench to tighten the filter.
Hand-tighten
ONLY
e. Use recommended engine oil.
Start engine Check area around drain plug and
oil filter for any sign of oil leakage.
Run engine for a few minutes, then turn it off
After several minutes, check oil level
Oil'level should be within this range
c---l 011 level should be IO range maintained
SMA786A
MA-I 1
4

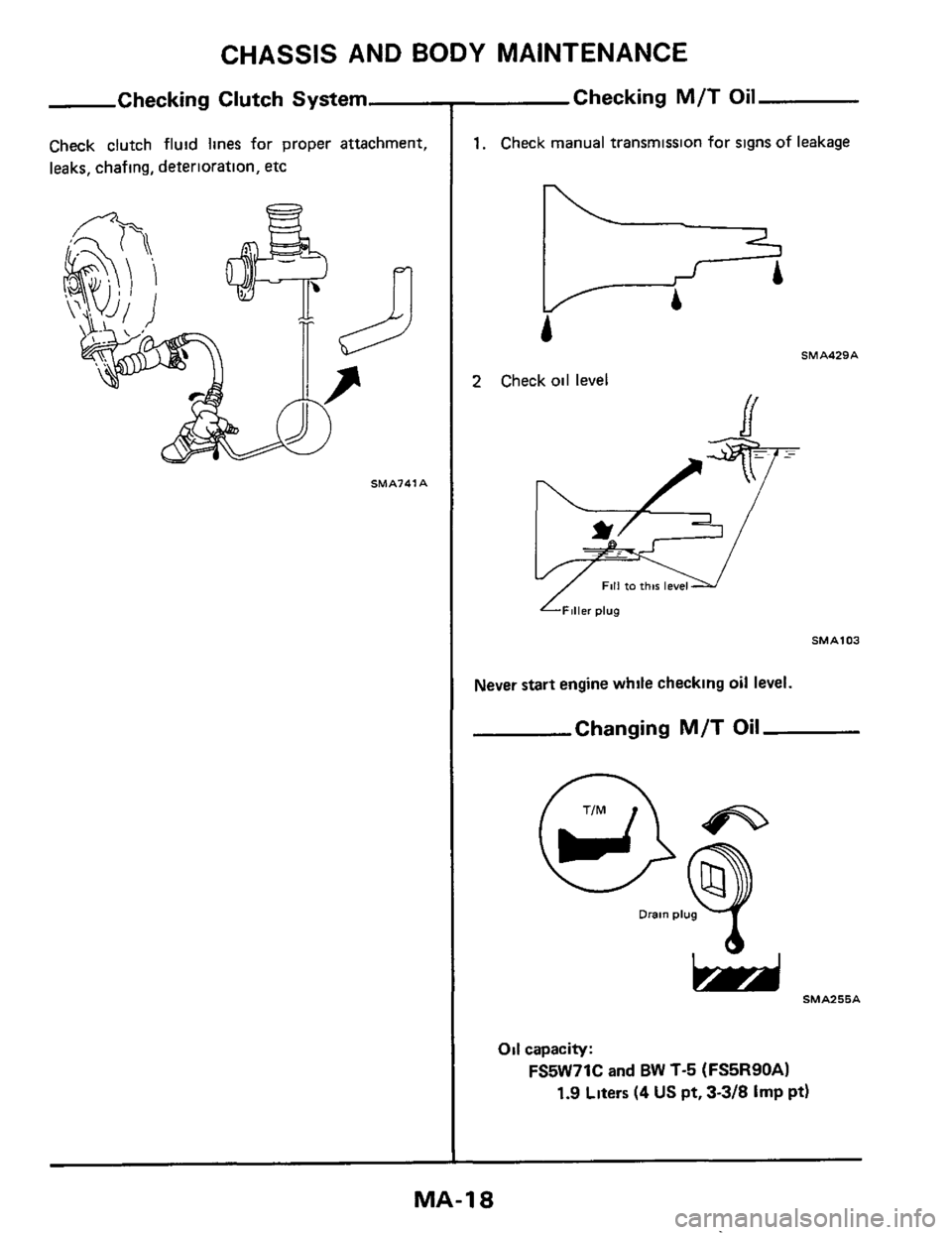

CHASSIS AND BODY MAINTENANCE
Checking Clutch System
Check clutch fluid lines for proper attachment,
leaks, chafing, deterioration, etc
SMA741A
Checking M/T Oil
1. Check manual transmission for signs of leakage
SMA429A
2 Check oil level
LFiller plug
SMAl03
Never start engine while checking oil level.
Changing M/T Oil
n
Drain plug
Oil capacity:
FS5W71C and BW T-5 (FS5R90A)
1.9 Liters (4 US pt, 3-3/8 Imp pt)
MA-1 8

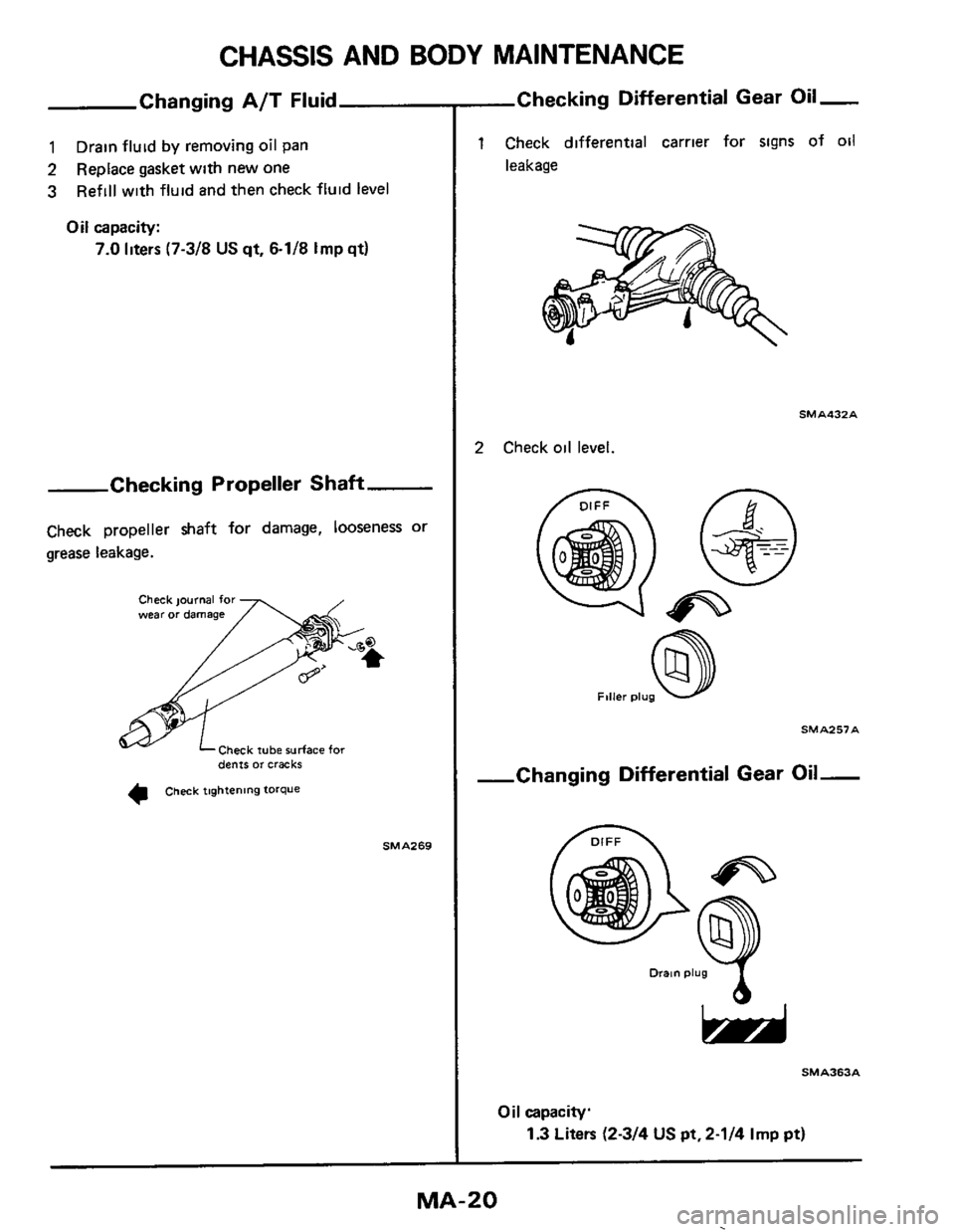

CHASSIS AND BODY MAINTENANCE
Changing A/T Fluid
1
2
3
Drain fluid by removing oil pan
Replace gasket with new
one
Refill with fluid and then check fluid level
Oil capacity:
7.0 liters (7-3/8 US qt, &1/8 Imp qt)
Checking Propeller Shaft
Check propeller shaft for damage, looseness or
grease leakage.
Check iwrnal far , wear or damage
Check rube surface for ~ ~~ dents or cracks
4 Check tightening torque
SMA269
-Checking
Differential Gear Oil-
1 Check differential carrier for signs of oil
leakage
SMA432A
2 Check oil level.
o T-
SMA257A
-Changing Differential Gear Oil-
-
SMA363A
Oil capacity.
1.3 Liters (2-3/4 US pt, 2-1/4 Imp pt)
MA-20

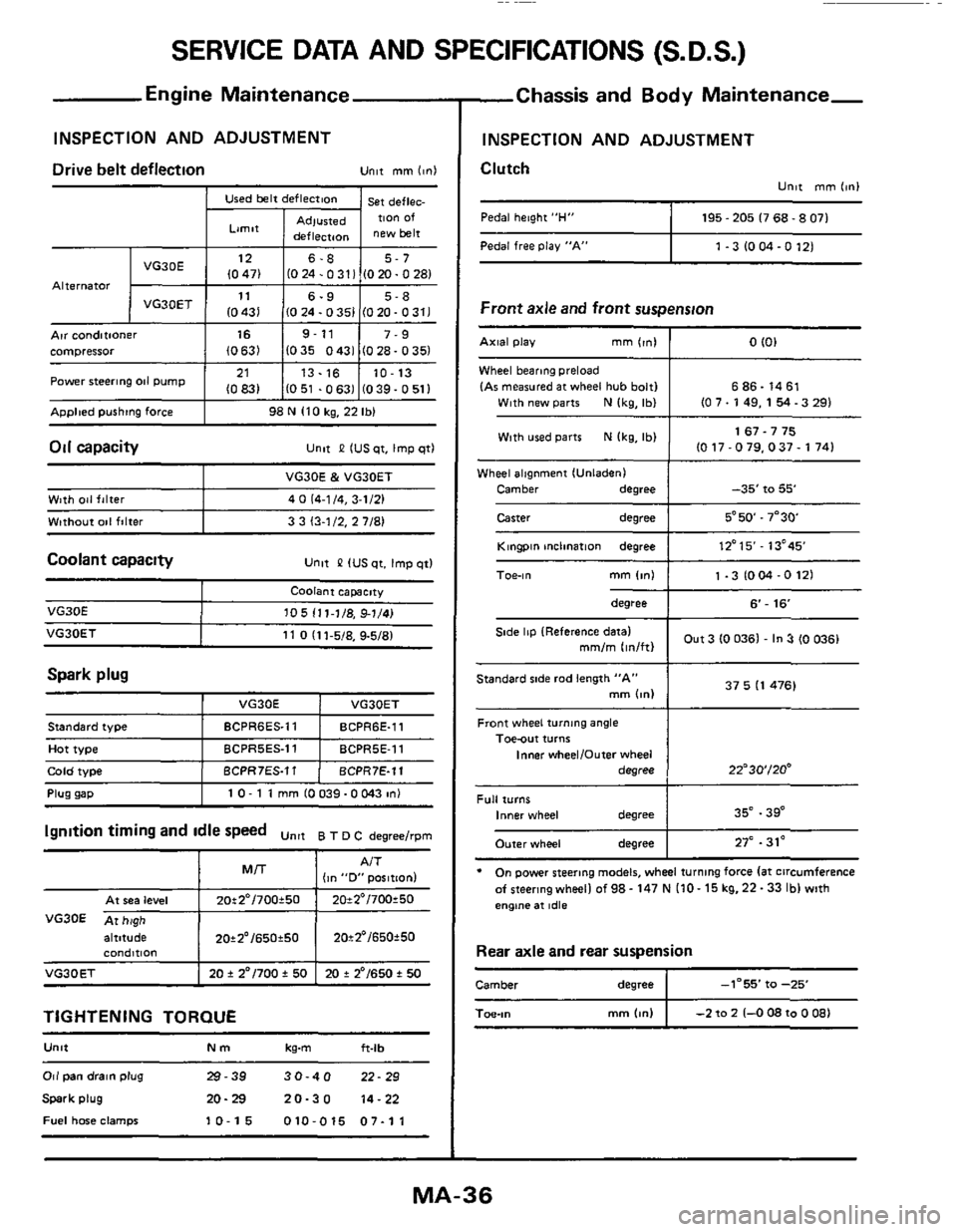

SERVICE DATA AND SPECIFICATIONS (S.D.S.)
Used belt deflection
Limit
Adlusted deflecraon
Engine Maintenance
INSPECTION AND ADJUSTMENT
st deflec. TIon Of
new belt Pedal free Play "A"
Alternator
1 -3 IO M -0 121
Arr conditioner I 16 I 9-11 I 7-9 compressor (0631 1035 0431 (028-0351
ADDlted pushtng force I 98 N 110 kg, 22 Ibl
21
10831 Power steering 011 pump
Oil capacity
13.16 10-13
1051 .0631 (039-0511 ~~
unlt P IUS qt. Imp qtl
Wheel alignment IUnladenI
Camber
degree
Caster degree
-35' to 55'
5*50.7"30
Coolant capacity Unlt &? IUS qt. Imp qtl
Wlth 041 falter
Wtthout
001 filter
VG30E & VG30ET
4
0 (4-1 /4, 3-1/21
3 3 13-1/2.
2 7/81
Spark plug
VG30E
I VG30E I VO3OET
105 111-1/8, 91/41
Front wheel turning angle Toe-out turns
Inner wheelIOufer wheel
degree
Plug uaD I 10- 1 1 mm 10039-OW3 in1
22"30'/20'
altitude I 20*2'/650t50 I 20t2'/650f50
standard iype
Hot type
Cola woe
condmon
VG30ET I 20 f 2"/700 f 50 I 20 + 2'/650 t 50
BCPR6ES.11 BCPR6E-11
BCPRSES.11 BCPRSE-11
BCPR7ES.11 BCPR7E-11
TIGHTENING TORQUE
U"lt Nm kg-m ft-lb
Full turns Inner wheel degree
Outer wheel degree
Or1 pan drain plug 29-39 30-40 22-29
Spark plug 20-29 20-30 14-22
Fuel hme clamps 10-15 010-015 07-11
35" .39"
27" .31'
-Chassis and Body Maintenance-
INSPECTION AND ADJUSTMENT
Clutch
Unlt mm 11nI
Pedal height "H" I 195 - 205 I7 68.8 071
Front axle and front suspension
Wheel bearmg preload
IAr measured at wheel hub bolt1 6 86.14 61
With used parts N Ikg, Ibl 1 1 67.7 75 IO 17-079.037- 1741
Kingpin mclination degree I 12'15'- 13'45
degree I 6'- 16
Out 3 (0 0361 - In 3 (0 0361 Side lip IReference datal mm/m lin/ftl
37 5 I1 476) Standard side rod length "A" mm bnl
* On power steering models, wheel turning force la1 circumference
afsteeringwheellof98-147NI10-15kg.22-33lblwith
engtne at idle
Rear axle and rear suspension
Camber degree I -1-55' fa -25
mm (4") I -2 to 2 1-0 08 to 0 081 Toe-,"
