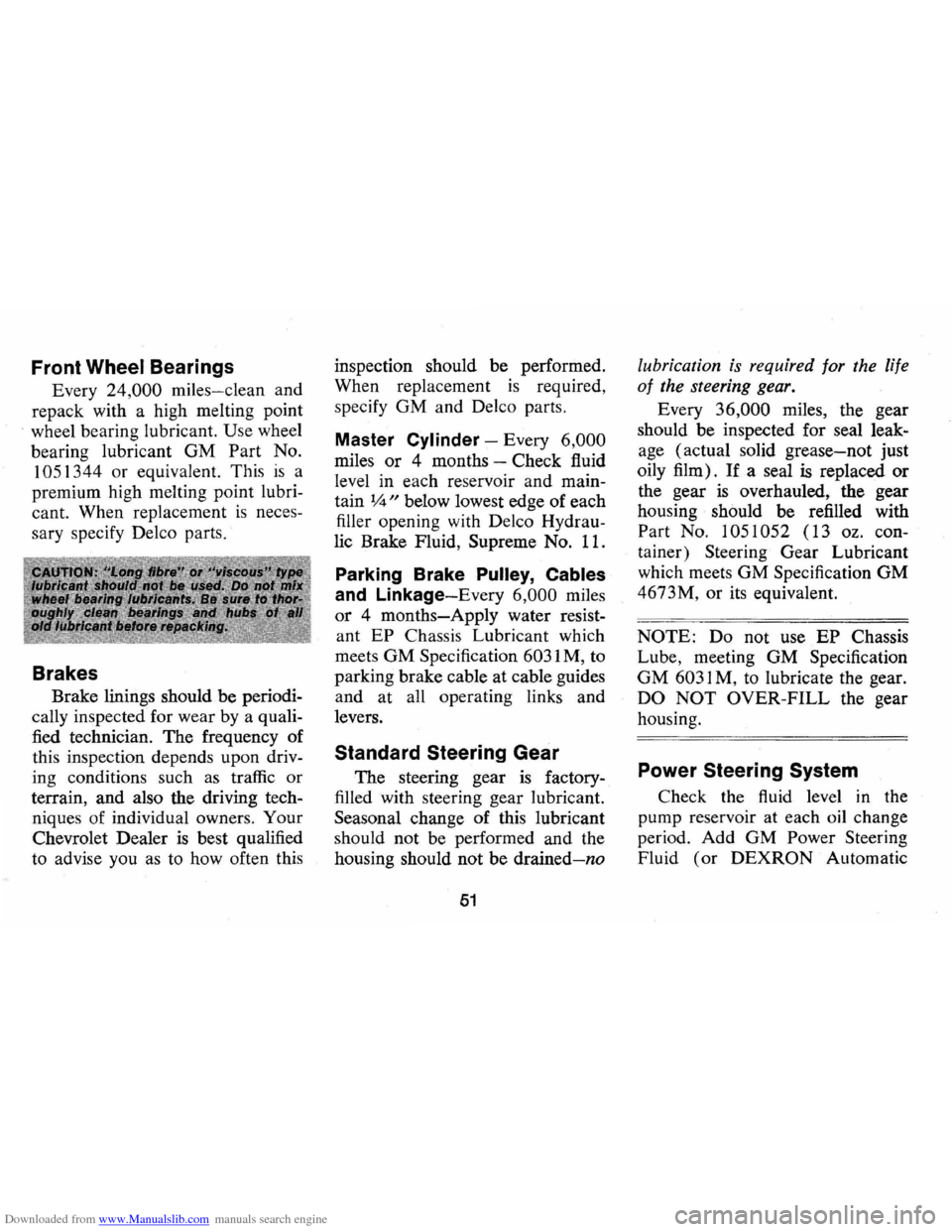

Downloaded from www.Manualslib.com manuals search engine Front Wheel Bearings
Every 24,000 miles-clean and
repack with a high melting point
wheel bearing lubricant.
Use wheel
bearing lubricant GM Part No.
1051344 or equivalent. This is a
premium high melting point lubri
cant. When replacement is neces
sary specify Delco parts.
Brakes
Brake linings should. be periodi
cally inspected for wear by a quali
fied technician. The frequency of
thi s inspection depends upon driv
ing conditions such
as traffic or
terrain, and also the driving tech
niques of individual owners.
Your
Chevrolet Dealer is best qualified
to advise you
as to how often this inspection
should be performed.
When replacement
is required ,
specify
GM and Delco parts.
Master Cylinder -Every 6,000
miles or 4 months -Check fluid
level in each reservoir and main
tain
1;4" below lowest edge of each
filler opening with Delco Hydrau
lic Brake Fluid,
Supreme No. 11.
Parking Brake Pulley, Cables
and Linkage-Every 6,000 miles
or 4 months-Apply water resist
ant EP Chassis Lubricant which
meets
GM Specification 6031 M, to
parking brake cable at cable guides
and at all operating links and
levers.
Standard Steering Gear
The steering gear is factory
filled with steering gear lubricant.
Seasonal change of this lubricant
should not be performed and the
housing should not be
drained-no
51
lubrication is required for the life
of the steering gear.
Every 36,000 miles, the gear
should be inspected for seal leak
age (actual solid
grease-not just
oily film) .
Ifa seal is replaced or
the gear is overhauled, the gear
housing should be refilled with
Part No.
105 1052 (13 oz. con
tainer) Steering Gear Lubricant
which meets GM Specification GM
4673M, or
its equivalent.
NOTE: Do not use EP Chassis
Lube, meeting
GM Specification
GM 603 I M, to lubricate the gear.
DO NOT OVER-FILL the gear
housing.
Power Steering System
Check the fluid level in the
pump reservoir at each oil change
period. Add GM Power Steering
Fluid
(or DEXRON Automatic

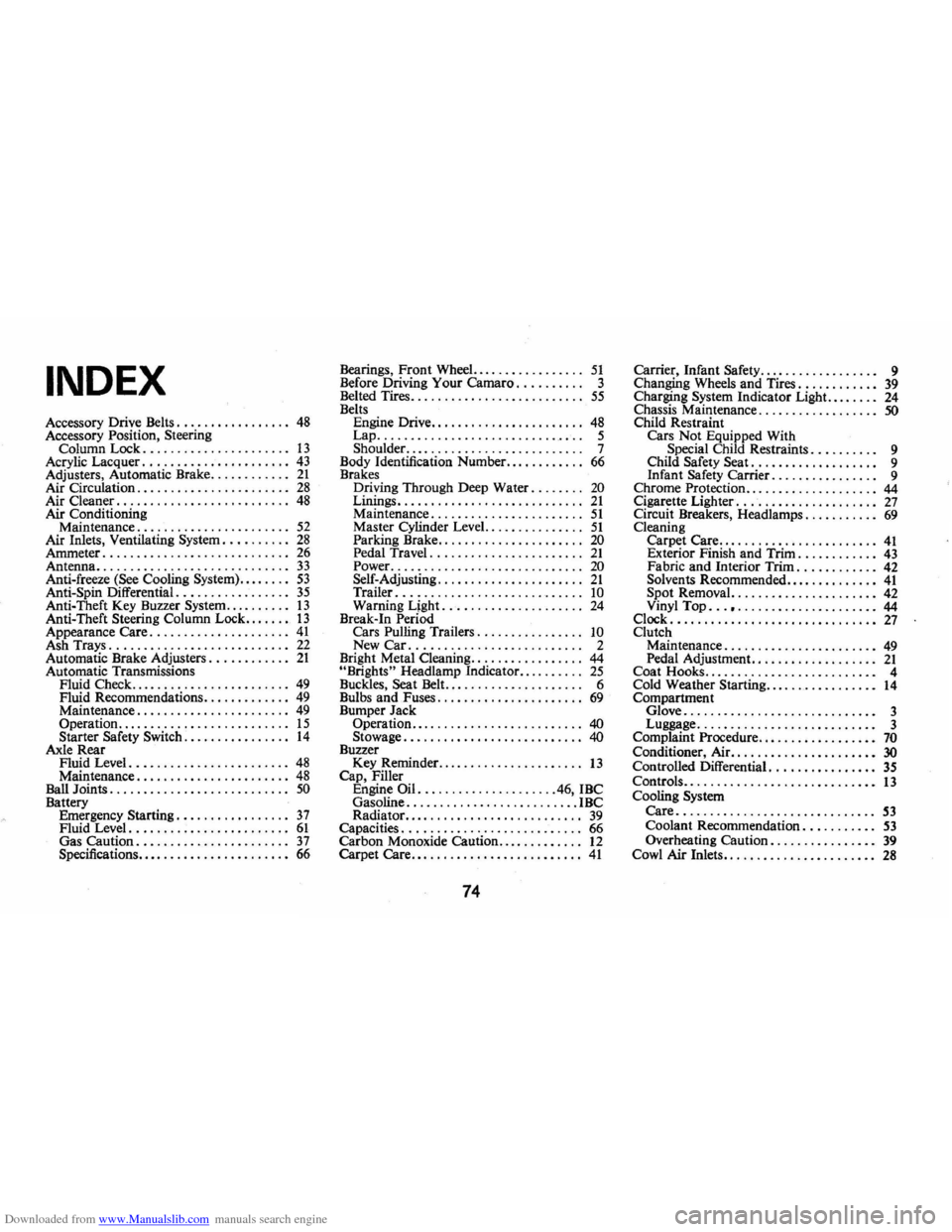

Page 77 of 84
Downloaded from www.Manualslib.com manuals search engine INDEX
Accessory Drive Belts. . . . . . . . . . . . . . . .. 48 Accessory Position, Steering
Column Lock. .. . . . . .. . . .. . .. .. .... 13 Acrylic Lacquer. . . . . . . . . . . . . . . . . . . . .. 43 Adjusters, Automatic Brake ............ 21 Air Circulation . . . . . . . . . . . . . . . . . .. . ... 28 Air Cleaner. . . . . . . . . . . . . . . . . . . . . . . . .. 48 Air Conditioning
Maintenance. . . . . . . . . . . . . . . . . . . . . .. 52 Air Inlets, Ventilating System .......... 28 Ammeter ............................ 26 Antenna ................ ............. 33 Anti-freeze (See Cooling System). . . . . . .. 53 Anti-Spin Differential. . . . . . . . . . . . . . . .. 35 Anti-Theft Key Buzzer System .......... 13 Anti-Theft Steering Column Lock ....... 13 Appearance Care ..................... 41 Ash Trays. . . . . . . . . . . . . . . . . . . . . . . . . .. 22 Automatic Brake Adjusters. . . . . . . . . . .. 21 Automatic Transmissions
Fluid Check ........................ 49 Fluid Recommendations ............. 49 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 49 Operation .......................... 15 Starter Safety Switch. . . . . . .. . . . . . ... 14 Axle Rear
Fluid Level. . . . . . . . . . . . . . . . . . . . . . .. 48 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 48 Ball Joints ........................... 50 Battery
Emergency Starting. . . . . . . . . . . . . . . .. 37 Fluid Level. . . . . . . . . . . . . . . . . . . . . . .. 61 Gas Caution ....................... 37 Specifications. . . . . . . . . . . . . . . . . . . . . .. 66 Bearings,
Front Wheel.
................ 51 Before Driving Your Camaro . . . . . . . . . . 3
Belted Tires .......................... 55 Belts
Engine Drive. . . . . . . . . . . . . . . . . . . . . .. 48 Lap ................................ 5 Shoulder............ . .............. 7 Body Identification Number ............ 66 Brakes
D.riying Through Deep Water. . . . . . .. 20 Lmmgs ............................ 21 Maintenance ....................... 51 Master Cylinder Level. .............. 51 Parking Brake ...................... 20 Pedal Travel. . . . . . . . . . . . . . . . . . . . . .. 21 Power. .............. .............. 20 Self-Adjusting. . . . . . . . . . . . . . . . . . .. .. 21 Trailer ............................ 10 Warning Ljght. .. . . . . . . .. . . . . . . . . .. 24 Break-In Period Cars Pulling Trailers. . . . . . . . . . . . . . .. 10 New Car.......................... 2
Bright Metal Cleaning .......... '" .... 44 "Brights" Headlamp Indicator .......... 25 Buckles, Seat Belt.. . . . . . . . . . . . . . . . . . .. 6
Bulbs and Fuses . . . . . . . . . . . . . . . . . . . . .. 69 Bumper Jack
Operation ...... " .................. 40 Stowage ........................... 40 Buzzer Key Reminder.. .. .. .. .. .. . .. .. .. ... 13 Cap, Filler
Engine Oil. .................... 46, IBC
Gasoline .......................... IBC
Radiator. . . . . . . . . . . . . . . . . . . . . . . . . .. 39 Capacities. . . . . . . . . . . . . . . . . . . . . . . . . .. 66
Carbon Monoxide Caution ............. 12 Carpet Care .......................... 41
74
Carrier, Infant Safety.... . . . . . . .. .. . . .. 9
Changing Wheels and Tires. . . . . . . . . . .. 39 Charging System Indicator Light. . . . . . .. 24
Chassis Maintenance . . . . . . . . . . . . . . . . .. 50 Child Restraint
Cars Not Equipped With
Special Child Restraints. . . . . . . . . . 9
Child Safety Seat. . . . . . . . . . . . . . . . . . .
9 Infant Safety Carrier. . . . . . . . . . . . . . .. 9 Chrome Protection .................... 44
Cigarette Lighter. . . . . . . . . . . . . . . . . . . .. 27 Circuit Breakers, Headlamps. . . . . . . . . .. 69 Cleaning
Carpet Care. . . . . . . . . . . . . . . . . . . . . . .. 41 Exterior Finish and Trim. . . . . . . . . . .. 43 Fabric and Interior Trim ............ 42
Solvents Recommended .............. 41 Spot Removal. . . . . . . . . . . . . . . . . . . . .. 42 Vinyl Top ... , . . . . . . . . . . . . . . . . . . . .. 44
Clock ............................... 27 Clutch Maintenance. . . . . . . . . . . . . . . . . . . . . .. 49 Pedal Adjustment ................... 21 Coat Hooks........ ...... ........ .... 4
Cold Weather Starting ................. 14 Compartment
Glove ............................. 3
Luggage. .......... ................ 3
Complaint Procedure .................. 70 Conditioner, Air ...................... 30 Controlled Differential. . . . . . . . . . . . . . .. 35 Controls ............................. 13 Cooling System
Care ........... ................... 53 Coolant Recommendation. . . . . . . . . .. 53 Overheating Caution. . . . . . . . . . . . . . .. 39 Cowl Air Inlets ....................... 28

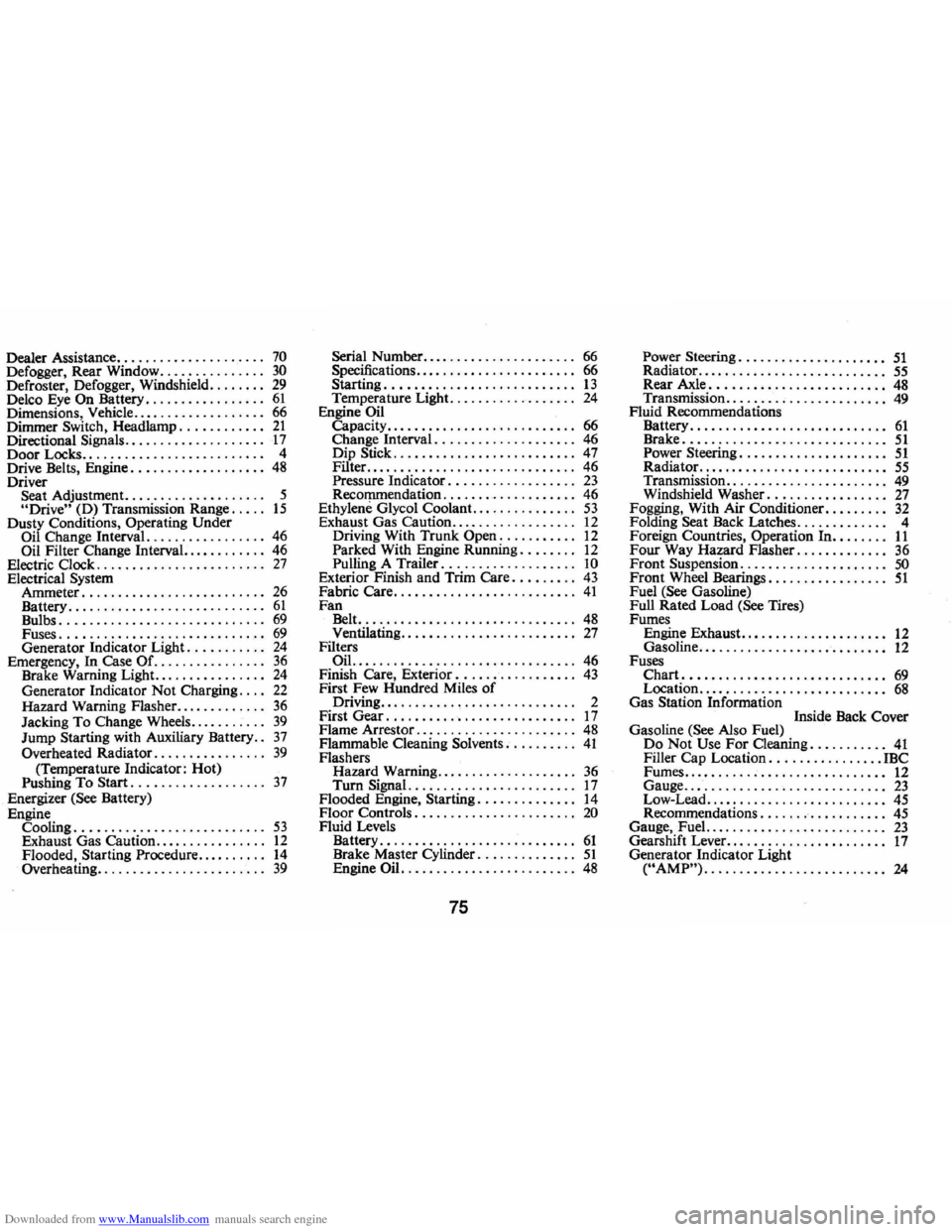

Page 78 of 84
Downloaded from www.Manualslib.com manuals search engine Dealer Assistance. . . . . . . . . . . . . . . . . . . . . 70
Defogger, Rear Window ............ ... 30 Defroster, Defogger, Windshield .... .... 29 Delco Eye On Battery . . . . . . . . . . . . . . . .. 61 Dimensions, Vehicle ................... 66 Dimmer Switch , Headlamp ............ 21 Directional Signals.. . . . . .. . . . . . . . . .. .. 17 Door Locks. . . . . . . . . . . . . . . . . . . . . . . . . . 4 Drive Belts, Engine. . . . . . . . . . . . . . . . . .. 48
Driver Seat Adjustment. . . . . . . . . . . . . . . . . . . .
5 "Drive" (D) Transmission Range. . . . . 15 Dusty Conditions, Operating Under Oil Change Interval. . . . . . . . . . . . . . . .. 46 Oil Filter Change Interval. . . . . . . . . . . . 46
Electric Clock.. .. .. . .. .. . .. .. .. . . .. .. 27 Electrical System Ammeter ................ .......... 26 Battery ......................... ... 61 Bulbs ..................... ........ 69 Fuses ................... .......... 69 Generator Indicator Light. . . . . . . . . .. 24 Emergency, In Case Of ...... , . ........ 36 Brake Warning Light ................ 24 Generator Indicator Not Charging. . .. 22 Hazard Warning Flasher ............. 36 Jacking To Change Wheels ........... 39 Jump Starting with Auxiliary Battery.. 37 Overheated Radiator. . . . . . . . . . . . . . .. 39 (Temperature Indicator: Hot) Pushing To Start. . . . . . . . . . . . . . . . . .. 37 Energizer (See Battery)
Engine Cooling
........................... 53
Exhaust Gas Caution .......... ...... 12 Flooded, Starting Procedure .......... 14
Overheating. . . . . . . . . . . . . . . . . . . . . . .. 39
Serial Number.... . . . . . . . . . . . . .. . ... 66
Specifications ....................... 66 Starting. . . . . . . . . . . . . . . . . . . . . . . . . .. 13 Temperature Light .................. 24
Engine Oil
Capacity. . . . . . . . . . . . . . . . . . . . . . . . .
.. 66
Change Interval ................... , 46 Dip Stick .......................... 47 Filter ................. , ........... , 46
Pressure Indicator ................. , 23 Recommendation . . . . . . . . . . . . . . . . . .. 46
Ethylene Glycol Coolant. ............. , 53 Exhaust Gas Caution ...... ............ 12
Driving With Trunk Open ........... 12 Parked With Engine Running. . . . . . .. 12 Pulling A Trailer ............... .. . , 10 Exterior Finish and Trim Care. . . . . . . .. 43
Fabric Care . ........ ................ , 41 Fan Belt .......... ..................... 48
Ventilating ......................... 27 Filters OiL ............................... 46
Finish Care, Exterior. . . . . . . . . . . . . . . .. 43
First Few Hundred Miles of Driving ........................ .... 2
First Gear. . . . . . . . . . . . . . . . . . . . . . . . . .. 17 Flame Arrestor. . . . . . . . . . . . . . . . . . . . . .. 48
Flammable Cleaning Solvents .......... 41 Flashers Hazard Warning .................... 36 Turn Signal. . . . .. .. .. .. .. .. .. .. .... 17 Flooded Engine, Starting. . . . . . . . . . . . .. 14 Floor Controls. . . . . . . . . . . . . . . . . . . . . .. 20
Fluid Levels
Battery
............... ............. 61 Brake Master Cylinder ............. , 51 Engine Oil. . . .. .. .. . . . . . . .. . . .. . . .. 48
75
Power Steering. . . . . . . . . . . . . . . . . . . .. 51 Radiator .................. , ........ 55 Rear Axle. . . . . . . . . . . . . . . . . . . . . . . .. 48
Transmission ................ . .. . , .. 49
Fluid Recommendations
Battery
.......................... .. 61 Brake ................... .......... 51 Power Steering . . . . . . . . . . . . . . . . . . . .. 51 Radiator ............ , ........... , .. 55
Transmission .......... ............. 49
Windshield Washer ...... ........... 27 Fogging, With Air Conditioner. . . . . . . .. 32
Folding Seat Back Latches ........... " 4
Foreign Countries, Operation In ........ 11 Four Way Hazard Flasher. . . . . . . . . . . .. 36 Front Suspension . . . . . . . . . . . . . . . . . . . .. 50 Front Wheel Bearings ................. 51 Fuel (See Gasoline) Full Rated Load (See Tires)
Fumes Engine Exhaust . . . . . . . . . . . . . . . . . . .
.. 12
Gasoline ........ ... ................ 12
Fuses
Chart ............................. 69 Location ........................... 68 Gas Station Information
Inside Back Cover Gasoline (See Also Fuel) Do Not Use For Cleaning ........... 41 Filler Cap Location ................ IBC
Fumes ...................... ....... 12
Gauge .......... ......... .......... 23 Low-Lead .......... ................ 45
Recommendations. . . . . . . . . . . . . . . . .. 45
Gauge, Fuel. . . . . . . . . . . . . . . . . . . . . . . . .. 23 GearshiftLever .................... '" 17 Generator Indicator Light ("AMP") .................... ...... 24

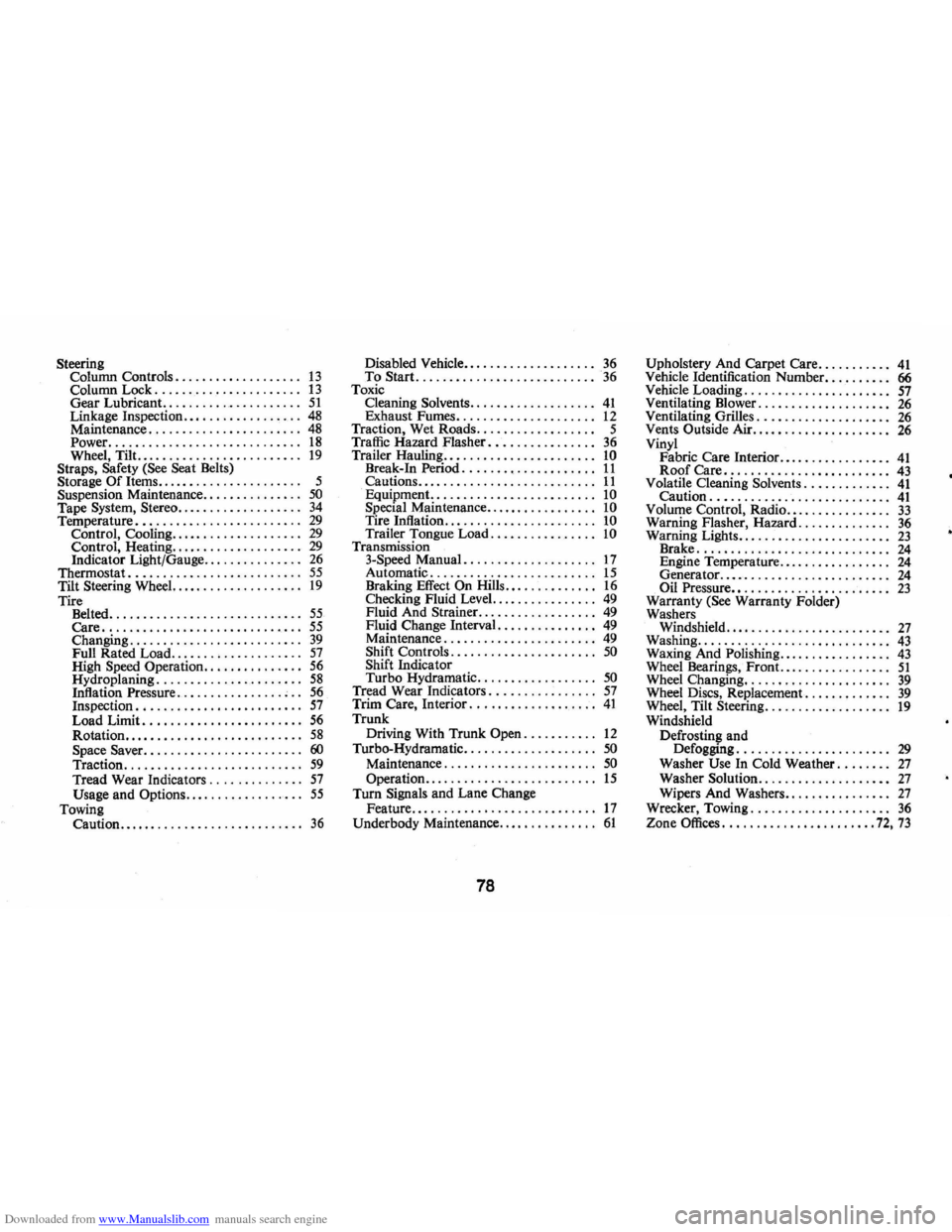

Page 81 of 84
Downloaded from www.Manualslib.com manuals search engine Steering Column Controls. . . . . . . . . . . . . . . . . .. 13 Column Lock. . . . . . . . . . . . . . . . . . . . .. 13 Gear Lubricant. .................... 51 Linkage Inspection. . . . . . . . . . . . . . . . .. 48 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 48 Power ....................... ...... 18 Wheel, Tilt ......................... 19 Straps, Safety (See Seat Belts) Storage Of Items..... . .. . . . . . . . . . . . . .. 5 Suspension Maintenance. . . . . . . . . . . . . .. 50 Tape System, Stereo. . . . . . . . . . . . . . . . . .. 34 Temperature ........... ............ " 29 Control , Cooling.. . .. . . . . . . . . . . . . . .. 29 Control, Heating. . . . . . . . . . . . . . . . . . .. 29 Indicator Light/Gauge. . . . . . . . . . . . . .. 26 Thermostat ....... ................... 55 Tilt Steering Wheel.. . . . . . . . . . . . . . . . . .. 19 Tire
Belted .. ........................... 55 Care ........................ ...... 55 Changing ........................ " 39 Full Rated Load ............ ....... . 57 High Speed Operation ............... 56 Hydroplaning. . . . . . . . . . . . . .. . . . . . .. 58 Inflation Pressure ............. ... , .. 56 Inspection ............ ... ........ " 57 Load Limit. . . . . . . . . . . . . . . . . . . . . . .. 56 Rotation ..... ............ .......... 58 Space Saver ........................ 60 Traction ............. .............. 59 Tread Wear Indicators .... ... ....... 57 Usage and Options... . . . . . . . . . . . . . .. 55 Towing
Caution ........... ................ . 36
Disabled Vehicle .................... 36 To Start. .... ........ .............. 36 Toxic
Cleaning Solvents ................... 41 Exhaust Fumes ..................... 12 Traction, Wet Roads. . . . . . . . . . . . . . . . . . 5
Traffic Hazard Flasher. . . . . . . . . . . . . . .. 36 Trailer Hauling.. . . . . . . . . . . . .. . . . . .. .. 10 Break-In Period .................... 11 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . .. 11 Equipment.. . . . . . . . . . . . . . . . . . . . . . .. 10 Special Maintenance ............. .... 10 Tire Inflation ......... .............. 10 Trailer Tongue Load. . . . . . . . . . . . . . .. 10 Transmission 3-Speed Manual. . . . . . . . . . . . . . . . . . .. 17 Automatic .................. ....... 15 Braking Effect On Hills .............. 16 Checking Fluid Level. . . . . . . . . . . . . . .. 49 Fluid And Strainer.. . . . . . . . . . . . . . . .. 49 Fluid Change Interval. . . . . . . . . . . . . . . 49 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 49 Shift Controls.. . . . . . . .. .. . . . . . . . ... 50 Shift Indicator
Turbo Hydramatic .................. 50 Tread Wear Indicators ................ 57 Trim Care, Interior .................. , 41 Trunk
Driving With Trunk Open ........... 12 Turbo-Hydramatic . . . . . . . . . . . . . . . . . . .. 50 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 50 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . 15 Turn Signals and Lane Change
Feature ................. ........... 17 Underbody Maintenance. . . . . . . . . . . . . . . 61
78
Upholstery And Carpet Care ........... 41 Vehicle Identification Number .......... 66 Vehicle Loading ................... '" 57 Ventilating Blower .................... 26 Ventilating Grilles .................... 26 Vents Outside Air ..................... 26 Vinyl Fabric Care Interior ........... .. .... 41 Roof Care. . . . . . . . . . . . . . . . . . . . . . . .. 43 Volatile Cleaning Solvents. . . . . . . . . . . .. 41 Caution ........................... 41 Volume Control, Radio ................ 33 Warning Flasher, Hazard .............. 36 Warning Lights. . . . . . . . . . . . . . . . . . . . . .. 23 Brake ............................. 24 Engine Temperature ....... .......... 24 Generator .......................... 24 Oil Pressure.. . . . . . . . . . . . . . . . . . . . . .. 23 Warranty (See Warranty Folder)
Washers
Windshield
...................... '" 27 Washing ............................. 43 Waxing And Polishing.. .. . . . .. . . . . .. .. 43 Wheel Bearings , Front .... . . . . . . . . . . . .. 51 Wheel Changing. . . . . . . . . . . . . . . . . . . . .. 39 Wheel Discs, Replacement. . . . . . . . . . . .. 39 Wheel, Tilt Steering ................... 19 Windshield
Defrosting and
Defogging . . . . . . . . . . . . . . . . . . . . .
.. 29 Washer Use In Cold Weather ........ 27 Washer Solution ............ .......• 27 Wipers And Washers.. . . . . . . . . . . . . .. 27 Wrecker, Towing. . . . . . . . . . . . . . . . . . . .. 36 Zone Offices ......... ............ .. 72, 73
