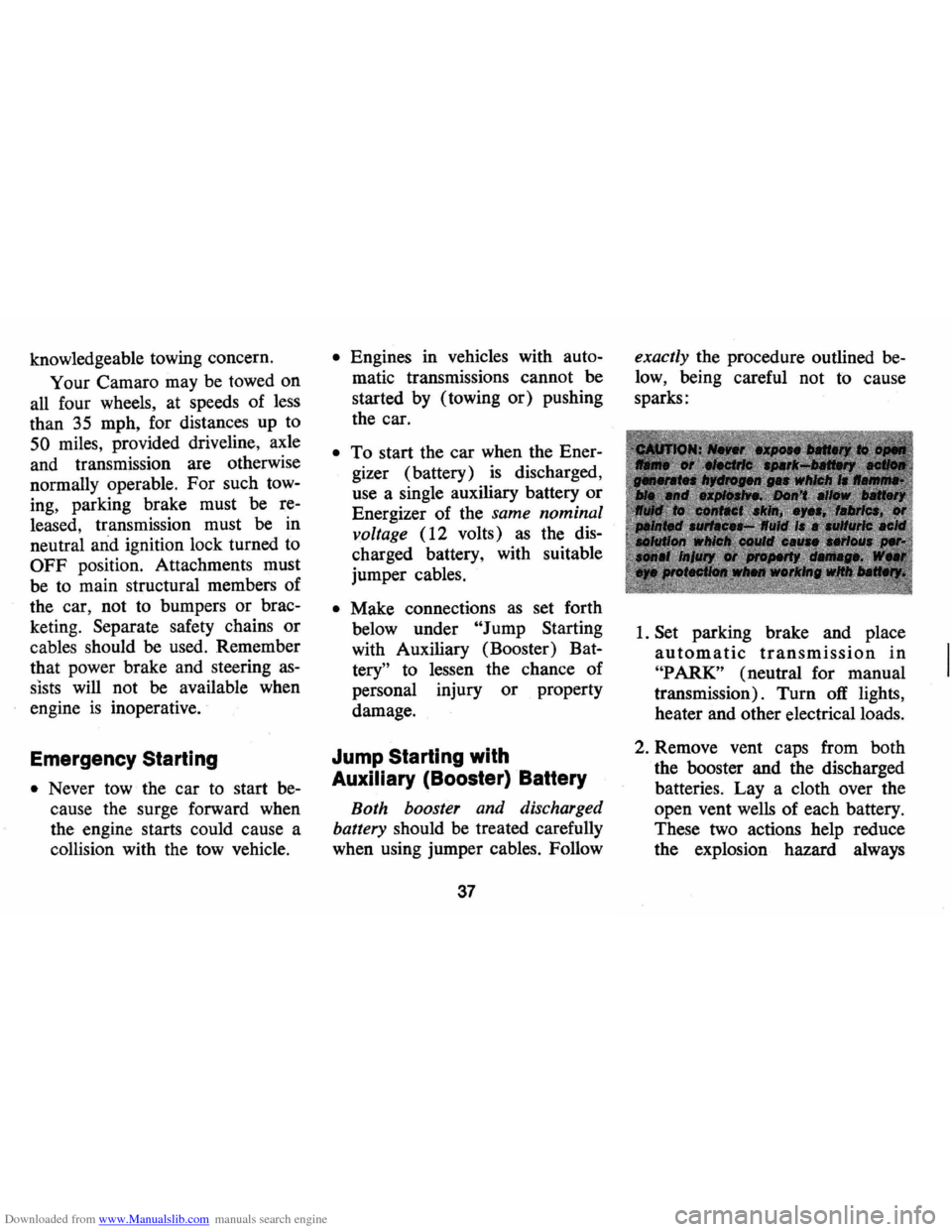

Your Camaro may be towed on
all four wheels, at speeds of
less
than 35 mph, for distances up to
50 miles, provided driveline, axle
and transmission are otherwise
normally operable. For such tow­
ing, parking brake must be re­
leased, transmission must be in
neutral
and ignition lock turned to
OFF position. Attachments must
be to main structural members of
the car, not to bumpers or brac­
keting. Separate safety chains
or
cables should be used. Remember
that power brake and steering
as­
sists will not be available when
engine
is inoperative.
Emergency Starting
• Never tow the car to start be­
cause the surge forward when
the engine starts could cause a
collision with the tow vehicle.
• Engines in vehicles with auto­
matic transmissions cannot be
started by (towing
or) pushing
the car.
• To start the car when the Ener­
gizer (battery)
is discharged,
use a single auxiliary battery or
Energizer of the same nominal
voltage
(12 volts) as the dis­
charged battery, with suitable
jumper cables.
• Make connections as set forth
below under
"Jump Starting
with Auxiliary (Booster) Bat­
tery" to lessen the chance of
personal injury
or property
damage.
Jump Starting with
Auxiliary (Booster) Battery
Both booster and discharged
battery should be treated carefully
when using jumper cables. Follow
37
exactly the procedure outlined be­
low, being careful not to cause
sparks:
1. Set parking brake and place
automatic transmission in
"PARK" (neutral for manual
transmission). Turn
off lights,
heater and other electrical loads.
2. Remove vent caps from both
the booster and the discharged
batteries. Lay a cloth over the
open vent wells of each battery.
These two actions help reduce
the explosion hazard always

Downloaded from www.Manualslib.com manuals search engine the transmission sump and add ap­
proximately 2.5 quarts U.S. Mea­
sure
(2.0 quarts Imperial Mea­
sure). Operate transmission
through all shift ranges and re­
check fluid level as described
above.
Turbo Hydra-Matic 400-Lubri­
cation of your Turbo Hydra-matic
400 will, except for fluid capacity
and filter change listed below, fol­
low previously stated automatic
transmission recommendations.
After checking transmission fluid
level it
is important that the dip­
stick be pushed all the way into
the filler tube.
Every 24,000 miles -After re­
moving fluid from the transmission
sump, approximately
71h. pints
U.S. measure (6 pints Imperial
measure) of fresh fluid will be re­
quired to return level to proper mark
on the dipstick.
Every 24,000 miles the transmis­
sion sump filter should be re­
placed.
Transmission Shift and Back­
drive Linkage (Manual and
Automatic) -
Every 6,000 miles
or 4 months lubricate shift link­
age and on manual transmission
floor controls lever contacting
faces with water
resistantEP chas­
sis lubricant which meets GM
Specification 6031M.
Transmission Shift Linkage
(Manual and Automatic)
Every 6,000 miles or 4 months
lubricate shift linkage and on man­
ual transmission floor controls
lever contacting faces with water
resistant
EP chassis lubricant
which meets
GM Specification
6031M.
50
Chassis
Front Suspension
Every 6,000 miles or 4 months
-Lubricate 4 fittings · with water
resistant
EP Chassis Lubricant
which meets
GM Specification
6031M.
Ball joints should not be lu­
bricated unless their tempera­
ture
is 10°F. or higher. During
colder weather, they should be
allowed to warm up as neces­
sary before lubrication.
Steering Linkage
Every 6,000 miles or 4 months
-Lubricate 7 fittings, one at each
end of each tie rod, one at each
end of relay rod, and one
at idler
lever with water resistant
EP Chas­
sis Lubricant which meets
GM
Specification 6031 M.

Downloaded from www.Manualslib.com manuals search engine Front Wheel Bearings
Every 24,000 miles-clean and
repack with a high melting point
wheel bearing lubricant.
Use wheel
bearing lubricant GM Part No.
1051344 or equivalent. This is a
premium high melting point lubri­
cant. When replacement is neces ­
sary specify Delco parts.
Brakes
Brake linings should. be periodi­
cally inspected for wear by a quali­
fied technician. The frequency of
thi s inspection depends upon driv­
ing conditions such
as traffic or
terrain, and also the driving tech­
niques of individual owners.
Your
Chevrolet Dealer is best qualified
to advise you
as to how often this inspection
should be performed.
When replacement
is required ,
specify
GM and Delco parts.
Master Cylinder -Every 6,000
miles or 4 months -Check fluid
level in each reservoir and main­
tain
1;4" below lowest edge of each
filler opening with Delco Hydrau­
lic Brake Fluid,
Supreme No. 11.
Parking Brake Pulley, Cables
and Linkage-Every 6,000 miles
or 4 months-Apply water resist­
ant EP Chassis Lubricant which
meets
GM Specification 6031 M, to
parking brake cable at cable guides
and at all operating links and
levers.
Standard Steering Gear
The steering gear is factory­
filled with steering gear lubricant.
Seasonal change of this lubricant
should not be performed and the
housing should not be
drained-no
51
lubrication is required for the life
of the steering gear.
Every 36,000 miles, the gear
should be inspected for seal leak­
age (actual solid
grease-not just
oily film) .
Ifa seal is replaced or
the gear is overhauled, the gear
housing should be refilled with
Part No.
105 1052 (13 oz. con­
tainer) Steering Gear Lubricant
which meets GM Specification GM
4673M, or
its equivalent.
NOTE: Do not use EP Chassis
Lube, meeting
GM Specification
GM 603 I M, to lubricate the gear.
DO NOT OVER-FILL the gear
housing.
Power Steering System
Check the fluid level in the
pump reservoir at each oil change
period. Add GM Power Steering
Fluid
(or DEXRON Automatic
