CORVETTE BODY 1B-32

1.
Panel - Underbody

2.
Panel - Wheel Housing

Closing - Right Hand

3. Shield - Right Hand Splash

4.
Nut

5. Panel - Underbody Closing
Fig.
68—Underbody Construction

6. Shield - Left Hand Splash

7. Nut

8. Reinforcement - Body

Mounting

9. Panel - Wheel Housing Closing

- Left Hand
10.
Plate - Seat Belt Mounting

11.
Bracket - Center Cover

Mounting

12.
Plate - Transmission Control

Boot Retaining

the broken or cracked portion. Side of "V" should

have a shallow pitch for maximum bonding surface.

A belt sander with a vacuum attachment will mini-

mize the dust problem, Figure 75.

4.
If rear of damage is accessible, use a button-type

repair. Clean back of area to permit the use of

laminate (resin-saturated glass-cloth) on both sides

of damaged area.

5. Cut fiberglass cloth to size. Make certain a minimum

of five layers is cut for the average repair.

6. Mix resin and hardener, 1 part hardener to 4 parts

resin. Add Thixatrope to the mix to give the mix

body and reduce the "runniness" of the material.

CAUTION: Cleanliness is most important. Be

certain all containers are dry and clean and

the resin and hardener cans are kept closed

when not in use. Do not use waxed cups for

mixing and do not allow resin to enter hardener

can or vice versa.

7. Saturate layers of fiberglass (fig. 76). Place lami-

nate over damage area. Smooth out wrinkles and

make sure general contour of area is maintained,

Figure 77.
8. Apply heat to repair area. Heat lamps are recom-

mended, used at least 12" away from repair. Allow

.15 to 20 minutes curing time. Trim repair to shape

at gel stage.

9. After the repair is cured, grind, file or sand to

contour. Files other than body files may be more

suitable. A belt sander with a vacuum cleaner at-

tachment will minimize the dust problem. Feather

edge and finish sand.

NOTE:
After Resin Repair, small pits or ir-

• regularities may appear in finished surface.

Imperfections should be repaired using the

Plastic Solder Repair Kit.

SPECIFIC REPAIRS

Scratched Panels, Spot Refinishing

In many instances, a scratched panel will involve only

a paint refinishing job. Figure 78 shows the top of a

fender panel which has been scratched through to the

plastic.

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES 5-16

6Y. Adjust clutch pedal travel as outlined in

Section 7.

SHOES AND LININGS

Organic Linings

NOTE:
If brake drums are worn severely, it

may be necessary to retract the adjusting screw.

To gain access to the adjusting screw star

wheel, knock out the lanced area in the web of

the brake drum using a chisel or similar tool.

Release the actuator from the star wheel by

lifting with a small screw driver and back off

the star wheel with a second screw driver (press

down on the handle to retract shoes).

CAUTION: After knocking out the metal, be

sure to remove it from the inside of the drum .

and clean all metal from the brake compartment.

A new hole cover must be installed when drum

is reinstalled.

Removal

1.
Raise the vehicle and plate on jack stands.

2.
Loosen check nuts at parking brake equalizer suffi-

ciently to remove, all tension from brake cable.

3.
Remove brake drums.

NOTE:
Since there are wheel cylinder piston

stops to prevent pistons from leaving cylinders,

it is not necessary to install wheel cylinder

clamps when brake shoes are removed; however,

brake pedal must not be depressed while drums

are removed.

4.
Unhook brake shoe pull back springs from anchor

pin and link end, using Tool J-8049 (fig. 27).

5. Remove the actuator return spring and link.

6. Remove hold-down pins and springs (fig. 28).

7. Remove the actuator assembly.
NOTE:
The actuator, pivot and override spring

are an assembly. It is not recommended that

they be disassembled for service purposes,

unless they are broken. It is much easier to

assemble and disassemble the brakes by leaving

them intact.

8. Separate the brake shoes by removing adjusting

screw and spring.

9. Remove parking brake lever from secondary brake

shoe (rear only).

Inspection

1.
Clean all dirt out of brake drum using care to avoid

getting dirt into front wheel bearings. Inspect drums

for roughness, scoring or out-of-round. Replace or

recondition drums as required.

2.
Inspect wheel bearings and oil seal, and replace

any necessary parts.

3.
On Chevrolet only:

Carefully pull lower edges of wheel cylinder boots

away from cylinders and note whether interior is

wet with brake fluid. Excessive fluid at this point

indicates leakage past piston cups and a need for

wheel cylinder overhaul or replacement.

NOTE:
A slight amount of fluid is nearly always

present and acts as lubricant for the piston.

4.
Check cylinders with internal boots by carefully pull-

ing a small part of the boot out of the cylinder.

Note whether interior is wet with brake fluid. Ex-

cessive fluid at this point indicates leakage past

piston cups and a need for wheel cylinder overhaul

or replacement.

5. Check all brake flange plate attaching bolts to make

sure that they are tight. Clean all rust and dirt

from shoe contact faces on flange plate (fig. 29),

using fine emery cloth.

Installation

CAUTION: Make certain to install recom-

Fig.
27-Unhooking Pull Back Spring
Fig.
28—Removing Hold-Down Springs and Pins

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES 5-17

mended shoe and lining assemblies. Otherwise,

serious fade or failure may occur.

1.
Inspect new linings and make certain there are no

nicks or burrs on bonding material on shoe edge

where contact is made with brake flange plate or

on any of the contact surfaces.

NOTE: Keep hands clean while handling brake

shoes.
Do not permit oil or grease to come in

contact with linings.

2.
If working on rear brakes, lubricate parking brake

cable.

3.
On rear brakes only, lubricate fulcrum end of park-

ing brake lever and the bolt with brake lube, then

attach lever to secondary shoe with bolt, spring

washer, lock washer and nut. Make sure that lever

moves freely.

4.
Before installation make certain the adjusting screw

is clean and lubricated properly.

NOTE: Loose adjustment may occur from an

adjusting screw that is not properly operating.

If the lubrication in the adjusting screw as-

sembly is contaminated or destroyed, the ad-

justing screw should be thoroughly cleaned and

lubricated.

5.
Connect brake shoes together with adjusting screw

spring, then place adjusting screw, socket and nut

in position.

CAUTION: Make sure the proper adjusting

screw is used ("L" for left side of vehicle,

"R"
for right side of vehicle). The star wheel

should only be installed with the star wheel

nearest to the secondary shoe and the adjusting

screw spring inserted to prevent interference

with the star wheel.
6. On rear wheels connect parking brake cable to lever.

7.
Secure the primary brake shoe (short lining—faces

forward) first with the hold-down pin and spring

using a pair of pliers. Engages shoes with the wheel

cylinder connecting links.

8. Install and secure the actuator assembly and second-

ary brake shoe with the hold-down pin and spring

using a pair of needle nose pliers. On rear wheels

position parking brake strut and strut spring.

9. Install guide plate over anchor pin.

10.
Install the wire link.

NOTE: Do not hook the wire link over the

anchor pin stud with the regular spring hook

tool. This may damage the cylinder boot seals.

Fasten the wire link to the actuator assembly ;

first, then place over the anchor pin stud by

hand while holding the adjuster assembly in the

full down position.

11.
Install actuator return spring.

NOTE: Do not pry actuator lever to install re-

turn spring. Ease it in place using the end of a

screw driver or other suitable flat tool.

12.
If old brake pull back (return) springs are nicked,

distorted or if strength is doubtful, install new

springs.

13.
Hook springs in shoes using Tool J-8049 by in-

stalling the primary spring from the shoe over the

anchor pin and then spring from secondary shoe

over the wire link end.

14.
Pry shoes away from backing plate and lubricate

shoe contact surfaces with a thin coating of brake

lube (fig. 29).

CAUTION:

facings.
Be careful to keep lubricant off

Fig.
29—Backing Plate Contact Surfaces
15.
After completing installation, make certain the actu-

ator lever functions easily by hand operating the

self-adjusting feature (fig. 30).

1.6. Follow the above procedure for all wheels.

17.
Adjust the service brakes and parking brake as

outlined under "Maintenance and Adjustments" in

this section.

Metallic Linings

Metallic brake linings which use special heat resistant

brake springs are available as an option. Service opera-

tions are the same as for standard brakes; however,

when new linings are installed, the linings should be

seated as described below.

NOTE: Brake shoes with metallic linings re-

quire specially finished brake drums (honed to a

20 micro-inch finish). Metallic linings are not

recommended for service replacement on ve-

hicles with standard brake drums that have not

been honed to specified finish.

Seating Metallic Linings

After the brakes have been adjusted, the following

recommended "lining seating" is as follows:

1.
Make six to eight stops from 30 MPH with moderate

pedal pressure to aid in seating and to mbdulate

any tendency to dive.

CHEVROLET CHASSIS SERVICE MANUAL

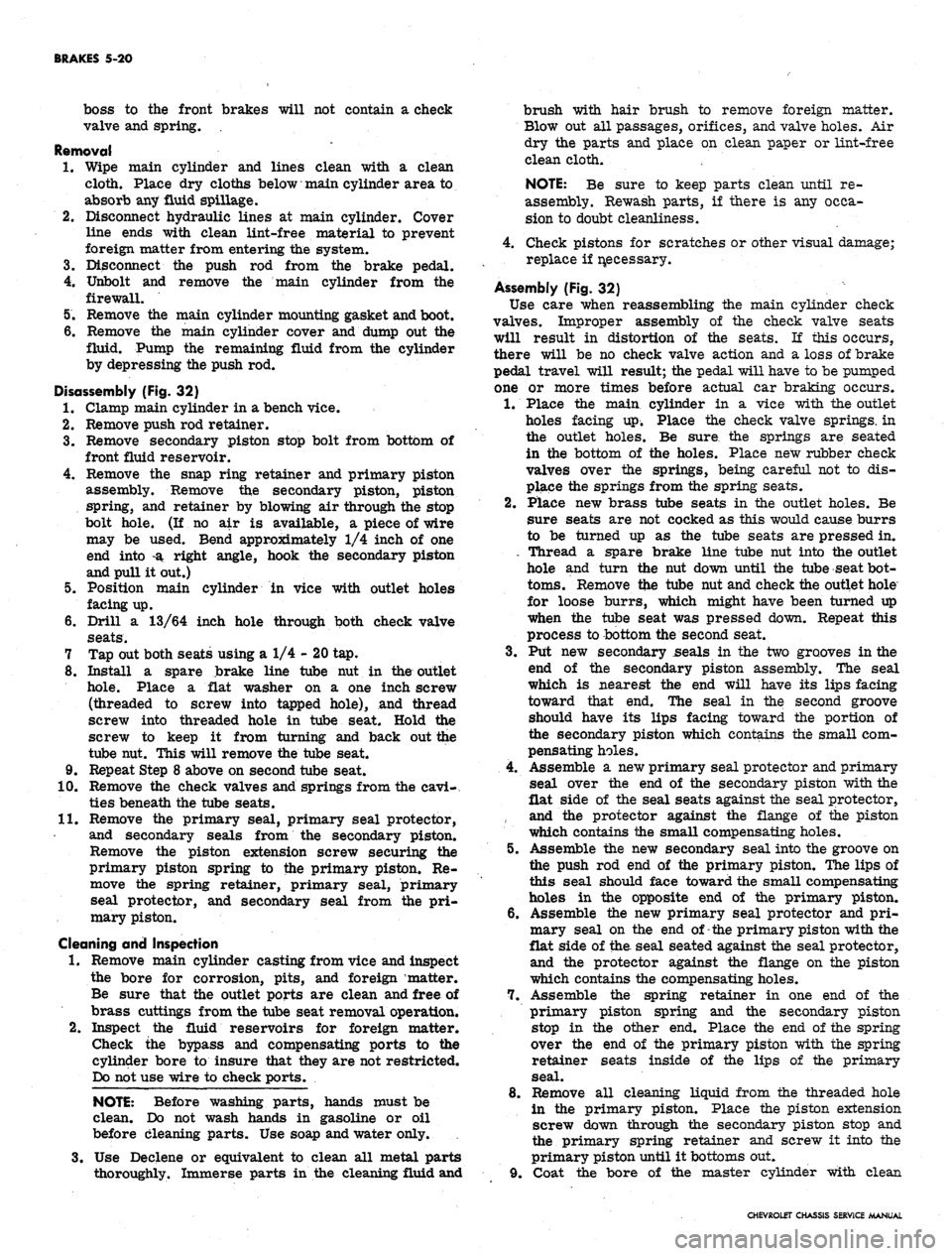

BRAKES 5-20

boss to the front brakes will not contain a check

valve and spring. .

Removal

1.
Wipe main cylinder and lines clean with a clean

cloth. Place dry cloths below main cylinder area to

absorb any fluid spillage.

2.
Disconnect hydraulic lines at main cylinder. Cover

line ends with clean lint-free material to prevent

foreign matter from entering the system.

3.
Disconnect the push rod from the brake pedal.

4.
Unbolt and remove the main cylinder from the

firewall.

5.
Remove the main cylinder mounting gasket and boot.

6. Remove the main cylinder cover and dump out the

fluid. Pump the remaining fluid from the cylinder

by depressing the push rod.

Disassembly (Fig. 32)

1.
Clamp main cylinder in a bench vice.

2.
Remove push rod retainer.

3.
Remove secondary piston stop bolt from bottom of

front fluid reservoir.

4.
Remove the snap ring retainer and primary piston

assembly. Remove the secondary piston, piston

spring, and retainer by blowing air through the stop

bolt hole. (If no air is available, a piece of wire

may be used. Bend approximately 1/4 inch of one

end into -a right angle, hook the secondary piston

and pull it out.)

5.
Position main cylinder in vice with outlet holes

facing up.

6. Drill a 13/64 inch hole through both check valve

seats.

7 Tap out both seats using a 1/4 - 20 tap.

8. Install a spare brake line tube nut in the outlet

hole.
Place a flat washer on a one inch screw

(threaded to screw into tapped hole), and thread

screw into threaded hole in tube seat. Hold the

screw to keep it from turning and back out the

tube nut. This will remove the tube seat.

9. Repeat Step 8 above on second tube seat.

10.
Remove the check valves and springs from the cavi-

ties beneath the tube seats.

11.
Remove the primary seal, primary seal protector,

and secondary seals from the secondary piston.

Remove the piston extension screw securing the

primary piston spring to the primary piston. Re-

move the spring retainer, primary seal, primary

seal protector, and secondary seal from the pri-

mary piston.

Cleaning and Inspection

1.
Remove main cylinder casting from vice and inspect

the bore for corrosion, pits, and foreign matter.

Be sure that the outlet ports are clean and free of

brass cuttings from the tube seat removal operation.

2.
Inspect the fluid reservoirs for foreign matter.

Check the bypass and compensating ports to the

cylinder bore to insure that they are not restricted.

Do not use wire to check ports.

NOTE: Before washing parts, hands must be

clean. Do not wash hands in gasoline or oil

before cleaning parts. Use soap and water only.

3.
Use Declene or equivalent to clean all metal parts

thoroughly. Immerse parts in the cleaning fluid and
brush with hair brush to remove foreign matter.

Blow out all passages, orifices, and valve holes. Air

dry the parts and place on clean paper or lint-free

clean cloth.

NOTE: Be sure to keep parts clean until re-

assembly. Rewash parts, if there is any occa-

sion to doubt cleanliness.

4.
Check pistons for scratches or other visual damage;

replace if necessary.

Assembly (Fig. 32)

Use care when reassembling the main cylinder check

valves. Improper assembly of the check valve seats

will result in distortion of the seats. If this occurs,

there will be no check valve action and a loss of brake

pedal travel will result; the pedal will have to be pumped

one or more times before actual car braking occurs.

1.
Place the main cylinder in a vice with the outlet

holes facing up. Place the check valve springs, in

the outlet holes. Be sure the springs are seated

in the bottom of the holes. Place new rubber check

valves over the springs, being careful not to dis-

place the springs from the spring seats.

2.
Place new brass tube seats in the outlet holes. Be

sure seats are not cocked as this would cause burrs

to be turned up as the tube seats are pressed in.

. Thread a spare brake line tube nut into the outlet

hole and turn the nut down until the tube seat bot-

toms.
Remove the tube nut and check the outlet hole

for loose burrs, which might have been turned up

when the tube seat was pressed down. Repeat this

process to bottom the second seat.

3.
Put new secondary seals in the two grooves in the

end of the secondary piston assembly. The seal

which is nearest the end will have its lips facing

toward that end. The seal in the second groove

should have its lips facing toward the portion of

the secondary piston which contains the small com-

pensating holes.

4.
Assemble a new primary seal protector and primary

seal over the end of the secondary piston with the

flat side of the seal seats against the seal protector,

and the protector against the flange of the piston

which contains the small compensating holes.

5.
Assemble the new secondary seal into the groove on

the push rod end of the primary piston. The lips of

this seal should face toward the small compensating

holes in the opposite end of the primary piston.

6. Assemble the new primary seal protector and pri-

mary seal on the end of-the primary piston with the

flat side of the. seal seated against the seal protector,

and the protector against the flange on the piston

which contains the compensating holes.

7.
Assemble the spring retainer in one end of the

primary piston spring and the secondary piston

stop in the other end. Place the end of the spring

over the end of the primary piston with the spring

retainer seats inside of the lips of the primary

seal.

8. Remove all cleaning liquid from the threaded hole

in the primary piston. Place the piston extension

screw down through the secondary piston stop and

the primary spring retainer and screw it into the

primary piston until it bottoms out.

9. Coat the bore of the master cylinder with clean

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES 5-21

brake fluid. Coat the primary and secondary seals

on the secondary piston with clean brake fluid. Insert

the secondary piston spring retainer into the sec-

ondary piston spring. Place the retainer and spring

down over the end of the secondary piston until the

retainer locates inside of the lips of the primary

cup.

10.
Hold the master cylinder with the open end of the

bore down. Push the secondary piston into the bore

until the spring seats against the closed end of the

bore.

11.
Position the master cylinder in a vise with the

open end of the bore up. Coat the primary and

secondary seal on the primary piston with clean

brake fluid. Push the primary piston assembly,

spring end first, into the bore of the master cylinder*

Hold the piston down and snap the lock ring into

position in the small groove in the I.D. of the bore.

12.
Push the primary piston down to move the secondary

piston forward far enough to clear the stop screw

hole in the bottom of the front fluid reservoir. Install

the stop screw.

13.
Install reservoir diaphragm in the reservoir cover

and install the cover on the main cylinder. Push

bail wire into position to secure the reservoir cover.

Installation

1.
Assemble the push rod through the push rod retainer,

if it has been disassembled.

2.
Push the retainer over the end of the main cylinder.

Assemble new boot over push rod and press it down

over the push rod retainer. Slide new mounting

gasket into position.

3.
Secure .the main cylinder to the firewall with mount-

ing bolts.

4.
Connect the push rod clevis to the brake pedal with

pin and retainer.

5. Connect the brake lines to the main cylinder.

6. Fill the main cylinder reservoirs to the levels

shown in Figure 8. Bleed the brake system as out-

lined in this section.

7. K necessary, adjust the brake pedal free play as

outlined in this section.

WHEEL CYLINDER (Fig. 33)

The wheel cylinder boots should be removed from a

cylinder body only when they are visibly damaged or

leaking fluid. Wheel cylinders having torn, cut, or heat-

cracked boots should be completely overhauled.

Removal

1.
Raise vehicle and place on jack stands.

Fig.
33-Chevelle Wheel Cylinder—Exploded View

1.
Push Rod Boot 6. Spring

2.
Piston 7. Piston Cup

3. Piston Cup 8. Piston

4.
Housing 9. Push Rod Boot

5. Fluid Inlet
2.
Remove wheel and tire assembly. Back off brake

adjustment, if necessary, and remove drum.

3.
Disconnect brake system hydraulic line from

cylinder.

4.
Remove brake shoe pull back springs.

5. Remove screws securing wheel cylinder to flange

plate. Disengage cylinder push rods from brake

shoes and remove cylinder.

NOTE:
On Chevrolet, it is necessary to re-

move the anchor pin which holds the front wheel

cylinder to flange plate to remove the front

wheel cylinder.

Disassembly

1.
Remove boots from cylinder ends with pliers and

discard boots.

2.
Remove and discard pistons and cups.

Inspection and Cleaning

NOTE:
Staining is not to be confused with

corrosion. Corrosion can be identified as pits

or excessive bore roughness.

1.
Inspect cylinder bore. Check for staining and corro-

sion.
Discard cylinder if corroded.

2.
Polish any discolored or stained area with crocus

cloth by revolving the cylinder on the cloth sup-

ported by a finger. Do not slide tfce cloth in a

lengthwise manner under pressure.

NOTE:
Before washing parts, hands must be

clean. Do not wash hands in gasoline or oil

before cleaning parts. Use soap and water to

clean hands.

3.
Wash the cylinder and metal parts in Declene or

equivalent.

4.
Shake excess cleaning fluid from the cylinder-. Do

not use a rag to dry the cylinder as lint from the rag

cannot be kept from the cylinder bore surfaces.

5. Check piston for scratches or other visual damage;

replace if necessary.

Assembly (Fig. 33)

1.
Lubricate the cylinder bore and counterbore with

clean brake fluid and insert spring - expander

assembly.

2.
Install new cups with flat surfaces toward outer

ends of cylinder. Be sure cups are lint and dirt free

before insertion. Do not lubricate cups prior to

assembly.

3.
Install new Durex pistons into cylinder with flat

surfaces toward center of cylinder. Do not lubri-

cate pistons before installation.

4.
Press new boots into cylinder counterbores by hand.

Do not lubricate boots prior to installation.

Installation

1.
Position wheel cylinder to brake flange plate. Install

screws and tighten securely.

NOTE:
On Chevrolet front wheels, mount front

wheel cylinders to the brake flange plate by

installing the threaded anchor pin through the

wheel cylinder housing and tighten to 130 lb. ft.

To secure, peen over the flat washer on the

anchor pin.

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES
5-24

DISC BRAKES

INDEX

Page

General Description
. 5-24

Maintenance
and
Adjustments
5-24

Bleeding Hydraulic System
5-24

Parking Brake Adjustment
-
Corvette
5-24

Component Replacement
and
Repairs
5-25
Page

Brake Shoes
. . . . . 5-25

Brake Caliper
5-26

Brake Disc
5-29

Main Cylinder.
5-30

Parking Brake Shoes
-
Corvette
5-30

GENERAL DESCRIPTION

Four wheel disc brakes
are
standard equipment
on

the
1967
Corvette,
as in 1966. The
Corvette
may
also

be equipped with heavy duty disc brakes which include

new front calipers, shoes, linings,
and
rear pressure

regulator valve. This heavy duty option
is
used
in

conjunction with
a
vacuum power unit. Front wheel disc

brakes
are
installed
as
optional equipment
on
Chevrolet,

Chevelle, Camaro,
and
Chevy
II
models.

The disc brake,
(fig. 35),
consists
of a
fixed caliper,

rotating disc, splash shield,
and
mounting bracket.
The

caliper assembly contains four pistons and two shoe
and

lining assemblies with
the
lining riveted
to the
steel

shoes.
A
seal
and
dust boot
are
installed
on
each piston,

with
a
piston spring
in the
caliper cylinder bore beneath

each piston.
A
retaining pin extends through each caliper

half
and
both shoes
to
hold
the
shoes and linings
in
posi-

tion
in the
caliper.
On
Corvette heavy duty disc brakes,

two retaining cotter pins
are
used
at
each end
of the

caliper
to
secure
the
shoes
and
linings. Machined
sur-

faces within
the
caliper prevent
the
shoe
and
lining
assembly from rotating with
the
brake disc when pres-

sure
is
applied.

The disc, which
has a
series
of air
vent louvers
to

provide cooling,
is
mounted
on the
front wheel-hub.

The caliper straddles
the
disc and mounts
on a
mounting

bracket attached
to the
steering knuckle with
two
bolts.

The Corvette heavy duty option includes
a
pressure

regulator valve mounted
in the
rear brake line just

below
the
main cylinder. Chevrolet, Chevelle, Camaro,

and Chevy
n
models with disc brakes have
a
pressure

regulator valve mounted
in the
front brake line just

below
the
main cylinder. The valve controls
the
hydraulic

pressure
to the
front
or
rear brakes,
as
applicable,

resulting,
in the
correct pressure balance between
the

front
and
rear hydraulic systems. This valve guards

against premature .lock-up
of
front
or
rear wheels when

brakes
are
applied.

Maintenance, adjustment,
and
service operations which

are
not
included
in
this section
are the
same
as for

the Duo-Servo type brakes.

MAINTENANCE
AND
ADJUSTMENTS

BLEEDING HYDRAULIC SYSTEM

The operation
of
bleeding
the
disc brake hydraulic

system
is the
same
as for
Duo-Servo system outlined

in
the
front
of
this section. Note
the
exceptions below

and refer
to
bleeding procedures under Duo-Servo

brakes.

1.
When pressure bleeding equipment
is
used,
the

correct pressure setting
for
bleeding disc brakes

is 10-2.0
lbs. on
Corvette,
and 40 lbs. on all
other

models.

2.
The
front calipers contain
one
bleeder valve.
The

rear calipers
on
Corvette contain two bleeder valves

(one inboard
and one
outboard) which necessitates

the removal
of the
rear wheels
for
bleeding.

3.
Tapping
the
caliper with
a
rawhide mallet
as the

fluid
is
flowing
out may
assist
in
obtaining
a
good

bleeding
job.

4.
On
Chevrolet, Chevelle, Camaro
and
Chevy
II, the

spring loaded
end of the
pressure regulator valve

(fig.
36)
must
be
held (valve
in
open position) while

bleeding. This
is
done
by
depressing
and
holding

in
the
plunger
in the
end
of
the valve either
by
hand,

by taping,
or by
clamping.
PARKING BRAKE-CORVETTE

Adjustment

1.
Raise rear
end of
vehicle
and
place
on
jack stands.

2.
Remove rear wheels.

3/
Loosen brake cables
at the
equalizer until
the
park-

ing brake levers move freely
to the "off"
position

with slack
in the
cables.

4.
Turn
the
disc until
the
adjusting screw can
be
seen

through
the
hole
in the
disc.

5. Insert
an
adjusting tool
or
screw driver through
the

hole
in the
disc
and
tighten
the
adjusting screw
by

moving your hand away from
the
floor
on
both
the

left and right sides
(fig. 37).

6. Tighten until
the
disc will
not
move, then back
off

ten
(10)
notches.

7. Apply
the
parking brake four
(4)
notches from inside

the
car.

8. Tighten
the
brake cables
at the
equalizer
to
produce

a light drag with
the
wheels mounted.

9. Fully release
the
parking brake handle
and
rotate

the rear wheels.
No
drag should be evident with
the

handle released.

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES 5-27

CHEVELLE
, CHEVY II AND CAMARO SHOWN

1.
Caliper Belts

2.
Bleeder Valve

3. Caliper Half

4.
Piston Spring
Fig.
39-Caliper Assembly-Exploded View

5. Seal

6. Piston

7. Piston Boot

8. Brake Shoes
9. "O" Ri

10.
Caliper

11.
Retaining Pin

12.
Cotter Pin

caliper. Two retaining pins must be removed on

heavy duty Corvette front calipers. Identify the

inboard and outboard shoe if they are to be reused.

5. Remove the end of brake hose at bracket by re-

moving U-shaped retainer from the hose fitting and

withdrawing the hose from bracket.

6. Remove the caliper assembly from the mounting

bracket by removing two hex head bolts.

Disassembly (Fig. 39)

1.
Clean exterior of caliper with Declene, or equivalent.

On Chevrolet and Corvette front caliper, remove

brake hose.

2.
Separate the caliper halves by removing the two

large hex head bolts. Remove the two small "O"

rings from the cavities around the fluid transfer

holes in the two ends of the caliper halves.

3.
To free the piston boots so that the pistons may be

removed, push the piston down into the caliper

as far as it will go. Insert a screwdriver blade

under the inner edge of the steel ring in the boot,

and using the piston as a fulcrum, pry the boot from

its seat in the caliper
half.
CAUTION: Use care not to puncture seal when

removing pistons from caliper. ' ~

4.
Remove the pistons and piston springs from the

caliper
half.
Remove the boot and seal from their

grooves in the piston.

Cleaning and Inspection

1.
Clean all metal parts using Declene, or equivalent.

Remove all traces of dirt and grease. Do not use

mineral base solvents to clean brake parts.

2.
Using an air hose, blow out all fluid passages in the

caliper halves, making sure that there is no dirt

or foreign material blocking any of these passages.

3.
Discard all rubber parts. Boots, seals, and "O"

rings should be replaced with new service kit parts.

4.
Carefully inspect the piston bores in the caliper

halves. They must be free of scores and pits. A

scored or otherwise damaged bore will cause leaks

and unsatisfactory brake operation. Replace the

caliper half if either bore is damaged to the extent

that polishing with very fine crocus cloth will not

restore it.

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES 5-28

Fig.
40—Installing Piston in Caliper Bore Using

Tool J-22591
Fig.
41—Installing Boot Seal in Caliper Bore

Using Tool J-22592

5.
Check the fit of the piston in the bore using a feeler

gage.
Clearance should be as follows:

2 1/16 inch Bore .0045 to .010

1 7/8 inch Bore .0045 to .010

1 3/8 inch Bore .0035 to .009

If the bore is not damaged, and the clearance exceeds

either of the upper limits, a new piston will be required.

Assembly

1.
Assemble the seal in the groove in the piston which

is closest to the flat end of the piston. The lip on

the seal must face toward the large end of the

piston. Be sure lips are in the piston groove and do

not extend over the step in the end of the groove.

2.
Place the spring in the bottom of the piston bore.

3.
Lubricate the seal with dean brake fluid.

4.
Install the piston assembly in the bore using appli-

cable piston rign compressor Tool J-22639, 22629

or 22591 as shown in Figure 40. Use care not to

damage the seal lip as piston is pressed past the

edge of the bore. .

5.
Assemble the boot in the groove of the piston closest

to the concave end of the piston. The fold in the boot

must face toward the end of the piston with the seal

on it.

6. Depress the pistons and check that they slide

smoothly into the bore until the end of the piston is

flush with the end of the bore. If not, re check piston

assembly and location of the piston spring and the

seal.

7.
Position applicable boot seal installer Tool J-22592,

J-22628, or J-22638 over the piston and seat the

steel boot retaining ring evenly in the counterbore

as shown in Figure 41. The boot retaining ring must

be flush or below the machined face of the caliper.

Any distortion or uneven seating could allow con-

taminating and corrosive elements to enter the bore.
8. Position the t:O}> rings in the small cavities around

the brake fluid transfer holes in both ends of the

outboard caliper halves. Lubricate the hex head

. bolts with Delco Brake Lube or clip in clean brake

fluid. Fit caliper halves together and secure with

bolts.
Refer to torque specifications in rear of

manual for correct torque valves.

Installation

1.
Carefully mount the assembled caliper over the edge

of the disc. Use a putty knife to depress pistons so

that the caliper can be lowered into position on the

disc (fig. 42). Use care to prevent damage to boots

• on the edge of the disc as the caliper is mounted.

2.
Secure the caliper to the mounting bracket with two

hex head bolts. Refer to torque specifications in

rear of manual for correct torque values.

CAUTION: If replacing old shoe assemblies,

be sure to get the shoes in the same position

from which they were removed. New shoe as-

semblies have an arrow printed on the back,

showing the direction of forward disc rotation.

3.
Install the shoe and lining assemblies as outlined in

this section.

4.
On Chevrolet and Corvette front calipers, place a

new copper gasket on the male end of the front

wheel brake hose. On all models, install brake hose

in the calipers. With the wheels straight ahead,

pass the female end of the brake hose through the

support bracket.

5.
Make sure the tube seat is clean and connect the

break line tube nut to the caliper. Tighten securely.

6. Allowing the hose to seek a normal position, without

twist, insert hex of the hose fitting into the 12-point

hole in the support bracket and secure it in place

with the "V"-shaped retainer. Turn the steering

geometry from lock to lock while observing the hose.

CHEVROLET CHASSIS SERVICE MANUAL
