3
Contents
Driving and manoeuvring aids - General
recommendations 11 9
Steering wheel with hands-on detection 121
Shortcuts for driving aids 121
Road signs recognition 122
Speed limiter 126
Cruise control - Specific recommendations 128
Cruise control 128
Drive Assist Plus 130
Drive Assist 2.0 130
Adaptive cruise control 131
Lane positioning assist 135
Semi-automatic lane changing 138
Active Safety Brake with Collision Risk Alert and
Intelligent emergency braking assistance
142
Distraction detection 146
Lane keeping assist 148
Long-distance blind spot monitoring 150
Parking sensors 151
Visiopark 1 153
Visiopark 3 155
Rear cross traffic alert 157
 7Practical informationCompatibility of fuels 160
Refuelling 160
Misfuel prevention (Diesel) 161
Electrified vehicles

- General
recommendations
162
Hybrid system 163
Rechargeable hybrid or electric vehicles

-
Specific recommendations
164
Rechargeable hybrid system 167
Charging the traction battery
(Rechargeable hybrid)
170
Charging system (Electric) 173
Charging the traction battery (Electric) 177
Towing device 180
Towing device with quickly detachable
towball
181
Roof bars 184
Very cold climate screens 185
Snow chains 186
Energy economy mode 187
Bonnet 188
Engine compartment 189
Checking levels 189
Checks 191
AdBlue® (BlueHDi) 193
Free-wheeling 195
Advice on care and maintenance 196
 8In the event of a breakdownWarning triangle 199
Running out of fuel (Diesel) 199
Tool kit 199
Temporary puncture repair kit 201
Spare wheel 204
Changing a bulb 207
Fuses 209
12

V battery/Accessory batteries 209
Towing the vehicle 217
 9Technical dataEngine technical data and towed loads 220
Petrol engines 221
Diesel engines 222
Hybrid engines 223
Rechargeable hybrid engines 224
Electric engines 226
Dimensions 227
Identification markings 228
 10 PEUGEOT i-Connect Advanced -PEUGEOT i-Connect
First steps 229
Customisation 232
Steering mounted controls 233
Applications 234
Voice commands 234
Navigation 236
Connectivity 236
Mirror Screen 238
Media 240
Phone 242
Settings 243
Help 243
  11Vehicle data recording and privacy
 ■

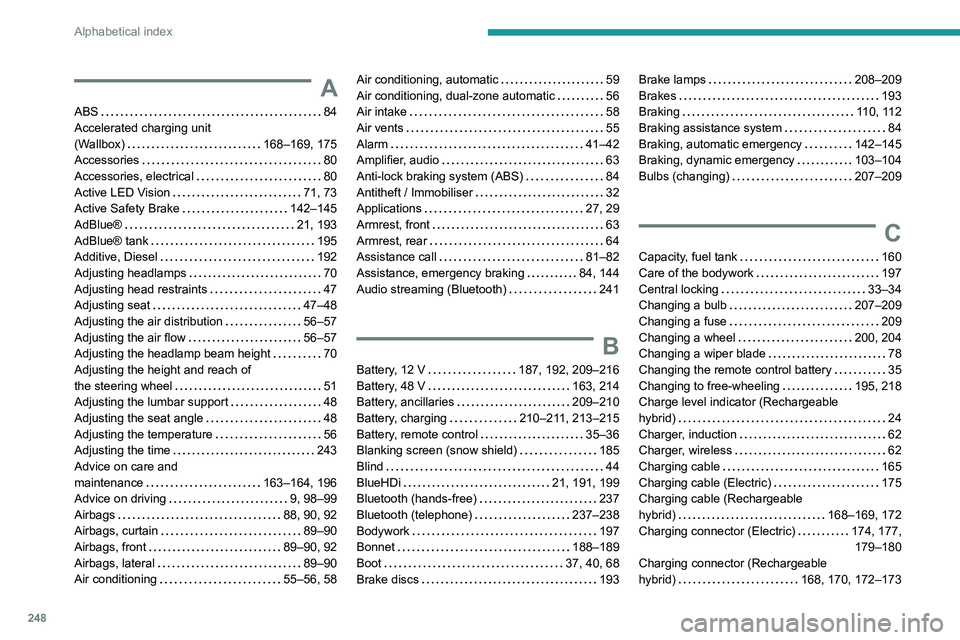

Alphabetical index
 ■
Appendix

4
Overview
Presentation
These illustrations and descriptions are provided
for information. The presence and location of
some elements vary depending on the version
or trim level.
Instruments and controls



1. Emergency call/Assistance call
Sunroof
Alarm
Courtesy lamp/Front reading lamps
2. Warning lamp display for seat belts and front
passenger airbag
Interior mirror
3. Instrument panel
4. Side control bar/Coin holder
5. Fusebox
6. Bonnet release
7. Door mirrors
Electric windows
Central locking
8. Front armrest
USB sockets
9. Front passenger airbag
10. Glove box
Centre console

1.10-inch touch screen
2. Centre control bars
3. Storage compartment or Wireless
smartphone charger
4. Starting/Switching off the engine with START/
STOP
5. Storage
USB socket
12
V socket
Cup holder
6. Gearbox or Drive selector
7. Driving mode selector
8. Electric parking brake
9. Storage compartment/Smartphone storage
Steering-mounted controls

189
Practical information
7Closing
► Lower the bonnet and release it near the end
of its travel.
►

Check the locking.
Because of the presence of electrical
equipment under the bonnet, it is strongly
recommended that exposure to water (rain,
washing, etc.) be limited.
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following components may
vary:
–

Air filter
.
–

Engine oil dipstick.
–


Engine oil filler cap.
Petrol engine

Diesel engine

1. Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
Diesel fuel system
This system is under very high pressure.
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
Electric engine

1. Screenwash fluid reservoir
2. Engine coolant reservoir (level only)
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. 400
V electrical circuit
8. Emergency circuit-breaker for emergency
services and maintenance technicians
For more information on the Charging system
(Electric), refer to the corresponding section.
Checking levels
Check all of the following levels regularly in
accordance with the Manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop.

233
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
10Press one of these buttons on the screen.
Select the desired Widget.
Press the back arrow to return to the
previous page.
Organising the Widgets on a home
page (HOME)
To move a Widget, press and hold it, then drag it
to the desired location.
Adding a page
To add a page, press "Page" on the left of the screen.
Press the back arrow to return to the
previous page.
Deleting a Widget
To move a Widget to the bin, press and hold it, then drag it to the bin.
Personalising the
instrument panel
Press the pencil in the "Customize
Driver Information" part.
The modification of the organisation of the
different Widget is displayed on the instrument
panel in real time.
A Widget is a reduced window of an application or service.
Adding a Widget
To add a Widget, press "Widget" on the left of the screen.
Or
Press one of these buttons on the screen.
Select the desired Widget.
Press the back arrow to return to the
previous page.
Deleting a Widget
To move a Widget to the bin, press and hold it, then drag it to the bin.
Personalising i-Toggles
(depending on equipment)
In the central screen, display the page containing
the button that you want to include.
The shortcuts are used to access an application (air conditioning page, radio
page, etc.) or to perform an action (set the
temperature to 21°, call a selected directory
contact, etc.).
Press and hold the shortcut you want to
replace.
A panel is displayed on the central screen with
all of the eligible shortcuts in boxes.
A notification also informs you of the next step to
perform.
Select the new shortcut required. It will be
duplicated in i-Toggles and will replace the one originally selected. A notification also informs you
of this.
To exit this function at any time, press this
button or press the main "Home" button.
Steering-mounted
controls
Voice control:
Short press, system voice commands
(depending on equipment).
Long press, voice commands of the smartphone
connected using Bluetooth
® or Mirror Screen®
(Apple®CarPlay®/Android Auto) via the system.Increase volume.
Decrease volume.
Mute the sound: long press on the
decrease volume button.
Restore the sound by pressing one of the two
volume buttons.
Incoming call (short press): accept the
call.
Call in progress (short press): hang up.
Incoming call (long press): refuse the incoming
call.
Out of call (short press): access the call log of
the telephone connected via
Bluetooth
®.
Mirror Screen® connected (short press): access
the projected view of the telephone application of
your Mirror Screen
® equipment.

238
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
allowed to connect. WPA2 encryption level,
equivalent to a domestic level, is required.
Any network already connected to the system will reconnect automatically as
soon as it is detected by the system and after
having previously activated the Wi-Fi function.
The Wi-Fi connection of the system to a device already connected using a Mirror
Screen
® wireless connection is not possible.
In this case, favour a Mirror
Screen
® connection using the USB socket.
Device management
For each device already connected to the
system using a wireless connection (Bluetooth®
or wireless Mirror Screen® connection), it is
possible to determine a preferred connection
mode (depending on the functions the device
can support). It is therefore possible to determine
whether the device should be connected using
a wireless Bluetooth
® connection or a wireless
Mirror Screen® connection each time the system
is started once the profile is chosen.
Press the "Settings" application.
In the list, select the "Connectivity".
Select "My Devices " to display the list of
paired devices.
Press this button to manage the
connection of a device.
Choose a connection type then confirm this
choice by pressing “ APPLY".
Deleting a device
Press the "Settings" application.
In the list, select the "Connectivity".
Select "My Devices " to display the list of
paired devices.
Press this button.
Press "DELETE".
Confirm by pressing “ YES”.
Some devices that have just been
deleted from the system request a
connection, refuse this request.
Mirror Screen®
When a smartphone is connected using
Mirror Screen®, the vehicle's location and
some vehicle data is sent to the smartphone
(e.g. brand, left-hand or right-hand drive, day/
night mode, physical speed).
Apple®CarPlay® smartphone
connection
Connecting just one Apple®CarPlay® smartphone
can be carried out either by USB cable or using
a wireless connection.
First activate the Siri® function on your
Apple® smartphone.
If the device fails to connect, refer to the
Apple website to check that the device is
compatible with this function.
If the problem persists, delete all saved
connections on the smartphone and on the
system before attempting a new connection.
The cable connection requires that you
deactivate the CarPlay function in the Settings,
Bluetooth menu of your smartphone.
In the Bluetooth menu, click on the "i" next to
the relevant vehicle and deactivate CarPlay.
Connect the smartphone to the system
using the USB socket compatible with
Mirror Screen.
Apple
®CarPlay® is automatically launched a few
seconds after the USB connection has been
established. In some cases, it may be necessary
to unlock your device.
The smartphone charges when connected by the
USB cable.
The cable connection allows you to avoid
disconnections, especially when passing through
toll booths.
Only one USB socket enables the Mirror
Screen® connection (Apple®CarPlay®);
refer to the "Ease of use and comfort
- Fittings" section.
It is recommended that you use the device's
original USB cables, preferably with a short
cable to ensure optimum performance.

242
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
To avoid reading and display problems, we
recommend choosing file names less than 20
characters long that do not contain any special
characters (e.g. “ ? . ; ù).
Use only USB memory sticks in FAT32 format
(File Allocation Table).
We recommend using the original USB
cable for the portable device.
Phone
Receiving a call
An incoming call is announced by a ring and a
display overlaid on the screen.
Accepting the call:
briefly press the telephone button on the
steering-mounted controls to accept an
incoming call.
Or
Press this touch screen button.
Ending the call:
press and hold...
...the telephone button on the steering-
mounted controls to refuse the call.
Or
Press this touch screen button.
Press this button on the touch screen to
send an automatic message indicating
that you are driving.
Making a call
Using the telephone is strongly
discouraged while driving.
Park the vehicle.
Making a call using the numeric
keypad
Press the "Phone" application.
In the list, select the “Keypad” tab then dial the
number.
Press this button to make the call.
Making a call using the list of recent
calls
Press the "Phone" application.
In the list, select the "Calls" tab.
Or
Briefly press...
...the telephone button on the steering-
mounted controls.
Select and call one of the most recent numbers
called in the list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Calling a contact
Press the "Phone" application.
In the list, select the "Contacts” tab.
Select the desired contact in the displayed list.
Call the contact by selecting one of the
contact's phone numbers.
Organising the contact list
Press the "Phone" application.
In the list, select the “Settings” tab to display the
telephone-related settings.
Choose to list the contacts starting with
their first or last name.
Connecting two phones
The system allows two phones to be connected simultaneously:
–

2 via
Bluetooth
® connection.
or
–

1 via


Bluetooth
® connection and 1 via Mirror
Screen® connection.
Display and content priority is given to the last
phone used.
To change the priority of the phone:

248
Alphabetical index
A
ABS 84
Accelerated charging unit
(Wallbox)

168–169, 175
Accessories

80
Accessories, electrical

80
Active LED Vision

71, 73
Active Safety Brake

142–145
AdBlue®

21, 193
AdBlue® tank

195
Additive, Diesel

192
Adjusting headlamps

70
Adjusting head restraints

47
Adjusting seat

47–48
Adjusting the air distribution

56–57
Adjusting the air flow

56–57
Adjusting the headlamp beam height

70
Adjusting the height and reach of
the steering wheel

51
Adjusting the lumbar support

48
Adjusting the seat angle

48
Adjusting the temperature

56
Adjusting the time

243
Advice on care and
maintenance

163–164, 196
Advice on driving

9, 98–99
Airbags

88, 90, 92
Airbags, curtain

89–90
Airbags, front

89–90, 92
Airbags, lateral

89–90
Air conditioning

55–56, 58
Air conditioning, automatic 59
Air conditioning, dual-zone automatic
56
Air intake

58
Air vents

55
Alarm

41–42
Amplifier, audio

63
Anti-lock braking system (ABS)

84
Antitheft / Immobiliser

32
Applications

27, 29
Armrest, front

63
Armrest, rear

64
Assistance call

81–82
Assistance, emergency braking

84, 144
Audio streaming (Bluetooth)

241
B
Battery, 12 V 187, 192, 209–216
Battery, 48 V
163, 214
Battery, ancillaries

209–210
Battery, charging

210–211, 213–215
Battery, remote control

35–36
Blanking screen (snow shield)

185
Blind

44
BlueHDi

21, 191, 199
Bluetooth (hands-free)

237
Bluetooth (telephone)

237–238
Bodywork

197
Bonnet

188–189
Boot

37, 40, 68
Brake discs

193
Brake lamps 208–209
Brakes
193
Braking

110, 112
Braking assistance system

84
Braking, automatic emergency

142–145
Braking, dynamic emergency

103–104
Bulbs (changing)

207–209
C
Capacity, fuel tank 160
Care of the bodywork
197
Central locking

33–34
Changing a bulb

207–209
Changing a fuse

209
Changing a wheel

200, 204
Changing a wiper blade

78
Changing the remote control battery

35
Changing to free-wheeling

195, 218
Charge level indicator (Rechargeable
hybrid)

24
Charger, induction

62
Charger, wireless

62
Charging cable

165
Charging cable (Electric)

175
Charging cable (Rechargeable
hybrid)

168–169, 172
Charging connector (Electric)

174, 177, 179–180
Charging connector (Rechargeable
hybrid)

168, 170, 172–173

252
Alphabetical index
Motor, electric 101, 114, 163, 167,
189, 224, 226
Motorised tailgate

37–38, 40
Mountings, ISOFIX

93, 95–96
N
Net, high load retaining 67
Net, luggage retaining
66
Normal mode

113–114
O
Obstacle detection 151
Oil change
190
Oil consumption

190
Oil, engine

190
On-board tools

68, 199–201
Opening the bonnet

188–189
Opening the boot

32, 37
Opening the doors

32, 37
P
Pads, brake 193
Paint
197, 228
Paint colour code

228
Parking brake, electric

102–104, 193
Parking (sensors)

151
Parking sensors, audible and visual 151
Parking sensors, front
152
Parking sensors, rear

151
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

29, 59
Pedestrian horn (Electric)

99
Personalisation

12, 29
Plates, identification

228
Port, USB

61, 64
Post Collision Safety Brake

84
Power

22
Power indicator (Rechargeable hybrid)

22
Pressures, tyres

193, 202, 228
Pre-tensioning (seat belts)

87
Priming the fuel system

199
Profiles

230
Protecting children

89–94
Proximity Keyless Entry and Start

32
Public fast charging station

175, 178
Puncture

201–202, 204
R
Radar (warnings) 119
Radio
240
Range

10
Range, AdBlue®

21, 191
Reading lamps

64
Rear bench seat

53
Rear cross traffic alert

157
Rear screen (demisting)

59
Rechargeable hybrid engine 28, 218, 224
Rechargeable hybrid system
6, 28, 100, 114, 167
Recharging the battery

210–211, 213, 215
Recharging the traction battery

165
Recharging the traction battery
(Electric)

173, 177, 179–180
Recharging the traction battery
(Rechargeable hybrid)

167, 170, 172–173
Recirculation, air

58
Recorder, trip distance

25
Reduction of electrical load (mode)

188
Regeneration of the particle filter

192
Regenerative braking (deceleration
by engine braking)

110, 112
Reinitialising the remote control

36
Reinitialising the under-inflation detection
system

119
Reminder, lighting on

69
Remote control

30–33, 35
Remote functions

172, 178
Remotely operable functions (Rechargeable
hybrid)

29, 59
Removing a wheel

205–206
Removing the mat

63
Replacing bulbs

207–209
Replacing fuses

209
Replacing the air filter

192
Replacing the oil filter

192
Replacing the passenger compartment
filter

192
Reservoir, screenwash

191
