2024 ACURA INTEGRA headlights

7
Quick Reference Guide❚ Headlights/ Turn Signals
(P183, 184)
❚ Fog Lights* (P187)
❚Paddle Shifter (Shift down)* (P446)
❚Left Selector Wheel (P238)
❚ Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P512)
❚ Lane Keeping Assist System (LKAS)
Button
(P556)
❚ Interval Button (P525)
❚Steering Wheel Adjustments (P196)
❚ Heated Steering Wheel (P223)
$BOBEJBO
NPEFMT
❚Right Selector Wheel (P118)
❚Bluetooth ® HandsFreeLink ® System
Buttons* (P405)
❚Horn (Press an area around .)
❚ Adaptive Cruise Control (ACC) Buttons*
(P533)
❚Paddle Shifter (Shift up)* (P446)
❚ Wipers/ Washers (P191)
❚Audio Remote Controls (P238)
❚ Voice Control Buttons* (P288)
* Not available on all models
24 ACURA INTEGRA-313S56100.book 7 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P637)
❚Windshield Wipers (P191, 657)
❚Tires (P659, 688)
❚Fog Lights* (P187, 655)
❚Power Door Mirrors (P198)
❚How to Refuel (P621)
❚Opening/Closing the Hatch (P170)
❚Side Turn Signal Lights* (P183, 655)
❚Headlights (P184, 655)
❚Front Turn Signal Lights (P183, 655)
❚Front Side Marker Lights (P184, 655)
❚Rear Side Marker Lights (P656)
❚Door Lock/Unlock Control (P155)
❚Parking/ChicaneTM Daytime Running Lights (P187, 655)
❚Rear Turn Signal Lights (P656)
❚High-Mount Brake Light (P656)
❚Multi-View Rear Camera (P617)
❚Hatch Release Button (P171)
❚Rear License Plate Light (P656)
❚Brake Lights (P656)
❚Back-Up Lights (P656)
❚ChicaneTM Taillights (P656)
24 ACURA INTEGRA-313S56100.book 10 ページ ２０２３年２月１３日　月曜日　午後２時４１分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal and
Hazard Warning
Indicators•Blinks when you oper ate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.●Does not blink or blinks rapidly - Have your
vehicle checked by a dealer.
Lights On Indicator• Comes on when the parking, tail, and
other external lights are on.2 Light Switches P. 184
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 188
Fog Light
Indicator*
•Comes on when the fog lights are on.2 Fog Lights* P. 187
* Not available on all models
24 ACURA INTEGRA-313S56100.book 96 ページ ２０２３年２月１３日　月曜日　午後２時４１分

138
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Keyless access
setup
Door unlock modeChanges which doors unlock when you grab the driver’s
door handle.Driver door only*1/All
doors
Keyless access light
flashCauses some exterior lights to flash when you unlock/
lock the doors.ON*1/ OFF
Keyless access beepCauses the beeper to soun d when you unlock/lock the
doors.ON*1/ OFF
Remote start system
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting setup
Auto high-beamTurns the auto high-beam on and off.ON*1/OFF
Interior light dimming
timeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight auto off
timerChanges the length of time the exterior lights stay on
after you close the driver’s door.60sec /30sec /15sec*1/0sec
Auto light sensitivity*Changes the timing for the headlights to come on.Max/High/ Mid*1/Low /Min
Auto headlight ON
with wiper ONChanges the settings for th e wiper operation when the
headlights automatically come on while the headlight
switch is in the AUTO position.
ON*1/OFF
* Not available on all models
24 ACURA INTEGRA-313S56100.book 138 ページ ２０２３年２月１３日　月曜日　午後２時４１分

184
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
■Lights off
Turn the lever to OFF either when:
• The shift lever is in
(P (continuously
variable transmission).
• The parking brake is applied.
To turn the lights on ag ain, turn the lever to
OFF to cancel the lights off mode. Even if you
do not cancel the lights off mode, the lights
come on automatically when:
• The transmission is taken out of
(P
(continuously variable transmission) and the
parking brake is released.
• The vehicle starts to move.
■Manual Operation1Light Switches
If you leave the power mode in VEHICLE OFF while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 96
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
If you suspect that the he adlights are not positioned
properly, have the vehicl e inspected by a dealer.
Turns on parking lights, side
marker, tail, and rear license
plate lights
Turns on headlights, side
marker, parking lights, tail, and
rear license plate lights
High Beams
Flashing the high beams
Low Beams
24 ACURA INTEGRA-313S56100.book 184 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued185
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wipers
Light Sensor
Models with automatic
intermittent wipers
24 ACURA INTEGRA-313S56100.book 185 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuOperating the Switches Around the Steering Wheel uLight Switches
186
Controls
The headlights automatically come on when the wipers are used several times within
a certain number of intervals wi th the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, an d the instrument panel lights turn off 15
seconds after you set the power mode to VEHICLE OFF, and close the driver’s door.
If you set the power mode to VEHICLE OFF with the headlight switch on, but do not
open the door, the lights turn off after 10 minutes (3 minutes, if the switch is in the
AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a reminder chime alerting you that the lights are on.
■Headlight Integration with Wipers
■Automatic Lighting Off Feature
1Automatic Operation (aut omatic lighting control)
You can adjust the auto li ght sensitivity as follows:
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
SettingThe exterior lights come on
when the ambient light is at
Max
High
Mid
Low
Min
U.S. models
Bright
Dark
1 Headlight Integration with Wipers
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light levels, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
1 Automatic Lighting Off Feature
You can change the headlight auto off timer setting.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
* Not available on all models
24 ACURA INTEGRA-313S56100.book 186 ページ ２０２３年２月１３日　月曜日　午後２時４１分

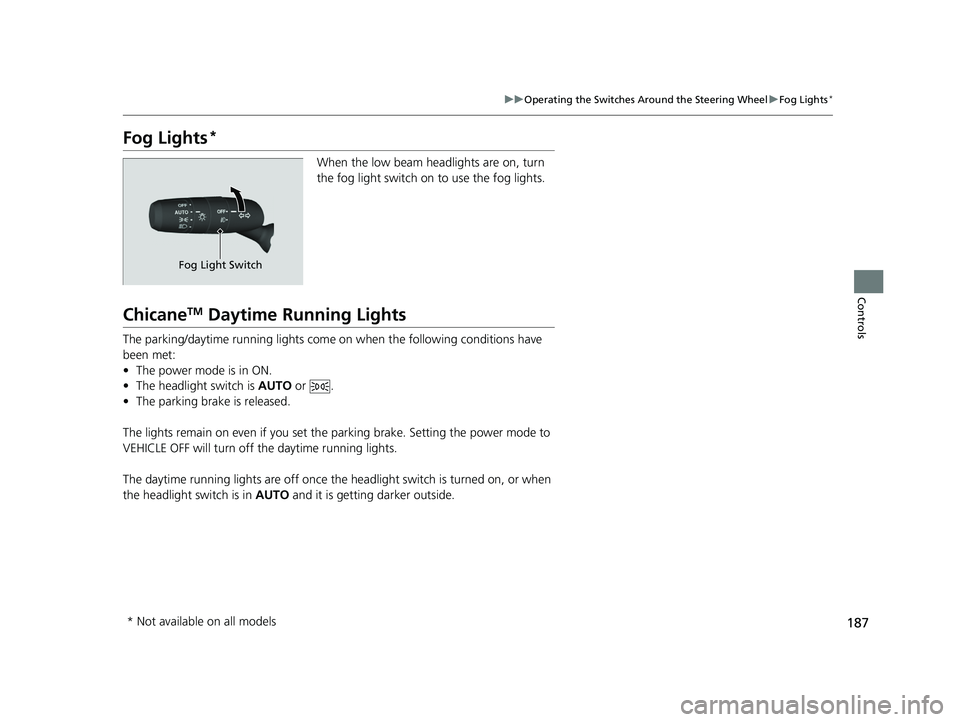

187
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
ChicaneTM Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is in ON.
• The headlight switch is AUTO or .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Setting the power mode to
VEHICLE OFF will turn off the daytime running lights.
The daytime running lights are off once the h eadlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
Fog Light Switch
* Not available on all models
24 ACURA INTEGRA-313S56100.book 187 ページ ２０２３年２月１３日　月曜日　午後２時４１分
