2024 ACURA INTEGRA TPMS

26
Quick Reference Guide
CMBSTM On and Off
(P493)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
VSA ® On and Off (P475)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and hold the (VSA ®
OFF ) button until you hear a beep.
Tire Pressure Monitoring
System (TPMS) with Tire
Fill Assist
(P478)
●The TPMS monitors tire pressure.●The TPMS is turned on automatically
every time you start the engine.
●TPMS fill assist provides audible and visual
guidance during tire pressure adjustment.
Refueling (P619)
Fuel recommendation:
Unleaded premium gasoline, pump octane number 91 or
higher
Unleaded premium gasoline, pump octane number 93 or
higher
Fuel tank capacity:
12.39 US gal (46.9 L)
1.5 L engine models
2.0 L engine models
aUnlock the driver’s
door.
(P166)
bPress on the edge of
the fuel fill door to
make it pop up
slightly.
cAfter refueling, wait
about five seconds
before removing the
filler nozzle.Wait for five seconds
24 ACURA INTEGRA-313S56100.book 26 ページ ２０２３年２月１３日　月曜日　午後２時４１分

33
Quick Reference Guide
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or any passengers are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist (P478)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P* or (N. If so, select any other
position.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 33 ページ ２０２３年２月１３日　月曜日　午後２時４１分

87
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve t he issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator High Beam
Indicator
Fog Light
Indicator*
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 95
Auto Id
le Stop System
Indicator
(Amber)* P. 99
 P. 96
 P. 96 
P. 101
*1
 P. 96
 P. 96

P. 96 Immobilizer System
Indicator

P. 98
S

ecur
ity System Alarm
Indicator 
P. 98
 P. 97 
P. 102
 P. 106
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 101
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 102
*1 *1Safety Support
Indicator (Amber)
P. 103
*1
NORMAL Mode
Indicator* P. 97
Auto Idle Stop OFF
Indicator* P. 99
Auto Idle Stop
Suspend Indicato
r* P. 100
SPORT
Mode Indicator 
P. 97
Cruise Mode Indicator
(White/Green) 
P. 102
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval
Indicator 
P. 102
Auto Idle Stop
Indicator (Green)* P. 99COMFORT Mode
Indicator 
P. 97 INDIVI DUAL
Mode
Indicator
* P. 97
SPORT+
Mode
Indicator
* P. 97
* Not available on all models
24 ACURA INTEGRA-313S56100.book 87 ページ ２０２３年２月１３日　月曜日　午後２時４１分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Blinks when VSA ® is active.—
●Comes on if there is a problem with the
VSA® system, brake assist system, hill start
assist system, starting assist brake
function
*, or agile handling assist.
●Stays on constantly - Have your vehicle checked
by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC), System
P. 474
2 Brake Assist System P. 606
2 Hill start assist system P. 439
2 Starting Assist Brake Function P. 468
2 Agile Handling Assist P. 476
●Comes on if the VSA® system is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
Vehicle Stability
AssistTM (VSA ®)
OFF Indicator
●Comes on when you partially disable VSA ®.
2VSA ® On and Off P. 475
Low Tire Pressure/
TPMS Indicator
●Comes on if the tire pressure of any of the
tires becomes low.●Comes on while driving - Stop in a safe place,
check tire pressures, and inflate the tire(s) if
necessary.
●Blinks for about one minute, and then stays
on if there is a problem with the TPMS with
Tire Fill Assist, or when a compact spare
tire
* is temporarily installed.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with a
compact spare tire
*, get your regular tire repaired
or replaced and put back on your vehicle as soon as
you can.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 95 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuGauges and Displays uDriver Information Interface (Right Side Area)
128
Instrument Panel
Occurs, under specified conditions, when seat belts are latched or unlatched.
2Seat Belt Reminder P. 42
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 629
Shows each tire’s pressure.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 478
■Seat Belts
■Maintenance
■Tire Pressure Monitor1Tire Pressure Monitor
Tire pressure status is di splayed via green and amber
icons.
The icons turn amber if tire pressure is too low, or if
there is a problem with the system. “--” is displayed
if there is a problem.
24 ACURA INTEGRA-313S56100.book 128 ページ ２０２３年２月１３日　月曜日　午後２時４１分

425
Driving
This chapter discusses driving and refueling.
Before Driving................................... 426
Towing a Trailer ................................ 432
When Driving
Starting the Engine .......................... 433
Precautions While Driving................. 441
Continuously Variable Transmission*... 443Shifting .................................... 444 , 448Acura Integrated Dynamics System .. 452, 454Auto Idle Stop*........................ 463, 469Vehicle Stability AssistTM (VSA®), aka
Electronic Stability Control (ESC),
System ........................................ 474
Agile Handling Assist ....................... 476 Limited Slip Differential (LSD) ........... 477
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .......................... 478
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 480
Blind Spot Information System ......... 482
AcuraWatch
TM................................... 486
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 489
Low Speed Braking Control*.... 501, 507
Adaptive Cruise Control (ACC) with Low Speed Follow
*............................... 512
Adaptive Cruise Control (ACC)*....... 533 Lane Keeping Assist System (LKAS).... 553
Traffic Jam Assist
*........................... 565
Road Departure Miti gation System... 574
Traffic Sign Recognition System ....... 583
Front Wide View Camera ................. 590
Sonar Sensors
*................................ 592
Braking .............................................. 594
Parking Your Vehicle ........................ 607
Multi-View Rear Camera .................. 617
Refueling ........................................... 619
Fuel Economy and CO
2 Emissions .... 623
Turbo Engine Vehicle ....................... 624
* Not available on all models
24 ACURA INTEGRA-313S56100.book 425 ページ ２０２３年２月１３日　月曜日　午後２時４１分

478
uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
Driving
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
Monitors the tire pressure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the driver information interface.
1 Tire Pressure Monitoring System (TPMS) with Tire Fill Assist
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come
on. 2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 727
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become overinflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of overinflation.
Only use genuine TPMS specified wheels since your
vehicle’s wheels are equipped with the low tire
pressure/TPMS sensor.
If you drive your vehicle without the genuine TPMS
specified wheels, the low tire pressure/TPMS
indicator blinks for one minutes and then stays on.
2 Tire and Wheel Replacement P. 666
The TPMS audibly and visually informs you of
changes in tire pressure of the individual tire that you
are adjusting using audibl e and visual indications.
If a change in tire pressure has been significant, the
system beeps and the hazard lights flash continuously
for five seconds when the specified tire pressure is
reached. Stop filling the tire.Low Tire Pressure/TPMS
Indicator
24 ACURA INTEGRA-313S56100.book 478 ページ ２０２３年２月１３日　月曜日　午後２時４１分

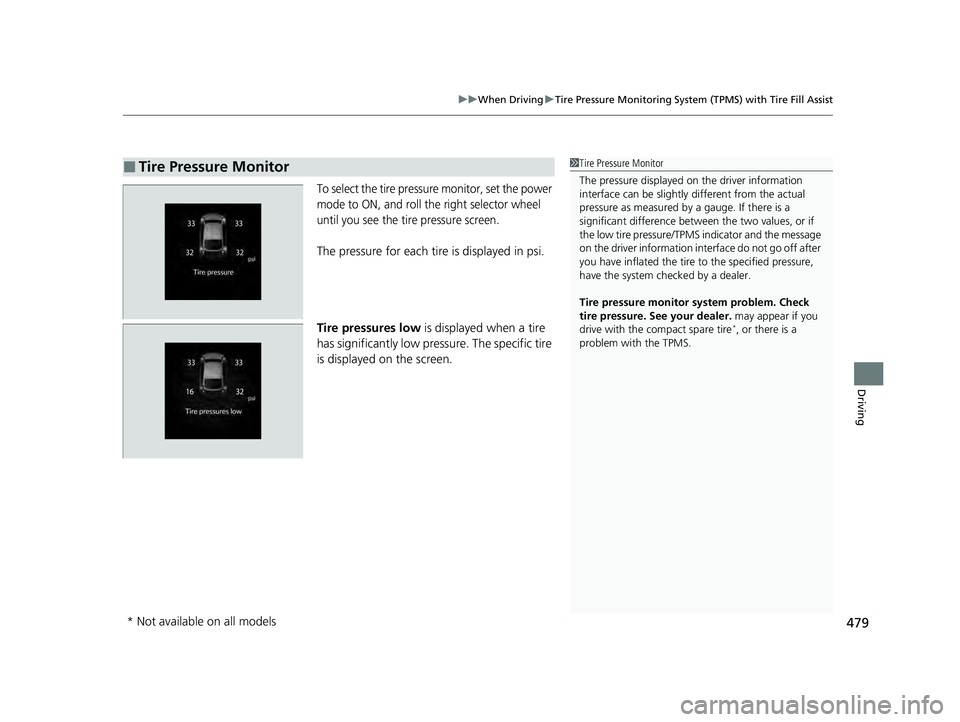

479
uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
Driving
To select the tire pressure monitor, set the power
mode to ON, and roll the right selector wheel
until you see the tire pressure screen.
The pressure for each tire is displayed in psi.
Tire pressures low is displayed when a tire
has significantly low pressure. The specific tire
is displayed on the screen.
■Tire Pressure Monitor1 Tire Pressure Monitor
The pressure displayed on the driver information
interface can be slightly different from the actual
pressure as measured by a gauge. If there is a
significant di fference between the two values, or if
the low tire pressure/TPMS indicator and the message
on the driver information in terface do not go off after
you have inflated the tire to the specified pressure,
have the system checked by a dealer.
Tire pressure monitor system problem. Check
tire pressure. See your dealer. may appear if you
drive with the compact spare tire
*, or there is a
problem with the TPMS.
* Not available on all models
