2024 ACURA INTEGRA reset

20
Quick Reference Guide
Features (P233)
Audio Remote Controls
(P238)
●VOL(+/VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
Models with 7-in. Color Touchscreen
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL( - (Volume) Switch
●Left Selector Wheel
Roll up or down: To cycle through the
modes, roll up or down and then press
the left selector wheel:
AM
USB
Bluetooth
Apps
(Apple CarPlay/Android Auto)
FM
Customize display
Phone
Back
24 ACURA INTEGRA-313S56100.book 20 ページ ２０２３年２月１３日　月曜日　午後２時４１分

21
Quick Reference Guide
●VOL(+/VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Models with 9-in. Color Touchscreen
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL(- (Volume) Switch
●Left Selector Wheel
Roll up or down: To cycle through the
modes, roll up or down and then press
the left selector wheel:
Back
AM
SXM
USB
Bluetooth
Apps
(Apple CarPlay/Android Auto)
Customize display
Phone
FM
Alexa*
* Not available on all models
24 ACURA INTEGRA-313S56100.book 21 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuChild Safety uSafety of Infants and Small Children
76
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
24 ACURA INTEGRA-313S56100.book 76 ページ ２０２３年２月１３日　月曜日　午後２時４１分

113
uuGauges and Displays uDriver Information Interface (Left Side Area)
Continued
Instrument Panel

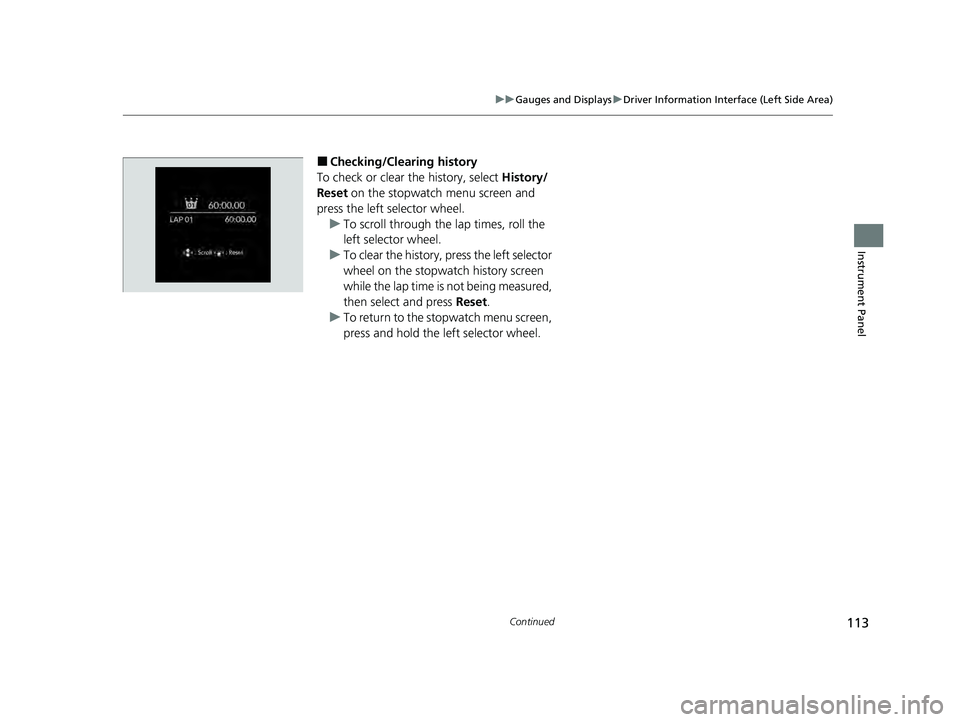

■Checking/Clearing history
To check or clear the history, select History/
Reset on the stopwatch menu screen and
press the left selector wheel. u To scroll through the lap times, roll the
left selector wheel.
u To clear the history, press the left selector
wheel on the stopwatch history screen
while the lap time is not being measured,
then select and press Reset.
u To return to the stopwatch menu screen,
press and hold the left selector wheel.
24 ACURA INTEGRA-313S56100.book 113 ページ ２０２３年２月１３日　月曜日　午後２時４１分

119
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
Press the right selector wheel to switch between trip meter A and trip meter B.
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press and hold the right sele ctor wheel, and then
select Reset.
u The trip meter is reset to 0.0.
■Range/Fuel/Trip Meter
Trip Meter A Range
Average Fuel Economy
Instant Fuel
Economy Trip Meter B
24 ACURA INTEGRA-313S56100.book 119 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuGauges and Displays uDriver Information Interface (Right Side Area)
120
Instrument Panel
■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle’s current fuel economy.
1Average fuel economy
You can change when to reset the average fuel
economy.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
1Range
The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 120 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuGauges and Displays uDriver Information Interface (Right Side Area)
122
Instrument Panel
■Trip meter
2 Trip meter P. 119
■Elapsed time
Shows the time elapsed since Trip A or Trip B was reset.
■Average speed
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the Apple CarPlay or Android Auto, turn-by-
turn directions to your destination appear.
2 Apple CarPlay P. 326
2 Android AutoTM P. 333
■Navigation*
1Elapsed time
You can change when to reset the elapsed time.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
1Average speed
You can change when to reset the average speed.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
1Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 367
Turn-by-turn directions may not be available for all
apps.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 122 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued125
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel
■The Driver Attention Monitor resets when:
• The engine is turned off.
• The driver unfastens the seat belt and ope ns the door while the vehicle is stopped.
■For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane Keeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 553
•The condition of the road is poor; e. g., the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner, such as
changing lanes or accelerating.
■Customizing
You can change the Driver Atte ntion Monitor settings. Select Tactile and audible
alert
*1/ Tactile And Audible Alert*2, Tactile alert*1/Tactile Alert*2, or OFF .
2Vehicle Settings* P. 134
2 Customized Features P. 367
*1: Models with 7-in. Color Touchscreen
*2: Models with 9-in. Color Touchscreen
1For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed-out unless the Driv er Attention Monitor is
functioning.
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
24 ACURA INTEGRA-313S56100.book 125 ページ ２０２３年２月１３日　月曜日　午後２時４１分
