General maintenance
Listed below are the general maintenance items that should be per-
formed at the intervals specified. It is recommended that any prob-
lem you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
Vehicle interior
ItemsCheck points
BatteryCheck the battery fluid level and connections. ( ➞P. 321)
Brake fluidIs the brake fluid at the correct level? ( ➞P. 320)
Engine coolantIs the engine coolant at the correct level? (➞ P. 319)
Engine oilIs the engine oil at the correct level? (➞P. 316)
Exhaust systemThere should not be any fumes or strange sounds.
Radiator/condenserThe radiator and condenser should be free from foreign
objects. ( ➞P. 320)
Washer fluidIs there sufficient washer fluid? ( ➞P. 324)
ItemsCheck points
Accelerator pedal⚫The accelerator pedal should move smoothly (without
uneven pedal effort or catching).
Automatic transmis-
sion “Park” mechanism⚫When parked on a slope and th e shift lever is in P, is
the vehicle securely stopped?
Brake pedal
⚫Does the brake pedal move smoothly?
⚫Does the brake pedal have appropriate clearance from
the floor? (➞ P. 427)
⚫Does the brake pedal have the correct amount of free
play? (➞P. 427)
Brakes
⚫The vehicle should not pull to one side when the
brakes are applied.
⚫The brakes should work effectively.
⚫The brake pedal should not feel spongy.
⚫The brake pedal should not get too close to the floor
when the brakes are applied.
RAIZE_OM_General_BZ358E.book 306 ページ ２０２２年５月１７日　火曜日　午後１時５９分

309
RAIZE_OM_General_BZ358E
Maintenance and care
6
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition
(➞ P. 321)
⚫Warm water
⚫Baking soda
⚫Grease
⚫Conventional wrench (for terminal clamp bolts)
⚫Distilled water
Brake fluid level
(➞ P. 320)⚫FMVSS No.116 DOT 3 brake fluid
⚫Rag or paper towel
⚫Funnel (used only for adding brake fluid)
Engine coolant level
(➞ P. 319)
⚫“Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology “Toyota Super Long Life Coolant” is premixed
with 50% coolant and 50% deionized water.
⚫Funnel (used only for adding coolant)
Engine oil level
( ➞ P. 316)⚫Engine oil
⚫Rag or paper towel
⚫Funnel (used only for adding engine oil)
Fuses ( ➞P. 348)⚫Fuse with same amperage rating as original
Light bulbs
(➞ P. 352)⚫Bulb with same number and wattage rating as original
⚫Flathead screwdriver
⚫Wrench
Radiator and con-
denser ( ➞P. 320)―
Tire inflation pres-
sure ( ➞P. 334)⚫Tire pressure gauge
⚫Compressed air source
Washer fluid
(➞ P. 324)⚫Water or washer fluid containing antifreeze (for winter
use)
⚫Funnel (used only for addi ng water or washer fluid)
RAIZE_OM_General_BZ358E.book 309 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3106-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
⬛When working on the engine compartment
⚫Keep hands, clothing and tools away from the moving fan and engine drive
belt.
⚫Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. O il and other fluids may also be hot.
⚫Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
⚫Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
⚫Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
⚫Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with cl ean water immediately.
If you still experience discomfort, consult a doctor.
⬛When working near the electric cooling fan or radiator grille
Be sure the engine switch is in off.
With the engine switch in “ON”, the elect ric cooling fan may automatically start
to run if the air conditioning is on and/or the coolant temperature is high.
( ➞ P. 320)
⬛Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
⬛If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RAIZE_OM_General_BZ358E.book 310 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3166-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
aWasher fluid tank ( ➞P. 324)
b Engine oil filler cap (➞ P. 317)
c Engine oil level dipstick ( ➞P. 316)
d Brake fluid reservoir ( ➞P. 320)
e Battery ( ➞P. 321)
f Fuse box ( ➞P. 348) g
Air cleaner ( ➞P. 325)
hEngine coolant reservoir (➞P. 319)
i Electric cooling fan
j Condenser ( ➞P. 320)
k Radiator ( ➞P. 320)
Engine oil
With the engine at operating temper ature and turned off, check the oil
level on the dipstick.
⬛Checking the engine oil
a Park the vehicle on level ground. After warming up the engine and
turning it off, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
b Holding a rag under the end, pull the dipstick out.
▶WA-VE engine▶1KR-VET engine
c Wipe the dipstick clean.
d Reinsert the dipstick fully.
eHolding a rag under the end, pull the
dipstick out and check the oil level.
a Low
b Normal
c Excessive
The shape of the dipstick may dif-
fer depending on the type of
vehicle or engine.
f Wipe the dipstick and reinsert it fully.
KBRO620901NKBRO620902N
KBRO620905N
RAIZE_OM_General_BZ358E.book 316 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3196-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir when the engine is cold.
a Reservoir cap
b “FULL” line
c “LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
(➞ P. 412)
⬛Coolant selection
Only use “Toyota Super Long Life Coolan t” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid org anic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35°C [-31°F])
For more details about engine coolant, contact your Toyota Genuine dealer.
⬛If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and
water pump.
If you cannot find a leak, have your Toyo ta dealer test the cap and check for
leaks in the cooling system.
WARNING
⬛When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing seri ous injuries, such as burns.
⬛When replacing the coolant
To avoid coolant spilling on the altern ator, do not remove the upper radiator
hose from engine side (remove from the radiator side). Coolant spilled on the
alternator will cause corrosion of the coil and a fire.
1
3
2
KBRO620908N
RAIZE_OM_General_BZ358E.book 319 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3206-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
NOTICE
⬛When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
⬛If you spill coolant
Be sure to wash it off with water to pr event it from damaging parts or paint.
Radiator and condenser
Check the radiator and condenser and clear away any foreign objects. If
either of the above parts is extremel y dirty or you are not sure of their
condition, have your vehicle inspected by your Toyota dealer.
WARNING
⬛When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious
injuries, such as burns.
Brake fluid
⬛Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
⬛Adding fluid
Make sure to check the fluid type and prepare the necessary item.
KBRO620912E
Fluid typeFMVSS No.116 DOT 3 brake fluid
ItemClean funnel
RAIZE_OM_General_BZ358E.book 320 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3777-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

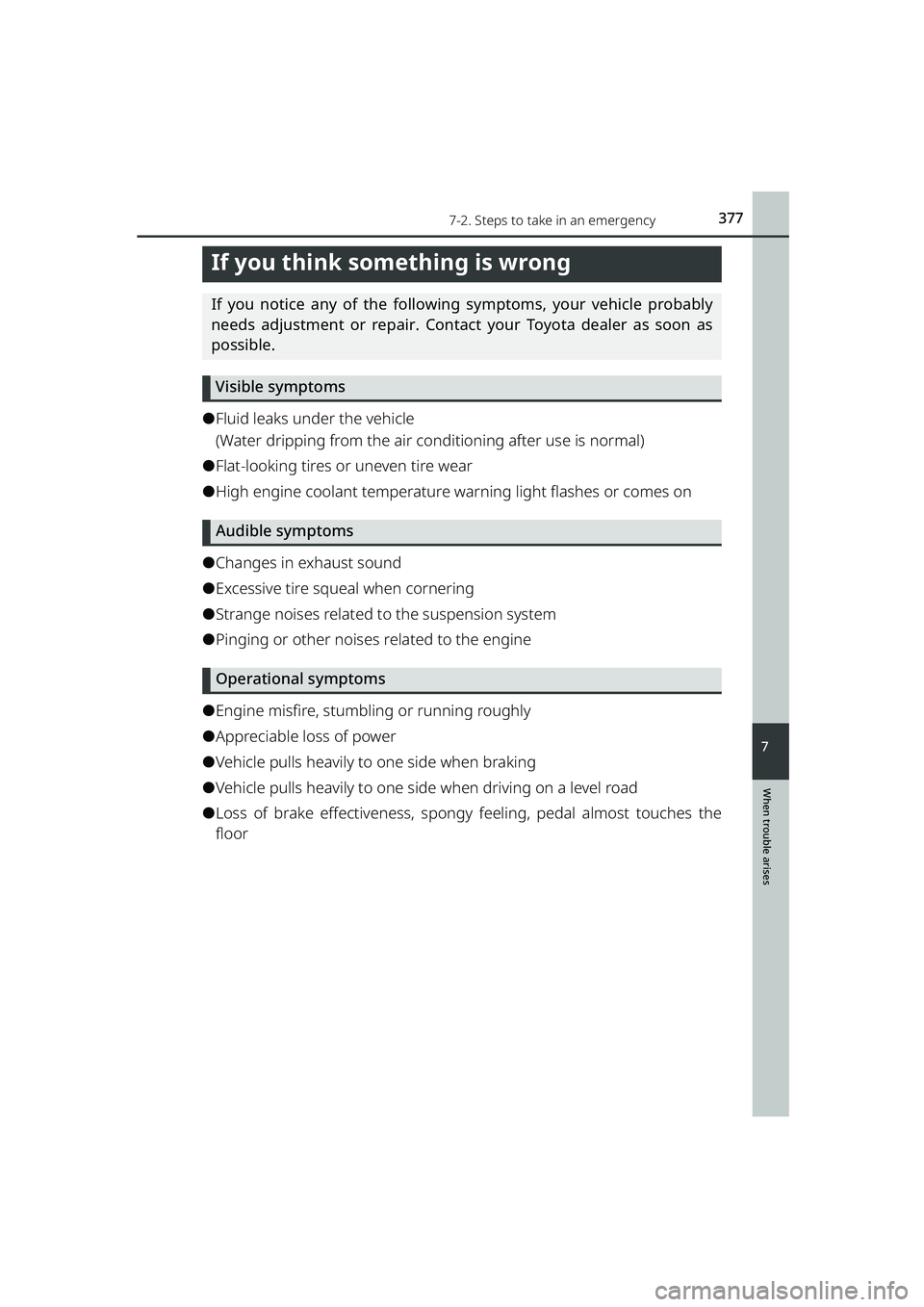

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
Visible symptoms
⚫Fluid leaks under the vehicle
(Water dripping from the air co nditioning after use is normal)
⚫Flat-looking tires or uneven tire wear
⚫High engine coolant temperature warning light flashes or comes on
Audible symptoms
⚫Changes in exhaust sound
⚫Excessive tire squeal when cornering
⚫Strange noises related to the suspension system
⚫Pinging or other noises related to the engine
Operational symptoms
⚫Engine misfire, stumbling or running roughly
⚫Appreciable loss of power
⚫Vehicle pulls heavily to one side when braking
⚫Vehicle pulls heavily to one side when driving on a level road
⚫Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
RAIZE_OM_General_BZ358E.book 377 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3797-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
If a warning light turns on
If a warning light remains on or flashes, remain calm and take the
following actions. Even if the warn ing light lights up or flashes then
goes out, it is not a malfunction. However, if the same phenomenon
occurs again, have the vehicle inspected at your Toyota dealer.
Warning light/Warning buzzers list
Warning lightsWarning light name/Warning content/Action to take
Brake system warning light (warning buzzer *1)
⦁Low brake fluid level
⦁Malfunction in the brake system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer. Continuing to drive the vehicle is dangerous.
Charging system warning light✽
Malfunction in the vehicle’s charging system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Low engine oil pressure warning light✽ (warning buzzer)
Abnormal engine oil pressure
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
(Red light
flashing or lit)
High coolant temperature warning light
Abnormal engine coolant temperat ure (light changes from flash-
ing to lit as the temperature rises ➞P. 412.)
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Malfunction indicator lamp
⦁Malfunction in the electron ic engine control system
⦁Electronic control throttle error
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
Continuously variable transmission warning light✽
Malfunction of the continuously variable transmission electronic
control system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
RAIZE_OM_General_BZ358E.book 379 ページ ２０２２年５月１７日　火曜日　午後１時５９分
