Page 6 of 818

TABLE OF CONTENTS4
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
5-5. Using the driving
support systems
Toyota Safety Sense .........355
PCS (Pre-Collision
System) ...........................368
LTA (Lane Tracing
Assist) ..............................379
RSA (Road Sign Assist).....395
Dynamic radar cruise
control with full-speed
range ...............................401
Driving mode select
switch...............................418
Speed limiter ......................420
BSM
(Blind Spot Monitor) .........423
• The Blind Spot Monitor
function ..........................439
• The Rear Crossing
Traffic Alert function.......443
Toyota parking
assist-sensor ...................450
Parking Support Brake
function ............................462
S-IPA (Simple Intelligent
Parking Assist
System) ...........................473
GPF (Gasoline Particulate
Filter) system ...................508
Driving assist systems .......509
5-6. Driving tips
Winter driving tips ..............5166-1. Using the air conditioning
system and defogger
Automatic air conditioning
system............................. 522
Remote Air Conditioning
System ............................ 535
Seat heaters ...................... 539
6-2. Using the interior lights
Interior lights list ................ 541
• Front interior light .......... 542
• Front personal lights ..... 542
• Rear interior light .......... 543
6-3. Using the storage features
List of storage features...... 544
• Glove box ...................... 545
• Console box .................. 545
• Cup holders .................. 546
• Bottle holders/
door pockets ................. 547
• Auxiliary boxes .............. 548
• Seat back pockets ........ 549
Luggage compartment
features ........................... 550
6-4. Using the other interior
features
Other interior features ....... 555
• Sun visors ..................... 555
• Vanity mirrors ................ 555
• Power outlets ................ 556
• Wireless charger ........... 557
• Armrest ......................... 563
• Coat hooks .................... 563
• Assist grips ................... 564
6Interior features
Page 21 of 818
19Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
TRIP switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Audio remote control switches
*2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 409
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 401
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Talk switch
*2
Telephone switches*2
*1: If equipped
*2: Refer to “Navigation system Owner’s manual”.
1
2
3
4
5
6
7
8
9
Page 27 of 818
25Pictorial index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
TRIP switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Audio remote control switches
*2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 409
LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 387
Cruise control switch
Dynamic radar cruise control with full-speed range. . . . . . . . . P. 401
Speed limiter switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Talk switch
*2
Telephone switches*2
*1: If equipped
*2: Refer to “Navigation system Owner’s manual”.
1
2
3
4
5
6
7
8
9
Page 93 of 818

912-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■When in EV mode
In EV mode, EV driving (driving using only the electric motor)
* is
possible. However, depending on the situation, EV driving may be
canceled and both gasoline engine and electric motor are used
(P. 94). Also, if a little electricity is remaining in the hybrid battery
(traction battery), HV mode is automatically selected. To drive in EV
mode long, observe the followings.
●Avoid sudden acceleration and sudden deceleration, and be sure
to drive smoothly.
If you repeatedly accelerate, the hybrid battery (traction battery)
charge will deplete quickly. Also, EV driving may be canceled by
rapid acceleration or vehicle speed.
●Restrain your speed as much as possible. The distance that can
be driven in EV mode will reduce considerably at high speeds.
*: The EV driving range can be checked using the multi-information dis-
play etc. (P. 215, 231, 238, 255)
■
When in EV City mode
In EV City mode, EV driving (driving using only the electric motor) is
possible.
*1
●Motor output is limited at the same level unless the accelerator
pedal is fully depressed.
When it is necessary to accelerate the vehicle, depress the
accelerator pedal completely or cancel EV City mode as needed.
●In the following situations, EV City mode is automatically can-
celed.
*2
• When driving in EV driving is not possible. (P. 9 4 )
• When Dynamic radar cruise control with full-speed range is
activated.
• When the accelerator pedal is fully depressed.
*1: The EV driving range can be checked using the multi-information dis-
play etc. (P. 215, 231, 238, 255)
*2: Depending on the circumstances, EV City mode may also be canceled
in situations other than those above.
Control when driving in each mode
Page 200 of 818

1983. Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■When the driving assist systems are operating
When using driving assist systems such as the dynamic radar
cruise control with full-speed range (P. 401) and LTA (Lane Trac-
ing Assist) (P. 379), information related to each system is auto-
matically displayed on the multi-information display depending on
the situation.
For details regarding the displayed information and the contents of the
display, refer to the explanation page of each system.
■
When there is information to be notified about the vehicle
When a shift position is mistakenly selected or a problem occurs in
a vehicle system, a warning message (or image) is displayed on
the multi-information display.
When a warning message is displayed, follow the instructions displayed
on the display. (P. 667)
■
When the power switch is turned off (vehicles with the intru-
sion sensor)
The intrusion sensor on/off
selection screen is displayed on
the multi-information display.
(P. 7 9 )
■When stopping the hybrid system
●When the hybrid system is stopped, the “Ending” screen is dis-
played on the multi-information display (for approximately 30
seconds
*1).
While the “Ending” screen is displayed, the following information
can be displayed by pressing , , or of the meter
control switches.
Page 209 of 818

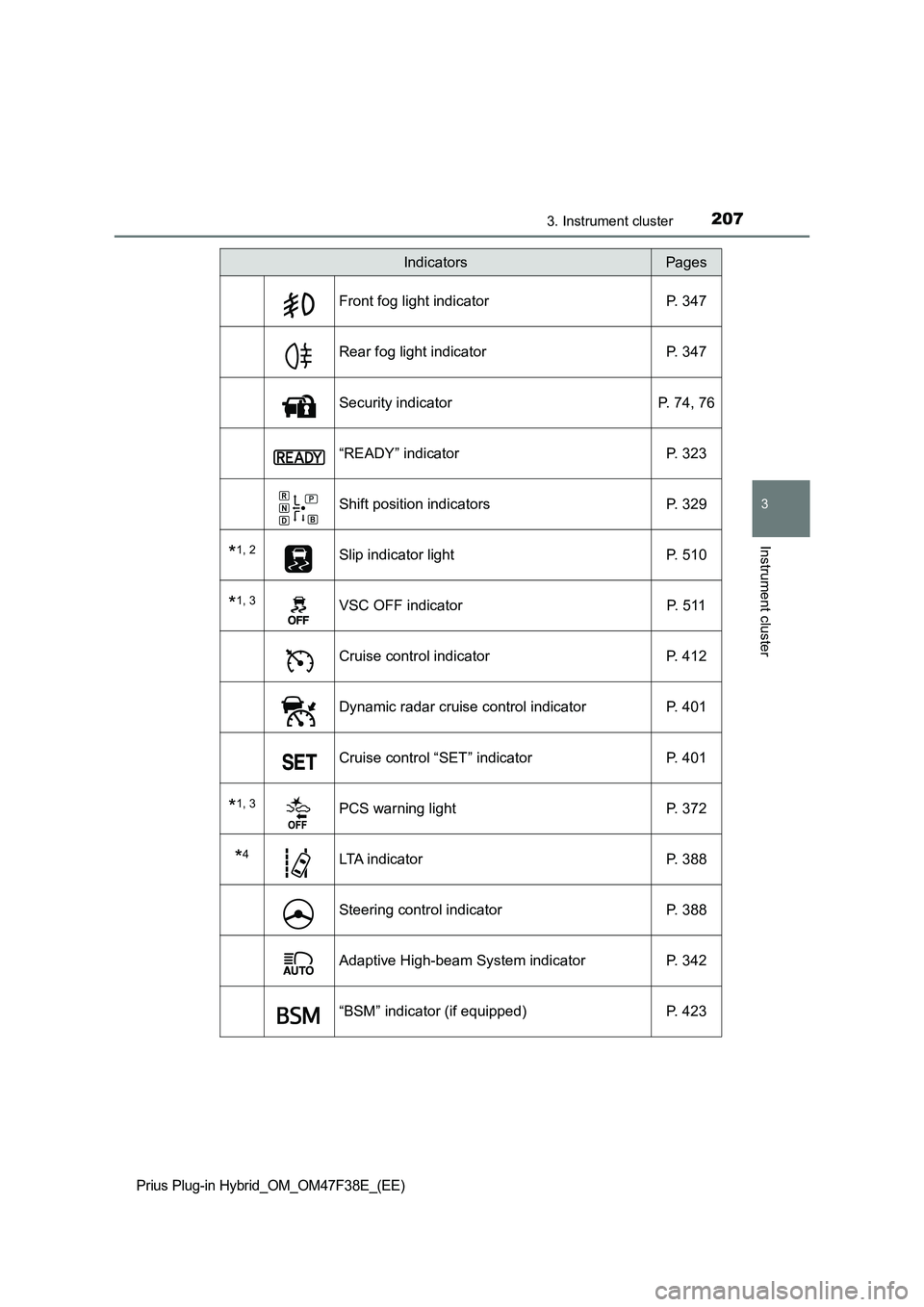

2073. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Front fog light indicator P. 347
Rear fog light indicator P. 347
Security indicator P. 74, 76
“READY” indicator P. 323
Shift position indicators P. 329
*1, 2Slip indicator light P. 510
*1, 3VSC OFF indicator P. 511
Cruise control indicator P. 412
Dynamic radar cruise control indicator P. 401
Cruise control “SET” indicator P. 401
*1, 3PCS warning light P. 372
*4LTA indicator P. 388
Steering control indicator P. 388
Adaptive High-beam System indicator P. 342
“BSM” indicator (if equipped) P. 423
IndicatorsPages
Page 223 of 818

2213. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
*: When there is a warning message that can be displayed, the color of
changes to amber.
Menu iconsContentsPages
Drive information
The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as electricity consumption and fuel
consumption are displayed.P. 222
Clock setting display
The clock settings can be changed.P. 240
Navigation system-linked display
The information related to the navigation sys-
tem is displayed.P. 241
Audio system-linked display
The audio system settings can be changed.P. 241
Air conditioning system settings screen
The air conditioning system settings can be
changed.
P. 242
Driving assist system information
The information related to driving assist sys-
tems such as the LTA (Lane Tracing Assist)
and dynamic radar cruise control with full-
speed range is displayed.
P. 246
Warning message display*
The warning messages are displayed.P. 246
Settings display
The settings of the vehicle functions, meter
display, etc. can be changed.
P. 247
Page 233 of 818

2313. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Information display of EV driving
One of the following 2 information in the items of “HV System Indi-
cator” in “Meter Customize” settings can be selected to display in
the left upper corner of the Hybrid System Indicator. (P. 250)
“EV Energy”
The percentage of the remain-
ing hybrid battery (traction bat-
tery) that can be used for EV
driving is displayed.
Becomes 100% when the hybrid
battery (traction battery) is fully
charged.
“EV Distance”
The approximate distance that
can be driven using only the
electric motor (traction motor).
(P. 109)
When the air conditioning sys-
tem is operating, the icon dis-
play changes to and the
driving range with the air condi-
tioning system on is displayed.
■When operation of each function stops
●The Hybrid System Indicator stops operating in the following situations.
• The “READY” indicator is not illuminated.
• The shift position is not D or B.
●The Eco score and “ECO Accelerator Guidance” stop operating in the fol-
lowing situations.
• The Hybrid System Indicator is not operating.
• Dynamic radar cruise control with full-speed range is being used.
• The speed limiter system is being used and the vehicle speed is approxi-
mately the limit speed or higher.
