5777-1. Maintenance and care
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care

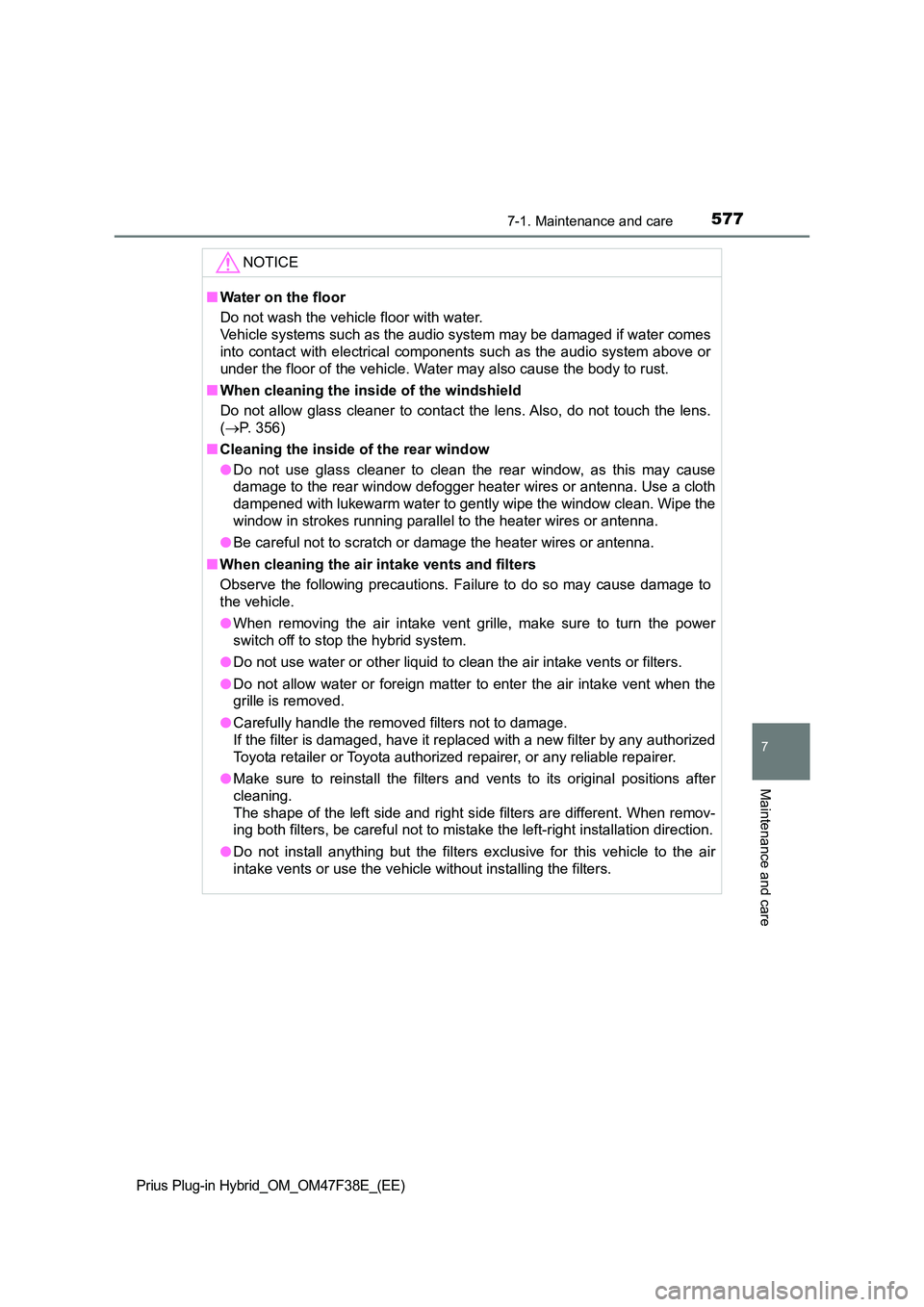

NOTICE
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■ When cleaning the inside of the windshield
Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
( P. 3 5 6 )
■ Cleaning the inside of the rear window
● Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires or antenna. Use a cloth
dampened with lukewarm water to gently wipe the window clean. Wipe the
window in strokes running parallel to the heater wires or antenna.
● Be careful not to scratch or damage the heater wires or antenna.
■ When cleaning the air intake vents and filters
Observe the following precautions. Failure to do so may cause damage to
the vehicle.
● When removing the air intake vent grille, make sure to turn the power
switch off to stop the hybrid system.
● Do not use water or other liquid to clean the air intake vents or filters.
● Do not allow water or foreign matter to enter the air intake vent when the
grille is removed.
● Carefully handle the removed filters not to damage.
If the filter is damaged, have it replac ed with a new filter by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Make sure to reinstall the filters and vents to its original positions after
cleaning.
The shape of the left side and right side filters are different. When remov-
ing both filters, be careful not to mistake the left-right installation direction.
● Do not install anything but the filters exclusive for this vehicle to the air
intake vents or use the vehicle without installing the filters.

5837-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

5907-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
WARNING
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota reta iler or Toyota authorized repairer,
or any reliable repairer, service station or auto parts store for information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

6257-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care

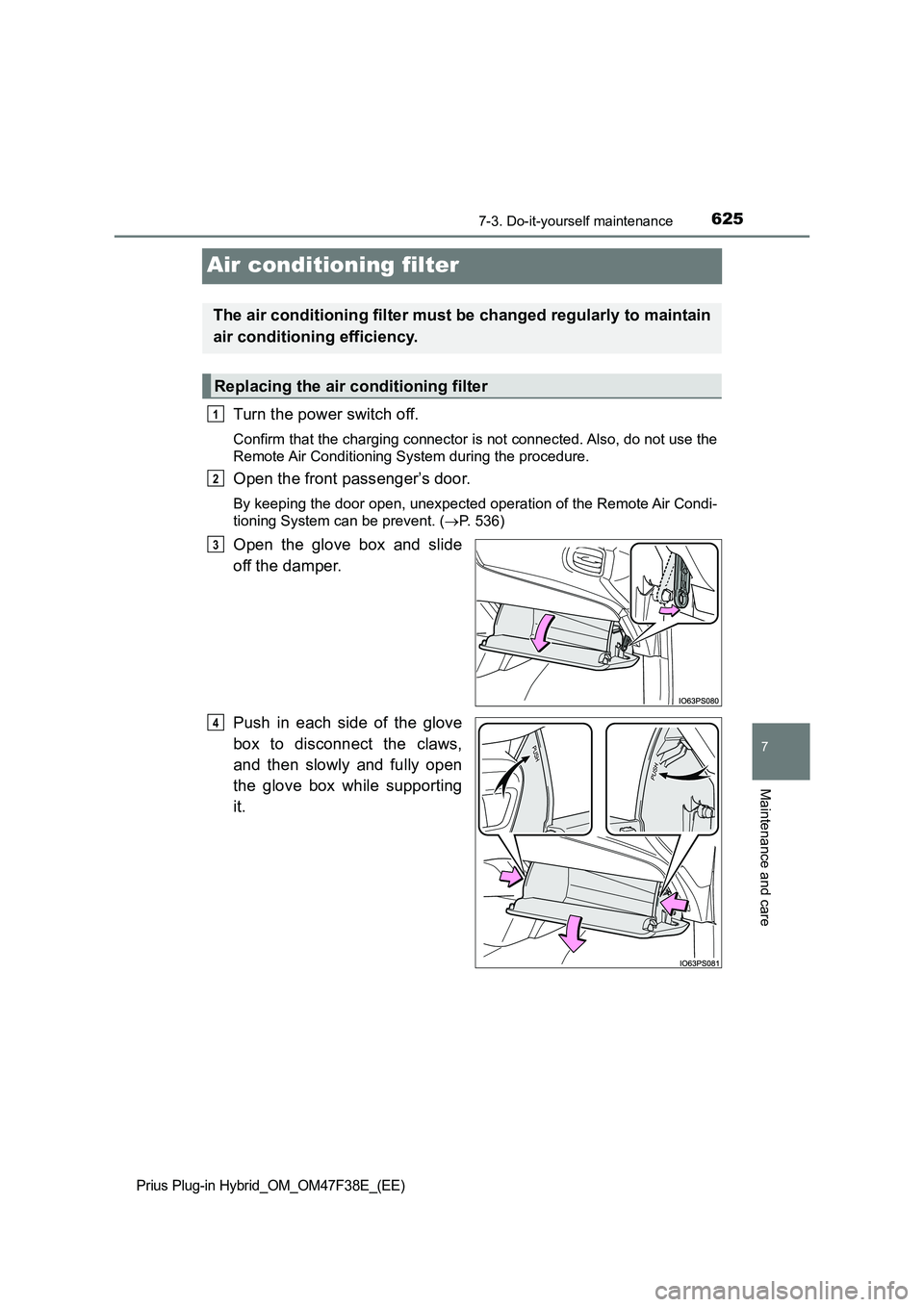

Air conditioning filter
Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
Open the front passenger’s door.
By keeping the door open, unexpected operation of the Remote Air Condi-
tioning System can be prevent. (P. 536)
Open the glove box and slide
off the damper.
Push in each side of the glove
box to disconnect the claws,
and then slowly and fully open
the glove box while supporting
it.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Replacing the air conditioning filter
1
2
3
4

6277-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
7
Maintenance and care
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “ UP” marks shown on the fil-
ter should be pointing up.
When installing, reverse the steps listed.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
8
WARNING
■ When replacing the air conditioning filter
Observe the following precautions. Failure to do so may result in the air
conditioning system operating during t he procedure, possibly resulting in
injury.
● Check that the charging connector is not connected
The air conditioning may operate due to the “Climate Prep” ( P. 166) or
“Traction Battery Cooler” ( P. 145) setting. (if equipped)
● Do not use the Remote Air Conditioning System
9

6287-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47F38E_(EE)

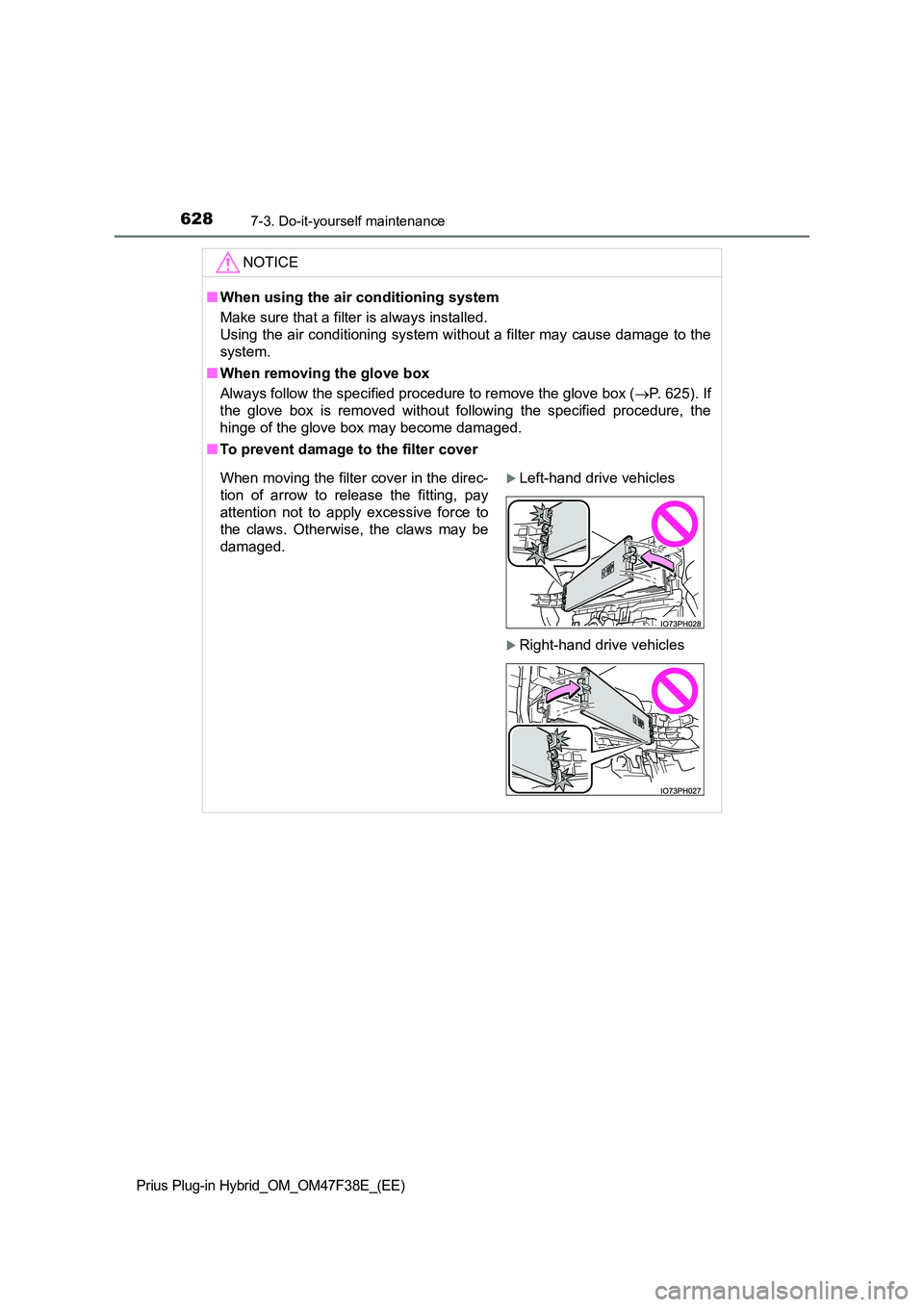

NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.
■ When removing the glove box
Always follow the specified procedure to remove the glove box ( P. 625). If
the glove box is removed without following the specified procedure, the
hinge of the glove box may become damaged.
■ To prevent damage to the filter cover
When moving the filter cover in the direc-
tion of arrow to release the fitting, pay
attention not to apply excessive force to
the claws. Otherwise, the claws may be
damaged.
Left-hand drive vehicles
Right-hand drive vehicles

6708-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
●If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.
■ If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dangerous.
● If “Engine Oil Pressure Low” is shown, this may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
• “Plug-in charging system malfunction.”
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Smart Entry & Start System Malfunction See Owner’s Manual”
● If “Exhaust Filter Full See Owner’s Manual” is shown on the multi-informa-
tion display is shown, follow the instruction. ( P. 5 0 8 )
■ If “Shift System Not Active Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
Indicates a temporary operation failure or malfunction in the shift control sys-
tem. Immediately have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 674)
■ If “Shift System Malfunction Apply Parking Brake Securely While Park-
ing See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 674)

6728-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is shown
There is a possibility that the filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
● When the air intake vents or filters are dirty, clean them by the procedures
on P. 573.
● When the air intake vents or filters are not dirty and the warning message is
shown, have the vehicle inspected at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ If “Traction Battery Needs to be Protected Refrain From the Use of
Position” is shown
This message may be displayed when the shift position is in N.
As the hybrid battery (traction battery) can not be charged when the shift
position is in N, shift the shift position to P when the vehicle is stopped.
■ If “Traction Battery Needs to be Protected Shift into to Restart” is
shown
This message is displayed when the hybrid battery (traction battery) charge
has become extremely low because the vehicle has been left with the N shift
position selected for a certain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
■ If “Shifted into Shift Again to Start Vehicle” is shown
Message is displayed when the automatic P position selection function oper-
ates. ( P. 332)
To start off the vehicle after the shift position is changed to P, operate the shift
lever again.
■ If “Shift to Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
power switch to off with the shift position in any position other than P.
Shift the shift position to P.
■ If “Shift is in Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depressed and
the shift position is in N.
Release the accelerator pedal and shift the shift position to D or R.
■ If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depressed to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal and depress
the brake pedal.
■ If “Shifted to Stop Vehicle to Shift to ” is shown
If the P position switch is pressed while driving, the shift position is changed
to N and the message is shown. ( P. 331)
