2023 TOYOTA PRIUS PLUG-IN HYBRID warning light

6708-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
●If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.
■ If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dangerous.
● If “Engine Oil Pressure Low” is shown, this may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
• “Plug-in charging system malfunction.”
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Smart Entry & Start System Malfunction See Owner’s Manual”
● If “Exhaust Filter Full See Owner’s Manual” is shown on the multi-informa-
tion display is shown, follow the instruction. ( P. 5 0 8 )
■ If “Shift System Not Active Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
Indicates a temporary operation failure or malfunction in the shift control sys-
tem. Immediately have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 674)
■ If “Shift System Malfunction Apply Parking Brake Securely While Park-
ing See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 674)

6878-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises
■If the tire is inflated to more than the specified air pressure
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the
hose and then reconnect the hose.
Turn the compressor switch on and wait for several seconds, and then turn
it off. Check that the air pressure indicator shows the specified air pressure.
( P. 723)
If the air pressure is under the designated pressure, turn the compressor
switch on again and repeat the inflation procedure until the specified air
pressure is reached.
■ The valve of a tire that has been repaired
After a tire is repaired with the emer gency tire puncture repair kit, the valve
should be replaced.
■ After a tire is repaired with the emergency tire puncture repair kit (vehi-
cles with the tire pressure warning system)
● The tire pressure warning valve and transmitter should be replaced.
● Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash.
■ Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry date
has already passed. Otherwise, repairs conducted using the emergency tire
puncture repair kit may not be performed properly.
Install the air release cap to the end of
the hose and push the protrusion on the
air release cap into the tire valve to let
some air out.
1
2
3
4

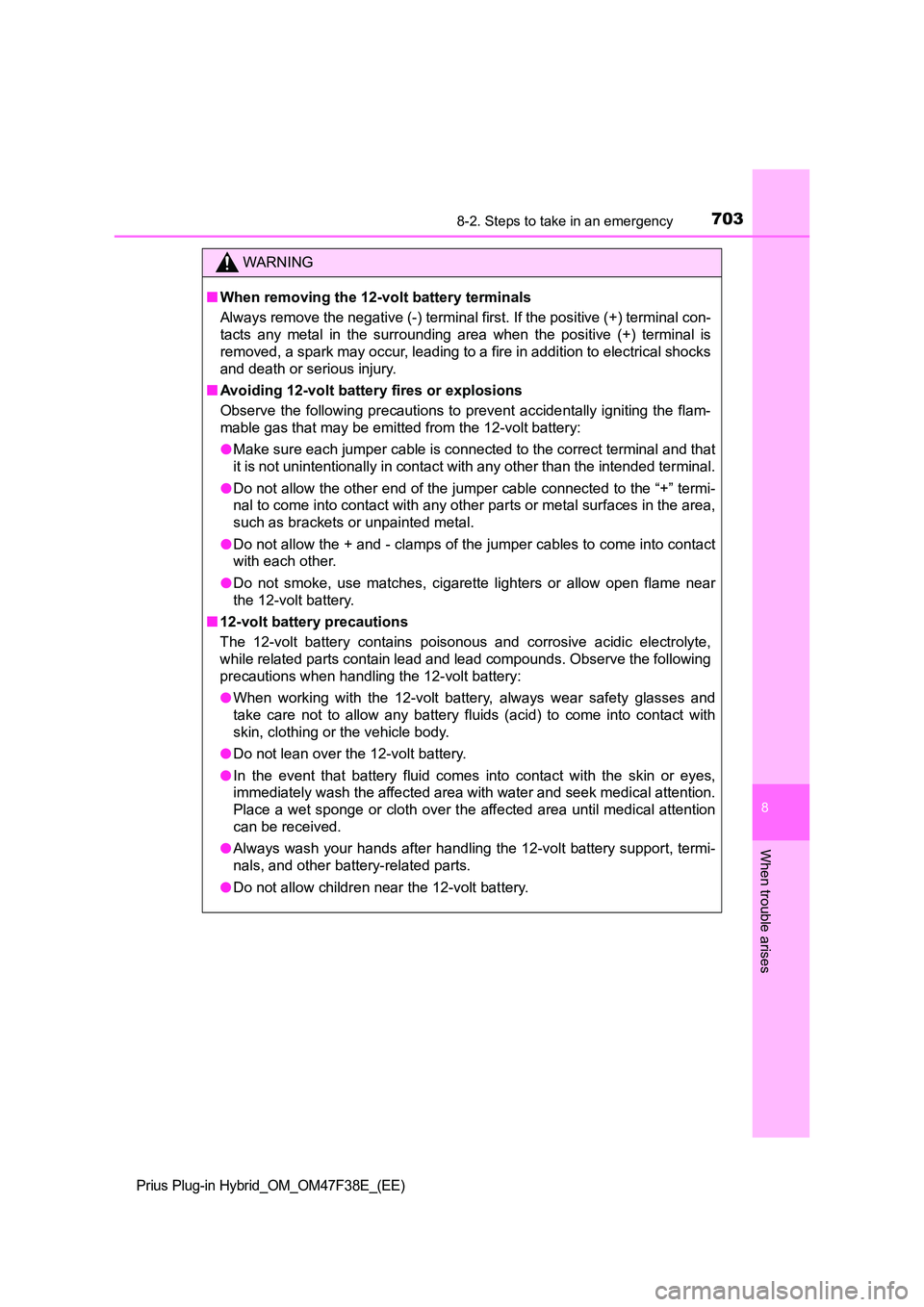

7038-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises
WARNING
■When removing the 12-volt battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
■ Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12-volt battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the 12-volt battery.
■ 12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the following
precautions when handling the 12-volt battery:
● When working with the 12-volt battery, always wear safety glasses and
take care not to allow any battery fluids (acid) to come into contact with
skin, clothing or the vehicle body.
● Do not lean over the 12-volt battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the 12-volt battery support, termi-
nals, and other battery-related parts.
● Do not allow children near the 12-volt battery.

7058-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
8
When trouble arises
If your vehicle overheats
■If the high coolant temperature warning light comes on or
flashes
Stop the vehicle in a safe place and turn off the air conditioning
system, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the
hoses and radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The following may indicate that your vehicle is overheating.
● The high coolant temperature warning light (P. 661) comes on
or flashes, or a loss of hybrid system power is experienced. (For
example, the vehicle speed does not increase.)
● “Hybrid System Overheated” is shown on the multi-information
display.
● Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

7349-2. Customization
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
■Illumination (P. 541)
■Charge settings
■Maintenance system
FunctionDefault
settingCustomized
setting
Time elapsed before the inte-
rior lights turn off15 secondsOff
–OO 7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting On Off – – O
Interior lights illumination con-
trolOn Off – – O
123
Charge scheduleSetting the charging schedule: P. 169
Charge currentChanging the upper limit of the charging cur-
rent: P. 140
Traction battery heaterSetting “Traction Battery Heater” on/off:
P. 145
Tire pressure warning
systemInitializing the tire pressure warning system:
P. 601

740What to do if... (Troubleshooting)
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
●The seat belt reminder light is flashing
Are the driver and all the passengers wearing the seat belts? (P. 664)
●The parking brake indicator is on
Is the parking brake released? (P. 336)
Depending on the situation, other types of warning buzzer may also sound.
(P. 659, 667)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 76)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 667)
●When a warning light turns on or a warning message is displayed, refer to
P. 659, 667.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

742Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Alphabetical index
A/C............................................. 522
Air conditioning filter.............. 625
Automatic air conditioning
system ................................ 522
Blower customization ............ 526
Eco score (A/C score) ........... 244
Front seat concentrated
airflow mode (S-FLOW)...... 525
Humidity sensor .................... 534
Remote Air Conditioning
System................................ 535
ABS (Anti-lock Brake
System) .................................. 509
Function ................................ 509
Warning light ......................... 660
AHS (Adaptive High-beam
System) .................................. 341
Air conditioning filter .............. 625
Air conditioning system .......... 522
Air conditioning filter.............. 625
Automatic air conditioning
system ................................ 522
Blower customization ............ 526
Eco score (A/C score) ........... 244
Front seat concentrated
airflow mode (S-FLOW)...... 525
Humidity sensor .................... 534
Remote Air Conditioning
System................................ 535
Air intake vent ............................ 99
Cleaning ................................ 573Airbag manual on-off
system ...................................... 51
Airbags ....................................... 39
Airbag manual on-off
system .................................. 51
Airbag operating conditions .... 45
Airbag precautions for your
child ...................................... 41
Airbag warning light .............. 660
Correct driving posture ........... 32
Curtain shield airbag
operating conditions ............. 45
Curtain shield airbag
precautions........................... 43
General airbag precautions .... 41
Locations of airbags................ 39
Modification and disposal of
airbags.................................. 44
Side airbag operating
conditions ............................. 45
Side airbag precautions .......... 42
Side and curtain shield
airbags operating
conditions ............................. 45
Side and curtain shield
airbags precautions .............. 43
SRS airbags............................ 39
Alarm .......................................... 76
Alarm ...................................... 76
Intrusion sensor ...................... 79
A

743Alphabetical index
Prius Plug-in Hybrid_OM_OM47F38E_(EE)
Antenna
Smart entry & start system.... 283
Anti-lock brake system
(ABS) ...................................... 509
Function ................................ 509
Warning light ......................... 660
Approach warning ................... 411
Armrest ..................................... 563
Assist grips .............................. 564
Audio input
*
Audio system*
Automatic air conditioning
system .................................... 522
Air conditioning filter.............. 625
Automatic air conditioning
system ................................ 522
Blower customization ............ 526
Eco score (A/C score) ........... 244
Front seat concentrated
airflow mode (S-FLOW)...... 525
Humidity sensor .................... 534
Remote Air Conditioning
System................................ 535
Automatic headlight leveling
system .................................... 339
Automatic light control
system .................................... 338
Auxiliary boxes ........................ 548
Back door ................................. 278
Back-up light ............................ 639
Replacing light bulbs ............. 640
Wattage................................. 723Battery (12-volt battery) .......... 594
Battery checking ................... 594
Exchanging ........................... 702
If the 12-volt battery is
discharged .......................... 699
Preparing and checking
before winter....................... 516
Replacing .............................. 702
Warning light ......................... 659
Battery (traction battery)........... 98
Air intake vent ......................... 99
Charging ............................... 111
Location .................................. 98
Specification ......................... 717
Status indicator ..................... 113
Blind Spot Monitor (BSM) ....... 423
Blind Spot Monitor function ... 439
Rear Crossing Traffic Alert
function ............................... 443
Bluetooth
®*
Bottle holders .......................... 547
Brake
Fluid ...................................... 722
Parking brake........................ 336
Regenerative braking.............. 93
Warning light ......................... 659
Brake assist ............................. 509
Brake Override System ........... 310
Break-in tips ............................. 311
Brightness control
Instrument cluster light
control................................. 196
BSM (Blind Spot Monitor) ....... 423
Blind Spot Monitor function ... 439
Rear Crossing Traffic Alert
function ............................... 443
B
*: Refer to “Navigation system Owner’s manual”.
