4867-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
Engine compar tment
Gasoline engine
Engine coolant reservoir
( P. 492)
Engine oil level dipstick
( P. 489)
Engine oil filler cap ( P. 490)
Fuse box ( P. 520)
Battery ( P. 494)
Washer fluid tank ( P. 498)
Condenser ( P. 493)
Radiator ( P. 493)
1
2
3
4
5
6
7
8

4877-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care

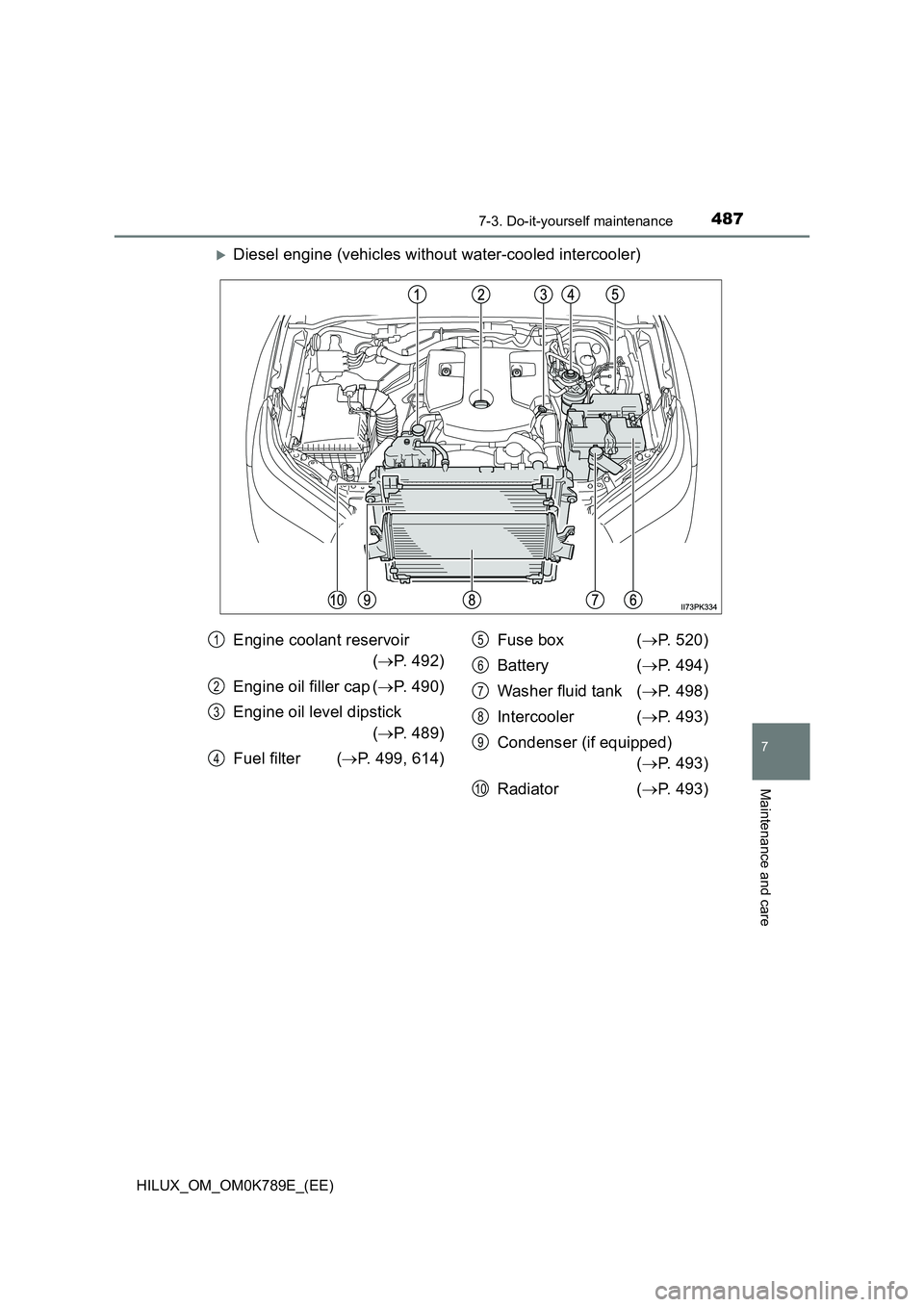

Diesel engine (vehicles without water-cooled intercooler)
Engine coolant reservoir
( P. 492)
Engine oil filler cap ( P. 490)
Engine oil level dipstick
( P. 489)
Fuel filter ( P. 499, 614)
Fuse box ( P. 520)
Battery ( P. 494)
Washer fluid tank ( P. 498)
Intercooler ( P. 493)
Condenser (if equipped)
( P. 493)
Radiator ( P. 493)
1
2
3
4
5
6
7
8
9
10

4887-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
Diesel engine (vehicles with water-cooled intercooler)
Engine coolant reservoir
( P. 492)
Engine oil filler cap ( P. 490)
Engine oil level dipstick
( P. 489)
AdBlue™ tank cap ( P. 500)
Fuel filter ( P. 499, 614)
Fuse box ( P. 520)
Battery ( P. 494)
Washer fluid tank ( P. 498)
Intercooler coolant reservoir
( P. 492)
Intercooler cooling radiator
( P. 493)
Condenser (if equipped)
( P. 493)
Radiator ( P. 493)
1
2
3
4
5
6
7
8
9
10
11
12

5207-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
Checking and replacing fuses
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the engine switch off.
Open the fuse box cover.
In the engine compartment
Push the tab in and pull the lock
release, and lift the lid off.
Under the instrument panel (left-hand drive vehicles)
Remove the lid.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

5237-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
7
Maintenance and care
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D
Ty pe E

5247-3. Do-it-yourself maintenance
HILUX_OM_OM0K789E_(EE)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 525)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
