2023 TOYOTA HIGHLANDER fuel tank capacity

4768-1. Specifications
■Oil capacity (Drain and
refillreference
*)
*: The engine oil capacity is a refer-
ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multi-
grade engine oil
Recommended viscosity: SAE
0W-20 Outside temperature
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
Octane Rating87 (Research Octane Number 91) or
higher
Fuel tank capacity
(Reference)17.9 gal. (68 L, 14.9 Imp. gal.)
Lubrication system
With filter5.6 qt. (5.3 L, 4.7 Imp.
qt.)
Without
filter5.3 qt. (5.0 L, 4.4 Imp.
qt.)

533Alphabetical Index
R
Radar cruise control (dynamic radar cruise control with
full-speed range) .................. 249
Radiator ................................... 390
RCTA Function ............................... 283
Warning message ................ 284
RCTA function......................... 284
Rear automatic air conditioning system ................................... 331
Rear Cross Traffic Alert (RCTA) ............................................... 283
Rear door sunshades ............ 360
Rear seats ............................... 137 Head restraints ..................... 145
Seat heaters ......................... 335
Rear side marker lights Light switch .......................... 210
Replacing light bulbs ............ 415
Rear turn signal lights Replacing light bulbs ............ 415
Turn signal lever ................... 204
Rear view mirror Digital Rearview Mirror ......... 150
Inside rear view mirror.......... 149
Outside rear view mirrors ..... 160
Rear window defogger ........... 324
Refueling Capacity ............................... 475
Fuel types............................. 475
If the fuel filler door cannot be opened ............................... 462
Opening the fuel tank cap .... 221
Replacing Electronic key battery ........... 410
Fuses ................................... 412
Light bulbs ............................ 415
Tires ..................................... 446
Reporting safety defects for U.S. owners................................... 510 Resetting the message indicat-
ing maintenance is required 377
Road Sign Assist ....................261
Rock & Dirt mode ...................301
RSA (Road Sign Assist) .........261
S
Safety Connect .........................65
Seat belt reminder light..434, 435
Seat belts...................................27 Automatic Locking Retractor ..28
Child restraint sys tem installation
.............................................52
Cleaning and maintaining the seat belt ..............................373
Emergency Locking Retractor 28
How to wear your seat belt .....28
How your child should wear the seat belt ................................28
Pregnant women, proper seat belt use .................................27
Reminder light and buzzer .434, 435
Seat belt extender ..................28
Seat belt pretensioners ..........32
SRS warning light .................432
Seat heaters ............................335
Seat position memory ............142
Seat ventilators .. .....................335
Seating capacity .....................184
Seats Adjustment ...........................136
Adjustment precautions ........136
Child seats/child restraint system installation ............................50
Cleaning ...............................373
Driving position memory .......142
Head restraints .....................145
Properly sitting in the seat ......25
Seat heaters ....... ..................335
Seat position memory...........142
Seat ventilators.....................335

552

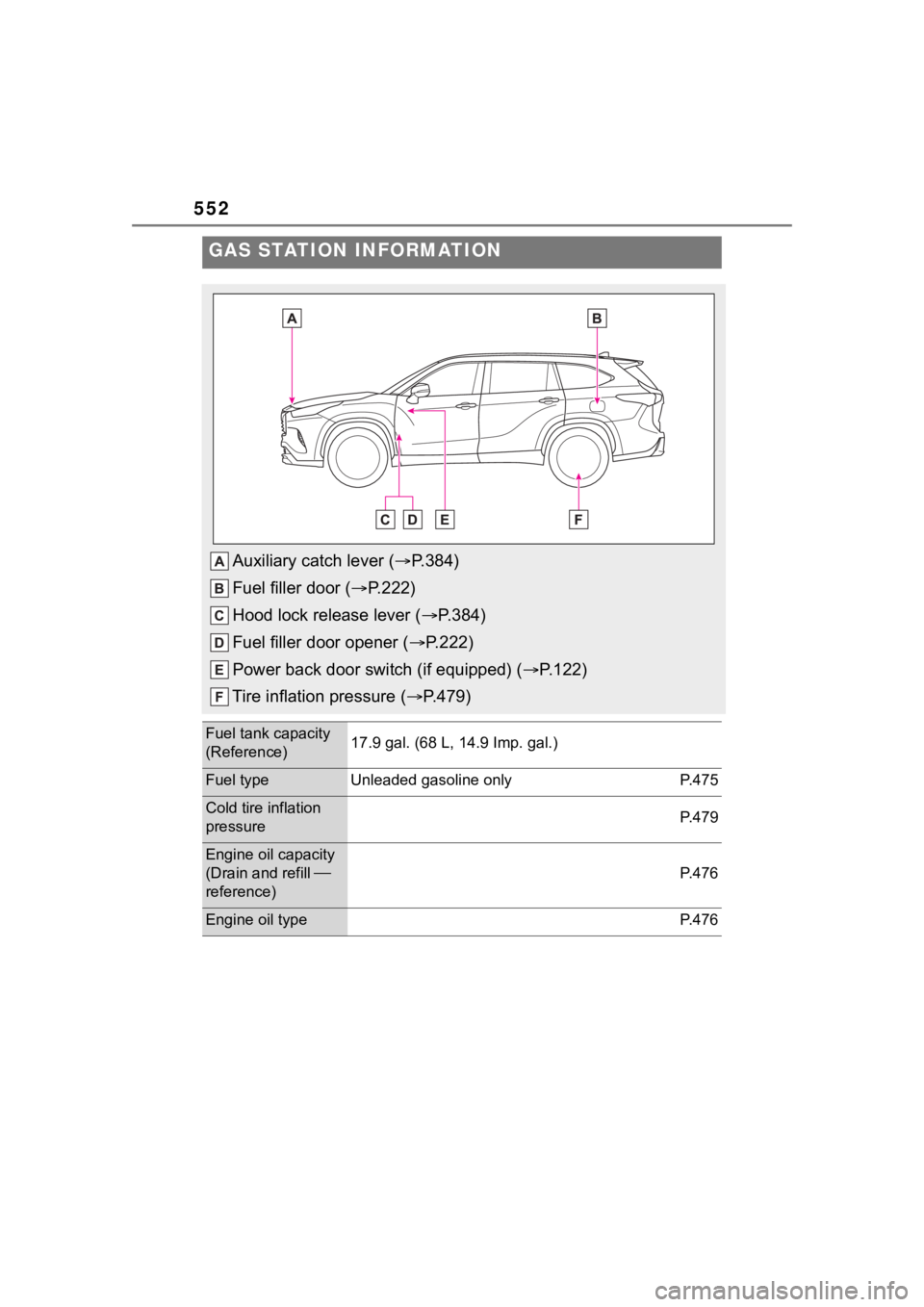

GAS STATION INFORMATION
Auxiliary catch lever (P.384)
Fuel filler door ( P.222)
Hood lock release lever ( P.384)
Fuel filler door opener ( P.222)
Power back door switch (if equipped) ( P.122)
Tire inflation pressure ( P.479)
Fuel tank capacity
(Reference)17.9 gal. (68 L, 14.9 Imp. gal.)
Fuel typeUnleaded gasoline onlyP.475
Cold tire inflation
pressureP.479
Engine oil capacity
(Drain and refill 
reference)
P.476
Engine oil typeP.476
