2023 TOYOTA COROLLA HYBRID engine coolant

4167-2. Steps to take in an emergency
Toyota dealer as soon as possible.
6After stopping the hybrid sys-
tem and waiting for 5 minutes
or more, start the hybrid sys-
tem again and check for the
multi-information display.
If the message does not dis-
appear: Stop the hybrid sys-
tem and contact your Toyota
dealer.
If the message is not dis-
played: The hybrid system
temperature has dropped
and the vehicle may be
driven normally.
However, if the message appears
again frequently, contact your Toy-
ota dealer.
WARNING
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions. Failure to do so may result
in serious injury such as burns.
●If steam is seen coming from
under the hood, do not open the
hood until the steam has sub-
sided. The engine compart-
ment may be very hot.
●After the hybrid system has
been turned off , check that the
“READY” indicator is off. When
the hybrid system is operating,
the gasoline engine may auto-
matically start, or the cooling
fans may suddenly operate
even if the gasoline engine
stops. Do not touch or approach
rotating parts such as the fan,
which may lead to fingers or
clothing (especially a tie, a scarf
or a muffler) getting caught,
resulting in serious injury.
●Do not loosen the coolant reser-
voir caps while the hybrid sys-
tem and radiator are hot.
High temperature steam or
coolant could spray out.
NOTICE
■When adding engine/power
control unit coolant
Add coolant slowly after the
hybrid system has cooled down
sufficiently. Adding cool coolant to
a hot hybrid system too quickly
can cause damage to the hybrid
system.
■To prevent damage to the
cooling system
Observe the following precau-
tions:
●Avoid contaminating the coolant
with foreign matter (such as
sand or dust etc.).
●Do not use any coolant additive.

4238-1. Specifications
8
Vehicle specifications
Outside temperature
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.
How to read oil container label:
API registered marks is added
to some oil containers to help
you select the oil you should
use.
Cooling system
Capacity
(Refer-
ence)Gasoline
engine5.9 qt. (5.6 L, 4.9 Imp. qt.)
Power con-
trol unit1.6 qt. (1.5 L, 1.3 Imp. qt.)
Coolant type
Use either o f the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality et hylene glycol-based
non-silicate, non -amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology
Do not use pla in water alone.

4368-1. Specifications

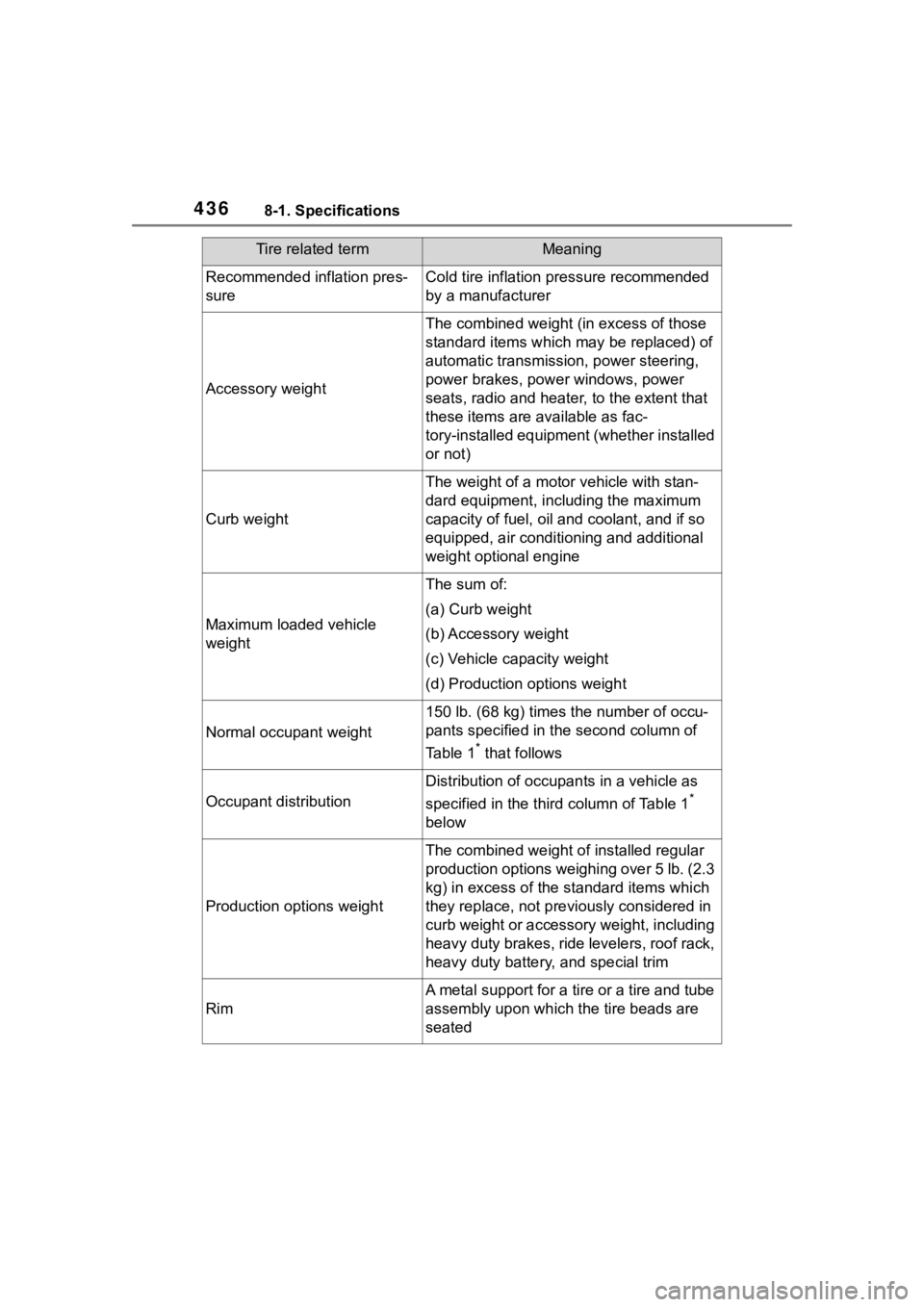

Recommended inflation pres-
sureCold tire inflation pressure recommended
by a manufacturer
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio and heater, to the extent that
these items are available as fac-
tory-installed equipment (whether installed
or not)
Curb weight
The weight of a motor vehicle with stan-
dard equipment, including the maximum
capacity of fuel, oil and coolant, and if so
equipped, air conditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occu-
pants specified in the second column of
Table 1
* that follows
Occupant distribution
Distribution of occupan ts in a vehicle as
specified in the thi rd column of Table 1
*
below
Production options weight
The combined weight o f installed regular
production options weighing over 5 lb. (2.3
kg) in excess of the s tandard items which
they replace, not previously considered in
curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Tire related termMeaning

470Alphabetical Index
How to start the hybrid system................................... 170, 172
Identification number ............ 421
If the hybrid sy stem will not start
........................................... 406
If your vehicle has to be stopped in an emergency................. 363
Ignition switch (power switch) ................................... 170, 172
Overheating.......................... 414
Power switch ................ 170, 172
Tachometer ............................ 96
Engine coolant Capacity ............................... 423
Checking .............................. 320
Preparing and c hecking before
winter.................................. 273
Engine coolant temperature gauge................................. 96, 99
Engine oil Capacity ............................... 422
Checking .............................. 318
Preparing and c hecking before
winter.................................. 273
Warning light ........................ 373
Engine switch (power switch) ....................................... 170, 172If your vehicle has to be stopped in an emergency................. 363
Enhanced VSC ........................ 266
EPS (Electric Power Steering) ............................................... 266Warning light ........................ 375
EV drive mode ........................ 178
EV Driving Ratio ............. 106, 112
EV indicator .............................. 78
EV Ratio .......................... 106, 112
Event data recorder (EDR)......... 8F
Flat tire Tire pressure w arning system
...........................................328
Vehicles with a spare tire......398
Vehicles with an emergency tire puncture repair ki t...............387
Floor mats .................................24
Fluid Brake ....................................425
Hybrid transmission ..............424
Washer .................................324
Front passenger occupant clas- sification system ....................41
Front seats Adjustment ...........................141
Cleaning ...............................305
Correct driving posture ...........25
Head restraints .....................144
Seat heaters ....... ..................284
Front side marker lights Light switch...........................189
Wattage ................................428
Front turn signal lights Replacing light bulbs ............357
Turn signal lever ...................182
Fuel Capacity ...............................421
Fuel gauge .......................96, 99
Information ......... ..................429
Refueling ..............................196
Type......................................421
Warning light.........................375
Fuel consumption Average fuel economy .. 104, 110
Current fuel consumption ...104, 11 0
Fuel economy ................. 104, 110
Fuel filler door Refueling ..............................196
Fuel gauge...........................96, 99

474Alphabetical Index
P
Panic mode ............................. 124
Parking brakeOperation ............................. 183
Parking brake engaged warning buzzer ................................ 185
Warning light ........................ 379
Warning message ................ 185
Parking lights Light switch .......................... 189
Replacing light bulbs ............ 357
PCS (Pre-Collision System)... 207 Function ............................... 208
Warning light ........................ 377
PDA (Proactive driving assist) [PDA (Proactive driving assist)]............................................... 228
Personal lights ....................... 286 Wattage ................................ 428
Power control unit .................... 82
Power control unit coolant Capacity ............................... 423
Checking .............................. 320
Preparing and c hecking before
winter.................................. 273
Power outlet ............................ 292
Power steering (Electric power steering system)................... 266Warning light ........................ 375
Power switch .................. 170, 172 Auto power off function ........ 176
Changing the power switch modes ................................ 176
Power switch ( engine switch)
If your vehicle has to be stopped in an emergency................. 363
Power windows Door lock linked window opera-tion ..................................... 151
Jam protection function ........ 150
Operation ............................. 150 Window lock switch ..............152
Pre-Collision System (PCS) ...207 Function................................208
Warning light.........................377
Predictive efficient drive .........80
R
Radiator ...................................321
RCTA Function................................254
RCTA function .........................255
Rear Cross Traffic Alert (RCTA) ...............................................254
Rear seats ...............................142 Head restraints .....................144
Rear side marker lights Light switch...........................189
Replacing light bulbs ............357
Wattage ................................428
Rear turn signal lights Replacing light bulbs ....357, 358
Turn signal lever ...................182
Wattage ................................428
Rear view mirror Inside rear view mirror ..........147
Outside rear view mirrors .....148
Rear window defogger ...........280
Refueling Capacity ...............................421
Fuel types .............................421
Opening the fuel tank cap ....196
Regenerative braking ...............78
Replacing Electronic key battery ...........350
Fuses....................................354
Light bulbs ............................356
Tires......................................398
Wireless remote control battery...........................................350
Reporting safety defects for Canadian owners ..................454

478Alphabetical Index
Brake hold ............................ 379
Brake Override System ........ 374
Brake system ....................... 372
Charging system .................. 373
Drive-Start Control ............... 374
Electric power steering ......... 375
Engine .................................. 373
High coolant temperature ..... 372
Hybrid system ...................... 373
Hybrid system overheat ....... 373
Key reminder ........................ 171
LDA (Lane Departure Alert) 223, 377
Low engine oil pressure ....... 373
LTA (Lane Tracing Assist) ... 218, 377
Open door ......... ........... 129, 131
PDA (Proactive Driving Assist) ........................................... 377
Seat belt ....................... 375, 376
Warning label ............................ 82
Warning lights ........................ 372 ABS ...................................... 374
Brake hold operated indicator........................................... 379
Brake Override System ........ 374
Brake system ....................... 372
Charging system .................. 373
Cruise control indicator ........ 378
Drive-Start Control ............... 374
Driving assist information indica- tor ....................................... 378
Dynamic radar cruise control indicator.............................. 377
Electric power steering ......... 375
High coolant temperature ..... 372
Hybrid system overheat ....... 373
LDA indicator ........................ 377
Low engine oil pressure ....... 373
Low fuel level ....................... 375
LTA indicator ......................... 377
Malfunction indicator lamp ... 373 Parking brake indicator.........379
PDA indicator........................377
Pre-collision syst
em .............377
Seat belt reminder light 375, 376
Slip indicator .........................378
SRS ......................................374
Tire pressure ...... ..................376
Warning messages .................382
Washer Checking ..............................324
Preparing and checking before winter ..................................273
Switch ...................................194
Washing and waxing ..............302
Weight Cargo capacity .....................168
Load limits ............................168
Wheels .....................................344 Replacing .............................344
Size ......................................426
Window lock switch ...............152
Windows Power windows ....................150
Rear window defogger .........280
Washer .................................194
Windshield wiper de-icer .......282
Windshield wipers ..................194
Winter driving tips ..................273
Wireless charger.....................292
Wireless remote control Battery-Saving Function .......137
Locking/Unlocking ................124
Replacing the battery ...........350
