7517-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises

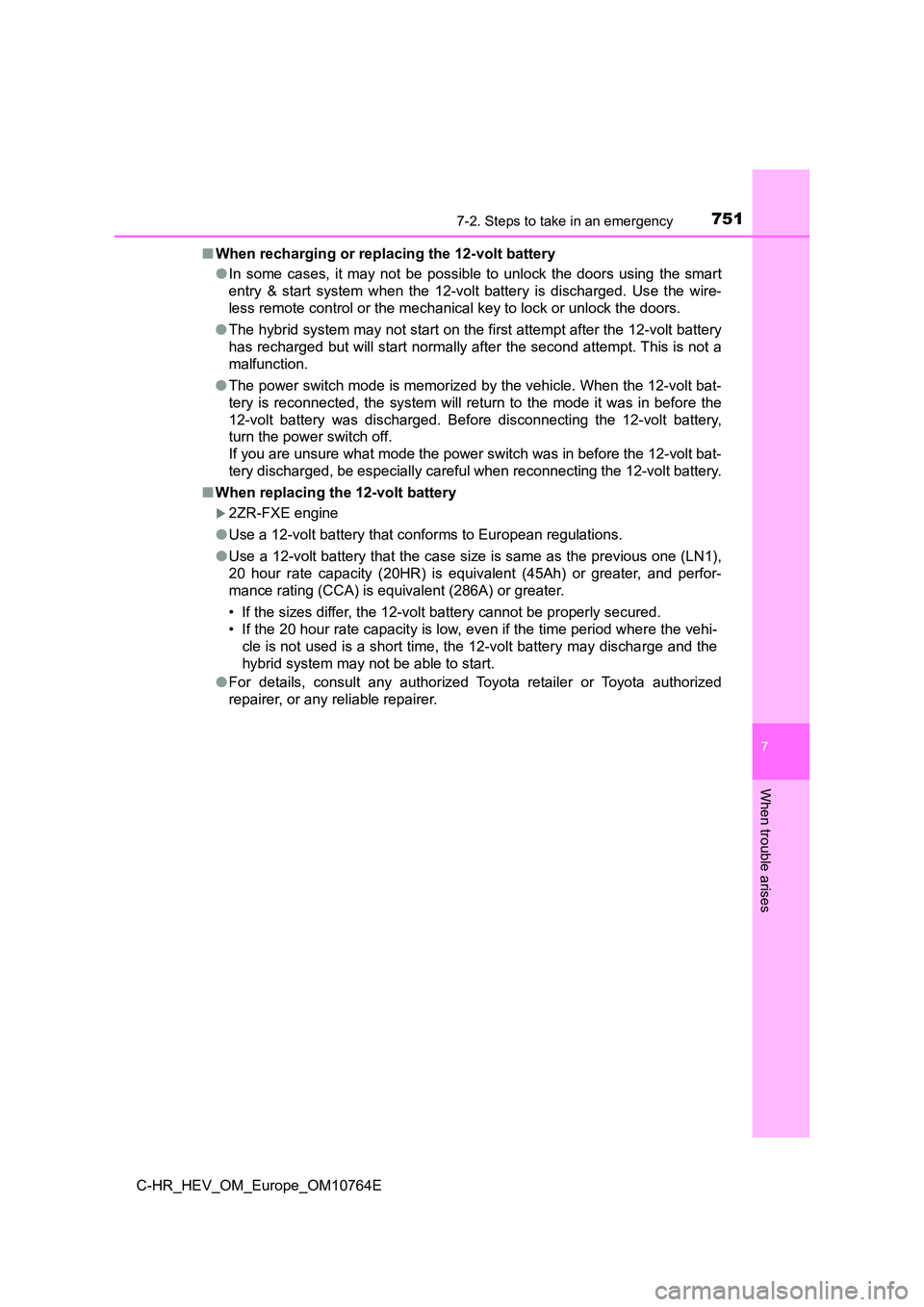

■When recharging or replacing the 12-volt battery
● In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt battery is discharged. Us e the wire-
less remote control or the mechanical key to lock or unlock the doors.
● The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
● The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-vol t battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12 -volt battery.
■ When replacing the 12-volt battery
2ZR-FXE engine
● Use a 12-volt battery that conforms to European regulations.
● Use a 12-volt battery that the case size is same as the previous one (LN1),
20 hour rate capacity (20HR) is equivalent (45Ah) or greater, a nd perfor-
mance rating (CCA) is equivalent (286A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly se cured.
• If the 20 hour rate capacity is low, even if the time period w here the vehi-
cle is not used is a short time, the 12-volt battery may discha rge and the
hybrid system may not be able to start.
● For details, consult any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

7828-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Instrument cluster ( P. 171)
■Smart entry & start system and wireless remote control
( P. 191, 199, 205)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
FunctionDefault settingCustomized
setting
Operation signal (emer-
gency flashers)OnOff–OO
Unlocking operation
All doors
unlocked in
one step
Driver’s door
unlocked in
one step, all
doors
unlocked in
two step
–OO
Time elapsed before the
automatic door lock func-
tion is activated if a door is
not opened after being
unlocked
30 seconds
60 seconds
–OO
120 seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff––O

7838-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
■Smart entry & start system (P. 205)
*: Vehicles without an alarm
■Wireless remote control ( P. 192)
■Outside rear view mirrors (P. 2 7 2 )
FunctionDefault settingCustomized
setting
Smart entry & start sys-
temOnOff–OO
Smart door unlockingAll the doorsDriver’s door–OO
Number of consecutive
door lock operations*2 timesAs many as
desired––O
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff––O
FunctionDefault settingCustomized
setting
Automatic mirror folding
and extending operation
Linked to the
locking/
unlocking of
the doors
Off
––OLinked to
operation of
the power
switch

7848-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Power windows ( P. 275)
■Turn signal lever (P. 322)
■Automatic light control system (P. 331)
FunctionDefault settingCustomized
setting
Mechanical key linked
operation (open)OffOn––O
Mechanical key linked
operation (close)OffOn––O
Wireless remote control
linked operation (open)OffOn––O
Wireless remote control
linked operation (close)OffOn––O
Mechanical key, wireless
remote control linked
operation signal (buzzer)
OnOff––O
FunctionDefault settingCustomized
setting
Times of flashing of the
lane change signal flash-
ers
3
Off
––O5
7
FunctionDefault settingCustomized
setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
Time elapsed before
headlights turn off
(extended headlight light-
ing system)
30 seconds
60 seconds
––O90 seconds
120 seconds

796What to do if... (Troubleshooting)
C-HR_HEV_OM_Europe_OM10764E
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 683)
●The parking brake indicator is on
Is the parking brake released? ( P. 323)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 679, 690)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 146)
Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the entry function (if equipped) or wire less remote
control.
●Start the hybrid system. (The alarm will be deactivated or stop ped after a
few seconds.)
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 690)
●When a warning light turns on or a warning message is displayed, refer to
P. 679, 690.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

800Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Child-protectors ....................... 195
Cleaning
Aluminum wheels .................. 579
Camera sensor ..................... 355
Exterior.................................. 578
Hybrid battery
(traction battery)
air intake vent ..................... 638
Interior ................................... 584
Radar sensor ........................ 354
Seat belts .............................. 585
Clock ......................................... 573
Condenser ................................ 604
Console box ............................. 561
Consumption screen ............... 177
Coolant
Capacity ................................ 771
Checking ............................... 602
Preparing and
checking before winter........ 541
Cooling system ........................ 602
Hybrid system overheating ... 755
Cruise control
Cruise control ........................ 425
Dynamic radar cruise control
with full-speed range .......... 408
Cup holders .............................. 563
Curtain shield airbags ............... 41
Customizable features ............ 779
Daytime running light
system .................................... 334
Deck board ............................... 565
Defogger
Outside rear view mirrors...... 550
Rear window ......................... 550
Windshield ............................ 549
Dimension ................................ 764
Display
BSM (Blind Spot Monitor) ..... 435
Drive information................... 169
Dynamic radar cruise control
with full-speed range .......... 408
Energy monitor ..................... 177
LTA (Lane Tracing Assist) .... 385
Multi-information display ....... 168
Parking assist system ........... 455
Pre-collision warning............. 367
RSA (Road Sign Assist)........ 401
Warning messages ............... 690
Do-it-yourself maintenance .... 591
Door lock
Back door.............................. 199
Side doors............................. 191
Smart entry & start
system ........................ 191, 199
Wireless
remote control ............ 192, 199
Doors
Back door.............................. 199
Door glasses ......................... 275
Door lock............................... 191
Open door
warning buzzer ........... 197, 200
Outside rear view mirrors...... 272
Rear door child-protectors .... 195
Side doors............................. 191
D

805Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Jack
Positioning a floor jack .......... 596
Vehicle-equipped jack ... 700, 728
Jack handle ...................... 700, 728
Jam protection function .......... 275
Keyless entry
Smart entry & start system.... 205
Wireless remote control ........ 186
Keys .......................................... 186
Battery-saving function ......... 207
Electronic key........................ 186
Engine switch ........................ 303
If the electronic key does not
operate properly ................. 744
If you lose your keys ..... 187, 190
Key number plate .................. 186
Keyless entry ........................ 186
Mechanical key ..................... 186
Power switch ......................... 303
Replacing the battery ............ 643
Warning buzzer ..................... 206
Wireless
remote control key .............. 186
Knee airbags .............................. 41
Lane Tracing Assist (LTA) ...... 385
Language
(multi-information display) ... 171
Lever
Auxiliary catch lever .............. 594
Hood lock release lever ........ 594
Shift lever .............................. 313
Turn signal lever ................... 322
Wiper lever.................... 343, 346
License plate lights
Light switch ........................... 331
Replacing light bulbs............. 659
Wattage ................................ 776
Light
Automatic High Beam ........... 336
Extended headlight lighting
system ................................ 332
Fog light switch ..................... 341
Headlight switch.................... 331
Illuminated entry system ....... 559
Interior light list...................... 557
Interior lights ......................... 558
Luggage compartment
light..................................... 200
Personal lights ...................... 558
Replacing light bulbs............. 651
Turn signal lever ................... 322
Vanity lights .......................... 572
Wattage ................................ 776
Light bulbs
Replacing .............................. 651
Wattage ................................ 776
LTA (Lane Tracing Assist) ...... 385
Luggage cover ......................... 568
J
K
L

809Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Spark plug ................................ 771
Specifications .......................... 764
Speech command system*
Speed limiter ............................ 432
Speedometer ............................ 164
Sport mode ............................... 430
SRS airbags................................ 41
Steering lock ............................ 306
Column lock release ............. 306
Steering wheel
Adjustment ............................ 268
Audio switches*
Meter control switches .......... 169
Telephone switches*
“TRIP” switch ........................ 165
Stop/tail lights .......................... 664
Storage feature ........................ 560
Storage precautions ................ 560
Stuck
If the vehicle becomes
stuck ................................... 760
Sun visors ................................ 572
Switch
Airbag manual on-off switch.... 55
Audio remote control
switches*
Automatic High Beam
switch.................................. 337
Brake hold switch .................. 328
Cruise control switch ..... 408, 425
Door lock switches ................ 194
Emergency flashers switch ... 668
Engine switch ........................ 303
EV drive mode switch ........... 310
Fog light switch ..................... 341
Fuel filler door opener
switch ................................. 350
Heated steering wheel
switch ................................. 556
Ignition switch ....................... 303
Theft sensor off switch .......... 150
Light switch ........................... 331
LTA (Lane Tracing Assist)
switch ................................. 385
Meter control switches .......... 169
Outside rear view mirror
switches............................. 272
Parking brake switch............. 323
Power door lock switches ..... 194
Power switch......................... 303
Power window switch............ 275
Rear window wiper and
washer switch ..................... 346
Rear window and
outside rear view mirror
defoggers switch ................ 550
Seat heater switches ............ 556
Speed limiter ......................... 432
S-IPA switch ......................... 492
Talk switch*
Telephone switches*
“TRIP” switch ........................ 165
Vehicle-to-vehicle distance
switch ................................. 416
VSC off switch ...................... 532
Window lock switch............... 275
Windshield wipers and
washer switch ..................... 343
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
