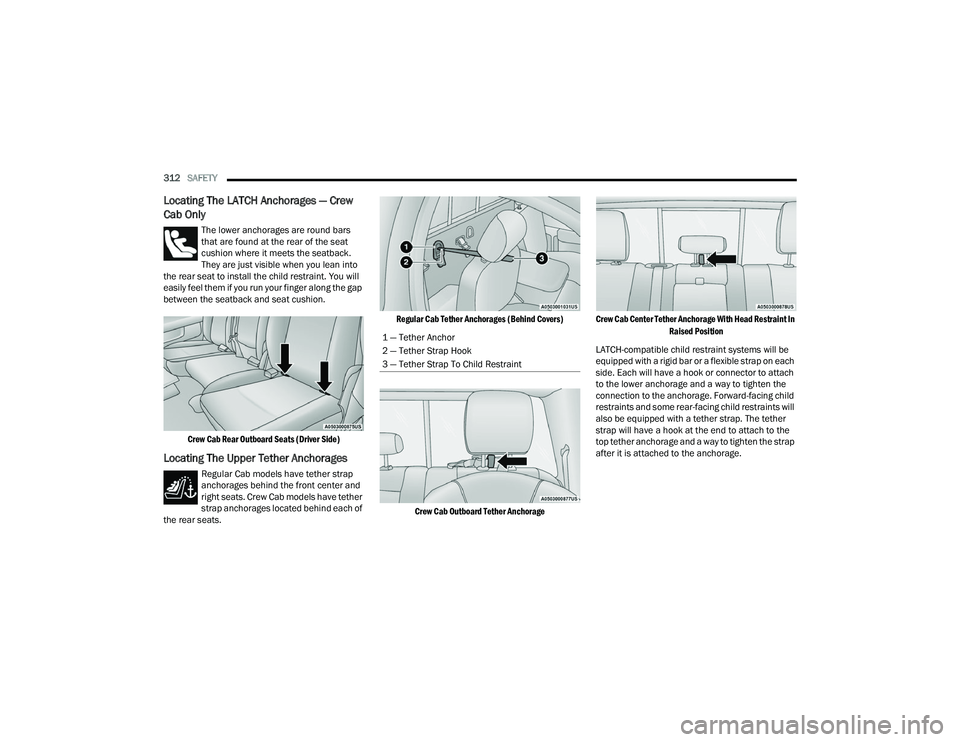

2023 RAM CHASSIS CAB child restraint

312SAFETY
Locating The LATCH Anchorages — Crew
Cab Only
The lower anchorages are round bars
that are found at the rear of the seat
cushion where it meets the seatback.
They are just visible when you lean into
the rear seat to install the child restraint. You will
easily feel them if you run your finger along the gap
between the seatback and seat cushion.

Crew Cab Rear Outboard Seats (Driver Side)

Locating The Upper Tether Anchorages
Regular Cab models have tether strap
anchorages behind the front center and
right seats. Crew Cab models have tether
strap anchorages located behind each of
the rear seats.
Regular Cab Tether Anchorages (Behind Covers)
Crew Cab Outboard Tether Anchorage Crew Cab Center Tether Anchorage With Head Restraint In
Raised Position

LATCH-compatible child restraint systems will be
equipped with a rigid bar or a flexible strap on each
side. Each will have a hook or connector to attach
to the lower anchorage and a way to tighten the
connection to the anchorage. Forward-facing child
restraints and some rear-facing child restraints will
also be equipped with a tether strap. The tether
strap will have a hook at the end to attach to the
top tether anchorage and a way to tighten the strap
after it is attached to the anchorage.
1 — Tether Anchor
2 — Tether Strap Hook
3 — Tether Strap To Child Restraint

23_DPF_OM_EN_USC_t.book Page 312

SAFETY313
Center Seat LATCH
Regular Cab or Crew Cab Full Bench Rear Seat: No
Lower Center LATCH Anchorages Available
Crew Cab Split Bench Rear Seat: Center LATCH
Anchorages Available
If a child restraint installed in the center position
blocks the seat belt webbing or buckle for the
outboard position, do not use that outboard
position. If a child seat in the center position blocks
the outboard LATCH anchors or seat belt, do not
install a child seat in that outboard position. Always follow the directions of the child restraint
manufacturer when installing your child restraint.
Not all child restraint systems will be installed as
described here.
To Install A LATCH-Compatible Child
Restraint
If the selected seating position has a Switchable
Automatic Locking Retractor (ALR) seat belt, stow
the seat belt, following the instructions below. See
Ú
page 314 to check what type of seat belt each
seating position has.

1. Loosen the adjusters on the lower straps and on the tether strap of the child seat so that
you can more easily attach the hooks or
connectors to the vehicle anchorages.

2. Place the child seat between the lower anchorages for that seating position. If the
second row seat can be reclined, you may
recline the seat and/or raise the head restraint
(if adjustable) to get a better fit. If the rear seat
can be moved forward and rearward in the
vehicle, you may wish to move it to its
rear-most position to make room for the child seat. You may also move the front seat forward
to allow more room for the child seat.
3. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the
selected seating position.
4. If the child restraint has a tether strap, connect it to the top tether anchorage. See
Úpage 318 for directions to attach a tether
anchor.
5. Tighten all of the straps as you push the child restraint rearward and downward into the
seat. Remove slack in the straps according to
the child restraint manufacturer’s instructions.
6. Test that the child restraint is installed tightly by pulling back and forth on the child seat at
the belt path. It should not move more than
1 inch (25.4 mm) in any direction.
How To Stow An Unused Switchable-ALR
(ALR) Seat Belt:
When using the LATCH attaching system to install
a child restraint, stow all ALR seat belts that are not
being used by other occupants or being used to
secure child restraints. An unused belt could injure
a child if they play with it and accidentally lock the
seat belt retractor. Before installing a child
restraint using the LATCH system, buckle the seat
belt behind the child restraint and out of the child’s
reach. If the buckled seat belt interferes with the
WARNING!
Do not install a child restraint in the center
position using the LATCH system. This position
is not approved for installing child seats using
the LATCH attachments. You must use the
seat belt and tether anchor to install a child
seat in the center seating position.
Never use the same lower anchorage to
attach more than one child restraint. For
typical installation instructions, see
Úpage 313.
WARNING!
Never use the same lower anchorage to attach
more than one child restraint. For typical
installation instructions, see Ú page 313.
6

23_DPF_OM_EN_USC_t.book Page 313

314SAFETY
child restraint installation, instead of buckling it
behind the child restraint, route the seat belt
through the child restraint belt path and then
buckle it. Do not lock the seat belt. Remind all
children in the vehicle that the seat belts are not
toys and that they should not play with them.
Installing Child Restraints Using The
Vehicle Seat Belt
Child restraint systems are designed to be secured
in vehicle seats by lap belts or the lap belt portion
of a lap/shoulder belt. Regular Cab
The seat belts in the passenger seating positions
are equipped with a Switchable Automatic Locking
Retractor (ALR) that is designed to keep the lap
portion of the seat belt tight around the child
restraint so that it is not necessary to use a locking
clip. The ALR retractor can be “switched” into a
locked mode by pulling all of the webbing out of the
retractor and then letting the webbing retract back
into the retractor. If it is locked, the ALR will make
a clicking noise while the webbing is pulled back
into the retractor.
See the “Automatic Locking Mode” description
Ú
page 295 for additional information on ALR.
WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of the
restraint. The child could be badly injured or
killed. Follow the child restraint manufac -
turer’s directions exactly when installing an
infant or child restraint.
Child restraint anchorages are designed to
withstand only those loads imposed by
correctly-fitted child restraints. Under no
circumstances are they to be used for adult
seat belts, harnesses, or for attaching other
items or equipment to the vehicle.
WARNING!
Improper installation or failure to properly
secure a child restraint can lead to failure of
the restraint. The child could be badly injured
or killed.
Follow the child restraint manufacturer’s
directions exactly when installing an infant or
child restraint.

23_DPF_OM_EN_USC_t.book Page 314

SAFETY315
Crew Cab
The seat belts in the passenger seating positions
are equipped with either a Switchable Automatic
Locking Retractor (ALR) or a cinching latch plate or
both. Both types of seat belts are designed to keep
the lap portion of the seat belt tight around the
child restraint so that it is not necessary to use a
locking clip. The ALR retractor can be “switched”
into a locked mode by pulling all of the webbing out
of the retractor and then letting the webbing
retract back into the retractor. If it is locked, the
ALR will make a clicking noise while the webbing is
pulled back into the retractor. The cinching latch
plate is designed to hold the lap portion of the seat
belt tight when webbing is pulled tight and straight
through a child restraint’s belt path.
See the “Automatic Locking Mode” description
Ú page 295 for additional information on ALR.
Please see the table below and the following
sections for more information.
Lap/Shoulder Belt Systems For Installing
Child Restraints In This Vehicle

Regular Cab Automatic Locking Retractor (ALR) Locations Crew Cab Automatic Locking Retractor (ALR) Locations

ALR — Switchable Automatic Locking Retractor Top Tether Anchorage Symbol
Cinching Latch plate — Cinching Latch plate
ALR — Switchable Automatic Locking Retractor Top Tether Anchorage Symbol
6

23_DPF_OM_EN_USC_t.book Page 315

316SAFETY
Frequently Asked Questions About Installing Child Restraints With Seat Belts
What is the weight limit (child’s weight + weight of the
child restraint) for using the Tether Anchor with the seat
belt to attach a forward-facing child restraint? Weight limit of the Child RestraintAlways use the tether anchor when using the seat belt to
install a forward-facing child restraint, up to the
recommended weight limit of the child restraint.
Can the rear-facing child restraint touch the back of the
front passenger seat? YesContact between the front passenger seat and the child
restraint is allowed, if the child restraint manufacturer
also allows contact.
Can the rear head restraints be removed? YesThe head restraints can be removed in every rear seating
position if they interfere with the installation of the child
restraint Ú
page 36.
Can the buckle stalk be twisted to tighten the seat belt
against the belt path of the child restraint? Yes – Cinching Latch Plate
No – ALR In positions with cinching latch plates (CINCH), the
buckle stalk may be twisted up to 3 full turns. Do not
twist the buckle stalk in a seating position with an ALR
retractor.

23_DPF_OM_EN_USC_t.book Page 316

SAFETY317
Installing A Child Restraint With A
Switchable Automatic Locking Retractor
(ALR):
Child restraint systems are designed to be secured
in vehicle seats by lap belts or the lap belt portion
of a lap/shoulder belt.

1.
For Crew Cab Models
Place the child seat in the center of the seating
position. If the second row seat can be re -
clined, you may recline the seat and/or raise
the head restraint (if adjustable) to get a better
fit. If the rear seat can be moved forward and
rearward in the vehicle, you may wish to move
it to its rear-most position to make room for the
child seat. You may also move the front seat
forward to allow more room for the child seat. For Regular Cab Models
Place the child seat in the center of the seating
position. Move the vehicle seat as far rearward
as possible to keep the child as far from the
passenger air bag as possible.
2. Pull enough of the seat belt webbing from the retractor to pass it through the belt path of the
child restraint. Do not twist the belt webbing in
the belt path.
3. Slide the latch plate into the buckle until you hear a “click.”
4. Pull on the webbing to make the lap portion tight against the child seat.
5. To lock the seat belt, pull down on the shoulder part of the belt until you have pulled all the
seat belt webbing out of the retractor. Then,
allow the webbing to retract back into the
retractor. As the webbing retracts, you will hear
a clicking sound. This means the seat belt is
now in the Automatic Locking mode.
6. Try to pull the webbing out of the retractor. If it is locked, you should not be able to pull out any
webbing. If the retractor is not
locked, repeat
step 5.
7. Finally, pull up on any excess webbing to tighten the lap portion around the child
restraint while you push the child restraint
rearward and downward into the vehicle seat. 8. If the child restraint has a top tether strap and
the seating position has a top tether
anchorage, connect the tether strap to the
anchorage and tighten the tether strap. See
Úpage 318 for directions to attach a tether
anchor.
9. Test that the child restraint is installed tightly by pulling back and forth on the child seat at
the belt path. It should not move more than
1 inch (25.4 mm) in any direction.
Any seat belt system will loosen with time, so check
the belt occasionally, and pull it tight if necessary.
Installing A Child Restraint With A Cinching
Latch Plate (CINCH) — If Equipped:
Child restraint systems are designed to be secured
in vehicle seats by lap belts or the lap belt portion
of a lap/shoulder belt.
WARNING!
Improper installation or failure to properly
secure a child restraint can lead to failure of
the restraint. The child could be badly injured
or killed.
Follow the child restraint manufacturer’s
directions exactly when installing an infant or
child restraint.
WARNING!
Improper installation or failure to properly
secure a child restraint can lead to failure of
the restraint. The child could be badly injured
or killed.
Follow the child restraint manufacturer’s
directions exactly when installing an infant or
child restraint.
6

23_DPF_OM_EN_USC_t.book Page 317

318SAFETY

1. Place the child seat in the center of the seating position. If the second row seat can
be reclined, you may recline the seat and/or
raise the head restraint (if adjustable) to get a
better fit. If the rear seat can be moved
forward and rearward in the vehicle, you may
wish to move it to its rear-most position to
make room for the child seat. You may also
move the front seat forward to allow more
room for the child seat.

2. Next, pull enough of the seat belt webbing from the retractor to pass it through the belt
path of the child restraint. Do not twist the belt
webbing in the belt path.
3. Slide the latch plate into the buckle until you hear a “click.”
4. Finally, pull up on any excess webbing to tighten the lap portion around the child
restraint while you push the child restraint
rearward and downward into the vehicle seat.
5. If the child restraint has a top tether strap and the seating position has a top tether
anchorage, connect the tether strap to the
anchorage and tighten the tether strap. See
Úpage 318 for directions to attach a tether
anchor. 6. Test that the child restraint is installed tightly
by pulling back and forth on the child seat at
the belt path. It should not move more than
1 inch (25.4 mm) in any direction.
Any seat belt system will loosen with time, so check
the belt occasionally, and pull it tight if necessary.
If the buckle or the cinching latch plate is too close
to the belt path opening of the child restraint, you
may have trouble tightening the seat belt. If this
happens, disconnect the latch plate from the
buckle and twist the short buckle-end belt up to
three full turns to shorten it. Insert the latch plate
into the buckle with the release button facing out,
away from the child restraint. Repeat steps 4 to 6,
above, to complete the installation of the child
restraint.
If the belt still cannot be tightened after you
shorten the buckle, disconnect the latch plate from
the buckle, turn the buckle around one half turn,
and insert the latch plate into the buckle again. If
you still cannot make the child restraint installation
tight, try a different seating position.
Installing Child Restraints Using The Top
Tether Anchorage
Regular Cab Trucks: In the regular cab truck, the top tether
anchorages are located behind the
center and right passenger seats. There
is a plastic cover over each anchorage.
To attach the tether strap of the child restraint:
WARNING!
Do not attach a tether strap for a rear-facing car
seat to any location in front of the car seat,
including the seat frame or a tether anchorage.
Only attach the tether strap of a rear-facing car
seat to the tether anchorage that is approved for
that seating position, located behind the top of
the vehicle seat. For the location of approved
tether anchorages in your vehicle, see
Ú page 310.

23_DPF_OM_EN_USC_t.book Page 318

SAFETY319

1. Place the child restraint on the seat and adjust the tether strap so that it will reach
over the seat back, under the head restraint
and to the tether anchor directly behind the
seat.

Regular Cab Tether Anchorages

2. Route the tether strap to provide the most direct path between the anchorage and the
child seat. The tether strap should go between
the head restraint posts underneath the head
restraint. You may need to adjust the head
restraint to the upward position to pass the
tether strap underneath the head restraint
and between its posts. 3. Lift the cover (if so equipped), and attach the
hook to the square opening in the sheet metal.
Tighten the tether strap according to the child
seat manufacturer’s instructions.
Crew Cab Trucks The top tether anchorages in this vehicle
are tether strap loops located between
the rear glass and the back of the rear
seat. There is a tether strap loop located
behind each seating position. Follow the steps
below to attach the tether strap of the child
restraint.
Right Or Left Outboard Seats:

1. Raise the head restraint and reach between the rear seat and rear glass to access the
tether strap loop.
Head Restraint In Raised Position
Tether Strap Loop With Center Head Restraint In Raised Position

1 — Tether Anchor
2 — Tether Strap Hook
3 — Tether Strap To Child Restraint
WARNING!
Never place a rear-facing child restraint in front
of an air bag. A deploying Passenger Front Air
Bag can cause death or serious injury to a child
12 years or younger, including a child in a
rear-facing child restraint.
6

23_DPF_OM_EN_USC_t.book Page 319
