364SERVICING AND MAINTENANCE
Circuit BreakersF58
20 Amp Blue –Direct Battery Feed *
F60 50 Amp Red –Mod Inverter *
F61 ––Spare
F62 A&B –10 Amp RedITBM / Mod Occupant Class / Mod IAIR Suspension / Mod HVAC / Snsr
In car Temp / Integrated Radar Camera Mod (IRCM) / Humidity Rain &
Light Sensor (HRLS) / Parktronics System Mod (PTS) / Gateway Can-C
Trailer TPM Mod
F63 ––Spare
F64 ––Spare
F65 –10 Amp RedMod ORC
F66 –10 Amp RedRun - Accessory Feed
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped
Cavity Circuit Breaker Description
CB125 AmpDriver Window SW Rear PWR Windows / Overhead SW Rear
Defrost
CB2 25 AmpDriver PWR Seat / Driver Seat Memory Mod
CB3 25 AmpPassenger Power Seat / Passenger Seat Memory Mod

23_DT_OM_EN_USC_t.book Page 364

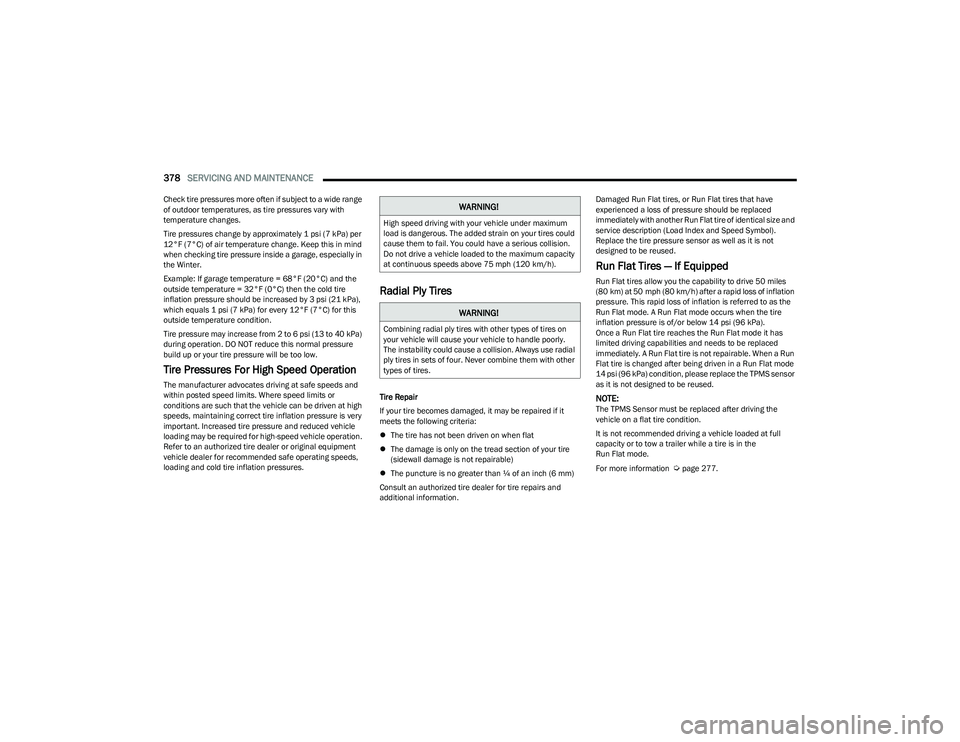

378SERVICING AND MAINTENANCE
Check tire pressures more often if subject to a wide range
of outdoor temperatures, as tire pressures vary with
temperature changes.
Tire pressures change by approximately 1 psi (7 kPa) per
12°F (7°C) of air temperature change. Keep this in mind
when checking tire pressure inside a garage, especially in
the Winter.
Example: If garage temperature = 68°F (20°C) and the
outside temperature = 32°F (0°C) then the cold tire
inflation pressure should be increased by 3 psi (21 kPa),
which equals 1 psi (7 kPa) for every 12°F (7°C) for this
outside temperature condition.
Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
during operation. DO NOT reduce this normal pressure
build up or your tire pressure will be too low.
Tire Pressures For High Speed Operation
The manufacturer advocates driving at safe speeds and
within posted speed limits. Where speed limits or
conditions are such that the vehicle can be driven at high
speeds, maintaining correct tire inflation pressure is very
important. Increased tire pressure and reduced vehicle
loading may be required for high-speed vehicle operation.
Refer to an authorized tire dealer or original equipment
vehicle dealer for recommended safe operating speeds,
loading and cold tire inflation pressures.
Radial Ply Tires
Tire Repair
If your tire becomes damaged, it may be repaired if it
meets the following criteria:
The tire has not been driven on when flat
 The damage is only on the tread section of your tire
(sidewall damage is not repairable)
 The puncture is no greater than ¼ of an inch (6 mm)
Consult an authorized tire dealer for tire repairs and
additional information. Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced
immediately with another Run Flat tire of identical size and
service description (Load Index and Speed Symbol).
Replace the tire pressure sensor as well as it is not
designed to be reused.
Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa).
Once a Run Flat tire reaches the Run Flat mode it has
limited driving capabilities and needs to be replaced
immediately. A Run Flat tire is not repairable. When a Run
Flat tire is changed after being driven in a Run Flat mode
14 psi (96 kPa) condition, please replace the TPMS sensor
as it is not designed to be reused.
NOTE:The TPMS Sensor must be replaced after driving the
vehicle on a flat tire condition.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the
Run Flat mode.
For more information
Úpage 277.
WARNING!
High speed driving with your vehicle under maximum
load is dangerous. The added strain on your tires could
cause them to fail. You could have a serious collision.
Do not drive a vehicle loaded to the maximum capacity
at continuous speeds above 75 mph (120 km/h).
WARNING!
Combining radial ply tires with other types of tires on
your vehicle will cause your vehicle to handle poorly.
The instability could cause a collision. Always use radial
ply tires in sets of four. Never combine them with other
types of tires.

23_DT_OM_EN_USC_t.book Page 378

407
Lights ............................................................................ 3134WD ......................................................................... 114
Air Bag ...................................................108
, 288, 311
Air Suspension Fault............................................... 110
Brake Assist Warning ............................................. 265
Brake Warning ........................................................ 108 Bulb Replacement .................................................. 365Cargo ................................................................ 49
, 113
Center Mounted Stop ............................................. 369
Courtesy/Reading...................................................... 50
Cruise.............................................................. 115
, 116
Daytime Running ....................................................... 47
ECO Mode................................................................ 114 Electric Power Steering .......................................... 109Electronic Stability Program(ESP) Indicator .......... 109
Exterior ............................................................. 46
, 313
Fog .................................................................. 114, 368
Hazard Warning Flasher ......................................... 314
Headlights ...........................................................46
, 48
High Beam........................................................ 47, 116
High Beam/Low Beam Select ...................................47
Hill Descent Control Indicator ................................ 115
Hood Open .............................................................. 109
Illuminated Entry........................................................52
Interior ........................................................................50
LaneSense .............................................................. 115
Lights On Reminder ...................................................48
NEUTRAL ................................................................. 114 Oil Temperature ....................................................... 110
Park .......................................................................... 115
Passing....................................................................... 48
Rear Axle Lock ............................................... 112
, 114
Rear Tail Lamps....................................................... 368
Seat Belt Reminder ................................................. 110
Security Alarm.......................................................... 110
Service .....................................................................365
Service Forward Collision........................................ 112
Service LaneSense..................................................111
Service Stop Start....................................................112 Stop Start Active ...................................................... 115
Traction Control ....................................................... 265
Trailer Brake Disconnected ....................................110
Transmission Temperature..................................... 110
Turn Signals ............................................................. 366
Warning Instrument Cluster Descriptions.... 107
, 109
Limited-Slip Differential...................................... 140, 354
Load Shed Battery Saver Mode ...................................106
Load Shed Battery Saver On ........................................ 106
Load Shed Electrical Load Reduction ......................... 106
Load Shed Intelligent Battery Sensor..........................106
Loading Vehicle............................................................. 172 Tires.......................................................................... 374
Locks Automatic Door.......................................................... 27
Child Protection ......................................................... 27
Power Door ................................................................ 25
Low Tire Pressure System ............................................277
Lubrication, Body .......................................................... 347
Lug Nuts ........................................................................ 392
Lug Nuts/Bolts .............................................................. 392
MMaintenance................................................................... 73
Maintenance Free Battery ........................................... 340
Maintenance Schedule ................................................ 333
Malfunction Indicator Light (Check Engine) ............... 111
Manage My Account..................................................... 248
Manual Service ..................................................................... 401
Media Hub ...................................................................... 65 Media Mode .................................................................. 226
Memory Seat .................................................................. 29
Memory Settings ............................................................ 29
Methanol ....................................................................... 394
Midline Instrument Cluster — Gasoline

b
.................. 93
Mirrors ............................................................................. 38 Automatic Dimming .................................................. 38
Digital ......................................................................... 39
Electric Powered ....................................................... 41
Heated ....................................................................... 42
Manual Dimming....................................................... 38
Memory ...................................................................... 29
Outside....................................................................... 40
Power Folding ............................................................ 41
Rearview ........................................................... 38
, 314
Trailer Towing ............................................................ 42
Vanity ......................................................................... 39
Mobile App .................................................................... 238
Modifications/Alterations Vehicle ....................................................................... 11
Monitor, Tire Pressure System .................................... 277
Mopar Parts .................................................................. 400
MP3 Control .................................................................... 65
Multi-Function Control Lever ......................................... 47 Multifunction Tailgate .................................................... 75
11
