220
In the event of a breakdown
Referring to the relevant section, reinitialise
certain equipment:
–
Remote control key or electronic key
(depending on version).
–


Electric windows.
–


Date and time.
–


Preset radio stations.
The Stop & Start system may not be operational during the trip following the
first engine start.
In this case, the system will only be available
again after a continuous period with the
vehicle immobilised, the duration of which
depends on the exterior temperature and the
state of charge of the battery (up to about 8
hours).
Towing the vehicle
Procedure for having your vehicle towed or
for towing another vehicle using a removable
mechanical device.
General recommendations
Observe the legislation in force in the
country where you are driving.
Check that the towing vehicle is heavier than
the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on
the ground, always use an approved towbar;
ropes and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
A professional recovery service must
be called in the following cases:
–

broken down on a motorway or main road;
–


not possible to put the gearbox into neutral,
unlock the steering, or release the parking
brake;
–


not possible to tow a vehicle with an
automatic gearbox, with the engine running;
– towing with only two wheels on the ground;
– four-wheel drive vehicle;
–

no approved towbar available.
Before towing the vehicle, it is essential
to put the vehicle in free-wheeling mode.
For more information on Free-wheeling, refer
to the corresponding section.
Electric motor
An electric vehicle cannot under any
circumstances be used to tow another
vehicle.
However, it may be used, for example, to exit
a rut.
With a manual gearbox, place the gear
lever in neutral.
With an automatic gearbox, place the gear
selector in position N.
Failure to adhere to this instruction may lead
to damage to some braking components and
the lack of braking assistance on restarting
the engine. CarM an uals 2 .c o m

239

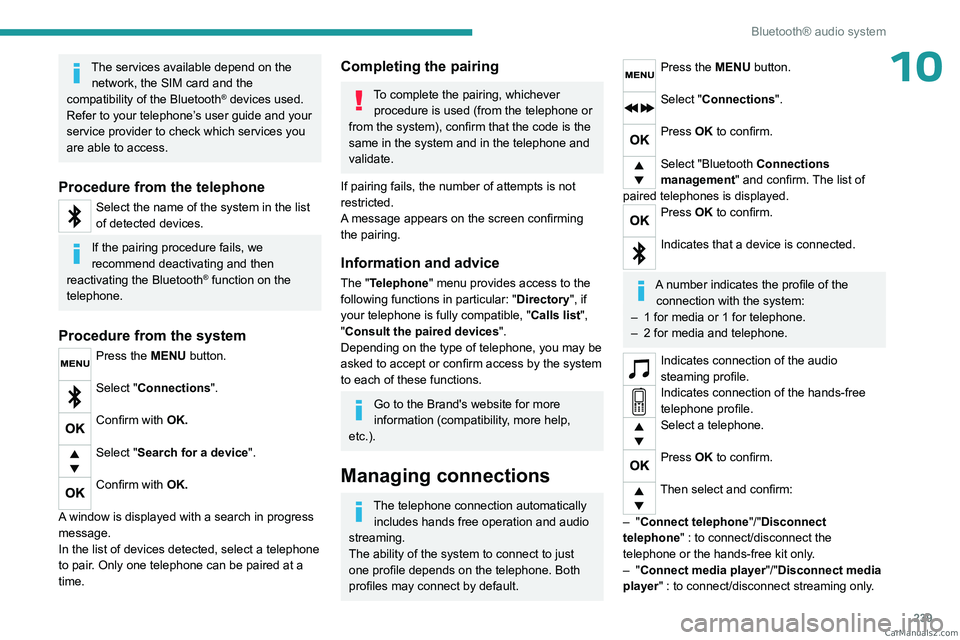

Bluetooth® audio system
10The services available depend on the network, the SIM card and the
compatibility of the Bluetooth
® devices used.
Refer to your telephone’s user guide and your
service provider to check which services you
are able to access.
Procedure from the telephone
Select the name of the system in the list
of detected devices.
If the pairing procedure fails, we
recommend deactivating and then
reactivating the Bluetooth
® function on the
telephone.
Procedure from the system
Press the MENU button.
Select "Connections".
Confirm with OK.
Select "Search for a device".
Confirm with OK.
A window is displayed with a search in progress
message.
In the list of devices detected, select a telephone
to pair. Only one telephone can be paired at a
time.
Completing the pairing
To complete the pairing, whichever procedure is used (from the telephone or
from the system), confirm that the code is the
same in the system and in the telephone and
validate.
If pairing fails, the number of attempts is not
restricted.
A message appears on the screen confirming
the pairing.
Information and advice
The "Telephone" menu provides access to the
following functions in particular: " Directory", if
your telephone is fully compatible, " Calls list",
"Consult the paired devices".
Depending on the type of telephone, you may be
asked to accept or confirm access by the system
to each of these functions.
Go to the Brand's website for more
information (compatibility, more help,
etc.).
Managing connections
The telephone connection automatically includes hands free operation and audio
streaming.
The ability of the system to connect to just
one profile depends on the telephone. Both
profiles may connect by default.
Press the MENU button.
Select "Connections".
Press OK to confirm.
Select "Bluetooth Connections
management " and confirm. The list of
paired telephones is displayed.
Press OK to confirm.
Indicates that a device is connected.
A number indicates the profile of the connection with the system:
–

1 for media or 1 for telephone.
–


2 for media and telephone.
Indicates connection of the audio
steaming profile.
Indicates connection of the hands-free
telephone profile.
Select a telephone.
Press OK to confirm.
Then select and confirm:
–

"Connect telephone"/"Disconnect
telephone" : to connect/disconnect the
telephone or the hands-free kit only.
–

"Connect media player"/"Disconnect media
player" : to connect/disconnect streaming only. CarM an uals 2 .c o m

256
Audio System with Touch Screen
► Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
Some characters in information about the
currently playing media are not displayed
correctly
.
The audio system is unable to process certain
types of character.
►

Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system.
►


Check the compatibility of the telephone on
the Brand's website (services).
Android

Auto and/or CarPlay do not work. Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►

Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the Google
Android Auto or Apple
website to see which countries are supported.
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►
Reduce ambient noise (close windows, turn
down ventilation, slow down, etc.).
The contacts are not listed in alphabetical
order
.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset. Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►

Modify the balance setting or the distribution
setting to obtain the desired sound quality
.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►
Check that the sound settings are appropriate
to the sources listened to.
Adjust the sound
functions to the middle position.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
► Start the vehicle’ s engine to increase the
charge of the battery. CarM an uals 2 .c o m

260
3D Connected Navigation
Voice commands
Steering wheel-mounted
controls
Voice commands:
Voice commands can be issued from any
screen page after a short press on the "Voice
commands" button located on the steering
wheel or at the end of the lighting control stalk
(depending on equipment), as long as there is no
telephone call in progress.
To ensure that voice commands are always recognised by the system, please
follow these recommendations:
–

use natural language in a normal tone
without breaking up words or raising your
voice.
–


always wait for the "beep" (audible signal)
before speaking.
–


for best results, closing the windows and
sunroof is recommended, to avoid extraneous
interference (depending on version).
–


before issuing a voice command, ask any
other passengers to refrain from speaking.
First steps
Example of a "voice command" for
navigation:
"Navigate to address 11 regent street,
London"
Example of a "voice command" for the radio and
media:
"Play artist Madonna"
Example of a "voice command" for the
telephone:
"Call David Miller"
The voice commands, with a choice of 17 languages (Arabic, Brazilian, Czech,
Danish, Dutch, English, Farsi, French,
German, Italian, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish,
Turkish), are made using the language
previously chosen and set in the system.
For some voice commands, there are
alternative synonyms.
Example: Guide to / Navigate to / Go to / ...
The voice commands in Arabic for: "Navigate
to address" and "Display POI in the city", are
not available.
Information - Using the
system
When voice commands are activated, by
briefly pressing the button, help is
displayed on the touch screen, offering various
menus and enabling voice-based interaction with
the system.


A number of commands are available when a
menu is selected.


Press the Push To Talk button and tell me
what you'd like after the tone. Remember
you can interrupt me at any time by pressing this
button. If you press it again while I'm waiting for
you to speak, it'll end the conversation. If you
need to start over, say "cancel". If you want to
undo something, say "undo". And to get
information and tips at any time, just say "help".
If you ask to me do something and there's some
information missing that I need, I'll give you
some examples or take you through it step by CarM an uals 2 .c o m

280
3D Connected Navigation
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I am unable to connect my Bluetooth
telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telephone’
s
Bluetooth function.
The Bluetooth telephone is not compatible with
the system. ►

Y
ou can check the compatibility of the
telephone on the Brand's website (services).
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►
Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the list of supported countries via
these
websites: Google Android Auto or Apple.
The volume of the telephone connected via
Bluetooth is too low.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
► Reduce ambient noise (e.g. close the
windows, reduce ventilation, slow down).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order

.Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system is not receiving SMS text
messages.
Bluetooth mode does not allow SMS text
messages to be sent to the system.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source. CarM an uals 2 .c o m

286
Alphabetical index
Charge level indicator (Electric) 22
Charging cable
180
Charging cable (Electric)

179
Charging connector
(Electric)

178, 183, 185–186
Charging flap (Electric)

178, 183, 185–186
Charging system (Electric)

5, 8, 27, 176, 191
Charging the traction battery
(Electric)

22, 176, 183, 185–186
Checking the engine oil level

19
Checking the levels

191–193
Checking tyre pressures
(using the kit)

204, 206–207
Checks

191, 194–196
Checks, routine

194–195
Child lock

131
Child lock on rear windows

131
Children

106, 113, 119–121, 128, 128–129
Children (safety)

131
Child seats

106, 109–116, 128
Child seats, conventional

112–116
Child seats, i-Size

128
Child seats, ISOFIX

119–121, 128, 128–129
Cleaning (advice)

177, 199–201
Closing the boot

44
Closing the doors

29, 33, 43–44
Collision Risk Alert

162–163
Compressor, tyre inflation

204
Configuration, vehicle

26–27
Connected applications

269
Connection, Android Auto

251, 269
Connection, Apple CarPlay

251, 268Connection,
Bluetooth
239, 252–253, 269–270, 274–275
Connection, Wi-Fi network

270
Connectivity

268
Consumptions

27
Container, AdBlue®

197
Control, emergency boot release

36
Control, emergency door

29, 34–35
Control, heated seats

50–51
Control stalk, lighting

88
Control stalk, wipers

93–95
Control unit

179–180
Courtesy lamp

86
Courtesy lamp, front

86–87, 215
Courtesy lamp, rear

86–87, 215
Courtesy lamps

86–87, 215
Crew cab, fixed

65–66
Crew cab, folding

66
Cruise control

151, 153–154, 156–158
Cruise control,
adaptive

153–154, 158, 161–163
Cruise control,
adaptive with Stop function

153–154
Cruise control by
speed limit recognition

153–154
D
DAB (Digital Audio Broadcasting) -
Digital radio
235–236, 249, 272
Date (setting)

28, 255, 277
Daytime running lamps 89, 212–213
Deactivating the passenger
airbag

107, 111–112
Deactivation of DSC (ESC)

101
Deadlocking

34
Deferred charging

27
Deferred charging (Electric)

27, 178, 183, 186
Defrosting

52, 81
Defrosting, rear screen

82
Demisting

81
Demisting, rear

82
Dimensions

229
Dipstick

19, 192
Direction indicators
(turn signals)

89, 212–214, 216
Display, head-up

11
Domestic charging

180
Domestic charging (Electric)

184–186, 227
Door pockets

68
Doors, rear

43–44
Doors, side

39
Doors, side-hinged

33–34, 43–44, 214
Drive,
electric

5, 8, 27, 176, 189, 191, 216, 220, 227
Driver’s attention warning

166
Drive selector (Electric)

145, 195
Driving

132–133
Driving aids camera (warnings)

150
Driving aids (recommendations)

150
Driving economically

7
Driving modes

146
Driving modes (Electric)

146–147 CarM an uals 2 .c o m

287
Alphabetical index
Dynamic stability control (DSC) 100–101, 103
E
EBFD 100
Eco-driving (advice)
7
ECO mode

147
Electric windows

47
Electronic brake force distribution (EBFD)

100
Emergency braking assistance (EBA)

100
Emergency call

98
Emergency warning lamps

97, 202
Emissions control system, SCR

21, 196
Energy economy (mode)

187
Energy economy mode

187
Energy flows

27
Energy recovery

22, 146
Engine

196
Engine compartment

191
Engine, Diesel

174, 191, 202, 224
Engines

223
Environment

7, 36, 84, 133
ESC (electronic stability control)

100
Exterior lighting

91
F
Fatigue detection 166
Filling the AdBlue® tank
193, 197
Filling the fuel tank

174–175
Filter, air 194
Filter, oil
194
Filter, particle

193–194
Filter, passenger compartment

77, 194
Finisher

2 11
Fitting a wheel

209–211
Fitting roof bars

189
Fittings, interior

67–68, 72
Fittings, rear

72
Flap, fuel filler

174–175
Flap, removable

53–55
Flashing indicators

89
Floor cab

216
Fluid, brake

193
Fluid, engine coolant

193
Fluid, power steering

193
Foglamp, rear

88, 214, 216
Foglamps, front

88, 213
Foglamps, rear

88
Frequency (radio)

271
Fuel

7, 174
Fuel consumption

7
Fuel level, low

174–175
Fuel (tank)

174
Fuses

216
G
Gauge, fuel 174–175
Gearbox, automatic
141–145, 195, 218
Gearbox, manual

141, 195
Gear lever 141
Gear lever, automatic gearbox
142–145
Gear lever, manual gearbox

141
Gear shift indicator

142
Glove box

68
G.P.S.

265
H
Hazard warning lamps 97, 202
Headlamps (adjustment)
92
Headlamps, automatic dipping

91–92
Headlamps, automatic operation

89–90
Headlamps, dipped beam

88, 212
Headlamps, halogen

211–212
Headlamps, main beam

88, 91, 212–213
Headlamps, Xenon

212
Head restraints, front

49
Head-up display

10–12
Heating

77–79, 81–84
Heating, additional

45, 83–84
Heating, programmable

27, 45, 83–85
High voltage

176
Hill start assist

141
Histogramme, fuel consumption

27
Horn

100
I
Ignition 136–137, 275 CarM an uals 2 .c o m

291
Alphabetical index
Telephone 238–241, 252–253, 274–276
Telephone, Bluetooth with
voice recognition

241
Temperature, coolant

19–20
Thermal comfort consumption indicator
(Electric)

23
Thermal comfort equipment

23
Third brake lamp

214
Time (setting)

28, 254, 278
TMC (Traffic info)

265
Tool box

203
Tools

204, 207
Topping-up AdBlue®

197
Total distance recorder

23
Touch screen

26–27, 85
Towbar

102, 188
Towed loads

223–224, 227
Towing

220
Towing another vehicle

221–222
Towing eye

221
Towing the vehicle

220
Traction battery charge

180
Traction battery
(Electric)

22, 27, 176–177, 227
Traction control (ASR)

100–101, 103
Traffic information (TA)

234
Traffic information (TMC)

265
Trailer

102, 188
Trailer stability assist (TSA)

102
Trajectory control systems

100
Triangle, warning

202
Trip computer

24–25
Tyres

195, 231Tyre under-inflation
detection
148–149, 207, 211
U
Under-inflation (detection) 148
Unlocking
29–33
Unlocking from the inside

37
Unlocking, selective

31–33
Unlocking the doors

37–38
Unlocking, total

31–33
Updating the date

28, 255, 277
Updating the time

28, 254, 278
USB

236, 249, 251, 268, 272
V
Vehicle data recording and privacy 282
Ventilation
77–79, 83–84
Video

273
Vision, 180° rear

172
Visiopark 1

170
Voice commands

260–263
W
Wallbox (Electric) 179
Warning and indicator lamps
12
Warning lamp, driver's seat belt
not fastened

106
Warning lamps 12
Warning lamp, seat belts
106
Warnings and indicators

12
Washing

151
Washing (advice)

177, 199–200
Weights

223–224, 227
Wheel, spare

149, 195, 207–208, 211
Window, sliding side

73
Windows, rear

73
Windscreen, athermic

53
Windscreen zones for toll/car park cards

53
Wiper blades (changing)

95
Wiper, rear

94–95
Wipers

93–94
Wipers, automatic rain sensitive

94
Wipers, windscreen

93–94 CarM an uals 2 .c o m
