2023 PEUGEOT 408 warning

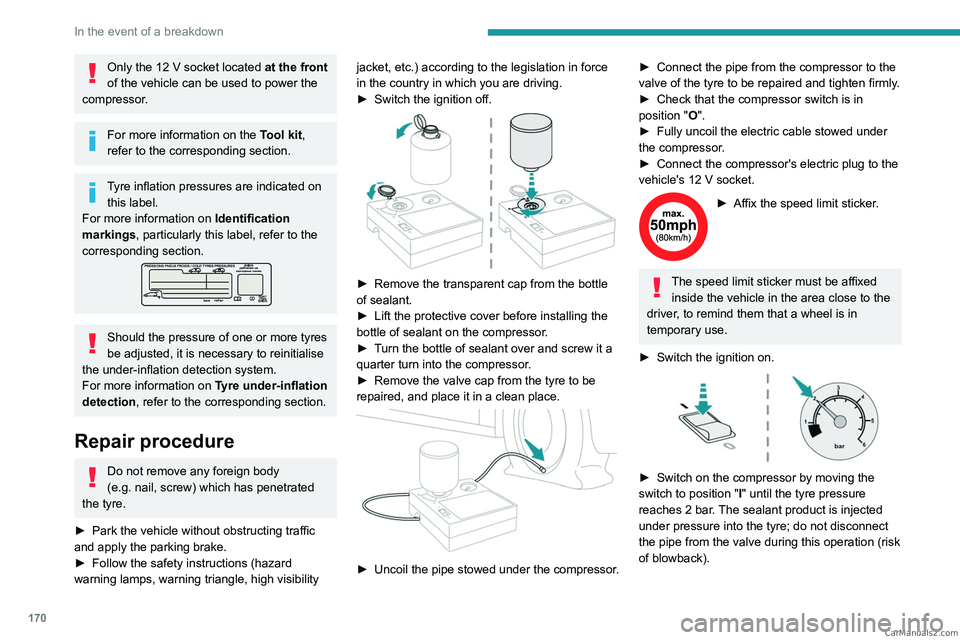

170
In the event of a breakdown
Only the 12 V socket located at the front
of the vehicle can be used to power the
compressor.
For more information on the Tool kit,
refer to the corresponding section.
Tyre inflation pressures are indicated on this label.
For more information on Identification
markings, particularly this label, refer to the
corresponding section.
Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise
the under-inflation detection system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Repair procedure
Do not remove any foreign body
(e.g. nail, screw) which has penetrated
the tyre.
►

Park the vehicle without obstructing traffic
and apply the parking brake.
►


Follow the safety instructions (hazard
warning lamps, warning triangle, high visibility jacket, etc.) according to the legislation in force
in the country in which you are driving.
►


Switch the ignition off.

► Remove the transparent cap from the bottle
of sealant.
►

Lift the protective cover before installing the
bottle of sealant on the compressor

.
►

T
urn the bottle of sealant over and screw it a
quarter turn into the compressor.
►

Remove the valve cap from the tyre to be
repaired, and place it in a clean place.


► Uncoil the pipe stowed under the compressor.
► Connect the pipe from the compressor to the
valve of the tyre to be repaired and tighten firmly .
►

Check that the compressor switch is in
position

"O".
►

Fully uncoil the electric cable stowed under
the compressor

.
►

Connect the compressor's electric plug to the
vehicle's 12

V socket.
► Affix the speed limit sticker .
The speed limit sticker must be affixed
inside the vehicle in the area close to the
driver, to remind them that a wheel is in
temporary use.
►

Switch the ignition on.

► Switch on the compressor by moving the
switch to position "I" until the tyre pressure
reaches 2
bar. The sealant product is injected
under pressure into the tyre; do not disconnect
the pipe from the valve during this operation (risk
of blowback). CarM an uals 2 .c o m

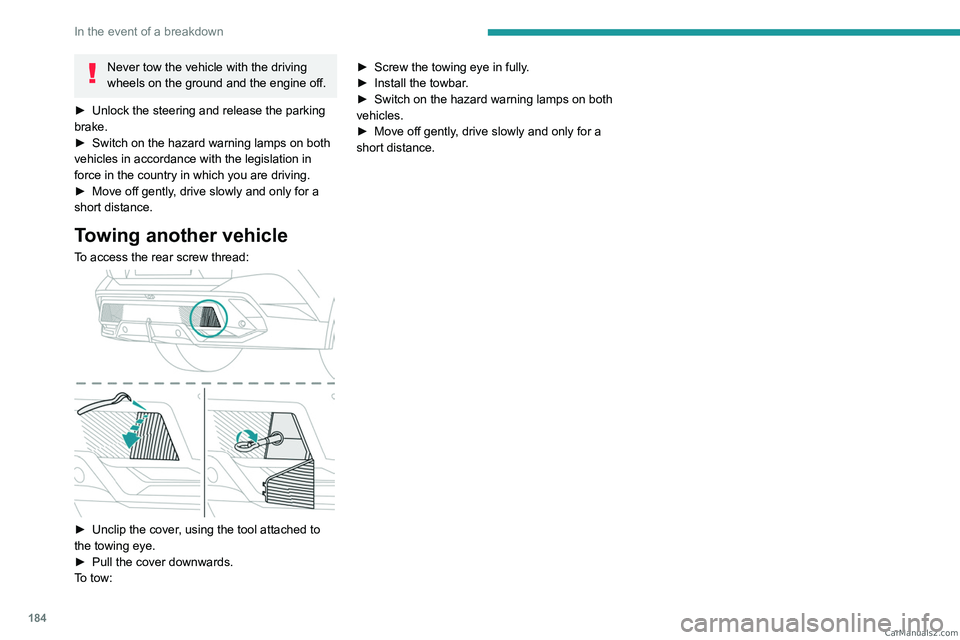

184
In the event of a breakdown
Never tow the vehicle with the driving
wheels on the ground and the engine off.
►

Unlock the steering and release the parking
brake.
►


Switch on the hazard warning lamps on both
vehicles in accordance with the legislation in
force in the country in which you are driving.
►


Move off gently
, drive slowly and only for a
short distance.
Towing another vehicle
To access the rear screw thread:

► Unclip the cover , using the tool attached to
the towing eye.
►

Pull the cover downwards.
T

o tow: ►

Screw the towing eye in fully
.
►
Install the towbar
.
►
Switch on the hazard warning lamps on both
vehicles.
►

Move off gently
, drive slowly and only for a
short distance. CarM an uals 2 .c o m

189
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
10PEUGEOT i-Connect
Advanced - PEUGEOT
i-Connect
GPS navigation -
Applications - Multimedia
audio system - Bluetooth
®
telephone
The functions and settings described
vary according to the version and
configuration of the vehicle, and according to
the country of sale.
For safety reasons and because they
require continued attention on the part of
the driver, the following operations must be
carried out with the vehicle stationary and
the ignition on:
–

Pairing the smartphone with the system via
Bluetooth®.
–
Using the smartphone.
–

Connecting to Mirror Screen
(Apple®CarPlay® or Android Auto).
–
Changing the system settings and
configuration.
The message Energy economy mode is displayed when the system is about to go
into standby.
For more information on Energy economy
mode, refer to the "Practical information"
section.
Warning
Navigation is a driving aid. It cannot
replace the driver. All guidance instructions
should be carefully checked by the user.
By using the navigation, you accept the
following terms and conditions:
https://www.tomtom.com/en_gb/legal/
eula-automotive/?388448
First steps
The system starts when the ignition is switched on.
Short press, ignition off: system on/off.
Short press, ignition on: mute/restore sound.
Long press, ignition on: start standby mode
(mute sound, screens and clock display off).
Rotation: volume adjustment.
Information
This system gives access to the following
elements:
–

Audio equipment and telephone controls with
display of associated information. –


Connected services and display of associated
information.
–

Navigation system controls and display
of associated information (depending on
equipment).
–

V
oice recognition (depending on equipment).
–
T
ime and outside temperature.
–
Heating/air conditioning system controls and
reminders of settings.
–

Settings for driving aid functions, comfort
and safety functions, extended head-up display
(depending on equipment and version), audio
equipment and digital instrument panel.
–

Settings for functions specific to rechargeable
hybrid vehicles.
–

Display of visual manoeuvring aid functions.
–

Interactive handbook.
–

V
ideo tutorials (e.g. screen management,
driving aids, voice recognition).
Upper banner
Certain information is displayed permanently in
the upper banner of the touch screen:
–

Outside temperature from the vehicle's
sensors (associated with a blue symbol if there is
a risk of ice).
–


T
emperature setting reminder for the air
conditioning on the driver's and passenger sides.
–

Charge level of the connected smartphone.
–


System connection status (Bluetooth®, Wi-Fi,
mobile telephone network).
–

Time. CarM an uals 2 .c o m

203
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
10Configuring the system
Press the "Settings" application.
In the list, select the "System” tab.
It is possible to configure:
–

the language.
–


the date & time.
–


the unit of distance and consumption
(kWh/100 miles - miles, mi/kWh - miles, km/kWh
- km).
–


the temperature unit (Fahrenheit, Celsius).
It is also possible to reset the system
configuration.
Selecting the language
Select "Language" to change the
language.
Press the desired language.
Press the back arrow to return to the
previous page.
Setting the date and time
Select “Date and Time” to modify the date and
time.
“Automatic Date and Time” is activated
by default, so that the setting is made
automatically according to your geolocation.
To adjust manually, deactivate “Automatic Date
and Time”.
Press the “Select Time Zone” field then define
a time zone.
Press the back arrow to return to the
previous page.
Press the “Time Settings” line then set the time.
Press "OK" to confirm.
Press the “Date” line then set the date.
Press "OK" to confirm.
Select the Time Format (12h/24h).
Select the Date Format.
The system does not automatically change between winter and summer time
(depending on the country of sale).
Help
Press the "Help" application.
In the list, select the “User Manual” tab to
consult the vehicle’s handbook.
or
In the list, select the “Tutorials” tab to watch
explanatory videos for a quick start on screen
management, certain driving aids and voice
recognition.
User Manual
Select the display language.
The handbook home page is displayed. It presents the different possibilities for accessing
the information sought:
Visual search
Access to subjects via pictures
representing the exterior and interior of the
vehicle.
Indicator lamps
Access to the descriptions/operation of
the instrument panel warning/indicator lamps.
System
Access to sections dedicated to the
various audio equipment and telematics
systems.
Contents
Access to subjects via the main sections
of the handbook.
Visual search
Press Visual search.
Press one of the pictures located at the bottom
of the screen.
Press one of the bullet points in the
enlarged view.
There are two cases:
–

Direct display of the subject, if only one
subject is associated with the bullet point.
–


Display of a list of subjects, if several subjects
are associated with the bullet point.
Indicator lamps
Press Indicator lamps. CarM an uals 2 .c o m

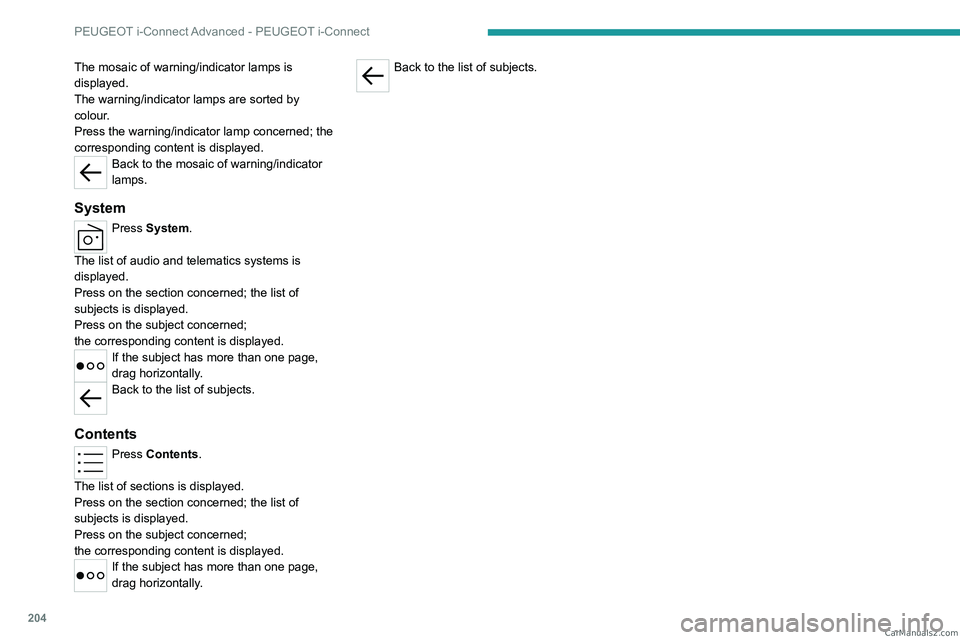

204
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
The mosaic of warning/indicator lamps is
displayed.
The warning/indicator lamps are sorted by
colour.
Press the warning/indicator lamp concerned; the
corresponding content is displayed.
Back to the mosaic of warning/indicator
lamps.
System
Press System.
The list of audio and telematics systems is
displayed.
Press on the section concerned; the list of
subjects is displayed.
Press on the subject concerned;
the

corresponding content is displayed.
If the subject has more than one page,
drag horizontally.
Back to the list of subjects.
Contents
Press Contents.
The list of sections is displayed.
Press on the section concerned;
the list of
subjects is displayed.
Press on the subject concerned;
the

corresponding content is displayed.
If the subject has more than one page,
drag horizontally.
Back to the list of subjects. CarM an uals 2 .c o m

209
Alphabetical index
Children (safety) 90
Child seats
79, 83–85
Child seats, conventional

85, 88–89
Child seats, i-Size

87–89
Child seats, ISOFIX

85–86, 88–89
Cleaning (advice)

145, 165–167
Closing the boot

27, 31
Closing the doors

27, 31
Collision Risk Alert

126–128
Configuration, vehicle

10, 21
Connection, Bluetooth

197–198
Connectivity

202
Consumptions

22
Control, emergency boot release

31
Control, emergency door

29
Control, heated seats

43–44
Controls, steering mounted

97–98
Control stalk, lighting

61–62
Control stalk, wipers

68, 70
Control unit

146–148, 152
Courtesy lamp, front

58
Courtesy lamps

57–58
Cruise control

109–110, 112–114
Cruise control, adaptive

109–110, 114–115
Cruise control by speed limit
recognition

109–110
D
Date (setting) 203
Daytime running lamps
62
Deactivating the passenger airbag

80, 84–85
Deadlocking 25, 27
Deferred charging
22, 153
Deferred charging (Rechargeable
hybrid)

21–22, 146, 151
Defrosting

45, 52
Defrosting, front

52
Defrosting, rear screen

52
Demisting

45, 52
Demisting, front

52
Demisting, rear

52
Diagnosis, vehicle

19
Dials and gauges

10
Digital instrument panel

10
Dimensions

188
Dipstick

17, 161
Direction indicators (turn signals)

62, 176
Display, head-up

67
Display screen, instrument panel

10
Domestic charging

148
Domestic charging (Rechargeable
hybrid)

152–153
Doors

31
Drive Assist Plus

114–115
Driver’s attention warning

130–131
Driving

40–41, 91–92, 106
Driving abroad

66
Driving aids camera (warnings)

105
Driving aid shortcuts

106
Driving aids (recommendations)

104
Driving economically

8
Driving modes

99
Driving positions (storing)

43
Dynamic stability control (DSC)

76E
EBFD 75
Eco-driving (advice)
8
ECO mode

99
Electric automatic gearbox (Rechargeable
hybrid)

96
Electronic brake force distribution (EBFD)

75
Emergency braking assistance (EBA)

76
Emergency call

73–74
Emergency switching off

94
Emergency warning lamps

72, 168
Energy economy (mode)

159
Energy economy mode

159
Energy flows

21
Energy recovery

18, 98
Engine

164
Engine compartment

160–161
Engine, petrol

100, 161, 186
Engines

185–186
Environment

8, 30
e-Save function (energy reserve)

22
ESC (electronic stability control)

75
Expanded traffic sign recognition

11 0
Exterior lighting

64
F
Fatigue detection 130–131
Favourite driving functions
106
Filling the fuel tank

143
Filter, air

163 CarM an uals 2 .c o m

210
Alphabetical index
Filter, oil 163
Filter, passenger compartment
49, 163
Fitting a wheel

172, 174
Fitting roof bars

157–158
Fittings, boot

59
Fittings, interior

54
Fittings, rear

58
Flap, charging

153
Flap, fuel filler

143
Flap, ski

59
Flashing indicators

62
Flat bed (towing)

183
Fluid, brake

162
Fluid, engine coolant

162
Foglamps, rear

61, 176
Folding the rear seats

47–48
Frequency (radio)

200
Fuel

8, 143
Fuel consumption

8, 18
Fuel level, low

143
Fuel (tank)

143
Fuses

177
G
Gauge, fuel 143
Gearbox, automatic
96–99, 101, 163, 177
Gearbox, manual

101
Gear shift indicator

101
Glove box

54
H
Hands-free access 33–34
Hands-free tailgate
33–34
Hazard warning lamps

72, 168
Headlamps (adjustment)

62
Headlamps, automatic dipping

64–65
Headlamps, automatic operation

63
Headlamps, halogen

62
Headlamps, main beam

64
Head restraints, front

41
Head restraints, rear

47–48
Head-up display

67
Heated steering wheel

45
Heating

48
Heating, programmable

22, 53
Hi-Fi system

57
High voltage

144
Hill start assist

100–101
Histogramme, fuel consumption

22
Horn

73
I
Ignition 93, 202
Ignition on
93
Immobiliser, electronic

92
Indicator, coolant temperature

18
Indicator, engine oil level

17
Indicators, direction

62
Indicator, service

17
Inflating tyres

164, 188
Inflating tyres and accessories
(using the kit)
169, 171
Information, vehicle

10, 205
Infrared camera

67, 105
Instrument panel

10, 19, 19–20, 106
Instrument panels

10
ISOFIX mountings

85, 88–89
J
Jack 168–169, 172
Jump starting
178
K
Key 24–25, 29
Key, electronic
26–27
Keyless Entry and Starting

24, 26–27, 92–93
Key not recognised

94
Key with remote control

24, 92
Kit, hands-free

197
Kit, puncture repair

168–169
Kit, temporary puncture repair

168–171
Klaxon

73
L
Labels, identification 188
Lamps, parking
62
Lamps, rear

176 CarM an uals 2 .c o m

212
Alphabetical index
R
Radar (warnings) 105
Radio
199–200
Reading lamps

57
Reading lamps, touch-sensitive

58
READY (warning lamp)

160
Rear bench seat

47
Rear cross traffic alert

140
Rear screen (demisting)

52
Rechargeable
hybrid engine

9, 21, 160, 183, 187
Rechargeable
hybrid system

6, 9, 21, 93, 100, 144
Recharging the battery

177–178, 181
Recharging the traction battery

148
Recharging the traction battery
(Rechargeable hybrid)

144, 151–153
Recirculation, air

51–52
Recorder, trip distance

19
Reduction of electrical load (mode)

160
Regenerative braking (deceleration by
engine braking)

98
Reinitialising the remote control

30
Reinitialising the under-inflation detection
system

104
Reminder, lighting on

61
Remote control

24–27, 29
Remote functions

153
Remotely operable functions (Rechargeable
hybrid)

22, 53
Removing a wheel

172–174
Removing the mat

57
Replacing bulbs 175–176
Replacing fuses
177
Replacing the air filter

163
Replacing the oil filter

163
Replacing the passenger compartment
filter

163
Reservoir, screenwash

162
Resetting the trip

19–20
Reversing camera

105, 136–138
Reversing lamps

176
Roof bars

157–158
Roof, opening

38
S
Safety, children 80, 83–87
Screen, cold climate
158
Screenwash

69
Screenwash, front

69
Seat angle

42
Seat belts

78–79, 85
Seat belts, rear

78
Seats, electric

42–43
Seats, front

41–43
Seats, heated

43–44
Seats, rear

47–48, 83
Selector, gear

96–99
Semi-automatic lane changing

122
Sensors (warnings)

105
Serial number, vehicle

188
Servicing

17, 163–164
Settings, equipment

10, 21
Shield, snow 158
Sidelamps
62, 176
Silent vehicle warning sound (Rechargeable
hybrid)

73
Smartphone

22–23, 55
Snow chains

103, 159
Snow screen

158
Socket, 12 V

54
Socket, 12 V accessory

54, 60
Speakers

57
Speed limiter

109–112
Speed limit recognition

107, 109
Speedometer

10, 106
Sport mode

99–100
Spotlamps, side

64
Stability control (ESC)

75, 77
Starting/Stopping the vehicle

92
Starting the engine

92–93
Starting the vehicle

93, 98
Starting using another battery

94, 178
State of charge, battery

21
Station, radio

199–200
Stay, engine bonnet

160
Steering wheel

106
Steering wheel (adjustment)

45
Stickers, customising

166
Stopping the vehicle

93, 98–99
Stop & Start

20, 49, 52, 101–103,
143, 160, 163, 180
Storage

54, 56, 58
Storage box

60
Storage wells

60
Storing driving positions

43 CarM an uals 2 .c o m
