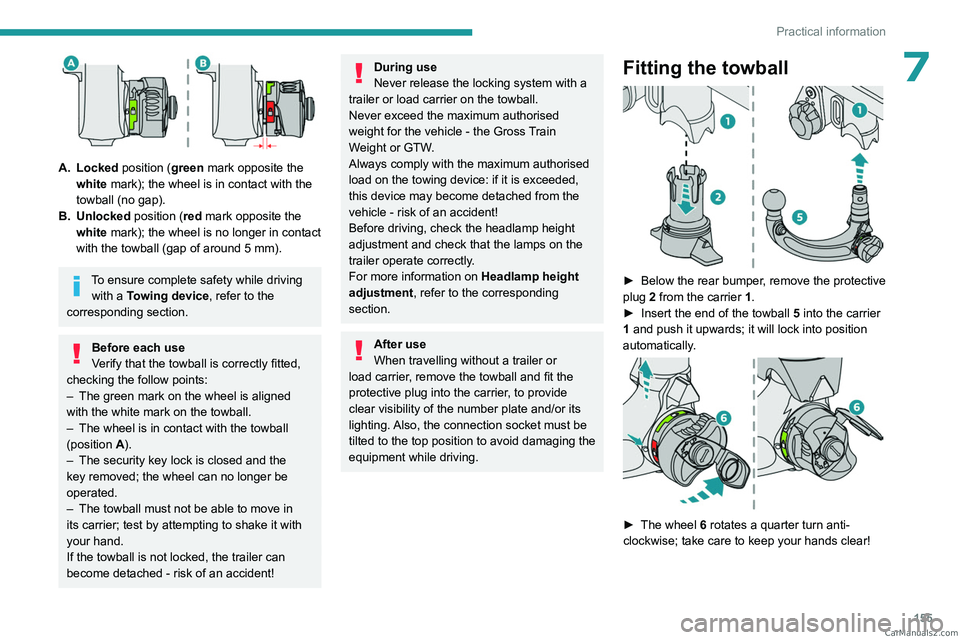

A. Locked position (green mark opposite the white mark); the wheel is in contact with the
towball (no gap).
B. Unlocked position (red mark opposite the white mark); the wheel is no longer in contact
with the towball (gap of around 5
mm).
To ensure complete safety while driving with a Towing device , refer to the
corresponding section.
Before each use
Verify that the towball is correctly fitted,
checking the follow points:
–

The green mark on the wheel is aligned
with the white mark on the towball.
–


The wheel is in contact with the towball
(position A

).
–

The security key lock is closed and the
key removed; the wheel can no longer be
operated.
–


The towball must not be able to move in
its carrier; test by attempting to shake it with
your hand.
If the towball is not locked, the trailer can
become detached - risk of an accident!
During use
Never release the locking system with a
trailer or load carrier on the towball.
Never exceed the maximum authorised
weight for the vehicle - the Gross Train
Weight or GTW.
Always comply with the maximum authorised
load on the towing device: if it is exceeded,
this device may become detached from the
vehicle - risk of an accident!
Before driving, check the headlamp height
adjustment and check that the lamps on the
trailer operate correctly.
For more information on Headlamp height
adjustment, refer to the corresponding
section.
After use
When travelling without a trailer or
load carrier, remove the towball and fit the
protective plug into the carrier, to provide
clear visibility of the number plate and/or its
lighting. Also, the connection socket must be
tilted to the top position to avoid damaging the
equipment while driving.
Fitting the towball

► Below the rear bumper , remove the protective
plug 2 from the carrier 1.
►

Insert the end of the towball
5 into the carrier
1 and push it upwards; it will lock into position
automatically.


► The wheel 6 rotates a quarter turn anti-
clockwise; take care to keep your hands clear!
CarM an uals 2 .c o m

159
Practical information
7► Place the 7 central fixing brackets (upper:
1 ; lower: 2) and pre-engage them in the front
bumper grille.
►

Press on the upper middle part to clip.
►


Repeat the same steps for the left and right
side parts with the 5 side fixing brackets (upper:
3

; lower: 4).
►

Check that the unit is firmly held by pressing
its edge.
T

o remove the screen, press down on the upper
fixing brackets 1 and 3, then tilt the screen down.
Snow chains
In wintry conditions, snow chains improve
traction as well as the behaviour of the vehicle
when braking.
Snow chains must be fitted only to the
front wheels. They must never be fitted to
"space-saver" type spare wheels.
Observe the legislation in force in your
country relating to the use of snow
chains and maximum authorised speeds.
Only use chains that have been designed for the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size 215/65 R17 9 mm
225/55 R18 9 mm
Original tyre size Maximum link size
205/55 R19 9 mm
245/40 R20 -
For more information, contact a PEUGEOT
dealer or a qualified workshop.
Installation tips
► To fit the snow chains during a journey, stop
the vehicle on a flat surface at the side of the
road.
►

Apply the parking brake and position any
wheel chocks under the wheels to prevent
movement of the vehicle.
►


Fit the snow chains following the instructions
provided by the manufacturer

.
►

Move off gently and drive for a few moments,
without exceeding 31

mph (50 km/h).
►

Stop the vehicle and check that the snow
chains are correctly tightened.
It is strongly recommended that you
practise fitting the snow chains on a level
and dry surface before setting off.
Avoid driving with snow chains on roads that have been cleared of snow to avoid
damaging the vehicle's tyres and the road
surface. If the vehicle is fitted with alloy
wheels, check that no part of the chain or its
fixings is in contact with the wheel rim.
Energy economy mode
This system manages the duration of use of
certain functions, in order to conserve a sufficient
level of charge in the battery with the ignition off.
After switching off the engine and for a maximum
cumulative period of around 30 minutes, you can
continue to use functions such as the audio and
telematics system, dipped beam headlamps or
courtesy lamps.
Selecting the mode
A confirmation message is displayed when
energy economy mode is entered, and the active
functions are placed on standby.
If a telephone call is in progress at the
time, it will be maintained for around 10
minutes via the audio system’s hands-free
system.
Exiting the mode
These functions are automatically reactivated the
next time the vehicle is used.
To restore the use of these functions
immediately, start the engine and let it run:
–

For less than 10 minutes, to use the
equipment for approximately 5 minutes.
–


For more than 10 minutes, to use the
equipment for approximately 30 minutes.
Let the engine run for the specified duration to
ensure that the battery charge is sufficient. CarM an uals 2 .c o m

175
In the event of a breakdown
8Do not exceed the maximum authorised
speed of 50 mph (80 km/h) or the maximum
distance of 50 miles (80 km).
Driving with more than one "space-saver"
type spare wheel is prohibited.
Go to a PEUGEOT dealer or a qualified
workshop.
Have the tightening of the spare wheel's bolts
and its tyre pressure checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), misting on the
internal surface of the glass of the headlamps
and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.
Never look too closely at the light beam
of LED technology lamps - risk of serious
eye injury!


The headlamps have polycarbonate lenses with a protective coating:
–

Do not clean them with a dry or abrasive
cloth, nor with detergent or solvent
products.
–


Use a sponge and soapy water or a pH
neutral product.
–


When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Light-emitting diode (LED)
headlamps and lamps
Depending on version, the affected types of
headlamps/lamps are:
–

LED technology headlamps.
–


Full LED technology headlamps.
–


Offset daytime running lamps/sidelamps/
direction indicators.
–


Direction indicator side repeaters.
–


Side spotlamps.
– Brake lamps.
– Full LED technology rear lamps.
–

LED technology rear lamps.
–


Third brake lamp.
–


Number plate lamps.
Replacement of this type of bulb
Contact a PEUGEOT dealer or a
qualified workshop.
Do not touch LED or Full LED
technology
headlamps - risk of electrocution!
Front lamps

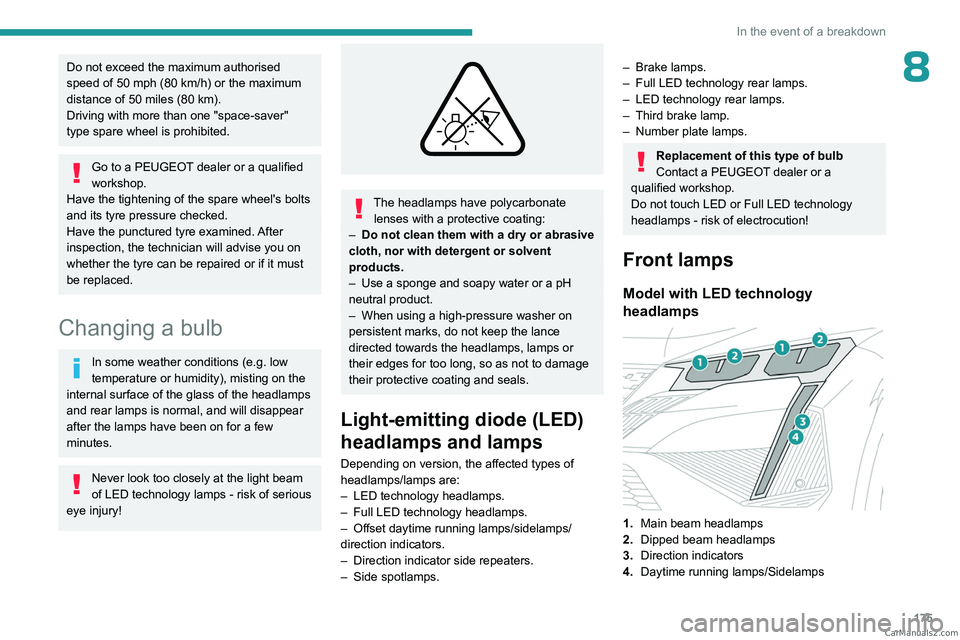

Model with LED technology
headlamps


1. Main beam headlamps
2. Dipped beam headlamps
3. Direction indicators
4. Daytime running lamps/Sidelamps CarM an uals 2 .c o m

176
In the event of a breakdown

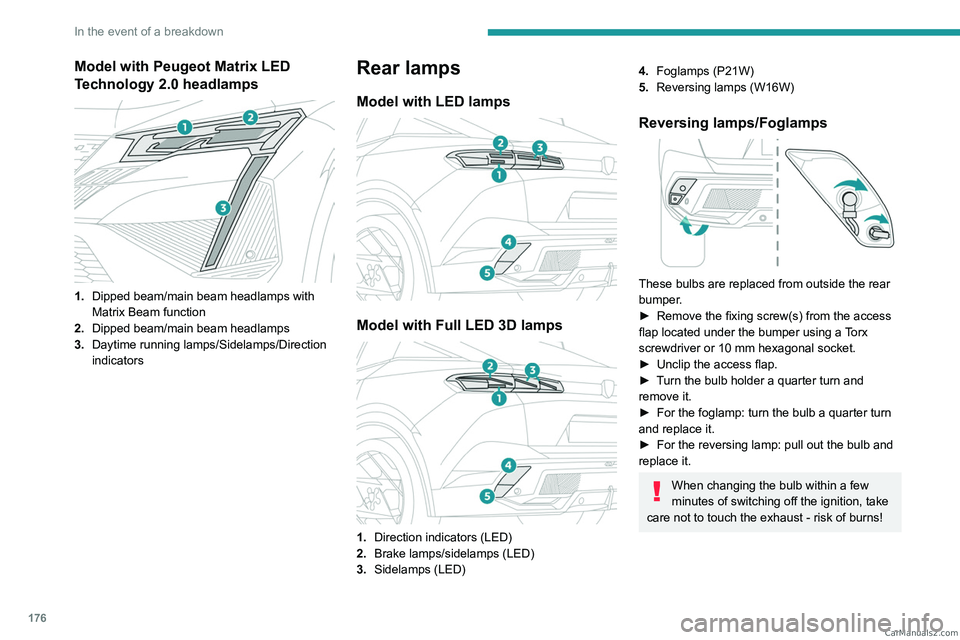

Model with Peugeot Matrix LED
Technology 2.0 headlamps


1.Dipped beam/main beam headlamps with
Matrix Beam function
2. Dipped beam/main beam headlamps
3. Daytime running lamps/Sidelamps/Direction
indicators
Rear lamps
Model with LED lamps

Model with Full LED 3D lamps

1.Direction indicators (LED)
2. Brake lamps/sidelamps (LED)
3. Sidelamps
(LED)
4.Foglamps (P21W)
5. Reversing lamps (W16W)
Reversing lamps/Foglamps

These bulbs are replaced from outside the rear
bumper.
►

Remove the fixing screw(s) from the access
flap located under the bumper using a

Torx
screwdriver or 10
mm hexagonal socket.
►

Unclip the access flap.
►


T
urn the bulb holder a quarter turn and
remove it.
►

For the foglamp: turn the bulb a quarter turn
and replace it.
►


For the reversing lamp: pull out the bulb and
replace it.
When changing the bulb within a few
minutes of switching off the ignition, take
care not to touch the exhaust - risk of burns! CarM an uals 2 .c o m

177
In the event of a breakdown
8Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery/Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units/LED
technology headlamps
Never connect the negative jump lead to the
metal part of the electronic control units or at
the back of the headlamps.
Risk of destroying the electronic control units
and/or headlamps!
Connect to the remote earth point provided
for this purpose.
Frozen battery
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
PEUGEOT dealer or by a qualified workshop,
who will verify that the internal components
have not been damaged and that the case
has not cracked, which could lead to a risk of
leakage of toxic and corrosive acid.
Automatic gearbox
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric acid which can make you go blind or
cause severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol engines
Procedure for starting the engine using another
battery or for charging a discharged battery. CarM an uals 2 .c o m

208
Alphabetical index
A
ABS 75
Accelerated charging unit (Wallbox)
146–147
Accessories

72
Active LED Vision

63, 65
Active Safety Brake

126–127, 129
Adjusting headlamps

62
Adjusting head restraints

41
Adjusting seat

41–42
Adjusting the air distribution

49, 51
Adjusting the air flow

49, 51
Adjusting the headlamp beam height

62
Adjusting the height and reach of
the steering wheel

45
Adjusting the lumbar support

42
Adjusting the seat angle

42
Adjusting the temperature

50
Adjusting the time

203
Advice on care and maintenance

145, 165
Advice on driving

8, 91–92
Airbags

80–82, 84
Airbags, curtain

81–82
Airbags, front

80–81, 85
Airbags, lateral

81–82
Air conditioning

49, 52
Air conditioning, automatic

52
Air conditioning, dual-zone automatic

49
Air intake

51–52
Air vents

48
Alarm

35–36
Amplifier, audio

57
Anti-lock braking system (ABS)

75
Antitheft / Immobiliser 25
Applications
21–22
Armrest, front

56
Armrest, rear

58
Assistance call

73–74
Assistance, emergency braking

76, 128
Audio streaming (Bluetooth)

200
B
Battery, 12 V 159, 163, 177–181
Battery, ancillaries
177
Battery, charging

177–178, 181
Battery, remote control

29–30
Blanking screen (snow shield)

158
Blind

38
Bluetooth (hands-free)

197
Bluetooth (telephone)

197–198
Bodywork

165
Bonnet

160
Bonnet, active

82
Boot

31, 34, 60
Brake discs

163–164
Brake lamps

176
Brakes

163–164
Braking

98
Braking assistance system

75–76
Braking, automatic emergency

126–127, 129
Braking, dynamic emergency

95–96
Bulbs (changing)

175–176
C
Capacity, fuel tank 143
Care of the bodywork
165
Central locking

27–28
Changing a bulb

175–176
Changing a fuse

177
Changing a wheel

168, 172
Changing a wiper blade

71
Changing the remote control battery

29
Changing to free-wheeling

164
Charge level indicator (Rechargeable
hybrid)

19
Charger, induction

55
Charger, wireless

55
Charging cable

148
Charging cable (Rechargeable
hybrid)

146–147, 152
Charging connector (Rechargeable
hybrid)

146, 151–153
Charging flap (Rechargeable
hybrid)

146, 151–153
Charging the traction battery
(Rechargeable hybrid)

18, 144, 151–153
CHECK

19
Checking the engine oil level

17
Checking the levels

161–162
Checking tyre pressures
(using the kit)

169, 171
Checks

161, 163–164
Checks, routine

163–164
Child lock

90
Children

79, 85–87 CarM an uals 2 .c o m

210
Alphabetical index
Filter, oil 163
Filter, passenger compartment
49, 163
Fitting a wheel

172, 174
Fitting roof bars

157–158
Fittings, boot

59
Fittings, interior

54
Fittings, rear

58
Flap, charging

153
Flap, fuel filler

143
Flap, ski

59
Flashing indicators

62
Flat bed (towing)

183
Fluid, brake

162
Fluid, engine coolant

162
Foglamps, rear

61, 176
Folding the rear seats

47–48
Frequency (radio)

200
Fuel

8, 143
Fuel consumption

8, 18
Fuel level, low

143
Fuel (tank)

143
Fuses

177
G
Gauge, fuel 143
Gearbox, automatic
96–99, 101, 163, 177
Gearbox, manual

101
Gear shift indicator

101
Glove box

54
H
Hands-free access 33–34
Hands-free tailgate
33–34
Hazard warning lamps

72, 168
Headlamps (adjustment)

62
Headlamps, automatic dipping

64–65
Headlamps, automatic operation

63
Headlamps, halogen

62
Headlamps, main beam

64
Head restraints, front

41
Head restraints, rear

47–48
Head-up display

67
Heated steering wheel

45
Heating

48
Heating, programmable

22, 53
Hi-Fi system

57
High voltage

144
Hill start assist

100–101
Histogramme, fuel consumption

22
Horn

73
I
Ignition 93, 202
Ignition on
93
Immobiliser, electronic

92
Indicator, coolant temperature

18
Indicator, engine oil level

17
Indicators, direction

62
Indicator, service

17
Inflating tyres

164, 188
Inflating tyres and accessories
(using the kit)
169, 171
Information, vehicle

10, 205
Infrared camera

67, 105
Instrument panel

10, 19, 19–20, 106
Instrument panels

10
ISOFIX mountings

85, 88–89
J
Jack 168–169, 172
Jump starting
178
K
Key 24–25, 29
Key, electronic
26–27
Keyless Entry and Starting

24, 26–27, 92–93
Key not recognised

94
Key with remote control

24, 92
Kit, hands-free

197
Kit, puncture repair

168–169
Kit, temporary puncture repair

168–171
Klaxon

73
L
Labels, identification 188
Lamps, parking
62
Lamps, rear

176 CarM an uals 2 .c o m
