2023 PEUGEOT 408 traction control

131
Driving
6– The driver's seat belt is unfastened and their
door is opened.
As soon as the speed of the vehicle drops below 43 mph (70 km/h), the
system goes into standby.
Driving time starts being counted again once
the speed reaches above 43
mph (70 km/h).
Driver Attention Warning by
Camera


The system assesses the driver's level of alertness, fatigue and distraction by
identifying trajectory changes in relation to the
lane markings.
To do this, the system uses a camera, placed on
the upper part of the windscreen.
This system is particularly suited to fast roads
(speed higher than 43 mph (70
km/h)).
At a first alert level, the driver is warned by
the message "Caution!", accompanied by an
audible signal.
After three first-level alerts, the system triggers
a further alert with the message " Driving at
risk: Take a break", accompanied by a more
pronounced audible signal.
In certain driving conditions (poor road
surface or strong winds), the system may
give alerts independent of the driver's level of
vigilance.
The following situations may interfere with the operation of the system or
prevent it from working:
–

lane markings absent, worn, hidden
(e.g.

snow, mud, dead leaves) or multiple
(roadworks).
–

close to the vehicle ahead (lane markings
not detected).
–


roads that are narrow
, winding.
Lane keeping assist
For more information, refer to the
General recommendations on the use
of driving and manoeuvring aids .
The system corrects the vehicle's trajectory by
alerting the driver as soon as it detects a risk of
involuntary lane departure or crossing of a verge
or hard shoulder (depending on version).
To do this, the system uses a camera, placed on
the upper part of the windscreen, identifying the
lane markings on the ground and the side of the
road (depending on version).
This system is particularly useful on
motorways and main roads.


Operating conditions
– Vehicle speed between 43 and 112 mph (70
and 180 km/h).
–

Road marked with a central dividing line.
–


Steering wheel held with both hands.
–


Direction indicators off upon activation of the
system.
–


ESC system activated and operational.
The system helps the driver only if there is a risk of the vehicle unintentionally
wandering from the lane it is being driven in. It
does not manage the safe driving distance,
vehicle speed or braking.
The driver must hold the steering wheel with
both hands so that they can maintain control
when
the conditions no longer allow the
system to intervene (e.g.
in the event that CarM an uals 2 .c o m

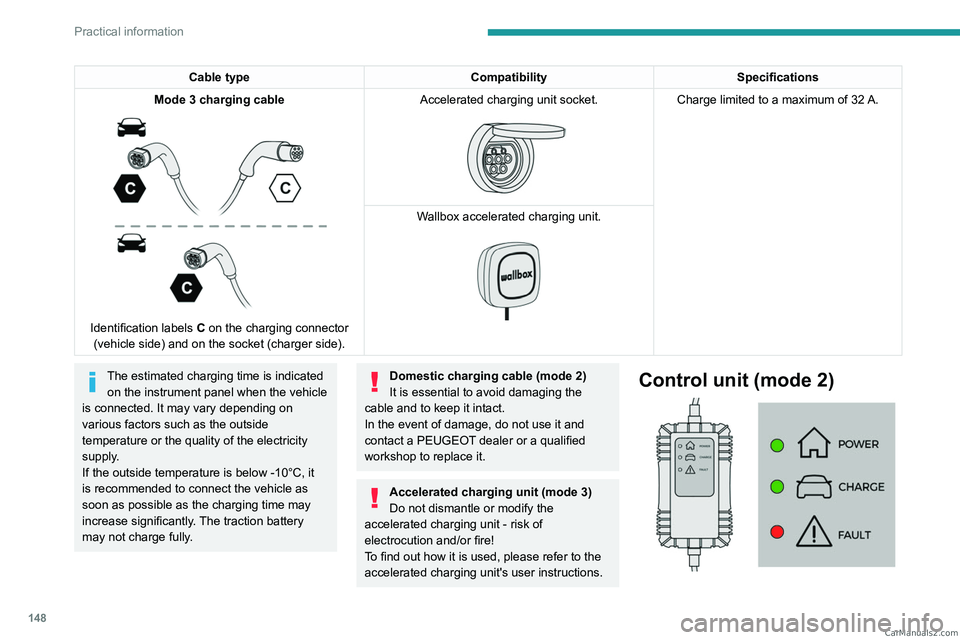

148
Practical information
Cable typeCompatibilitySpecifications
Mode
3 charging cable


Identification labels C on the charging connector
(vehicle side) and on the socket (charger side). Accelerated charging unit socket.


Charge limited to a maximum of 32 A.
W
allbox accelerated charging unit.


The estimated charging time is indicated on the instrument panel when the vehicle
is connected. It may vary depending on
various factors such as the outside
temperature or the quality of the electricity
supply.
If the outside temperature is below -10°C, it
is recommended to connect the vehicle as
soon as possible as the charging time may
increase significantly. The traction battery
may not charge fully.Domestic charging cable (mode 2)
It is essential to avoid damaging the
cable and to keep it intact.
In the event of damage, do not use it and
contact a PEUGEOT
dealer or a qualified
workshop to replace it.
Accelerated charging unit (mode 3)
Do not dismantle or modify the
accelerated charging unit - risk of
electrocution and/or fire!
T
o find out how it is used, please refer to the
accelerated charging unit's user instructions.
Control unit (mode 2)
CarM an uals 2 .c o m

151
Practical information
7The control unit can be reset by simultaneously disconnecting the chargi\
ng connector and the wall socket.
Then, reconnect the wall socket first. For more information, refer to the handbook.
Charging the traction
battery (Rechargeable
hybrid)
Principle
For a full charge, follow the charging procedure
without interrupting it, until it stops automatically.
Charging may be performed either immediately
(by default) or deferred.
Deferred charging is set via the touch
screen or the MYPEUGEOT APP
application.
When the vehicle is connected, the following
information is displayed on the instrument panel:
–

T

raction battery charge status (%).
–

Remaining range (miles or km).
–


Estimated charging time (calculation may take
a few seconds).
–


Charging speed (miles or km gained per hour).
After the instrument panel has been put into
standby mode, this information can be displayed
again by unlocking the vehicle or opening a door

.
It is also possible to monitor the charging
progress using the MYPEUGEOT APP
application.
For more information on Remotely
operable additional functions , refer to the
corresponding section.
Lounge mode
When the vehicle is connected, it is
possible to switch on the ignition and use
certain functions such as the audio and
telematics system and the air conditioning
system for several hours.
Low charging / Driving
Driving when the charge level of the
traction battery is too low can lead to the
vehicle breaking down and can lead to
accidents or serious injuries. ALWAYS make
sure the traction battery has a sufficient
charge level.
Low charging / Parking
If the outside temperature is negative,
it is recommended not to park your vehicle
outside for several hours at a low charging
(less than 20%).
Vehicle in storage for more than
1 month
In the event of a long period of non-use of
the vehicle (beyond 4
weeks) without the
possibility of charging when restarting, the
self-discharge may make it impossible to
restart if the traction battery charge level
is a low or very low, especially at negative
ambient temperatures. ALWAYS make sure
that the traction battery has a charge between
20% and 40% if you do not plan to use your
vehicle for several weeks.
Do not connect the charging cable.
Always park the vehicle in a place with
temperatures between -10°C and 30°C
(parking in a place with extreme temperatures
can damage the traction battery).
Refer to the Accessory battery
(Rechargeable hybrid) section for the
battery disconnection procedure.
Precautions
Rechargeable hybrid vehicles have
been developed in accordance with the
recommendations for maximum electromagnetic
field limits established by the ICNIRP
(International Commission on Non-Ionizing
Radiation Protection - 1998 Guidelines). CarM an uals 2 .c o m

205
Vehicle data recording and privacy
11Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request. CarM an uals 2 .c o m

208
Alphabetical index
A
ABS 75
Accelerated charging unit (Wallbox)
146–147
Accessories

72
Active LED Vision

63, 65
Active Safety Brake

126–127, 129
Adjusting headlamps

62
Adjusting head restraints

41
Adjusting seat

41–42
Adjusting the air distribution

49, 51
Adjusting the air flow

49, 51
Adjusting the headlamp beam height

62
Adjusting the height and reach of
the steering wheel

45
Adjusting the lumbar support

42
Adjusting the seat angle

42
Adjusting the temperature

50
Adjusting the time

203
Advice on care and maintenance

145, 165
Advice on driving

8, 91–92
Airbags

80–82, 84
Airbags, curtain

81–82
Airbags, front

80–81, 85
Airbags, lateral

81–82
Air conditioning

49, 52
Air conditioning, automatic

52
Air conditioning, dual-zone automatic

49
Air intake

51–52
Air vents

48
Alarm

35–36
Amplifier, audio

57
Anti-lock braking system (ABS)

75
Antitheft / Immobiliser 25
Applications
21–22
Armrest, front

56
Armrest, rear

58
Assistance call

73–74
Assistance, emergency braking

76, 128
Audio streaming (Bluetooth)

200
B
Battery, 12 V 159, 163, 177–181
Battery, ancillaries
177
Battery, charging

177–178, 181
Battery, remote control

29–30
Blanking screen (snow shield)

158
Blind

38
Bluetooth (hands-free)

197
Bluetooth (telephone)

197–198
Bodywork

165
Bonnet

160
Bonnet, active

82
Boot

31, 34, 60
Brake discs

163–164
Brake lamps

176
Brakes

163–164
Braking

98
Braking assistance system

75–76
Braking, automatic emergency

126–127, 129
Braking, dynamic emergency

95–96
Bulbs (changing)

175–176
C
Capacity, fuel tank 143
Care of the bodywork
165
Central locking

27–28
Changing a bulb

175–176
Changing a fuse

177
Changing a wheel

168, 172
Changing a wiper blade

71
Changing the remote control battery

29
Changing to free-wheeling

164
Charge level indicator (Rechargeable
hybrid)

19
Charger, induction

55
Charger, wireless

55
Charging cable

148
Charging cable (Rechargeable
hybrid)

146–147, 152
Charging connector (Rechargeable
hybrid)

146, 151–153
Charging flap (Rechargeable
hybrid)

146, 151–153
Charging the traction battery
(Rechargeable hybrid)

18, 144, 151–153
CHECK

19
Checking the engine oil level

17
Checking the levels

161–162
Checking tyre pressures
(using the kit)

169, 171
Checks

161, 163–164
Checks, routine

163–164
Child lock

90
Children

79, 85–87 CarM an uals 2 .c o m

212
Alphabetical index
R
Radar (warnings) 105
Radio
199–200
Reading lamps

57
Reading lamps, touch-sensitive

58
READY (warning lamp)

160
Rear bench seat

47
Rear cross traffic alert

140
Rear screen (demisting)

52
Rechargeable
hybrid engine

9, 21, 160, 183, 187
Rechargeable
hybrid system

6, 9, 21, 93, 100, 144
Recharging the battery

177–178, 181
Recharging the traction battery

148
Recharging the traction battery
(Rechargeable hybrid)

144, 151–153
Recirculation, air

51–52
Recorder, trip distance

19
Reduction of electrical load (mode)

160
Regenerative braking (deceleration by
engine braking)

98
Reinitialising the remote control

30
Reinitialising the under-inflation detection
system

104
Reminder, lighting on

61
Remote control

24–27, 29
Remote functions

153
Remotely operable functions (Rechargeable
hybrid)

22, 53
Removing a wheel

172–174
Removing the mat

57
Replacing bulbs 175–176
Replacing fuses
177
Replacing the air filter

163
Replacing the oil filter

163
Replacing the passenger compartment
filter

163
Reservoir, screenwash

162
Resetting the trip

19–20
Reversing camera

105, 136–138
Reversing lamps

176
Roof bars

157–158
Roof, opening

38
S
Safety, children 80, 83–87
Screen, cold climate
158
Screenwash

69
Screenwash, front

69
Seat angle

42
Seat belts

78–79, 85
Seat belts, rear

78
Seats, electric

42–43
Seats, front

41–43
Seats, heated

43–44
Seats, rear

47–48, 83
Selector, gear

96–99
Semi-automatic lane changing

122
Sensors (warnings)

105
Serial number, vehicle

188
Servicing

17, 163–164
Settings, equipment

10, 21
Shield, snow 158
Sidelamps
62, 176
Silent vehicle warning sound (Rechargeable
hybrid)

73
Smartphone

22–23, 55
Snow chains

103, 159
Snow screen

158
Socket, 12 V

54
Socket, 12 V accessory

54, 60
Speakers

57
Speed limiter

109–112
Speed limit recognition

107, 109
Speedometer

10, 106
Sport mode

99–100
Spotlamps, side

64
Stability control (ESC)

75, 77
Starting/Stopping the vehicle

92
Starting the engine

92–93
Starting the vehicle

93, 98
Starting using another battery

94, 178
State of charge, battery

21
Station, radio

199–200
Stay, engine bonnet

160
Steering wheel

106
Steering wheel (adjustment)

45
Stickers, customising

166
Stopping the vehicle

93, 98–99
Stop & Start

20, 49, 52, 101–103,
143, 160, 163, 180
Storage

54, 56, 58
Storage box

60
Storage wells

60
Storing driving positions

43 CarM an uals 2 .c o m

213
Alphabetical index
Stowing rings 59
Sunshine sensor
49
Sun visor

54
Suspension

164
Switching off the engine

92
Synchronising the remote control

30
T
Tables of engines 186–187
Tailgate
31
Tank, fuel

143
Technical data

186–187
Telephone

197–198, 201–202
Temperature, coolant

18
Time (setting)

203
Tool box

60
Tools

168–169
Top Tether (fixing)

85, 88–89
Total distance recorder

19
Touch screen

20–22, 53
Towball, quickly detachable

154–157
Towbar

77, 153
Towbar with quickly detachable
towball

154–157
Towed loads

185–187
Towing

182–183
Towing another vehicle

182, 184
Towing the vehicle

182–183
Traction battery charge

148
Traction battery (Rechargeable
hybrid)

19, 144–145, 151
Traction control (ASR) 76
Trailer
77, 153
Trailer stability assist (TSA)

77
Trajectory control systems

75
Triangle, warning

168
Trip computer

19–20
Tyres

164, 188
Tyre under-inflation detection

103, 170
U
Under-inflation (detection) 103
Unlocking
24, 26
Unlocking from the inside

28
Unlocking the boot

24, 27
Unlocking the doors

28
Unlocking the tailgate

24, 27
Updating the time

203
V
Vehicle data recording and privacy 205
Ventilation
48–49
Visibility

52
Visiopark

138
Visiopark 1

136
W
Wallbox (Rechargeable hybrid) 146–147, 152
Warning and indicator lamps 11
Warning lamp, driver's seat belt
not fastened

78
Warning lamp, READY



160
Warning lamps

11
Warning lamp, seat belts

78
Warnings and indicators

11
Washing

105
Washing (advice)

145, 165–166
Weights

185
Welcome lighting

64
Wheel, spare

164, 168–169, 172
Window controls

37
Windscreen, heated

53
Wiper blades (changing)

71
Wipers

68
Wipers, automatic rain sensitive

70
Wipers, windscreen

69–70 CarM an uals 2 .c o m
