PEUGEOT Connect Nav
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I am unable to connect my Bluetooth
telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telephone’
s
Bluetooth function.
The Bluetooth telephone is not compatible with
the system. ►

Y
ou can check the compatibility of the
telephone on the Brand's website (services).
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►
Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the list of supported countries via
these
websites: Google Android Auto or Apple.
The volume of the telephone connected via
Bluetooth is too low.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
► Reduce ambient noise (e.g. close the
windows, reduce ventilation, slow down).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order

.Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system is not receiving SMS text
messages.
Bluetooth mode does not allow SMS text
messages to be sent to the system.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source. CarM an uals 2 .c o m

261
PEUGEOT Connect Nav
11► Check that the sound settings are appropriate
to the sources listened to. W e recommend
setting the sound functions (Bass, Treble,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►

In all cases, after applying sound settings,
adjust the volume level on the portable device (to
a high level) first.

Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Date and time settings are only available if
satellite synchronisation is deactivated.
►

Settings
menu/Options/Date-Time Setting.
Select the "Time" tab and deactivate "GPS
synchronisation" (UTC). CarM an uals 2 .c o m

263
Vehicle data recording and privacy
12Comfort and infotainment
functions
Comfort settings and personalised settings
may be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.
–


Chassis and air conditioning settings.
–


Personalised settings such as the interior
lighting.
Y

ou can enter your own data into the functions
of your vehicle's audio and telematic system, as
part of the selected functionalities.
Depending on the vehicle's equipment level,
this
may
include:
–

Multimedia data such as music, videos or
photos to be read by an integrated multimedia
system.
–


Address book data to be used with an
integrated hands-free system or with an
integrated navigation system.
–


Entered destinations.
–


Data regarding the use of online services.
This data for the comfort and infotainment
functions may be stored locally in the vehicle
or saved to a device that you have connected
to the vehicle (e.g.

smartphone, USB memory
stick or MP3 player). Data that you have entered
yourself may be deleted at any time.
This data may also be transmitted outside the
vehicle at your request, particularly when using online services in line with the settings that you
have selected. Smartphone integration
(e.g.

Android
Auto
® or
Apple
®CarPlay®)
If your vehicle is equipped accordingly, you can
connect your smartphone or another mobile
device to the vehicle in order to operate it using
the vehicle's integrated controls. Images and
sounds from the smartphone can be transmitted
through the audio and telematics system.
Specific information is simultaneously sent
to your smartphone. Depending on the type
of
integration, this includes data such as location,
day/night mode and other general information
about the vehicle. For more information, please
refer to the user instructions for the vehicle or the
audio and telematics system.
Integrating a smartphone allows you to use
its applications, such as a navigation app or
music player. No other
integration between
the smartphone and the vehicle is possible, in
particular active access to vehicle data. How the
data is processed subsequently is determined
by the supplier of the application being used.
The ability the change settings depends on the
application in question and on the operating
system installed on your smartphone.
Online services
If your vehicle is connected to a wireless
network, data can be exchanged between
your vehicle and other systems. Connection
to a wireless network is made possible
via a
transmitter located in your vehicle or a mobile
device that you have provided (e.g.

smartphone).
The online services can be used via this wireless
connection.

These include online services and
applications (apps) provided to you by the
Manufacturer or other suppliers.
Exclusive services
As regards the Manufacturer's online services,
the corresponding functions are described by
the Manufacturer in an appropriate medium
(e.g.
handbook, Manufacturer's website) and the
information about data protection is provided.
Personal data may be used for online services.
The exchange of data for this purpose takes
place over a secure connection, using for
example the Manufacturer's dedicated computer
systems. The collection, processing and use of
personal data for the development of services
are carried out solely on the basis of a legal
authorisation, for example in the case of a
legal emergency call system or a contractual
agreement or else under a consent agreement.
You can activate or deactivate the services and
functions (some may be chargeable) and, in
some cases, the vehicle's entire connection to
the wireless network. This does not include the CarM an uals 2 .c o m

266
Alphabetical index
Charging flap (Rechargeable
hybrid)
168, 175–177
Charging the traction battery
(Rechargeable hybrid)

19, 167, 175–177
CHECK

20
Checking the engine oil level

17
Checking the levels

185–186
Checking tyre pressures
(using the kit)

198, 200
Checks

185–186, 187–189
Checks, routine

187–188
Child lock

109
Children

94, 101–102, 105–106, 108
Children (safety)

109
Child seats

94, 97–101, 107, 108
Child seats, conventional

100–101
Child seats, i-Size

108
Child seats, ISOFIX

102, 104–105
Cleaning (advice)

168, 192–194
Closing the boot

29, 33
Closing the doors

29, 32
Collision Risk Alert

150–151
Configurations, seats

55
Configuration, vehicle

23–24
Connected applications

249
Connection, Android Auto

249
Connection, Apple CarPlay

231, 248
Connection, Bluetooth

232–233,
249–250, 254–255
Connection, MirrorLink

231
Connection, Wi-Fi network

250
Connectivity

248
Consumptions

24Container, AdBlue® 190
Control, emergency boot release
33
Control, emergency door

30–31
Control, heated seats

46
Controls, steering mounted

118, 121–123
Control stalk, lighting

74–75
Control stalk, wipers

80–82
Control unit

169–171, 176
Courtesy lamps

66
Cruise control

131, 134, 137–139
Cruise control, adaptive

139
Cruise control, adaptive with Stop function

134
Cruise control by speed limit recognition

134
Cup holder

62
D
DAB (Digital Audio Broadcasting) -
Digital radio
229, 252
Date (setting)

235, 257
Daytime running lamps

75, 207
Deactivating the passenger airbag

96, 99–100
Deadlocking

27, 29
Deferred charging

24, 176
Deferred charging (Rechargeable
hybrid)

23–24, 168, 175
Defrosting

48, 60
Defrosting, front

60
Defrosting, rear screen

61
Demisting

48, 60
Demisting, front

60
Demisting, rear

61
Dials and gauges 9
Digital instrument panel
9–10
Dimensions

222
Dipstick

17, 185
Direction indicators (turn signals)

75, 207
Domestic charging

171
Domestic charging (Rechargeable
hybrid)

176–177
Door pockets

62
Doors

32
Drive Assist Plus

139
Driver’s attention warning

153
Driving

42–43, 111–112
Driving aids camera (warnings)

130
Driving aids (recommendations)

130
Driving economically

7
Driving modes

89–90, 125
Driving positions (storing)

45–46
Dynamic stability control (DSC)

88, 90
E
EBFD 87
Eco-driving (advice)
7
ECO mode

125
Electric windows

38
Electronic brake force distribution (EBFD)

87
Emergency braking assistance (EBA)

87
Emergency call

85–86
Emergency switching off

11 4
Emergency warning lamps

84, 195
Emissions control system, SCR

19, 189 CarM an uals 2 .c o m

267
Alphabetical index
Energy economy (mode) 183
Energy economy mode
183
Energy flows

23
Energy recovery

19, 123
Engine

189
Engine compartment

183–185
Engine, Diesel

165, 185, 195, 220
Engine, petrol

126, 185, 218
Engines

217–218, 220
Environment

7, 31
e-Save function (energy reserve)

24
ESC (electronic stability control)

87
Expanded traffic sign recognition

135
Exterior lighting

77
F
Fatigue detection 153
Filling the AdBlue® tank
187, 190
Filling the fuel tank

165–166
Filter, air

187
Filter, oil

187
Filter, particle

186–187
Filter, passenger compartment

56, 187
Fitting a wheel

203, 205
Fitting roof bars

180–181
Fittings, boot

68
Fittings, front

62
Fittings, interior

62
Fittings, rear

66
Flap, charging

176
Flap, fuel filler

165–166
Flap, ski 67
Flashing indicators
75
Flat bed (towing)

214
Floor, boot, adjustable

72
Floor, concertina

53
Fluid, brake

186
Fluid, engine coolant

186
Foglamps, rear

74, 207
Folding the rear seats

49–52
Four-wheel drive (4WD)

126, 182
Frequency (radio)

251
Fuel

7, 165
Fuel consumption

7, 19
Fuel level, low

165
Fuel (tank)

165–166
Fuses

208
G
Gauge, fuel 165
Gearbox, automatic
117–118, 120–124, 188, 208
Gearbox, manual

117, 124, 188
Gear lever, manual gearbox

11 7
Gear shift indicator

126
Glove box

62
G.P.S.

245
Grab handles

62
H
Hands-free access 34–35
Hands-free tailgate
34–36
Hazard warning lamps

84, 195
Headlamps (adjustment)

76
Headlamps, automatic dipping

77–78
Headlamps, automatic operation

76
Headlamps, dipped beam

207
Headlamps, halogen

76
Headlamps, main beam

77, 207
Head restraints, front

44–45
Head restraints, rear

48–50
Heating

56
Heating, programmable

24, 61
Hi-Fi system

63
High voltage

167
Hill Assist Descent Control (HADC)

90
Hill start assist

124
Histogramme, fuel consumption

24
Horn

85
Hybrid

221
I
i-Cockpit® amplify function 46
Ignition
114, 255
Ignition on

11 4
Immobiliser, electronic

11 2
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

17, 20 CarM an uals 2 .c o m

268
Alphabetical index
Indicators, direction 75
Indicator, service
16, 20
Inflating tyres

188, 223
Inflating tyres and accessories
(using the kit)

198, 200
Information, vehicle

9, 262
Infrared camera

79, 130
Instrument panel

9–10, 20–22, 131
Instrument panel (Rechargeable hybrid)

9
Intelligent Traction Control

88
Internet browser

246, 249
ISOFIX mountings

102
J
Jack 198, 201–203, 252
Jump starting
209
K
Key 26–27, 30–31
Key, electronic
28–29
Keyless Entry and Starting

26, 28–29, 113
Key not recognised

11 4
Key with remote control

26, 112
Kit, hands-free

232, 254
Kit, puncture repair

196–197
Kit, temporary puncture repair

195–200
Klaxon

85
L
Labels 6
Labels, identification
223
Lamps, parking

75
Lamps, rear

207
Lamps with Full LED technology

76, 78
Lane assist

139, 143–145
Lane keeping assist

147
Leather (care)

194
LEDs - Light-emitting diodes

75, 206–207
Level, AdBlue®

187
Level, brake fluid

186
Level, Diesel additive

186–187
Level, engine coolant

18, 186
Level, engine oil

17, 185
Levels and checks

185–187
Level, screenwash fluid

81, 186
Light-emitting diodes - LEDs

75, 206–207
Lighting, boot

73
Lighting, cornering

78–79
Lighting dimmer

21
Lighting, exterior

74, 77
Lighting, guide-me home

27, 77
Lighting, interior

66
Lighting, mood

21, 66
Lighting, welcome

77
Loading

70–71, 180–181
Load reduction mode

183
Load space cover

69
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors 30
Long objects, transporting
67
M
Mains socket (domestic network) 169–170
Maintenance (advice)
168, 192
Maintenance, routine

131, 187, 189
Manoeuvring aids (recommendations)

130
Map reading lamps

66
Markings, identification

223
Massage function

46
Massage, multi-point

46
Mat

65, 131
Memorising a speed

131
Menu

231
Menu, main

23
Menus (audio)

226–227, 238–239
Menu, shortcuts

23
Messages

256
Messages, quick

256
Mirror, rear view

48
Mirrors, door

47–48, 61, 154
Mirror, vanity

62
Misfuel prevention

166
Mobile application

24, 61, 175–176
Modularity, seats

55
Motor, electric

125–126, 167, 221
Motorised tailgate

33–34, 36
Mountings, ISOFIX

102 CarM an uals 2 .c o m

269
Alphabetical index
N
Navigation 243–245
Navigation, connected
246–248
Net

69–70
Net, high load retaining

70–71
Night vision

79
Night Vision

79
O
Obstacle detection 155
Oil change
185
Oil consumption

185
Oil, engine

185
On-board tools

72, 195–198
Opening the bonnet

183–184
Opening the boot

28, 32
Opening the doors

28, 32
P
Pads, brake 188
Paint
193, 223
Paint colour code

223
Paint, matt

193
Paint, textured

193
Parcel shelf, rear

67, 69
Park Assist

161–162
Parking brake, electric

115–117, 188
Parking (sensors)

155
Parking sensors, audible and visual 155
Parking sensors, front
156
Parking sensors, rear

156
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

24, 61
Pedestrian horn (Rechargeable hybrid)

85
Personalisation

10
Plates, identification

223
Player, Apple®

230, 253
Player, USB

229, 252
Port, USB

63, 67, 229, 231, 248, 252
Power

19
Power indicator (Rechargeable hybrid)

8, 19
Pressures, tyres

188, 199, 223
Pre-tensioning (seat belts)

94
Priming the fuel system

195
Profiles

234, 257
Protecting children

96–102, 105–106, 108
Puncture

198–199, 201
R
Radar (warnings) 130
Radio
227–228, 251
Radio, digital (Digital Audio Broadcasting -
DAB)

229, 252
Range, AdBlue®

18, 187
RDS

228, 251
Reading lamps

66
READY (warning lamp)

183
Rear air blower

59
Rear bench seat

48–49
Rear screen (demisting) 61
Rechargeable hybrid engine
8, 23, 182–183, 214, 221
Rechargeable hybrid system

5, 8, 23, 113, 126, 167
Recharging the battery

208–209, 212
Recharging the traction battery

171
Recharging the traction battery
(Rechargeable hybrid)

167, 175–177
Recirculation, air

58, 60
Recorder, total distance

20
Recorder, trip distance

21
Reduction of electrical load (mode)

183
Regeneration of the particle filter

187
Regenerative braking (deceleration
by engine braking)

123
Reinitialising the remote control

32
Reinitialising the under-inflation detection
system

129
Reminder, lighting on

74
Remote control

26–30
Remote functions

176
Remotely operable functions (Rechargeable
hybrid)

24, 61
Removing a wheel

203–205
Removing the mat

65
Replacing bulbs

206–207
Replacing fuses

208
Replacing the air filter

187
Replacing the oil filter

187
Replacing the passenger compartment
filter

187
Reservoir, screenwash

186 CarM an uals 2 .c o m

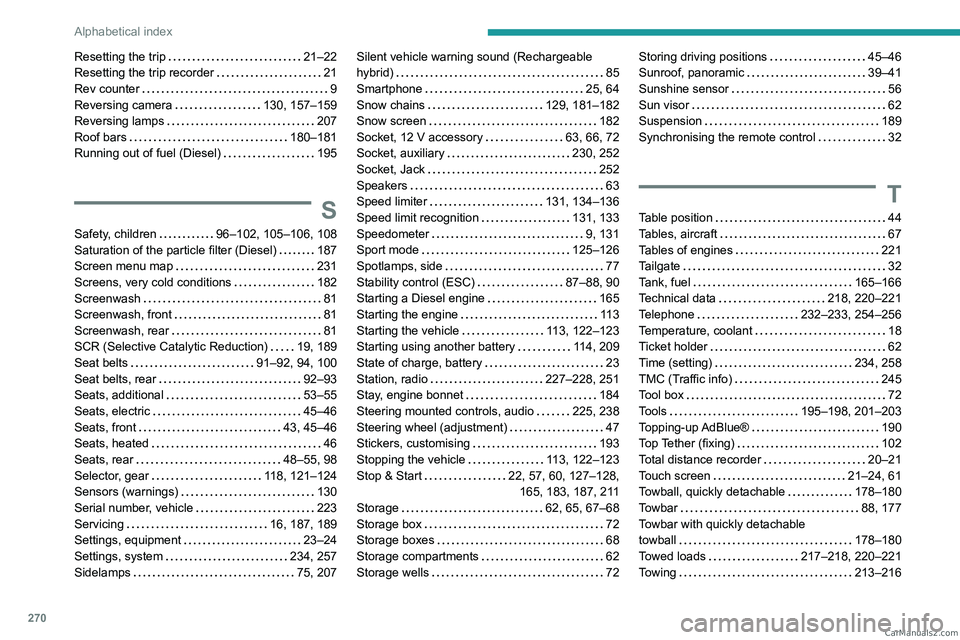

270
Alphabetical index
Resetting the trip 21–22
Resetting the trip recorder
21
Rev counter

9
Reversing camera

130, 157–159
Reversing lamps

207
Roof bars

180–181
Running out of fuel (Diesel)

195
S
Safety, children 96–102, 105–106, 108
Saturation of the particle filter (Diesel)
187
Screen menu map

231
Screens, very cold conditions

182
Screenwash

81
Screenwash, front

81
Screenwash, rear

81
SCR (Selective Catalytic Reduction)

19, 189
Seat belts

91–92, 94, 100
Seat belts, rear

92–93
Seats, additional

53–55
Seats, electric

45–46
Seats, front

43, 45–46
Seats, heated

46
Seats, rear

48–55, 98
Selector, gear

118, 121–124
Sensors (warnings)

130
Serial number, vehicle

223
Servicing

16, 187, 189
Settings, equipment

23–24
Settings, system

234, 257
Sidelamps

75, 207
Silent vehicle warning sound (Rechargeable
hybrid)
85
Smartphone

25, 64
Snow chains

129, 181–182
Snow screen

182
Socket, 12 V accessory

63, 66, 72
Socket, auxiliary

230, 252
Socket, Jack

252
Speakers

63
Speed limiter

131, 134–136
Speed limit recognition

131, 133
Speedometer

9, 131
Sport mode

125–126
Spotlamps, side

77
Stability control (ESC)

87–88, 90
Starting a Diesel engine

165
Starting the engine

11 3
Starting the vehicle

113, 122–123
Starting using another battery

114, 209
State of charge, battery

23
Station, radio

227–228, 251
Stay, engine bonnet

184
Steering mounted controls, audio

225, 238
Steering wheel (adjustment)

47
Stickers, customising

193
Stopping the vehicle

113, 122–123
Stop & Start

22, 57, 60, 127–128, 165, 183, 187, 211
Storage

62, 65, 67–68
Storage box

72
Storage boxes

68
Storage compartments

62
Storage wells

72Storing driving positions 45–46
Sunroof, panoramic
39–41
Sunshine sensor

56
Sun visor

62
Suspension

189
Synchronising the remote control

32
T
Table position 44
Tables, aircraft
67
Tables of engines

221
Tailgate

32
Tank, fuel

165–166
Technical data

218, 220–221
Telephone

232–233, 254–256
Temperature, coolant

18
Ticket holder

62
Time (setting)

234, 258
TMC (Traffic info)

245
Tool box

72
Tools

195–198, 201–203
Topping-up AdBlue®

190
Top Tether (fixing)

102
Total distance recorder

20–21
Touch screen

21–24, 61
Towball, quickly detachable

178–180
Towbar

88, 177
Towbar with quickly detachable
towball

178–180
Towed loads

217–218, 220–221
Towing

213–216 CarM an uals 2 .c o m
