Vehicle InformationLabels
▼Ve h i c l e
Identification Number
The vehicle identification number
legally
identifies your vehicle. The
number is on a plate attached to the
cowl panel located on the left corner
of the dashboard. This plate can easily
be seen through the windshield.
▼ Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼
Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification
Numbers
9-2
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

▼Engine Number
1. Forward
Specifications
Identification
Numbers
9-3
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100.0 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0 10.5
▼
Electrical System
Classification
Specification
Battery
*112V-60Ah/20HR
Spark-plug
number SKYACTIV-G 2.0
Mazda Genuine
spark plug
*2PE5R-18-110-A or
PE5S-18-110
SKYACTIV-G 2.5 With Cylinder De-
activation
Mazda Genuine
spark plug
*2P5SP-18-110
Without Cylinder
Deactivation Mazda Genuine
spark plug
*2PE5R-18-110-A or
PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine
spark plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate
coating on the iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-16.
Coolant FL-22 type
Specifications
Specifications
9-4
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

LubricantClassification
Automatic transmission
fluid
*1
With Cylinder Deactiva-
tion Mazda Genuine ATF A7
Without Cylinder Deac-
tivation Mazda Genuine ATF FZ
Tra n s f e r c a s e o i l
*2Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil
*2Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
*1 Periodic replacement is unnecessary.*2 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
▼ Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYAC-
TIV-G 2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYAC-
TIV-G 2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYAC-
TIV-G 2.5T With oil filter replacement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant SKYACTIV-G 2.0
6.2 L (6.6 US qt, 5.5 Imp qt)
SKYACTIV-G 2.5 6.3 L (6.7 US qt, 5.5 Imp qt)
SKYAC-
TIV-G 2.5T For engine
8.2 L (8.7 US qt, 7.2 Imp qt)
For water-cooled charge air cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Automatic
transmission
fluid SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
51.0 L (13.5 US gal, 11.2 Imp
gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp
gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
Specifications
9-5
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

▼Dimensions
Item
Vehicle specification
Overall length 4,395 mm (173.0 in)
Overall width U.S.A. and Canada
1,795 mm (70.7 in)
Mexico 1,797 mm (70.8 in)
Overall height
*1U.S.A. and Canada Type A 1,579 mm (62.2 in)
Type B 1,567 mm (61.7 in)
Mexico 1,562 mm (61.5 in)
Front tread 1,563 mm (61.5 in)
Rear tread 1,563 mm (61.5 in)
Wheelbase 2,653 mm (104.4 in)
*1 The overall height is categorized according to the antenna type as follows:
Ty p e A
1. Antenna
Ty p e B
Except above.
▼ Weights
U.S.A. and Canada
SKYACTIV-G 2.0
Item
Weight
GVWR (Gross Vehicle Weight Rating) 1,972 kg (4,347 lbs)
GAWR (Gross Axle Weight Rating) Front
1,030 kg (2,271 lbs)
Rear 945 kg (2,083 lbs)
SKYACTIV-G 2.5
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,987 kg (4,381 lbs)
GAWR (Gross Axle Weight Rating) Front
1,068 kg (2,355 lbs)
Rear 940 kg (2,072 lbs)
Specifications
Specifications
9-6
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

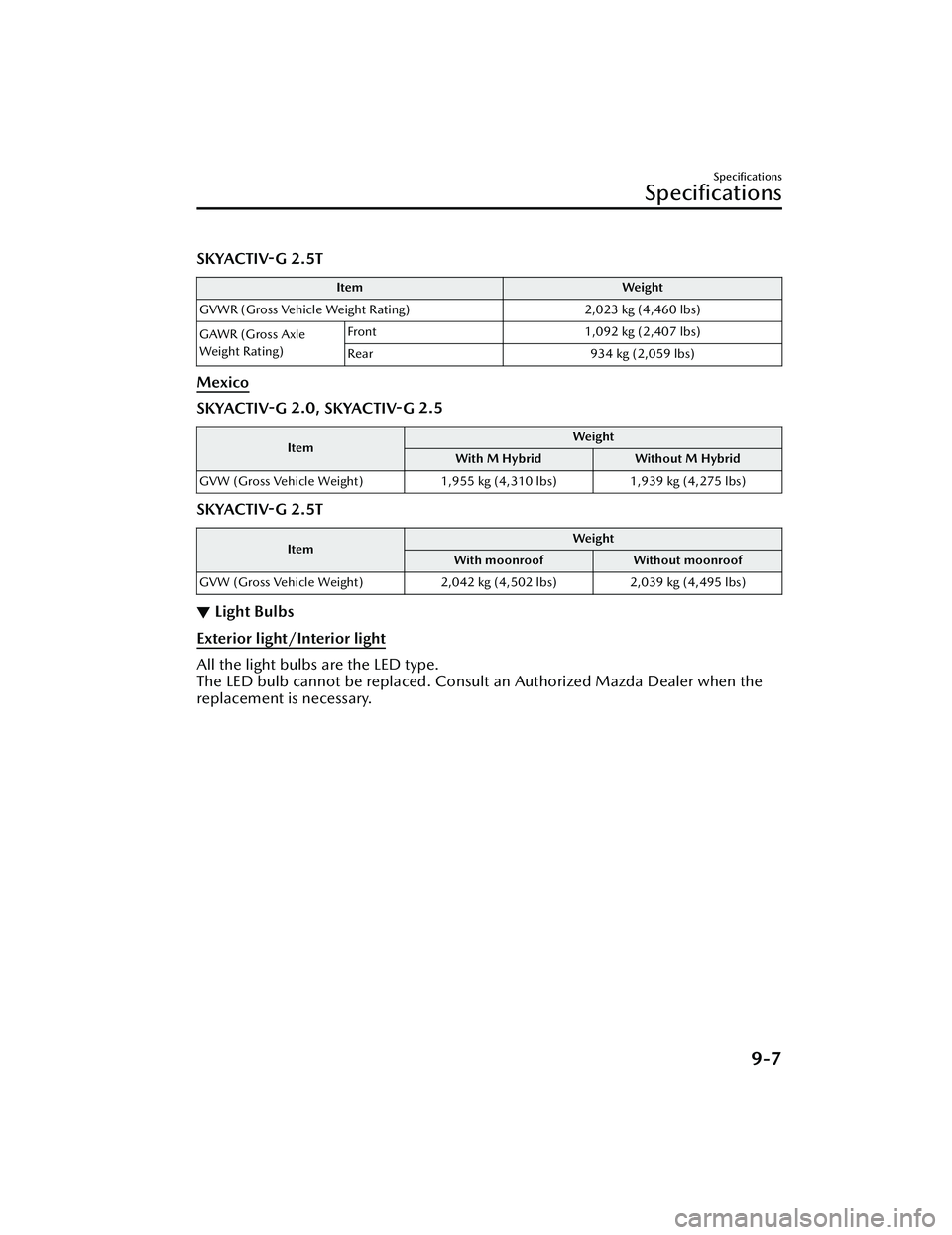

SKYACTIV-G 2.5T
ItemWeight
GVWR (Gross Vehicle Weight Rating) 2,023 kg (4,460 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front
1,092 kg (2,407 lbs)
Rear 934 kg (2,059 lbs)
Mexico
SKYACTIV-G 2.0,
SKYACTIV-G 2.5
Item Weight
With M Hybrid Without M Hybrid
GVW (Gross Vehicle Weight) 1,955 kg (4,310 lbs) 1,939 kg (4,275 lbs)
SKYACTIV-G 2.5T
Item Weight
With moonroof Without moonroof
GVW (Gross Vehicle Weight) 2,042 kg (4,502 lbs) 2,039 kg (4,495 lbs)
▼ Light Bulbs
Exterior light/Interior light
All the light bulbs are the LED type.
The LED bulb cannot be replaced. Consult an Authorized Mazda Dealer when the
replacement is necessary.
Specifications
Specifications
9-7
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-2.Refer to Tire Inflation Pressure on page 6-31.
Standard tire
(U.S.A. and Canada)
Tire size Inflation pressure
Front Rear
215/65R16 98H 250 kPa (36 psi) 250 kPa (36 psi)
215/55R18 95H SKYACTIV-G 2.0, SKYAC-
TIV-G 2.5
250 kPa (36 psi) 250 kPa (36 psi)
SKYACTIV-G 2.5T 260 kPa (38 psi) 250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
215/65R16 98H 250 kPa (2.5 bar, 36
psi) 250 kPa (2.5 bar, 36
psi)
215/55R18 95H SKYACTIV-G 2.0, SKYAC-
TIV-G 2.5
250 kPa (2.5 bar, 36
psi) 250 kPa (2.5 bar, 36
psi)
SKYACTIV-G 2.5T 260 kPa (2.6 bar, 38
psi) 250 kPa (2.5 bar, 36
psi)
Specifications
Specifications
9-8
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Temporary spare tire
(U.S.A. and Canada)
Tire sizeInflation pressure
T135/80D17 103M 420 kPa (60 psi)
(Mexico)
Tire sizeInflation pressure
185/65R16 93M
* １320 kPa (3.2 bar, 46 psi)
195/55R17 92M
*2320 kPa (3.2 bar, 46 psi)
*1SKYACTIV-G 2.0*2 SKYACTIV-G 2.5, SKYACTIV-G 2.5T
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80 ―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-35.
