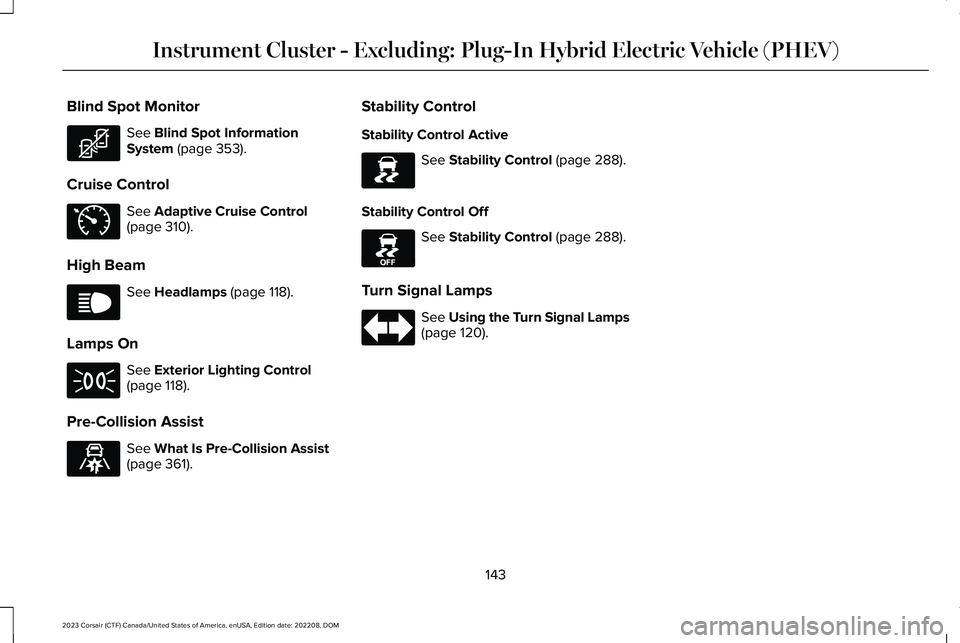

2023 LINCOLN CORSAIR high beam

Blind Spot Monitor
See Blind Spot InformationSystem (page 353).
Cruise Control
See Adaptive Cruise Control(page 310).
High Beam
See Headlamps (page 118).
Lamps On
See Exterior Lighting Control(page 118).
Pre-Collision Assist
See What Is Pre-Collision Assist(page 361).
Stability Control
Stability Control Active
See Stability Control (page 288).
Stability Control Off
See Stability Control (page 288).
Turn Signal Lamps
See Using the Turn Signal Lamps(page 120).
143
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument Cluster - Excluding: Plug-In Hybrid Electric Vehicle (PHEV)E323542 E71340 E67019 E71341 E329466 E138639 E130458 E67018

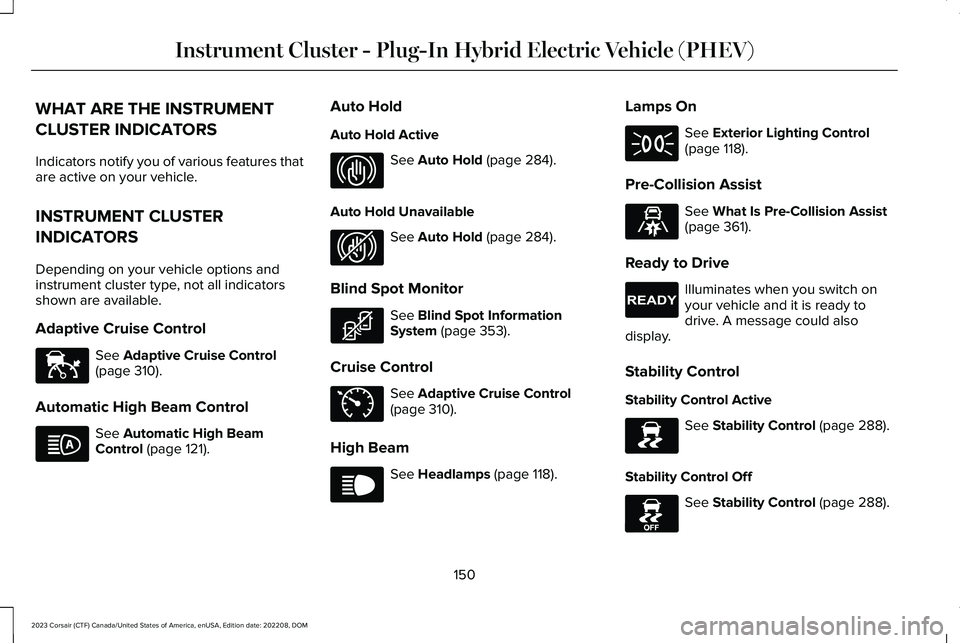

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features thatare active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Depending on your vehicle options andinstrument cluster type, not all indicatorsshown are available.
Adaptive Cruise Control
See Adaptive Cruise Control(page 310).
Automatic High Beam Control
See Automatic High BeamControl (page 121).
Auto Hold
Auto Hold Active
See Auto Hold (page 284).
Auto Hold Unavailable
See Auto Hold (page 284).
Blind Spot Monitor
See Blind Spot InformationSystem (page 353).
Cruise Control
See Adaptive Cruise Control(page 310).
High Beam
See Headlamps (page 118).
Lamps On
See Exterior Lighting Control(page 118).
Pre-Collision Assist
See What Is Pre-Collision Assist(page 361).
Ready to Drive
Illuminates when you switch onyour vehicle and it is ready todrive. A message could alsodisplay.
Stability Control
Stability Control Active
See Stability Control (page 288).
Stability Control Off
See Stability Control (page 288).
150
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMInstrument Cluster - Plug-In Hybrid Electric Vehicle (PHEV)E144524 E146105 E323448 E323449 E323542 E71340 E67019 E71341 E329466 E224090 E138639 E130458

Replacing the Battery
Note:Before reconnecting the battery, makesure the ignition remains switched off.
You must replace the battery with one ofexactly the same specification.
To install, reverse the removal procedure.
Note:Make sure that you correctly installthe battery terminal covers, battery coverand battery cable terminals.
RESETTING THE BATTERY SENSOR
When you install a new battery, reset thebattery sensor by doing the following:
1.Switch the ignition on, and leave theengine off.
Note:Complete Steps 2 and 3 within 10seconds.
2.Flash the high beam headlamps fivetimes, ending with the high beams off.
3.Press and release the brake pedal threetimes.
The battery warning lamp flashes three timesto confirm that the reset is successful.
RECYCLING AND DISPOSING OF THE
12V BATTERY
Make sure that you dispose of oldbatteries in an environmentallyfriendly way. Seek advice fromyour local authority about recycling oldbatteries.
CHARGING THE 12V BATTERY - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Your vehicle has a high voltage to lowvoltage energy transfer feature that keepsthe 12 volt battery charged by the highvoltage battery. If the 12 volt battery level islow, the high voltage battery transfers energyto the 12 volt battery when the vehicle is off.
12V BATTERY – TROUBLESHOOTING
12V BATTERY – WARNING LAMPS
If it illuminates while driving, itindicates a charging system error.Switch off all unnecessaryelectrical equipment and have your vehicleimmediately checked.
12V BATTERY – WARNING LAMPS -PLUG-IN HYBRID ELECTRIC VEHICLE(PHEV)
If it illuminates when the greenready to drive indicator isactivated, this indicates yourvehicle requires service. Have your vehiclechecked as soon as possible.
446
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenanceE107998 E67021 E67021

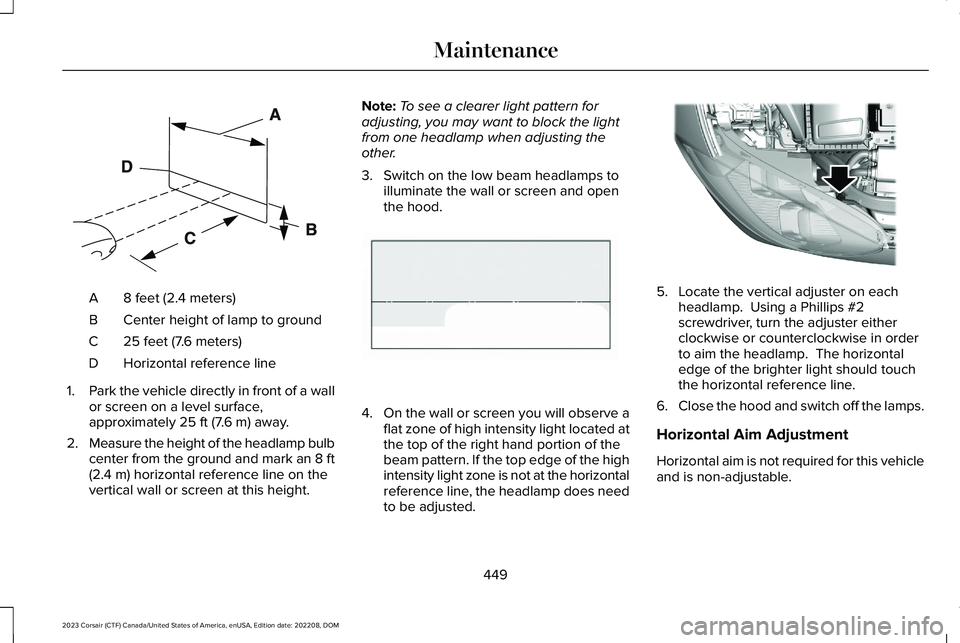

8 feet (2.4 meters)A
Center height of lamp to groundB
25 feet (7.6 meters)C
Horizontal reference lineD
1.Park the vehicle directly in front of a wallor screen on a level surface,approximately 25 ft (7.6 m) away.
2.Measure the height of the headlamp bulbcenter from the ground and mark an 8 ft(2.4 m) horizontal reference line on thevertical wall or screen at this height.
Note:To see a clearer light pattern foradjusting, you may want to block the lightfrom one headlamp when adjusting theother.
3.Switch on the low beam headlamps toilluminate the wall or screen and openthe hood.
4.On the wall or screen you will observe aflat zone of high intensity light located atthe top of the right hand portion of thebeam pattern. If the top edge of the highintensity light zone is not at the horizontalreference line, the headlamp does needto be adjusted.
5.Locate the vertical adjuster on eachheadlamp. Using a Phillips #2screwdriver, turn the adjuster eitherclockwise or counterclockwise in orderto aim the headlamp. The horizontaledge of the brighter light should touchthe horizontal reference line.
6.Close the hood and switch off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this vehicleand is non-adjustable.
449
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenanceE142592 E142465 E307889

What Are the Interior Sensors.........................108What Is the Anti-Theft Alarm System.............107What Is the Battery Backup Alarm..................108What Is the Perimeter Alarm............................108
Anti-Theft Alarm System Settings.............108Setting the Alarm Security Level.....................109Switching Ask on Exit On and Off...................109What are the Alarm Security Levels...............108What Is Ask on Exit.............................................109
Appendices...................................................655Applying the Electric Parking Brake........272Applying the Electric Parking Brake in anEmergency..................................................272App Precautions...........................................545App Requirements.......................................545Apps.................................................................545Audio System.................................................521AM/FM Radio.......................................................523Audio System – Troubleshooting..................528Digital Radio.........................................................524Satellite Radio.....................................................525
Audio System Precautions..........................521Audio System – Troubleshooting............528Audio System – Information Messages.......528
Audio System Videos...................................531Auto Air Refresh.............................................174Auto Air Refresh Hints........................................177Auto Air Refresh Indicators...............................176
Automatically Refreshing the Interior Air......176Checking the Interior Air Quality.....................174How Does Auto Air Refresh Work...................174Manually Refreshing the Interior Air...............176What Is Auto Air Refresh....................................174
Auto-Dimming Exterior Mirror....................135What Is the Auto-Dimming ExteriorMirror..................................................................135
Auto-Dimming Interior Mirror.....................133Auto-Dimming Interior Mirror Limitations......133What Is the Auto-Dimming InteriorMirror..................................................................133
Auto Hold.......................................................284Auto Hold Indicators...................................285Auto Hold Videos.........................................285Autolamps........................................................119Autolamp Settings................................................119What Are Autolamps...........................................119
Autolock............................................................89Autolock Requirements.......................................89What Is Autolock...................................................89
Automatically Releasing the ElectricParking Brake.............................................273Automatic Crash Shutoff............................406Automatic Crash Shutoff Precautions...........406Re-Enabling Your Vehicle.................................406What Is Automatic Crash Shutoff...................406
Automatic Emergency Braking.................368Switching Automatic Emergency Braking Onand Off..............................................................368What Is Automatic Emergency Braking........368
Automatic Engine Stop...............................209How Does Automatic Engine StopWork..................................................................209Overriding Automatic Engine Stop................209Switching Automatic Engine Stop On andOff......................................................................209What Is Automatic Engine Stop......................209
Automatic High Beam Control....................121Automatic High Beam ControlIndicators..........................................................123Automatic High Beam ControlLimitations.........................................................123Automatic High Beam ControlPrecautions......................................................122Automatic High Beam ControlRequirements...................................................122How Does Automatic High Beam ControlWork....................................................................121Overriding Automatic High BeamControl...............................................................123Switching Automatic High Beam Control Onand Off...............................................................123
663
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMIndex

Automatic High Beam Control –Troubleshooting..........................................124Automatic High Beam Control – InformationMessages..........................................................124
Automatic Locking Mode..............................58Disengaging Automatic Locking Mode..........59Engaging Automatic Locking Mode................58What Is Automatic Locking Mode.....................58
Automatic Return to Park (P)......................261Automatic Return to Park (P) Limitations.......261How Does Automatic Return to Park (P)Work...................................................................261What Is Automatic Return to Park (P).............261
Automatic Transmission AudibleWarnings......................................................264Automatic Transmission.............................258Automatic Return to Park (P)............................261Automatic Transmission Positions.................258Automatic Transmission –Troubleshooting.............................................265Grade Assist - Plug-In Hybrid Electric Vehicle(PHEV)................................................................261Manually Shifting Gears....................................259Manual Park Release - Gasoline....................262Temporary Neutral Mode.................................260
Automatic Transmission PositionIndicators.....................................................259
Automatic Transmission Positions...........258Drive (D)................................................................259Neutral (N)............................................................259Park (P)..................................................................258Reverse (R)...........................................................258
Automatic TransmissionPrecautions.................................................258Automatic Transmission –Troubleshooting.........................................265Automatic Transmission – InformationMessages.........................................................265
Auto Mode......................................................170Auto Mode Indicators..........................................171Switching Auto Mode On and Off...................170Switching Dual Mode On and Off...................172
Auto-Start-Stop.............................................220Auto-Start-Stop – Troubleshooting.................221
Auto-Start-Stop Indicators.........................220Auto-Start-Stop Precautions.....................220Auto-Start-Stop – Troubleshooting..........221Auto-Start-Stop – Frequently AskedQuestions........................................................222Auto-Start-Stop – InformationMessages..........................................................221
Autounlock.......................................................88Autounlock Requirements..................................89Switching Autounlock On and Off....................89What Is Autounlock..............................................88
Autowipers.......................................................113Adjusting the Sensitivity of the RainSensor.................................................................114Autowipers Settings.............................................113What Are Autowipers..........................................113
AWDSee: All-Wheel Drive..........................................266
B
Blind Spot Assist...........................................347Blind Spot Assist Indicators.............................348Blind Spot Assist Limitations............................347How Does Blind Spot Assist Work.................347What Is Blind Spot Assist..................................347
Blind Spot Information System.................353Blind Spot Information System –Troubleshooting.............................................356
Blind Spot Information SystemIndicators.....................................................355Blind Spot Information SystemLimitations...................................................353Blind Spot Information SystemPrecautions.................................................353Blind Spot Information SystemRequirements.............................................354
664
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMIndex

Engine Specifications - 2.0LEcoBoost™....................................................495Engine Specifications - 2.5L, Plug-In HybridElectric Vehicle (PHEV)............................496Entering a Parallel Parking Space...........306Entering a Perpendicular ParkingSpace............................................................306Environment......................................................31Evasive Steering Assist...............................368Evasive Steering Assist Limitations...............369Switching Evasive Steering Assist On andOff......................................................................369What Is Evasive Steering Assist......................368
EV Coach.........................................................156Event Data........................................................28Exiting a Parking Space..............................307Export Unique Options...............................652Extending the Remote StartDuration........................................................166Exterior Bulbs................................................450Exterior Bulb Specification Chart...................450
Exterior Lamps...............................................120Exterior Lamp Indicators.....................................121Exterior Lamps On Audible Warning...............121Switching the Daytime Running Lamps Onand Off...............................................................120Switching Welcome Lighting On and Off.......121Using the Turn Signal Lamps...........................120
Exterior Lighting Control..............................118Exterior Lighting.............................................118Adaptive Front Lighting.....................................125Adaptive Front Lighting –Troubleshooting..............................................127Autolamps..............................................................119Automatic High Beam Control..........................121Automatic High Beam Control –Troubleshooting..............................................124Exterior Lamps.....................................................120Headlamps.............................................................118Headlamps – Troubleshooting.........................119
Exterior Mirrors...............................................134Auto-Dimming Exterior Mirror..........................135
F
Fail-Safe Cooling..........................................407Driving When Fail-Safe Mode IsActivated..........................................................407Fail-Safe Cooling Indicators............................408How Does Fail-Safe Cooling Work................407What Is Fail-Safe Cooling.................................407
Fastening the Seatbelts................................57Federal Highway AdministrationRegulation....................................................621Flat TireSee: Changing a Flat Tire.................................487
Floor Mats.......................................................397Folding the Exterior Mirrors........................134Ford Power-UpSee: Software Update Settings......................554See: Vehicle Software Updates......................554
Front Exterior...................................................38Front Parking Aid.........................................295Front Parking Aid Audible Warnings.............296Front Parking Aid Limitations..........................295Locating the Front Parking Aid Sensors......295What is the Front Parking Aid.........................295
Front Passenger Sensing System..............69Front Passenger Sensing SystemIndicators............................................................72Front Passenger Sensing SystemPrecautions........................................................72How Does the Front Passenger SensingSystem Work.....................................................69What Is the Front Passenger SensingSystem................................................................69
Front Seat Precautions................................178Front Seats......................................................178Heated Seats........................................................183Massage Seats.....................................................182Power Seats..........................................................179Ventilated Seats...................................................184
Fuel and Refueling.......................................223Fuel and Refueling – Troubleshooting..........231
669
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMIndex

Fuel Quality..........................................................224Refueling..............................................................226Running Out of Fuel..........................................225
Fuel and Refueling Precautions...............223Fuel and Refueling –Troubleshooting..........................................231Fuel and Refueling – InformationMessages..........................................................231Fuel and Refueling – Warning Lamps............231
Fuel Economy Display.................................156Fuel Gauge.....................................................139Fuel Gauge Limitations......................................139Locating the Fuel Filler Door............................139What Is Distance to Empty................................140What Is the Fuel Gauge.....................................139What Is the Low Fuel Reminder.......................139
Fuel Quality....................................................224Selecting the Correct Fuel...............................224
Fuel Tank Capacity - Excluding: Plug-InHybrid Electric Vehicle (PHEV)..............505Fuel Tank Capacity......................................230Fuel Tank Capacity - Plug-In Hybrid ElectricVehicle (PHEV)...........................................506Fuse Precautions...........................................412Fuses................................................................412Body Control Module Fuse Box......................421Fuses – Troubleshooting.................................425Under Hood Fuse Box.......................................412
Fuses – Troubleshooting...........................425Fuses – Frequently Asked Questions..........425
G
Garage Door Opener AdditionalAssistance....................................................198Garage Door Opener...................................194Garage Door Opener Introduction...........194Garage Door Opener Precautions andFrequencies.................................................194General Maintenance Information...........563Global Opening and Closing......................130Switching Global Closing On and Off.............131Switching Global Opening On and Off...........131Using Global Closing...........................................131Using Global Opening.........................................131What Is Global Opening and Closing.............130
Glossary of Tire Terminology....................466Glove Compartment....................................204Opening the Glove Compartment.................204
Grade Assist - Plug-In Hybrid ElectricVehicle (PHEV)............................................261What Is Grade Assist..........................................261
H
Headlamp AdjustingSee: Adjusting the Headlamps.......................448
Headlamps.......................................................118Headlamp Indicators...........................................118Switching Headlamp Exit Delay On andOff........................................................................118Using the High Beam Headlamps...................118
Headlamps – Troubleshooting...................119Headlamps – Frequently AskedQuestions...........................................................119
Head Up Display...........................................160Head Up Display – Troubleshooting..............164
Head Up Display Indicators........................162Head Up Display Settings...........................160Head Up Display – Troubleshooting........164Head Up Display – InformationMessages..........................................................164
Heated Seats..................................................183Heated Seat Precautions..................................183Switching the Heated Seats On and Off.......183
HeatingSee: Climate Control..........................................168
High Voltage Battery...................................235High Voltage Battery Precautions...........235
670
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMIndex
