35
ES350_ES250_QG_OM06255U_(U)

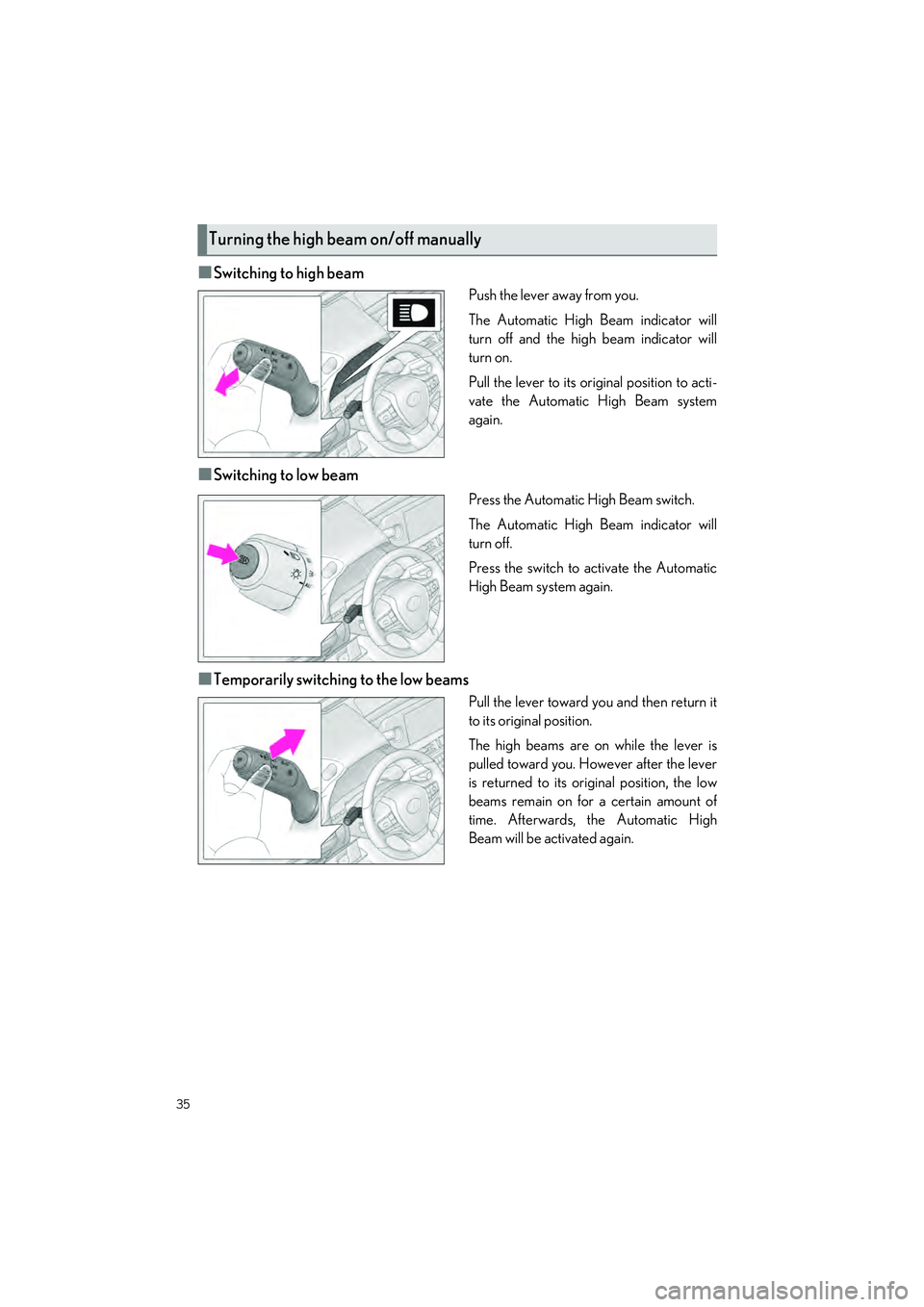

QSwitching to high beam
Push the lever away from you.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Pull the lever to its original position to acti-
vate the Automatic High Beam system
again.
QSwitching to low beam
Press the Automatic High Beam switch.
The Automatic High Beam indicator will
turn off.
Press the switch to activate the Automatic
High Beam system again.
QTemporarily switching to the low beams
Pull the lever toward you and then return it
to its original position.
The high beams are on while the lever is
pulled toward you. However after the lever
is returned to its original position, the low
beams remain on for a certain amount of
time. Afterwards, the Automatic High
Beam will be activated again.
Turning the high beam on/off manually
What to do if...
77
ES350_ES250_QG_OM06255U_(U)
See the “OWNER’S MANUAL”
Turn signal indicatorBSM outside rear view mirror
indicators
Headlight indicator (U.S.A.)BSM indicator
Tail light indicator (Canada)Intuitive parking assist OFF
indicator (if equipped)
Headlight high beam indicatorRCTA OFF indicator
Automatic High Beam
indicatorRCD OFF indicator (if
equipped)
Cruise control indicatorPKSB OFF indicator (if
equipped)
Dynamic radar cruise control
indicatorBrake hold standby indicator
Cruise control “SET” indicatorBrake hold operated
indicator
(White or green)LTA indicatorSmart access system with
push-button start indicator
(Flashes in orange)LTA indicatorLow outside temperature
indicator
(Flashes)
Slip indicatorEco Driving Indicator Light
VSC OFF indicator(U.S.A.)Parking brake
indicator
PCS warning light(Canada)
For further information, refer to the “OWNER’S MANUAL”.
