3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
A Turn Signal Indicators
B Gear Shift Position, Range, Trip Modes
C Speedometer
D Indicator & Warning Lights
E Tachometer
F Fuel Gauge
Arrow direction indicates
the side of the vehicle the fuel door is located
G Outside Temperature, Odometer
H Hybrid battery State of Charge gauge
Instrument Cluster Overview
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
(Conventional Type A Cluster)
E
F
LH
324 miD
2
4 00mi x
１ 000 rp m75°F
60 3.0EPB
MPH
E
AA
C
H
DD
B
GF
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
EPB
READY
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
EV
CHARGE
ECO
POWER
L H
Hybrid / Plug-In Hybrid Indicators at Startup
REMINDER: Avoid star ting or driving the vehicle when the fuel tank is empt y As the engine will be incapable of charging the high-voltage Hybrid bat ter y, the bat ter y will lose its charge and may be damaged Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information, please refer to sections 1 and 5 in the Owner ’s Manual
Power Gauge - Indicates how economically the vehicle is being driven
• CHARGE I – Indicates that the energy made by the vehicle is being converted to electrical energy (regenerated energy)
• ECO J – Indicates that the vehicle is being driven in an ECO-friendly manner
• POWER K – Indicates that the vehicle is exceeding the ECO-friendly range
L EV Mode - Illuminates when only the electric motor is powering the vehicle
M
Ready - Illuminates when the Hybrid system is operational This means that even if the engine is off, the vehicle can be driven (Plug-In Hybrid indicator location may vary from image shown)
N Service Indicator – Illuminates when a malfunction occurs in the vehicle’s Hybrid system Have an authorized Kia dealer address the concern as soon as possible
O Hybrid battery State of Charge gauge
K
O
I
J
L
M
N
These illustrations are for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
(Full LCD Type B Cluster)

14 *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
HYBRID / PLUG-IN HYBRID SYSTEM
Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to inform the driver of its status To change modes, go to User Settings in the Instrument Cluster modes
Energy Flow - Instrument Cluster LCD*
Your vehicle’s instrument cluster display locations may differ from those in the illustrations For more information on the instrument cluster, please refer to section 1 in the Owner ’s Manual
These illustrations are for demonstration purposes only
&MFDUSJD
.PEF
)ZCSJE
.PEF
&OHJOF
.PEF
$IBSHJOH
EV Propulsion - The electric motor is moving the vehicle Engine-Only Propulsion - The engine is moving the vehicle
Power Assist - Both the electric motor AND the engine are moving the vehicle Engine Generation - While the vehicle is stopped, the engine is charging the Hybrid/Plug-In battery
HYBRID/PLUG-IN SYSTEM

15 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
HYBRID / PLUG-IN HYBRID SYSTEM
Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to inform the driver of its status To change modes, go to User Settings in the Instrument Cluster modes
Power Reserve - While the engine powers the vehicle, it is also recharging the Hybrid/Plug-In battery Engine Brake/Regeneration - The regenerative braking system is recharging the Hybrid/Plug-In battery
Vehicle Stop - The vehicle’s Hybrid/Plug-In system is standing by Engine Generation/Regeneration - The engine and the regenerative braking system are both recharging the Hybrid/Plug-In battery
$IBSHJOH
*EMF
.PEF
$IBSHJOH
$IBSHJOH

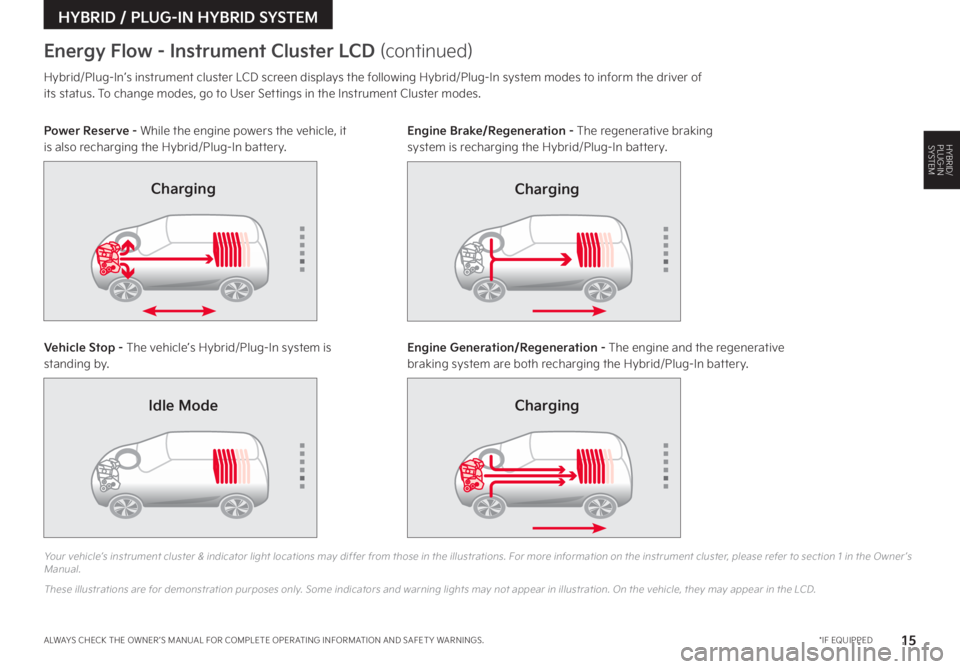

Energy Flow - Instrument Cluster LCD (continued)
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster, please refer to section 1 in the Owner ’s Manual
These illustrations are for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
HYBRID/PLUG-IN SYSTEM
