Windshield Wipers & Washers
Front Wiper & Washer
To operate front wipers and washers:
•Move lever Up/Down to change Wiper modes
•Press INT switch B up/down to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe
Rear Wiper & Washer
To operate rear wipers and washers:
•Rotate Rear Wiper switch to change Wiper modes
•Push lever to spray and wipe
MIST
OFF
AUTO
LO
HIHI
REARLO
OFF
MIST OFF
AUTO
LO
HIHI
REARLO
OFF
MIST OFF
AUTO
LO
HIHI
REARLO
OFF
MIST OFF
AUTO
LO
HIHI
REARLO
OFF
MIST: Single wipe
OFF: Wiper off
I N T: Intermittent Wipe
LO: Slow Wiper Speed
HI: High Wiper Speed
HI: Continuous wipe
LO: Slow wipe
OFF: Wiper off
Turn Signals & Fog Lights*
One-Touch Lane Change Signal is activated by briefly pressing the Turn Signal Lever up/down slightly for less than 1 second and then releasing The lane change signal will blink 3 times
To change how many times (3/5/7) the Lane Change Signal blinks, go to the User Settings Mode in the LCD Instrument Cluster and select Lights, then One-Touch Turn Signal
For illustrative purposes only Your actual display, but tons and/or features may var y
For more information on the User Settings Mode, please refer to section 5 in the Owner ’s Manual
Refer to section 5 in the Owner ’s Manual for more information
One-Touch Lane Change
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wipers and Wiper Stalk Video
Lifting Wipers / Wiper Service Mode Video
QR CODE
A
BREMINDER: Headlights must be ON for fog light operation
LO and HI sets wiper speed No intermit tent wipe function is available on rear wipers
QUICK TIP
• Moving switch B to HI increases intermit tent wipe frequency and wipe speed Moving switch B to LO decreases frequency of wipes
•
Set the wiper to OFF position when the wiper is not in use
QUICK TIPS
To operate:
•Turn Signals - Move lever Up/Down for Right/Left Turn Signal
•Slightly move lever up/down to activate One-Touch Lane Change Signal
•Fog Lights - Press switch A up/down to turn Fog Lights ON/OFF

49*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
(Por ts on panel in front of gear shift knob)
CENTER PANEL
CENTERPANEL
Power Outlets A: Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max)
power outlet
Multimedia USB Port B: Use Multimedia USB port to connect USB audio devices and smartphones
USB-C Charger Port C: Devices can be recharged using a USB-C cable The Engine Start/Stop button needs to in the
ACC/ON/START position to operate the USB-C Charger Port
Digital Clock
Press the SETUP key on the audio head unit, then select General Press the onscreen Date/Time button
to enter the clock settings Then use the onscreen buttons to navigate through setup and return to exit
Multimedia USB Port, Power Outlets & USB Charger Port
For more information on the Aux/USB Por ts and Power Outlets, refer to section 5 in the Owner's Manual
For more information, refer to the Car Infotainment System Quick Reference Guide
REMINDERS:
•
Using the power outlets and the USB por ts for prolonged periods of time with the Engine Star t/Stop but ton in the ACC position (Engine OFF) could cause the bat ter y to discharge
•
Kia recommends that you only use USB cables made by your device’s manufacturer Third-par t y USB cables may cause damage to your device
•When needed, Daylight Savings must be enabled in the Clock Set tings screen
•To access manual date and time set ting, turn GPS time OFF in the Clock Set tings (Kia Connect with Smar t Navigation*)
QUICK TIPS
•The power outlets are inactive when ignition is in the OFF position
•The Multimedia USB data por t is located next to the Power Outlets The USB Charger Por t does not suppor t data transfer
•The Multimedia USB Por t in the center panel charges slower than the USB Charger Por ts throughout the vehicle
QUICK TIPS
１2V１80WUSB
ABCRefer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Multimedia USB Port, Power Outlets & USB Charger Port Video
QR CODE

54*IF EQUIPPED
CENTER PANEL
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
CENTERPANEL
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A Ensure that the indicator light is illuminated on the instrument cluster
If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
Releasing the Parking Brake
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse)
or shifted out of N (Neutral) to Reverse or D (Drive) To release EPB manually, depress the brake pedal, then press the EPB switch A, with the ignition switch in the ON position Ensure that the indicator light is OFF
Auto Hold*
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift Before Auto Hold will operate, the driver ’s door, engine hood, and liftgate (trunk) must be closed
The AUTO HOLD indicator on the Instrument Cluster has four states:
White: Standby - With vehicle at a standstill and AUTO HOLD button B pressed ON, the indicator will illuminate white While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white
Green: Engaged - When coming to a complete stop by depressing the brake pedal, the Auto Hold indicator changes from white to green
Off (not illuminated) - The indicator will turn off when the AUTO HOLD button B is manually pressed off
Yellow: Malfunction - When the indicator is illuminated yellow, there may be a system malfunction Take your vehicle to a local Kia dealer
Electronic Parking Brake (EPB)*
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Electric Parking Brake (EPB) / Auto Hold Video
QR CODE
REMINDERS:
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Refer to section 5 in the Owner ’s Manual for more information
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
Refer to page 5 for location of Instrument Cluster indicators
Refer to section 6 in the Owner ’s Manual for more information
AUTO
HOLDOFF
DRIVE MODE
B
HOLD
HOLD"
(Center Console)(Driver ’s Panel)

63 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
OTHER KEY FEATURES
OTHER KEYFEATURES
OFF
HOLD
Fuel Filler DoorFuel Cap / Malfunction Indicator
(Check Engine Light)To open the Fuel Filler Door:
1a
Hybrid - With the vehicle off and driver ’s door unlocked,
press the right center edge of the Fuel Filler door A
1b
Plug-In Hybrid - With the vehicle off, press the Fuel Filler
door unlock button on the Driver ’s Panel B Press the right
center edge of the Fuel Filler door
2 Pull the Fuel Filler door out to fully open
To open the Fuel Cap, turn it counterclockwise C
Tighten for ONE CLICK to prevent Malfunction
Indicator from illuminating
HOLD
Lock U
nlo ck
L ock U
nlo ck
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
3FGFS
UP
UIF
JOTJEF
GSPOU
DPWFS
GPS

NPSF
JOGPSNBUJPO
PO
23
DPEFT XXXZPVUVCF DPN,JB'FBUVSF7JEFPT
Kia Fuel Cap Video
Fuel Filler Lid Video
QR CODE
Place the Fuel Cap on the inside of the Fuel Filler Door when fueling D
QUICK TIP
REMINDERS:
•To lock fuel filler door:
-Press the lock but ton on your smar t key
-Press the Central Door lock but ton on armrest trim of driver ’s door
-All doors and fuel filler door will automatically lock after the vehicle speed exceeds 9 mph
REMINDERS:
•
To open the fuel door, press the right edge of the fuel door
•
It is normal operation when tightening to hear one click, and then when Fuel Cap is released, it clicks back
A
B
C
D
(But ton located to the left of Steering Wheel)

65†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
OTHER KEY FEATURES
OTHER KEYFEATURES
HomeLink® with Auto-Dimming Rearview Mirror*†2 (continued)
Erasing a Programmed Button:
1 Press and hold the desired HomeLink® Channel button
A, B or C you want to re-program DO NOT release
the button
2 The HomeLink® User Inter face Indicator G will
illuminate solid green Release the button as soon as
the HomeLink® User Inter face Indicator G begins to
flash orange, usually about 20 seconds
3 Proceed with the steps in the “Programming a New
HomeLink® Button” section
For more information, go to HomeLink com or call (800) 355-3515
See section 5 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Homelink® Support Video
QR CODE
•If your garage door opener has the “myQ”†1 9 logo on its side, it has t wo-way communication capabilit y to display “Closing” or “Opening” status message on Homelink® mirror Refer to section 4 in the Owner ’s Manual on how to set this up or for more information
•When programming, park outside of the garage door
•The Star t/Stop but ton needs to be in the accessor y (ACC) position
•Replace the hand-held garage door transmit ter for quicker and accurate programming
QUICK TIPS
For information on how to erase all programmed but tons at the same time, refer to section 4 of the Owner ’s Manual
QUICK TIP
REMINDERS:
•
Erasing programmed but tons will delete all trained transmit ters
•A ladder may be needed to access the garage door opener
•A second person may be needed to help
•Some of the steps are time sensitive
Operating HomeLink®
Press and release the desired programmed HomeLink®
Channel button A, B or C The HomeLink® User Interface Indicator G should light green, solid or flashing, and your programmed device should operate If your device does not operate, the HomeLink® programming was not successful,
and you’ll need to reprogram the button(s)

67†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
OTHER KEY FEATURES
When the Smart Key fob is on your person and you are near the back of the vehicle, within close proximity, the hazard lights will blink and a chime will sound for about 3 seconds as an alert that the Smart Power Liftgate is about to open Then the alert system will blink and chime two additional times before opening the Smart Power Liftgate
The Smart Power Liftgate feature is off by default To enable the Smart Power Liftgate, go to Vehicle Settings* in the Infotainment System Press the SETUP key or onscreen button, then VEHICLE Select DOOR, then SMART LIFTGATE

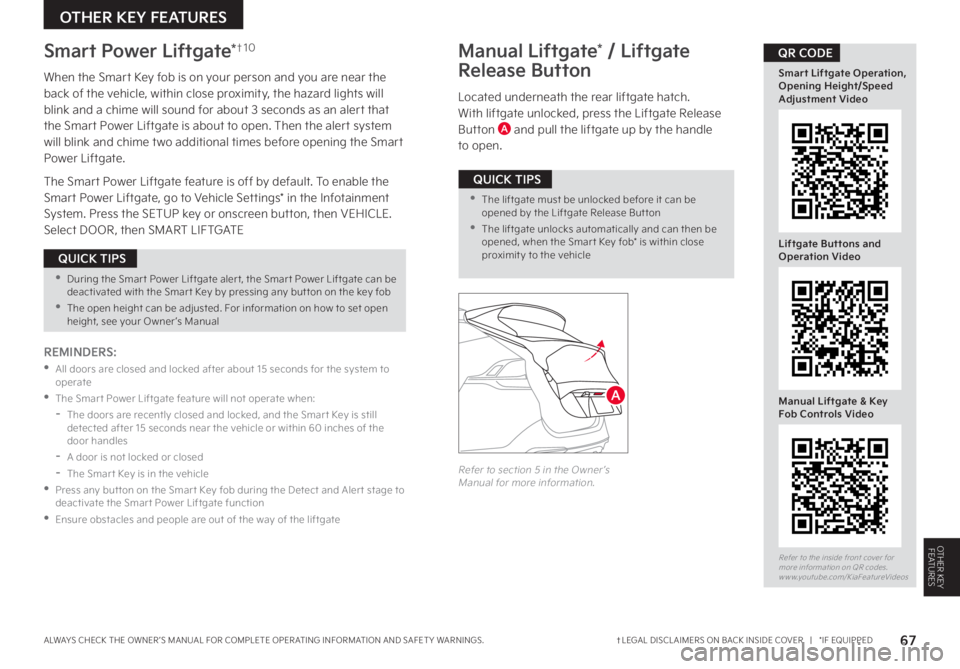

Manual Liftgate* / Liftgate
Release Button
Smart Power Liftgate*†1 0
Located underneath the rear liftgate hatch With liftgate unlocked, press the Liftgate Release Button A and pull the liftgate up by the handle to open
Refer to section 5 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Smart Liftgate Operation, Opening Height/Speed Adjustment Video
Liftgate Buttons and Operation Video
Manual Liftgate & Key Fob Controls Video
QR CODE
A
REMINDERS:
•
All doors are closed and locked after about 15 seconds for the system to operate
•The Smar t Power Liftgate feature will not operate when:
-
The doors are recently closed and locked, and the Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
-A door is not locked or closed
-The Smar t Key is in the vehicle
•
Press any but ton on the Smar t Key fob during the Detect and Aler t stage to deactivate the Smar t Power Liftgate function
•Ensure obstacles and people are out of the way of the liftgate
•During the Smar t Power Liftgate aler t, the Smar t Power Liftgate can be deactivated with the Smar t Key by pressing any but ton on the key fob
•
The open height can be adjusted For information on how to set open height, see your Owner ’s Manual
QUICK TIPS
•
The liftgate must be unlocked before it can be opened by the Liftgate Release But ton
•
The liftgate unlocks automatically and can then be opened, when the Smar t Key fob* is within close proximit y to the vehicle
QUICK TIPS
OTHER KEYFEATURES

68 *IF EQUIPPED
OTHER KEY FEATURES
SPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OTHER KEYFEATURES
Panoramic Sunroof Operation
with Power Sunshade*
The sunroof operation is controlled through a multidirectional switch The ignition or Engine Start/ Stop button* needs to be in the ON position to operate the sunroof
To slide the power sunshade and sunroof:
• Auto Open: Slide the switch D backward to the farthest position and release
• Auto Close: Slide the switch D forward to the farthest position and release
To slide the power sunshade only:
• Auto Open: Slide the switch D partially backward to the first detent position and release
• Auto Close: Slide the switch D partially forward to the first detent position and release
To slide the sunroof (with power sunshade open):
• Open: Slide the switch D backward to the first detent position and release
• Close: Slide the switch D forward to the first detent position and release to close sunroof glass only Slide the lever backward to the farthest position and release to close sunroof glass and sunshade
To tilt the sunroof:
• Raise: Push switch D upward
• Lower: Pull switch D downward
OFFPASSENGER
AIR BAG
(Type B; panel located overhead center of the front row)Refer to section 5 in the Owner ’s Manual for more information
Refer to section 5 in the Owner ’s Manual for more information
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the ignition or Engine Start/Stop button* is OFF
Map/Room Lamp Operation
•Press lens A to turn the Driver ’s/Passenger ’s Map Lamps ON/OFF This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger
•Press button B to turn all the Map/Room Lamps ON/OFF
•
Press button C to turn the Map/Room Lamp ON, for 30 seconds, when a door is opened, unlocked from Smart Key or the ignition is turned OFF
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
AABC
D
REMINDERS: •
If the ignition is turned off with the Sunroof not fully closed, the Instrument Cluster LCD will display a warning message and a chime will sound for a few seconds •
Power sunshade needs to remain OPEN while sunroof is open •
Power sunshade cannot slide when the sunroof is in the tilt position or tilt while in an open or slide position •
Do not adjust the power sunroof or sunshade while driving This could result in loss of control of the vehicle •
When closing, be mindful of any objects or persons
• When doors are unlocked by the Smar t Key, the lamp turns ON for approximately 30 seconds
•
If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
•
Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
To stop the sunroof/sunshade at any position, push or pull the sunroof control switch in any direction
QUICK TIP

69†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
OTHER KEY FEATURES
OTHER KEYFEATURES
Use the sunvisor to shield direct light through the front or side windows Slide the sunvisor out and adjust as needed
Refer to section 5 in the Owner ’s Manual for more information
Refer to section 7 in the Owner ’s Manual for more information
Sunvisor†1 7Hood Release Lever and Latch
Opening the Hood:
1 Pull the Hood Release Lever A to unlatch the Hood
2 In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left and lift the Hood
A
REMINDERS:
•
While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake
•Make sure the hood is securely closed before driving
REMINDERS:
•Sunvisor may not shield all direct light
•The sunvisor may impair visibilit y if not adjusted properly
•Do not operate the vehicle if the sunvisor is impairing your visibilit y
•
Be aware of seating position when adjusting or swinging sunvisor around to or from the front or side windows
B
(Located on Driver ’s left knee bolster)
Closing the Hood:
Lower the Hood first to about 12 inches away from being closed Then, press down to securely lock in place
