2023 KIA NIRO PHEV Navigation System Quick Reference Guide

9-63

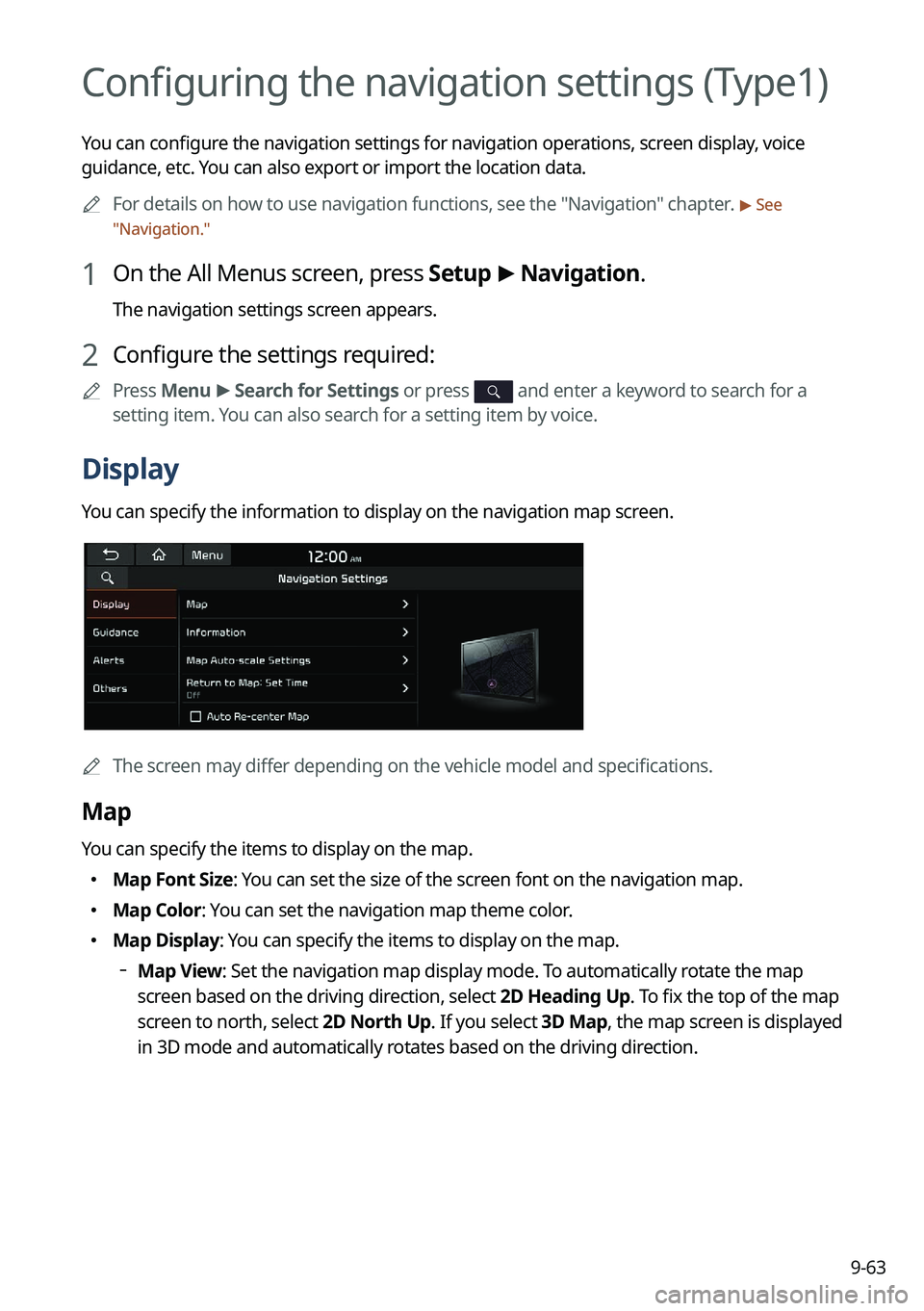

Configuring the navigation settings (Type1)
You can configure the navigation settings for navigation operations, screen display, voice
guidance, etc. You can also export or import the location data.
A
For details on how to use navigation functions, see the "Navigation" chapter.
> See
" Navigation."
1 On the All Menus screen, press Setup >
Navigation.
The navigation settings screen appears.
2 Configure the settings required:

A
Press Menu >
Search for Settings or press and enter a keyword to search for a
setting item. You can also search for a setting item by voice.
Display
You can specify the information to display on the navigation map screen.
A
The screen may differ depending on the vehicle model and specifications.
Map
You can specify the items to display on the map.
Map Font Size: You can set the size of the screen font on the navigation map.
Map Color: You can set the navigation map theme color.
Map Display: You can specify the items to display on the map.

Map View: Set the navigation map display mode. To automatically rotate the map
screen based on the driving direction, select 2D Heading Up. To fix the top of the map
screen to north, select
2D North Up. If you select 3D Map, the map screen is displayed
in 3D mode and automatically rotates based on the driving direction.

9-64

Display Traffic: Displays nearby traffic information on the map.

3D Buildings: Displays major buildings on the map in three dimensions.

Auto-scale: Automatically changes the scale of the map.
 POI Display: You can specify the icon type to display nearby places on the map.

A
Press
on the right side of Gas/LPG Station to select display options for fuel prices.

Gas and LPG stations on the Map screen will also show their fuel prices if they are lower
than the set price.

Select Display Fuel Price Info on Map to view recommended fuel prices based on the
prices offered in the area.

Fuel prices on the map may differ from actual ones.
Information
You can specify the information to display on the navigation map screen while driving.
 Route Guide Line: Change the route guide line color depending on the traffic conditions.
To display the route guide line with a fixed color, uncheck Show Traffic Colors and select
a color.
Vehicle Symbol: You can specify the icon type to display your current location on the
map.
Units: You can set the distance unit of the navigation map to Kilometers (km) or Miles
(mi) (if equipped).
Show Vehicle Speed: Displays the vehicle speed on the map.
Detailed Guidance View: You can set to display detailed information on the Map screen,
such as moving directions and lane change.
Speed Limits: Sets whether or not to display the speed limits on the screen.
Map Auto-scale Settings
You can set the scales for each vehicle speed zone.

A
For example, when "700 ft" is selected for the "21–40 mi/h" zone and "0.25 mi" for the
"41–60 mi/h" zone, the map scale on the navigation screen becomes 700 ft when vehicle
speed is 40 mi/h and 0.25 mi when vehicle speed is 41 mi/h.
Return to Map: Set Time
You can set the system to automatically display the map screen after a specified period of
time when switched to the Radio/Media mode screen while using the navigation.

A
This function works while driving once a destination has been set.

A
This feature is not available on the phone projection screen.

9-65
Auto Re-center Map
You can set the system to automatically display the current position when the specified
period of time elapses after changing to another position on the map.
Guidance
You can configure the navigation guidance settings.
AThe screen may differ depending on the vehicle model and specifications.
Show Guidance Distance
You can configure settings for displaying the distance to the destination during guidance.
Interval Distance: Displays the distance as the one between different zones.
Cumulative Distance: Displays the distance as the one between the current position and
target position.
Border Crossing Information
You can set whether or not to display the border crossing information on the screen.
Show Route Overview While Stopped.
You can set to display the route overview from the start point to the destination when the
vehicle is stationary.
Alerts
You can set to activate drive assist features when needed for safety.

9-66
ÝWarning
Be sure to check the road conditions while driving, because the camera information may get
changed occasionally after a map update to the latest version. Relying solely on the driving
assist system may cause violation of traffic rules and regulations, resulting in an accident.
Camera Alert Distance
You can set when to receive alerts against and voice descriptions about traffic enforcement
cameras.
Camera Alerts with Navigation Muted: You can set traffic enforcement camera alerts
or warning sounds for safe driving when the navigation is muted.

None: No guidance is provided when the navigation is muted.

Use Beeps Only: Guidance is provided only with warning sound.

Use Voice Prompts with Beeps: Guidance is provided with warning sound and voice.
 Camera Alert Distance Depending on the Vehicle Speed: The time when to get alerts
for traffic enforcement cameras is automatically set depending on the driving speed.
When the Camera Alert Distance Depending on the Vehicle Speed function is off, the
time when to get guidance on traffic enforcement cameras on
Local Roads and Highway
can be selected.
Others
You can configure navigation options, e.g., turning on or off fuel prices, exporting or
importing places from and to Address Book.
A The screen may differ depending on the vehicle model and specifications.

9-67
Previous Destinations Settings
You can set to automatically save the previous destination and display the previous
destinations when the navigation system starts.
Save Previous Destinations: The previous destination is automatically saved.
Show Previous Destinations after Navigation Start-up: When the navigation system
starts, the list of recent destinations appear on a pop-up window.
Fuel Price Information (if equipped)
When displaying gas stations or LPG charging stations on the map, the fuel prices below a
specific range can be displayed.

A
Select Display Fuel Price Info on Map to view recommended fuel prices based on the
prices offered in the area.

A
Fuel prices on the map may differ from actual ones.
User Data
You can import location data from a USB device to the system, or export the data on the
system to a USB device.

A
When importing or exporting the location data, you can uses only the USB device
formatted in exFAT, FAT16/32, or NTFS.
Import Address Book from USB Device: You can import the location data on a USB
device to the system.

A
The previous location data on the system is to be deleted.

A
If location information is imported from a different navigation device or system,
the locations may appear differently because the device/system uses a different
coordinate system.
Export Address Book to USB Device: You can export the location data on the system to
a USB device.

A
The location data on the USB device is deleted.

9-68
GPS Information
You can see the GPS satellite status and coordinates of the current position.
a
b
The following information appears:
a a Can see the reception status of the satellite signals.
Receiving: Satellite signals are being received and the current position is recognized.
Searching: The system is scanning the satellite signals.
b b Can see the current location.
Reset
You can initialize all the settings of the navigation system.
Configuring the navigation settings (Type2)
You can configure the navigation settings for navigation operations, screen display, voice
guidance, etc. You can also export or import the location data.

A
For details on how to use navigation functions, see the "Navigation" chapter.
> See
" Navigation."
1 On the All Menus screen, press Setup >
Navigation.
The navigation settings screen appears.
2 Configure the settings required:

A
Press >
Search for Settings or press and enter a keyword to search for a
setting item. You can also search for a setting item by voice.

9-69
Display
You can specify the information to display on the navigation map screen.
AThe screen may differ depending on the vehicle model and specifications.
Vehicle Speed
Displays the vehicle speed on the map.
Display Traffic Info
Displays nearby traffic information on the map.
Show Traffic Colors
Used to display the route guide line colors depending on the traffic conditions.
Nearby POIs
You can specify the icon type to display nearby places on the map.

A
Press
on the right side of Gas/LPG Station to select display options for fuel prices.

Gas and LPG stations on the Map screen will also show their fuel prices if they are lower
than the set price.

Select Show Fuel Price Information on the Map to view recommended fuel prices
based on the prices offered in the area.

Fuel prices on the map may differ from actual ones.
Fuel Price Info (if equipped)
When displaying gas stations or LPG charging stations on the map, the fuel prices below a
specific range can be displayed.

A
Select Show Fuel Price Information on the Map to view recommended fuel prices
based on the prices offered in the area.

A
Fuel prices on the map may differ from actual ones.

9-70
Guidance
You can configure the navigation guidance settings.
AThe screen may differ depending on the vehicle model and specifications.
Detailed Guidance
You can specify the information to display on the navigation map screen while driving.
Detailed Guidance View: You can set to display detailed information on the Map screen,
such as moving directions and lane change.
Speed Limits: Sets whether or not to display the speed limits on the screen.
Units: You can set the distance unit of the navigation map to Kilometers (km) or Miles
(mi)
(if equipped).
Route Options (if equipped)
You can set desired route search options.
Set Type of Guide Distance
You can configure settings for displaying the distance to the destination during guidance.
Interval Distance: Displays the distance as the one between different zones.
Cumulative
Distance: Displays the distance as the one between the current position and
target position.
Navigation Voice Guidance
You can configure the navigation voice guidance feature.
 End Navigation Voice Guidance Near Destination: If the set destination is a saved
location, voice guidance is turned off when the vehicle gets closer to the destination.
Border Crossing Information
You can set whether or not to display the border crossing information on the screen.
Border Crossing Information: Configure settings for notification when entering a
country's border.
Country Information: View country information of the current location.
