DIMMING MIRROR
The mirror is designed so that it automatically
changes reflection according to the intensity
of the headlights of the following vehicle. You
can enable or disable the automatic anti-
glare mode.
• Push the left button
O2to enable the auto-
matic anti-glare mode.
• Push the right button
O3to disable the
automatic anti-glare mode. LANGUAGE
The language of textual indication can be
selected on the Smart Rear View Mirror dis-
play screen. Select the language by using the
O2orO3button. You can select English,
French and Spanish. The language setting
will be retained even if the engine is restarted. Smart Rear View Mirror system precautions:
NOTE:
• Long-term use of this system while the en-
gine is stopped may cause the battery to
be discharged.
• Do not attach an antenna of wireless de- vice near the Smart Rear View Mirror.
Electric wave from wireless device may
cause disturbed image in Smart Rear View
Mirror.
• Do not push buttons excessively or oper- ate the lever roughly as it may cause the
Smart Rear View Mirror itself to drop.
• Never turn the body of the Smart Rear View Mirror by 90° or more. It may dam-
age the Smart Rear View Mirror.
• Do not apply strong shocks to the body of Smart Rear View Mirror. It may cause a
system failure.
• Do not apply heavy load to the camera and camera-cover on the rear of the vehicle. It
may cause the camera to be removed or
may cause a system failure.
• If it is difficult to see the Smart Rear View Mirror display screen because of a strong
external light, switch the mode to the con-
ventional rearview mirror mode for better
use.
LPD3208LPD3211
Pre-driving checks and adjustments3-39

Backing up near a projecting object
The predicted course linesOAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
Backing up behind a projecting
object
The positionOCis shown farther than the
position
OBin the display. However, the po-
sition
OCis actually at the same distance as
the position
OA. The vehicle may hit the object when backing up to the position
OAif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
• If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.
• On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.
• If the battery is disconnected or becomes
discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to
lock while the engine is running.
– Drive the vehicle on a straight road
for more than 5 minutes.
• When the steering wheel is turned with
the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.
LHA4995LHA5199
4-6Monitor, climate, audio, phone and voice recognition systems

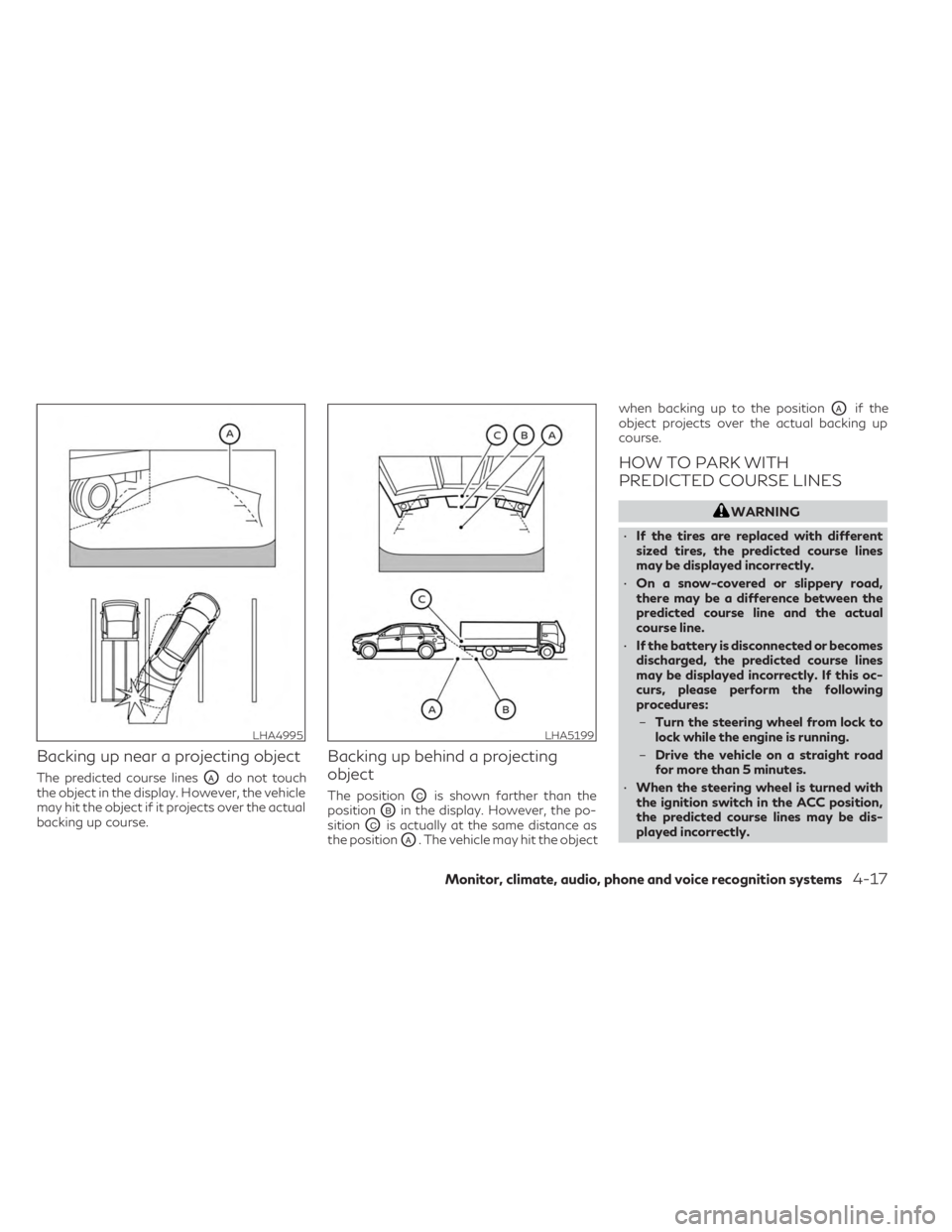

Backing up near a projecting object
The predicted course linesOAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
Backing up behind a projecting
object
The positionOCis shown farther than the
position
OBin the display. However, the po-
sition
OCis actually at the same distance as
the position
OA. The vehicle may hit the object when backing up to the position
OAif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
• If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.
• On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.
• If the battery is disconnected or becomes
discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to
lock while the engine is running.
– Drive the vehicle on a straight road
for more than 5 minutes.
• When the steering wheel is turned with
the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.
LHA4995LHA5199
Monitor, climate, audio, phone and voice recognition systems4-17

1.Heated steering wheel switch
(if so equipped)
2. Display screen
3. REAR CONTROL (rear climate display screen) button
4. REAR ON-OFF button
5. REAR LOCK button 6.REAR window and outside mirror
(if so equipped) defroster switch
7.
Heated seat switches (if so equipped)
8.Climate controlled seat switches
(if so equipped)
9. SYNC button/ temperature control dial
(passenger's side) 10.
CLEAN (if so equipped)
11.Air recirculation button
12.Fresh air intake button
13.Fan speed control buttons
14. MODE button
15. A/C (air conditioner) button
16. ON-OFF button
17.
Front defroster button
18. AUTO (automatic) climate control button/
temperature control dial (driver's side)
WARNING
• The air conditioner cooling function op-
erates only when the engine is running.
• Do not leave children or adults who
would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acci-
dentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.
• Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA5522
HEATER AND AIR CONDITIONER
(automatic)
Monitor, climate, audio, phone and voice recognition systems4-29

Start the engine and operate the controls to
activate the air conditioner.
NOTE:
• Odors from inside and outside the vehiclecan build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the vents.
• When parking, set the heater and air con- ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified
heating (AUTO)
This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, in-
take air control, and fan speed are also con-
trolled automatically.
1. Press the AUTO button. (The indicator on the button will illuminate and AUTO will
be displayed.)
2.
Turn the temperature control dial to the left
or right to set the desired temperature.
• Adjust the temperature display to about 75°F (24°C) for normal operation.
• The temperature of the passenger com- partment will be maintained automatically.
Air flow distribution, intake air control, and
fan speed are also controlled automatically.
• A visible mist may be seen coming from the ventilators in hot, humid conditions as the
air is cooled rapidly. This does not indicate a
malfunction.
3. You can individually set driver's and front passenger's side temperature using each
temperature control dial.
• To synchronize the driver’s and front pas- senger’s temperature settings, press the
SYNC button. PASS SYNC text will appear
in the Climate display.
Dehumidified defrosting or
defogging
1. Press thefront defroster button on.
(The indicator light on the button will
come on.)
2. Turn the temperature control dial to set the desired temperature.
•
To quickly remove ice from the outside of the
windows, use thefan speed control
buttons to set the fan speed to maximum.
• As soon as possible after the windshield is clean, press the AUTO button to return to
the automatic mode.
• When the
front defroster button is
pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C). The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging
performance.
Remote Engine Start with
Intelligent Climate Control (if so
equipped)
Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is placed in the ON posi-
tion. In Remote Engine Start defrosting
mode, the rear window defroster, heated
seats (if so equipped) and heated steering
wheel (if so equipped) may be activated
automatically.
4-30Monitor, climate, audio, phone and voice recognition systems

Voice Recognition logic
When the climate control system is on, the
front and rear fan speeds may be automati-
cally lowered so that commands are more
easily recognized. Fan speed can be adjusted
using the fan speed
decrease andincrease buttons, if desired.
MANUAL OPERATION
Fan speed control buttons
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to auto-
matic control of the fan speed.
Temperature control dial
The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right. Temperature can be adjusted
on the driver’s and passenger’s side.
Air recirculation
Press theair recirculation button to
recirculate interior air inside the vehicle. The
indicator light on the button will come
on. The air recirculation cannot be activated
when the air conditioner is in the
front
defrosting mode.
When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit
air recirculation mode, deselect the air recir-
culation button (indicator will turn off) to en-
ter fresh air mode.
Fresh air intake
Press thefresh air intake button to
draw outside air into the passenger
compartment.
A/C (air conditioner) button
Start the engine, press thefan speed
control buttons to the desired position and
press the
button to turn on the air
conditioner. To turn off the air conditioner,
press the
button again.
The air conditioner cooling function oper-
ates only when the engine is running.
Air flow control
Press the MODE button to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the center
display:
— Air flows from center and side vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from foot outlets.— Air flows from defroster and footoutlets.
Synchronize climate settings
Press the SYNC button to synchronize cli-
mate settings. SYNC text will appear in the
Climate display.
When rear climate is off, pressing SYNC will
synchronize only driver's and front passen-
ger's climate settings. When rear climate is
on, pressing SYNC will synchronize driver,
front passenger, and rear temperature, fan,
mode, and auto settings.
To change climate settings when SYNC is
active (the SYNC text is displayed):
• The driver's side temperature control but-tons will control the driver, front passenger,
and rear (if rear climate is on) temperatures.
Monitor, climate, audio, phone and voice recognition systems4-31

• The fan speed control buttons will controlthe front and rear climate fan speeds.
• The front AUTO (automatic) climate con- trol on-off button will activate the front
and rear climate automatic settings.
• The mode switch will control the front and rear airflow direction.
To exit SYNC:
• To remove the front passenger from SYNC, turn the passenger’s side temperature dial.
The driver and rear settings remain in SYNC
until rear is removed from SYNC.
• To remove the rear from SYNC, change any of the rear climate settings. The driver and
front passenger settings remain in SYNC
until the front passenger is removed from
SYNC.
• To reactivate SYNC press the SYNC button.To turn system off
Press the OFF button.
Rear window and outside mirror
(if so equipped) defroster switch
For additional information, see “Rear window
and outside mirror (if so equipped) defroster
switch” (P. 2-77).
Heated seat switches (if so
equipped)
For additional information, see “Heated seat
switches” (P. 2-85).
Heated steering wheel switch (if so
equipped)
For additional information, see “Heated
steering wheel switch” (P. 2-87).
Climate controlled seat switches
(if so equipped)
For additional information, see “Climate con-
trolled seat switches” (P. 2-84).
OPERATING TIPS
The sunload sensor, located on the top center
of the instrument panel, helps the system
maintain a constant temperature. Do not put
anything on or around this sensor.
• When the climate system is in automaticoperation and the engine coolant tempera-
ture and outside air temperature are low,
the air flow outlet may default to defroster
mode for a maximum of 2 minutes 30 sec-
onds. This is not a malfunction. After the
engine coolant temperature warms up, the
air flow outlet will return to foot mode and
operation will continue normally.
LHA5540
4-32Monitor, climate, audio, phone and voice recognition systems

When installing a CB, ham radio or car phone
in your vehicle, be sure to observe the follow-
ing precautions; otherwise, the new equip-
ment may adversely affect the engine control
system and other electronic parts.
WARNING
• A cellular phone should not be used for
any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of
cellular phones while driving.
• If you must make a call while your vehicle
is in motion, the hands free cellular phone
operational mode is highly recom-
mended. Exercise extreme caution at all
times so full attention may be given to
vehicle operation.
• If you are unable to devote full attention
to vehicle operation while talking on the
phone, pull off the road to a safe location
and stop your vehicle.
CAUTION
• Keep the antenna as far away as possible
from the electronic control modules.
• Keep the antenna wire more than 8 in
(20 cm) away from the electronic control
system harnesses. Do not route the an-
tenna wire next to any harness.
• Adjust the antenna standing-wave ratio
as recommended by the manufacturer.
• Connect the ground wire from the CB
radio chassis to the body.
• For additional information, it is recom-
mended that you visit an INFINITI re-
tailer for servicing. “Made for iPod”, “Made for iPhone” and
“Made for iPad” mean that an electronic ac-
cessory has been designed to connect spe-
cifically to iPod, iPhone or iPad, respectively,
and has been certified by the developer to
meet Apple performance standards. Apple is
not responsible for the operation of this de-
vice or its compliance with safety and regu-
latory standards. Please note that the use of
this accessory with iPod, iPhone or iPad may
affect wireless performance.
iPad, iPhone, iPod classic, iPod nano, iPod
shuffle and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other
countries. Lightning is a trademark of Apple
Inc.
CAR PHONE OR CB RADIO
iPod®/iPhone®
Monitor, climate, audio, phone and voice recognition systems4-37
