2023 INFINITI QX60 engine

2. Place the ignition switch in the OFF orLOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the de- vice (which may have caused the interfer-
ence) separate from the registered
INFINITI Vehicle Immobilizer System key.
If the no start condition reoccurs, INFINITI
recommends placing the registered INFINITI
Vehicle Immobilizer System key on a separate
key ring to avoid interference from other
devices.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.
For Canada:
This device contains licence-exempt
transmitter(s)/receivers(s) that comply
with Innovation, Science and Economic De-
velopment Canada’s licence-exempt RSS(s).
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.
SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the windshield and ob-
scure your vision which may lead to an ac-
cident. Warm the windshield with the
defroster before you wash the windshield.
LIC4680
WIPER AND WASHER SWITCH
Instruments and controls2-73

To defrost the rear window glass and outside
mirrors, start the engine and push the rear
window defroster switch on. The rear win-
dow defroster indicator light on the switch
comes on. Push the switch again to turn the
defroster off.
The rear window defroster automatically
turns off after approximately 15 minutes.
The rear window defroster switch also acti-
vates the heated washer nozzles (if so
equipped).
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
NOTE:
The top and bottom few rows of wires on the
rear window are not part of the rear window
defroster system. These wires make up the
antenna for the audio system.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
LIC4818LIC4877
Type A (if so equipped)
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped) DEFROSTER
SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-77

CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.Autolight system
The autolight system allows the headlights to
turn on and off automatically. The autolight
system can:
• Turn on the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
• Turn off all the lights (except Daytime Run- ning Lights) when it is light.
• Keep all the lights on for a period of time after you place the ignition switch in the
OFF position and all doors are closed.
NOTE:
Autolight activation sensitivity (if so
equipped) and the time delay for autolight
shutoff can be adjusted. For additional
information, see “Vehicle information
display-7 inch (18 cm) Type A” (P. 2-22)
or “Vehicle information display-12.3 inch
(31 cm) Type B” (P. 2-44).
To turn on the autolight system:
1. Turn the headlight switch to the AUTO position
O1.
2. Place the ignition switch in the ON position.
LIC5004
Type B (if so equipped)
LIC4878
Type A (if so equipped)
LIC5005
Type B (if so equipped)
2-78Instruments and controls

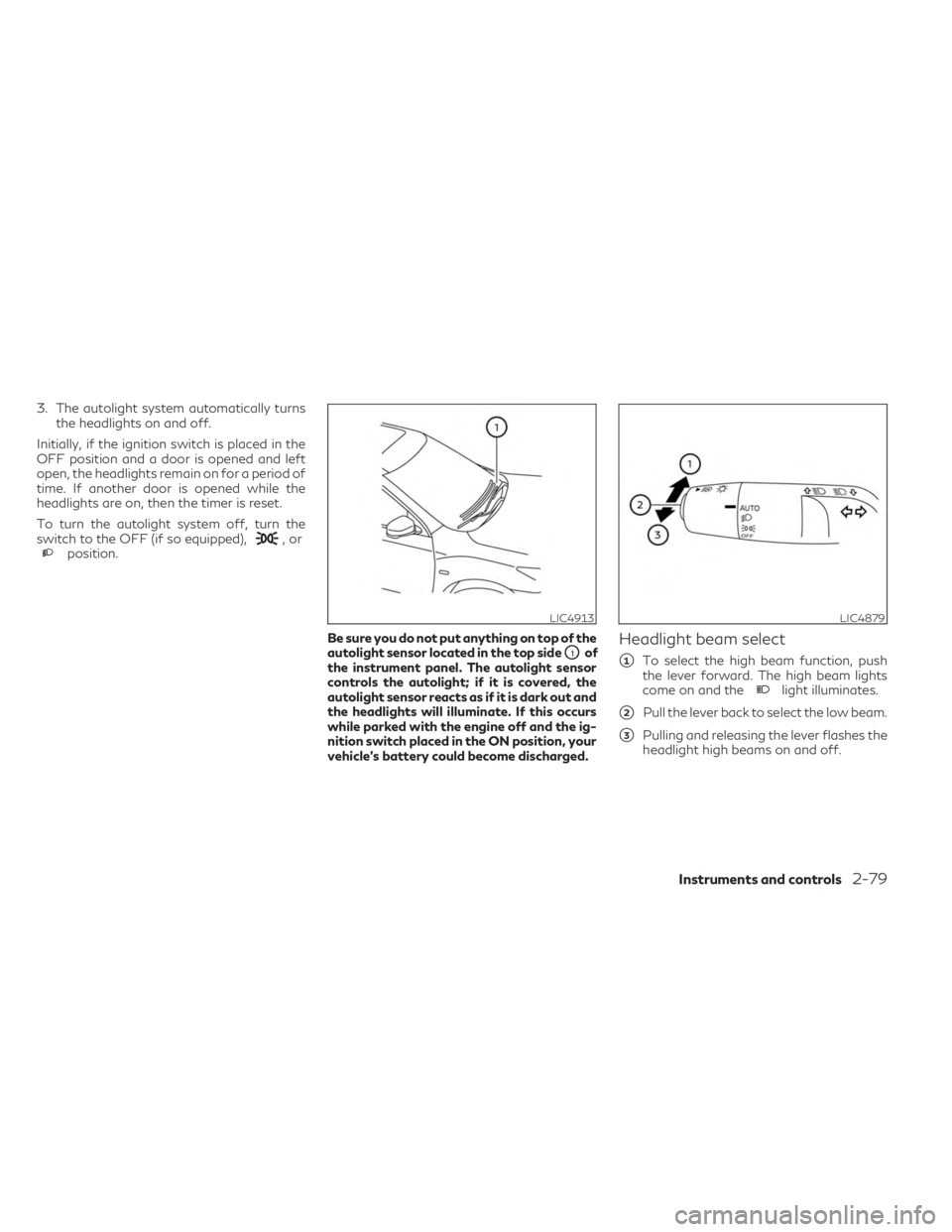

3. The autolight system automatically turnsthe headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, turn the
switch to the OFF (if so equipped),
,orposition.
Be sure you do not put anything on top of the
autolight sensor located in the top side
O1of
the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle's battery could become discharged.Headlight beam select
1To select the high beam function, push
the lever forward. The high beam lights
come on and the
light illuminates.
2Pull the lever back to select the low beam.
3Pulling and releasing the lever flashes the
headlight high beams on and off.
LIC4913LIC4879
Instruments and controls2-79

High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion and push the switch as illustrated with
the engine running. The
High Beam
Assist indicator light in the meter will illumi-
nate while the headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is rec-
ommended that you visit an INFINITI retailer
for this service. When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system,
push the switch again..
Ambient image sensor maintenance
The ambient image sensorOAfor the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the high beam assist system and pre-
vent a system malfunction, be sure to ob-
serve the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar- ent material) or install an accessory near
the ambient image sensor.
• Do not strike or damage the areas around the ambient image sensor. Do not touch the
sensor lens that is located on the ambient
image sensor.
LIC4885LIC4690
Instruments and controls2-81

If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
If the ignition switch is placed in the OFF
position while the headlight switch is in the
orposition, the headlights will turn
off after a period of time.
NOTE:
The Battery Saver system may be disabled.
For additional information, see “Vehicle in-
formation display-7 inch (18 cm) Type A”
(P. 2-22) or “Vehicle information display-
12.3 inch (31 cm) Type B” (P. 2-44).
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Adaptive Front lighting System
(AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is on and the driver operates the steer-
ing wheel in a turn, the AFS system will be
activated.
The AFS will operate:
• when the headlight switch is on.
• when the vehicle is driven at above 16 mph (25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 mph (25 km/h) before AFS
activates the left-side headlight.
If the AFS OFF indicator blinks or the vehicle
information display shows an AFS system
error message after the ignition switch has
been pushed to the ON position, this may
indicate that the AFS is not functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. When the engine is started, the head-
lights will vibrate to check the system condi-
tion. This is not a malfunction.
Automatic headlight aiming control
(if so equipped)
Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically.
Automatic headlight aiming control will also
adjust the headlight to a proper axis auto-
matically, depending on the number of occu-
pants in the vehicle, the load the vehicle is
carrying and the road conditions.
INFINITI recommends that you consult the
local regulations on the use of lights.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
2-82Instruments and controls

If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is nec-
essary at dusk to turn on your headlights.
Failure to do so could cause an accident
injuring yourself and others.
INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” button to increase the bright-
ness of instrument panel lights.
Press the “-” button to decrease the bright-
ness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels
automatically.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, to signal a lane change. Hold
the lever until the lane change is
completed.
LIC4691LIC4880
Instruments and controls2-83

CAUTION
• The battery could run down if the climate
control seat is operated while the engine
is not running.
• Do not use the climate control seat for
extended periods or when no one is using
the seat.
• Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
• Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
• Any liquid spilled on the seat should be
removed immediately with a dry cloth
• When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.
• If any malfunctions are found or the cli-
mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you
visit an INFINITI retailer for this service. The climate controlled seats cool down the
front seats by ventilating air into the seats.
The climate control switch is located by the
air conditioning controls.
The climate controlled seat can be operated
as follows:
1. Start the engine.
2. Press the switch to adjust the desired in-
tensity. The indicator light on the switch
will illuminate.
3. When the vehicle's interior is cooled, or before you leave the vehicle, be sure to
press the switch to turn off the climate
controlled seats. The indicator light on the
switch will turn off.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.
LIC4815
HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-85
