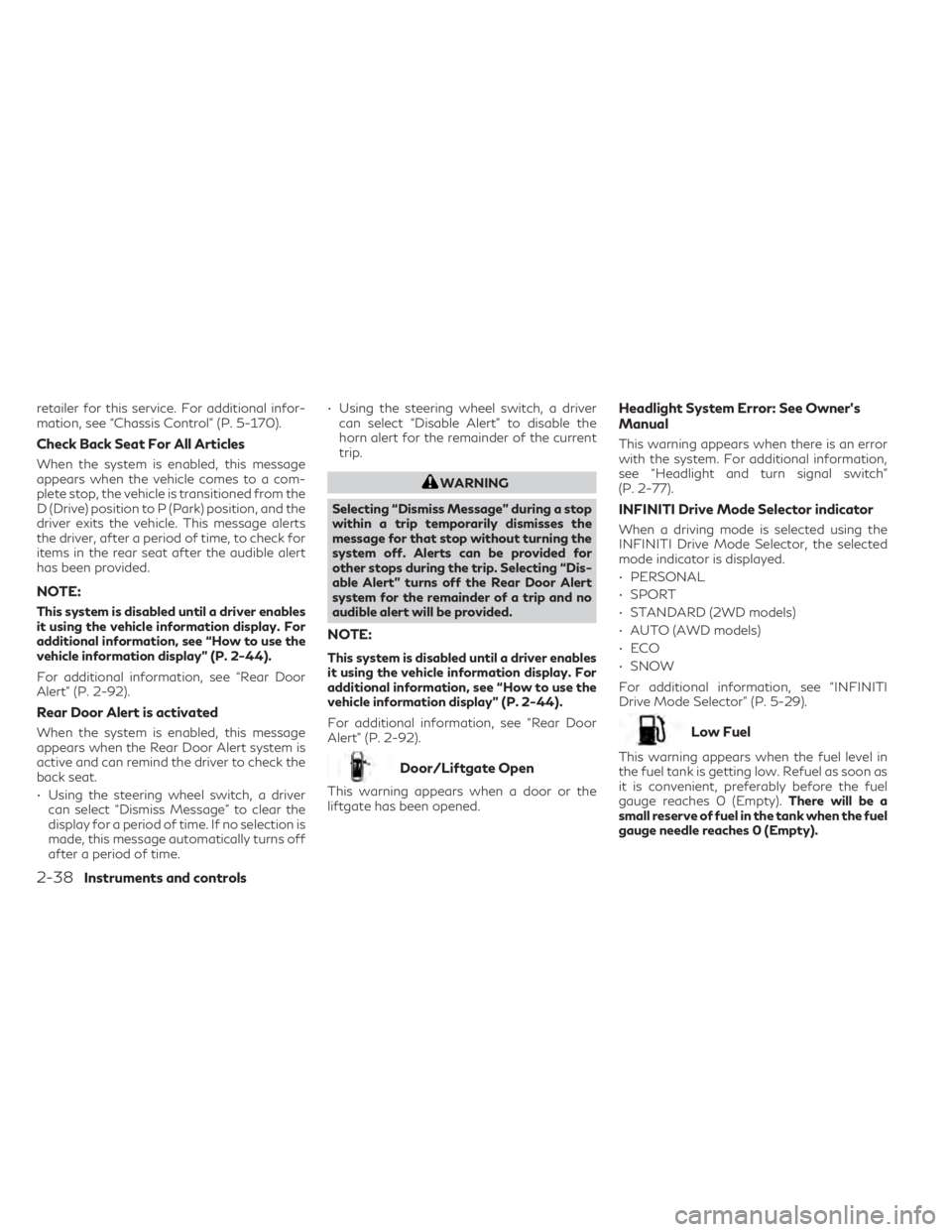

retailer for this service. For additional infor-
mation, see “Chassis Control” (P. 5-170).
Check Back Seat For All Articles
When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from the
D (Drive) position to P (Park) position, and the
driver exits the vehicle. This message alerts
the driver, after a period of time, to check for
items in the rear seat after the audible alert
has been provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, see “How to use the
vehicle information display” (P. 2-44).
For additional information, see “Rear Door
Alert” (P. 2-92).
Rear Door Alert is activated
When the system is enabled, this message
appears when the Rear Door Alert system is
active and can remind the driver to check the
back seat.
• Using the steering wheel switch, a drivercan select “Dismiss Message” to clear the
display for a period of time. If no selection is
made, this message automatically turns off
after a period of time. • Using the steering wheel switch, a driver
can select “Disable Alert” to disable the
horn alert for the remainder of the current
trip.
WARNING
Selecting “Dismiss Message” during a stop
within a trip temporarily dismisses the
message for that stop without turning the
system off. Alerts can be provided for
other stops during the trip. Selecting “Dis-
able Alert” turns off the Rear Door Alert
system for the remainder of a trip and no
audible alert will be provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, see “How to use the
vehicle information display” (P. 2-44).
For additional information, see “Rear Door
Alert” (P. 2-92).
Door/Liftgate Open
This warning appears when a door or the
liftgate has been opened.
Headlight System Error: See Owner’s
Manual
This warning appears when there is an error
with the system. For additional information,
see “Headlight and turn signal switch”
(P. 2-77).
INFINITI Drive Mode Selector indicator
When a driving mode is selected using the
INFINITI Drive Mode Selector, the selected
mode indicator is displayed.
• PERSONAL
• SPORT
• STANDARD (2WD models)
• AUTO (AWD models)
• ECO
• SNOW
For additional information, see “INFINITI
Drive Mode Selector” (P. 5-29).
Low Fuel
This warning appears when the fuel level in
the fuel tank is getting low. Refuel as soon as
it is convenient, preferably before the fuel
gauge reaches 0 (Empty). There will be a
small reserve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty).
2-38Instruments and controls

Low Oil Pressure: See
Owner’s Manual
This warning appears in the message area of
the vehicle information display if low oil pres-
sure is detected. This gauge is not designed
to indicate low oil level.The low oil pressure
warning is not designed to indicate a low oil
level. Use the dipstick to check the oil level.
For additional information, see “Engine oil”
(P. 8-6).
Low Outside Temperature
This warning appears if the outside tempera-
ture is below 37°F (3°C). The temperature
can be changed to display in Celsius or Fahr-
enheit. For additional information, see “Driver
Assistance” (P. 2-28).
Low Washer Fluid
This warning appears when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional in-
formation, see “Windshield-washer fluid”
(P. 8-11).
Neutral Hold Mode activated indicator
This indicator appears when the Neutral hold
mode is activated. To exit the Neutral hold
mode, place the vehicle in any other shift
position other than N (Neutral). For addi-
tional information, see “Neutral hold mode
function” (P. 5-21).
Neutral Hold Mode guidance indicator
This indicator appears after approximately
5 seconds when the shift position is in the N
(Neutral) position (Neutral hold mode is avail-
able). For additional information, see “Neu-
tral hold mode function” (P. 5-21).
Neutral Hold Mode was not activated
indicator
This indicator appears when the Neutral hold
mode is unavailable. To activate the Neutral
hold mode, wait for a while without shifting
and then perform the operations again. For
additional information, see “Neutral hold
mode function” (P. 5-21).
Parking Sensor Error: See Owner’s
Manual
This warning appears when there is an error
with the system. For additional information,
see “Front and rear sonar system” (P. 5-172).
Power will turn off to save the battery
This message appears in the vehicle informa-
tion display after a period of time if the igni-
tion switch is in the ON position and if the
vehicle is in P (Park). For additional informa-
tion, see “Push-button ignition switch posi-
tions” (P. 5-14).
Power turned off to save the battery
This message appears after the ignition
switch is automatically turned off. For addi-
tional information, see “Push-button ignition
switch positions” (P. 5-14).
Press brake pedal to prevent
rolling
This warning appears in the following situa-
tions:
• The driver tries to release the electronic parking brake manually without depressing
the brake pedal.
• The vehicle is stopped on a steep hill and there is a possibility of moving backward,
even if the electronic parking brake is
applied.
• This warning appears and chime sounds if the vehicle moves while the automatic
brake hold function is activated. Apply the
foot brake to stop the vehicle moving.
Instruments and controls2-39

Press brake to operate switch
This indicator appears if the automatic brake
hold switch is pushed without depressing the
brake pedal while the automatic brake hold
function is activated. Depress the brake pedal
and push the switch to deactivate the auto-
matic brake hold function.
For additional information, see “Automatic
brake hold” (P. 5-27).
Push brake and start switch
to drive
This indicator appears when the shift position
is in the P (Park) position.
This indicator also appears when the vehicle
has been started using the Remote Engine
Start (if so equipped) function.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
from any position of the ignition switch.
Rear seat belt reminder
This rear seat belt reminder appears after
placing the ignition switch in the ON position.If any of the rear passenger seat belts are not
fastened, the seat belt icon illuminates in red
to show which seat belt is not fastened.
When a rear passenger’s seat belt has been
securely fastened, the color of the corre-
sponding seat belt icon will change. The
warning will automatically turn off after ap-
proximately 65 seconds.
After the initial reminder is turned off (by 65
second timer or dismissing the warning in
vehicle information display) and the vehicle
speed is less than 10 mph (15 km/h), if any
rear seat belt is unfastened, the rear seat belt
reminder will display. The warning will auto-
matically turn off after approximately 95
seconds.
After the initial reminder is turned off (by 65
second timer or dismissing the warning in
vehicle information display) and the vehicle
speed is greater than 10 mph (15 km/h), if
any rear seat belt is unfastened, the rear seat
belt reminder will display and a warning
chime will sound every two seconds until the
corresponding seat belt is fastened. The
chime will automatically turn off after ap-
proximately 95 seconds. The rear seat belt
reminder will be displayed until it is dismissed
in the vehicle information display.
Reminder: Turn OFF
headlights
This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the OFF
or AUTO position. For additional informa-
tion, see “Headlight and turn signal switch”
(P. 2-77).
Shipping Mode On Push Storage Fuse
This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-
tional information, see “Extended storage
switch” (P. 2-99).
Steep Slope Apply foot brake
This indicator appears, and chime sounds if
the “Caution Steep slope” has appeared over
about 3 minutes. Then the parking brake will
automatically be applied and the brake force
of the automatic brake hold will be released,
and the vehicle may move or roll away unex-
pectedly. Apply the foot brake to stop the
vehicle moving.
For additional information, see “Automatic
brake hold” (P. 5-27).
2-40Instruments and controls

Timer Alert — Have a break?
This indicator appears when the set time is
reached. The time can be set up to six hours.
For additional information, see “Driver Assis-
tance” (P. 2-28).
Tire Pressure Low - Add Air
This warning appears when the low tire pres-
sure warning light in the meter illuminates
and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long as
the low tire pressure warning light remains
illuminated. If this warning appears, stop the
vehicle and adjust the tire pressures of all four
tires to the recommended COLD tire pres-
sure shown on the Tire and Loading Informa-
tion label. For additional information, see
“Low tire pressure warning light” (P. 2-18)
and “Tire Pressure Monitoring System
(TPMS)” (P. 5-5).
TPMS Error: See Owner’s Manual
This warning appears when there is an error
with your TPMS. If this warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Transmission Shift Position
indicator
This indicator shows the transmission shift
position.
When parked apply parking
brake
This message appears when a malfunction
occurs in the electric shift control system be-
low 6 mph (10 km/h).
Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
AWD Error: See Owner’s Manual
This warning appears when the Intelligent
All-Wheel Drive (AWD) system is not func-
tioning properly while the engine is running.
Reduce vehicle speed and have your vehicle
checked by an INFINITI retailer as soon as
possible. For additional information, see “In-
telligent All-Wheel Drive (AWD)” (P. 5-161).
AWD High Temp. Stop Vehicle
This warning appears when the oil tempera-
ture of the powertrain parts will increase due
to the difference in rotation between the
front and rear wheels is large (wheel slip),
such as when driving the vehicle on rough
roads, through sand or mud, or freeing a
stuck vehicle. If this warning is displayed, stopthe vehicle with the engine idling, as soon as it
is safe to do so. In these cases, the AWD
changes to 2WD to protect the powertrain
parts. Then if the warning turns off, you can
continue AWD driving.
Tire Size Incorrect: See Owner’s Manual
This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes, brand, construction and
tread patterns are the same, that the tire
pressure is correct and that the tires are not
excessively worn. If you have any problems,
please change tires or adjust to the correct
tire pressure. Do not select the SNOW mode
with the INFINITI Drive Mode Selector and
do not drive fast. For additional information,
see “Intelligent All-Wheel Drive (AWD)”
(P. 5-161).
Forward Emergency Braking
(FEB) with Pedestrian
Detection emergency warning
indicator
This indicator appears along, with an audible
warning, when the system detects the possi-
bility of a forward collision.
Instruments and controls2-41

2. Drive Computer
Average fuel consumption:
The average fuel consumption shows the av-
erage fuel consumption since the last reset.
Average speed:
The average speed shows the average ve-
hicle speed since the last reset.
Trip odometer:
The trip odometer shows the total distance
the vehicle has been driven since the last
reset.
Elapsed time:
The elapsed time shows the time since the
last reset.
The Drive computer mode has three modes
of operation. You can switch between
Manual Reset1, Manual Reset2 or Auto Re-
fuel by pushing the scroll dial.
Manual Reset1 can be reset manually by us-
ing the scroll dial.
Manual Reset2 (if so equipped) can be reset
manually by using the scroll dial or will be
reset automatically each time the ignition
switch is placed in the OFF position.
Auto Refuel will be reset automatically each
time when refueling.
3. Fuel economy display
Current fuel consumption:
The Fuel economy display mode shows the
current fuel consumption.
Average fuel consumption:
The Fuel economy display mode shows the
average fuel consumption since the last reset.
The Fuel economy display mode has three
modes of operation. You can switch between
Manual Reset1, Manual Reset2 or Auto Re-
fuel by pushing the scroll dial.
Manual Reset1 can be reset manually by us-
ing the scroll dial.
Manual Reset2 (if so equipped) can be reset
manually by using the scroll dial or will be
reset automatically each time the ignition
switch is placed in the OFF position.
Auto Refuel will be reset automatically each
time when refueling.
4. Eco Pedal Guide
When the ECO mode is selected, you can
view ECO Pedal Guide function for improv-
ing fuel economy.
The ECO Pedal Guide mode has three modes
of operation. You can switch betweenManual Reset1, Manual Reset2 or Auto Re-
fuel by pushing the scroll dial.
Manual Reset1 can be reset manually by us-
ing the scroll dial.
Manual Reset2 (if so equipped) can be reset
manually by using the scroll dial or will be
reset automatically each time the ignition
switch is placed in the OFF position.
Auto Refuel will be reset automatically each
time when refueling.
For additional information, see “ECO Mode”
(P. 5-32).
5. Tire Pressures
The tire pressure mode shows the pressure of
all four tires while the vehicle is driven.
With the “Tire Pres ECO advice” function ON,
when the tire pressure is getting low, “Check
Tire Pressures for Best Fuel Economy” or
“Add air for Best Fuel Economy” appears. For
additional information, see “ECO Mode Set-
ting” (P. 2-54) or “Tire Pres ECO advice”
(P. 2-54).
When the “Tire Pressure Low — Add Air”
warning appears, the display can be switched
to the tire pressure mode by pushing the
scroll dial to reveal additional details on the
displayed warning.
Instruments and controls2-47

6. Intelligent All-Wheel Drive
(AWD) torque distribution display
(if so equipped)
When the Intelligent AWD torque distribution
display is selected, you can view the distribu-
tion ratio of the transmission torque to the
front and rear wheels during driving.
7. Compass (if so equipped)
This display indicates the direction the vehicle
is heading.
8. Navigation (if so equipped)
When the route guidance is set in the naviga-
tion system, this item shows the navigation
route information.
9. Audio
The audio mode shows the status of audio
information.
10. Driver Assistance
The Driver Assistance mode shows the oper-
ating condition for the following systems:
• Forward–– Forward Emergency Braking (FEB) with Pedestrian Detection system –– Predictive Forward Collision Warning
(PFCW)
• Lane: –– Lane Departure Warning (LDW)
–– Lane Departure Prevention (LDP)
• Blind Spot: –– Blind Spot Warning (BSW)
–– Blind Spot Intervention® (BSI) (if so equipped)
For additional information, see “Blind Spot
Intervention® (BSI)” (P. 5-61), “Blind Spot
Warning (BSW)” (P. 5-49), “Lane Departure
Warning (LDW)” (P. 5-36), “Forward Emer-
gency Braking (FEB) with Pedestrian Detec-
tion” (P. 5-128), “Predictive Forward Collision
Warning (PFCW)” (P. 5-140) or “Lane Depar-
ture Prevention (LDP)” (P. 5-43).
11. ProPILOT Assist (if so
equipped)
The ProPILOT Assist mode shows operating
conditions for the following systems:
• Intelligent Cruise Control (ICC)
• Steering Assist
The display will also be shown when the Pro-
PILOT Assist is turned on. For additional in-
formation, see “ProPILOT Assist” (P. 5-84).
12. Traffic Sign Recognition (if so
equipped)
The Traffic Sign Recognition (TSR) system
provides the driver with information about
the most recently detected speed limit.
For additional information, see “Traffic Sign
Recognition (TSR) (P. 5-34).
13. Idling Stop System
The Idling Stop System provides the driver
with information about the amount of fuel
saved while using the system.
For additional information, see “Idling Stop
System” (P. 5-178).
2-48Instruments and controls

Display when
ignition is ONDisplay timing Action Required
Engine Oil Ser-
vice due in xxx
miles Remaining oil
life is less than
940 miles
(1500 km). Plan to have
your vehicle
serviced.
Engine Oil Ser-
vice due Remaining oil
life is 0 miles (0
km). Have your ve-
hicle serviced
within two
weeks or less
than 500 miles
(800 km).
The oil change interval cannot be adjusted
manually.
The distance to oil change interval is calcu-
lated depending on the driving conditions and
set automatically by the oil control system. A
reminder will be displayed when approaching
the end of the service interval.
When the Factory Reset option is selected in
the vehicle information display, the oil control
system will also be reset to initial value.
Please change the engine oil when Factory
Reset is selected.
CAUTION
If the oil replacement indicator is displayed,
change the engine oil within two weeks or
less than 500 miles (800 km).
Operating the vehicle with deteriorated oil
can damage the engine.
To reset oil control system:
1. Place the ignition switch in the ON position.
2. Push the
andbuttons located
on the steering wheel until “Settings” dis-
plays in the vehicle information display.
Use the scroll dial to select “Maintenance”.
Then, press the scroll dial.
3. Select “Service” and press the scroll dial.
4. Press the scroll dial according to the reset instructions displayed at the bottom of
the “Service” maintenance screen.
For additional information, see “Mainte-
nance” (P. 2-58).
SETTINGS
The setting mode allows you to change the
information displayed in the vehicle informa-
tion display:
• VDC Setting
• Driver Assistance
• Personal Display
• Head-Up Display (if so equipped)
• ECO Mode Setting
• TPMS Setting
• Clock
• Vehicle Settings
• Maintenance
• Customize Display
• Unit/Language
• Factory Reset
2-50Instruments and controls

ECO Mode Setting
The ECO mode setting menu allows the user to change the settings for the ECO mode.
Some menu items shown below may not be equipped on your vehicle.
Menu itemExplanation
ECO Customize Displays available ECO mode settings.
Cruise Control Allows user to turn the cruise control mode on or off. For additional information, see “Cruise Control” (P. 5-83).
Idling stop Allows user to turn the Idling Stop System (ISS) on or off. For additional information, see “Idling Stop System”
(P. 5-178).
Air Conditioning Allows user to turn the Air Conditioning mode on or off. For additional information, see “ECO Mode” (P. 5-32).
ECO Drive Assist Displays available ECO information settings.
ECO Indicator Allows user to turn the ECO indicator on or off.
ECO Drive Report Allows user to turn the ECO Drive Report on or off.
View History Displays the history report for the vehicle.
Tire Pres ECO advice Allows user to turn the tire pressure ECO advice on or off.
TPMS Setting
The TPMS settings menu allows the user to view or change the tire pressure units displayed in the vehicle information display.
Some menu items shown below may not be equipped on your vehicle.
Menu item Explanation
Tire Pressure Unit Allows user to select the tire pressure units that will display in the vehicle information display.
2-54Instruments and controls
