SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during winter:
• A scraper and stiff-bristled brush to re-move ice and snow from the windows and
wiper blades.
• A sturdy, flat board to be placed under the jack to give it firm support.
• A shovel to dig the vehicle out of snowdrifts.
• Extra washer fluid to refill the windshield- washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
• Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and very
hard to drive on. The vehicle will have
much less traction or “grip” under these
conditions. Try to avoid driving on wet
ice until the road is salted or sanded.
• Whatever the condition, drive with
caution. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction. •
Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
• Allow greater following distances on
slippery roads.
• Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.
• Do not use the cruise control on slippery
roads.
• Snow can trap dangerous exhaust gases
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.ACTIVE NOISE CANCELLATION
LSD2959
Front Microphone
ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT
5-154Starting and driving

CAUTION
• Continuously Variable Transmission
(CVT) models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.
• Do not push start this vehicle. The three-
way catalyst may be damaged.WARNING
• Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
• To avoid the danger of being scalded,
never remove the coolant reservoir cap
while the engine is still hot. When the
coolant reservoir cap is removed, pres-
surized hot water will spurt out, possibly
causing serious injury.
• Do not open the hood if steam is coming
out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading),
or if you feel a lack of engine power, detect
abnormal noise, etc. take the following steps.
1. Move the vehicle safely off the road, apply the parking brake.
2. Push the park button to shift to the P (Park) position.
Do not stop the engine.
3. Turn off the air conditioner. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the
engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-7

10. Start the engine and check for leakagearound the drain plug and the oil filter.
Correct as required. Turn the engine off
and wait more than 15 minutes. Check
the oil level with the dipstick. Add engine
oil if necessary.
After the operation
1. Reinstall engine protectors in reverse or-der of removal.
2. Lower the vehicle carefully to the ground.
3. Reset the oil control system. For addi- tional information, see “Oil control sys-
tem” (P. 2-24)
• Dispose of waste oil and filter properly.
• Check your local regulations.
CAUTION
• INFINITI recommends using Genuine
NISSAN CVT Fluid NS-3 (or equivalent)
ONLY in INFINITI CVTs. Do not mix with
other fluids.
• Do not use Automatic Transmission
Fluid (ATF) or manual transmission fluid
in an INFINITI CVT, as it may damage the
CVT. Damage caused by the use of fluids
other than as recommended is not cov-
ered under INFINITI's New Vehicle Lim-
ited Warranty outlined in your Warranty
Information Booklet.
• Using fluids that are not equivalent to
Genuine NISSAN CVT Fluid NS-3 may
also damage the CVT. Damage caused by
the use of fluids other than as recom-
mended is not covered under INFINITI's
New Vehicle Limited Warranty outlined
in your Warranty Information Booklet.
When checking or replacement of CVT fluid is
required, it is recommended that you visit an
INFINITI retailer for this service.
WARNING
• Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the brake system. The
use of improper fluids can damage the
brake system and affect the vehicle's
stopping ability.
• Clean the filler cap before removing.
• Brake fluid is poisonous and should be
stored carefully in marked containers
out of reach of children.
LDI3161
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID BRAKE FLUID
8-10Do-it-yourself

WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.
If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.
WARNING
• Operating the engine with the air cleaner
filter off can cause you or others to be
burned. The air cleaner filter not only
cleans the intake air, it also stops the
flame if the engine backfires. If the air
cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when the
air cleaner is off. •
Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result in
serious injury.
To remove the filter from the air cleaner, push
the clips
OAand pull the cover upward.
The viscous paper type filter element should
not be cleaned and reused. Replace it accord-
ing to the maintenance log shown in the
“Maintenance and schedules” section of this
manual.
When replacing the air filter, wipe the inside
of the air cleaner housing and the cover with
a damp cloth.
NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is seated in
the housing and latch the clips
OA.
LDI3165
AIR CLEANER
8-16Do-it-yourself

• Determine the overall height of the vehicleand trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of
the vehicle's behavior, you should practice
turning, stopping and backing up in an area
which is free from traffic. Steering stability
and braking performance will be some-
what different than under normal driving
conditions.
• Always secure items in the trailer to preventload shift while driving.
• Lock the trailer hitch coupler with a pin or lock to prevent the coupler from inadver-
tently becoming unlatched.
• Avoid abrupt starts, acceleration or stops.
• Avoid sharp turns or lane changes.
• Always drive your vehicle at a moderate speed.
• When backing up, hold the bottom of the steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up. Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift position to the P
(Park) position before blocking the wheels
and applying the parking brake, transmis-
sion damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the down- hill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park).
6. Turn off the engine.
To drive away:
1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake. 5. Drive slowly until the vehicle and trailer
are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
• While going downhill, the weight of the trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as
frequently.
• If the engine coolant temperature rises to a high temperature, see “If your vehicle over-
heats” (P. 6-7).
• Trailer towing requires more fuel than nor- mal circumstances.
• Avoid towing a trailer for your vehicle's first 500 miles (805 km).
•
For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h).
10-30Technical and consumer information

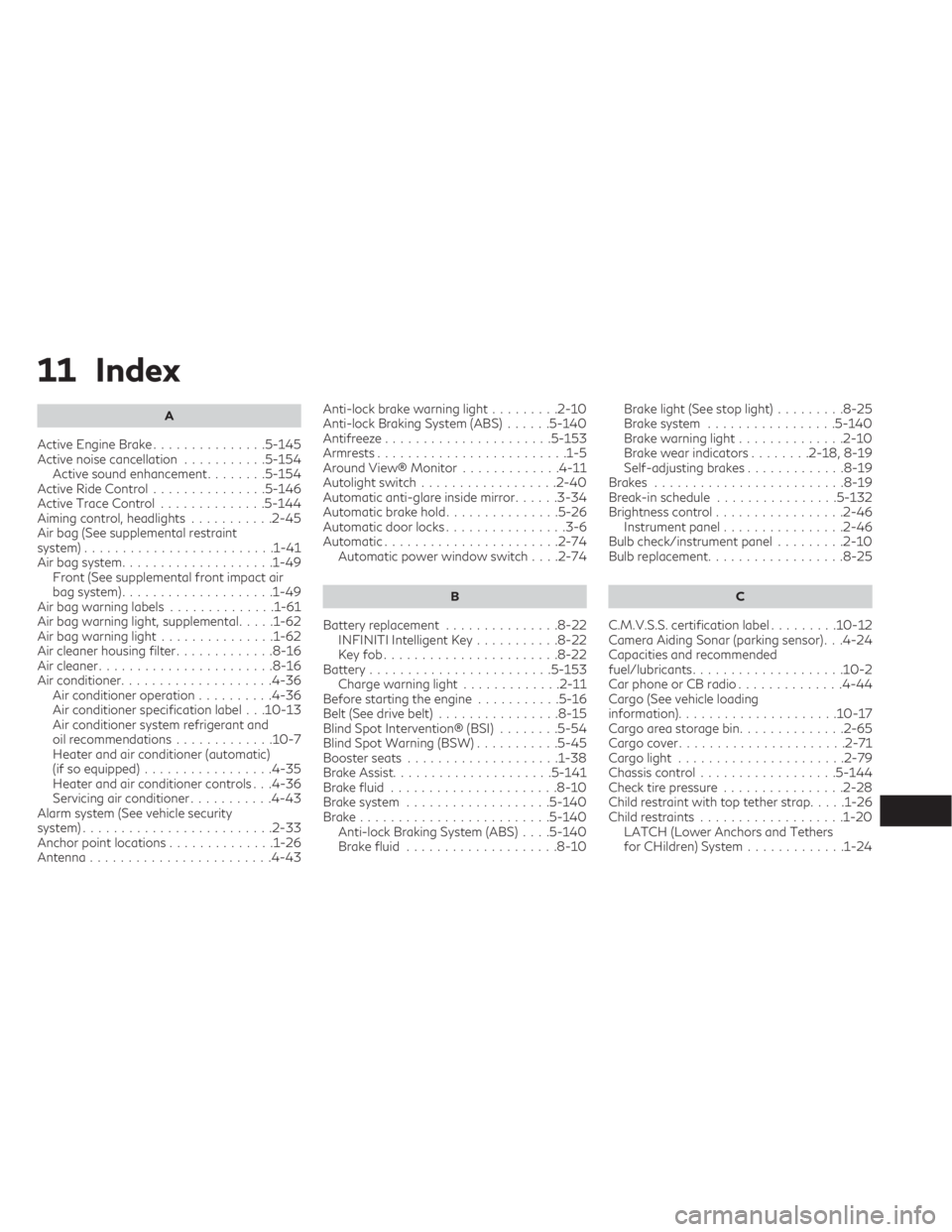

11 Index
A
Active Engine Brake...............5-145
Activenoisecancellation ...........5-154 Active sound enhancement ........5-154
ActiveRideControl...............5-146
ActiveTraceControl ..............5-144
Aiming control, headlights ...........2-45
Air bag (See supplemental restraint
system).........................1-41
Air bag system ....................1-49
Front (See supplemental front impact air
bagsystem)....................1-49
Air bag warning labels ..............1-61
Air bag warning light, supplemental .....1-62
Airbagwarninglight...............1-62
Air cleaner housing filter .............8-16
Air cleaner .......................8-16
Air conditioner ....................4-36
Air conditioner operation ..........4-36
Air conditioner specification label . . .10-13
Air conditioner system refrigerant and
oil recommendations .............10-7
Heater and air conditioner (automatic)
(if so equipped) .................4-35
Heater and air conditioner controls . . .4-36
Servicing air conditioner ...........4-43
Alarm system (See vehicle security
system).........................2-33
Anchor point locations ..............1-26
Antenna ........................4-43 Anti-lock brake warning ligh
t.........2-10
Anti-lock Braking System (ABS) ......5-140
Antifreeze ......................5-153
Armrests.........................1-5
Around View® Monitor .............4-11
Autolightswitch..................2-40
Automatic anti-glare inside mirror ......3-34
Automaticbrakehold...............5-26
Automatic door locks ................3-6
Automatic.......................2-74 Automatic power window switch ....2-74
B
Battery replacement...............8-22
INFINITI Intelligent Key ...........8-22
Keyfob.......................8-22
Battery........................5-153 Charge warning light .............2-11
Before starting the engine ...........5-16
Belt (See drive belt) ................8-15
Blind Spot Intervention® (BSI) ........5-54
Blind Spot Warning (BSW) ...........5-45
Boosterseats ....................1-38
Brake Assist .....................5-141
Brakefluid ......................8-10
Brakesystem ...................5-140
Brake.........................5-140 Anti-lock Braking System (ABS) ....5-140
Brakefluid ....................8-10 Brakelight(Seestoplight).........
8-25
Brake system .................5-140
Brakewarninglight..............2-10
Brake wear indicators ........2-18,8-19
Self-adjusting brakes .............8-19
Brakes .........................8-19
Break-in schedule ................5-132
Brightnesscontrol.................2-46 Instrument panel ................2-46
Bulb check/instrument panel .........2-10
Bulb replacement .................. 8-25
C
C.M.V.S.S. certification label .........10-12
Camera Aiding Sonar (parking sensor) . . .4-24
Capacities and recommended
fuel/lubricants....................10-2
Car phone or CB radio ..............4-44
Cargo (See vehicle loading
information).....................10-17
Cargoareastoragebin.............. 2-65
Cargocover...................... 2-71
Cargolight ......................2-79
Chassis control ..................5-144
Check tire pressure ................ 2-28
Child restraint with top tether strap .....1-26
Child restraints ...................1-20
LATCH (Lower Anchors and Tethers
forCHildren)System.............1-24

J
Jump starting......................6-5
K
Key fob battery replacement ..........8-22
Key .............................3-2
Keylessentry .....................3-13 With Intelligent Key system
(See Intelligent Key system) .........3-13
L
Label..........................10-13
Tire and Loading Information label . . .10-13
Labels .........................10-13
Air conditioner specification label ....10-13
C.M.V.S.S. certification label .......10-12
Emission control information label . . .10-12
Engine serial number .............10-12
F.M.V.S.S. certification label ........10-12
Tire and Loading Information label . . .10-13
Vehicle identification number (VIN)
plate.........................10-11
Vehicle identification number (VIN) . . .10-11
Warning labels (for SRS) ...........1-61
Lane Departure Prevention (LDP) ......5-40
Lane Departure Warning (LDW) ........5-35
LATCH (Lower Anchors and Tethers for
CHildren)System ..................1-24 LED Daytime Running Lights (DRL)
system..........................2-45
License plate
....................10-14
Installing the license plate .........10-14
Liftgaterelease....................3-27
Liftgate.........................3-22
Light ...........................1-62 Airbagwarninglight .........1-62,2-13
Brakelight(Seestoplight)..........8-25
Bulb check/instrument panel ........2-10
Bulb replacement ................8-25
Charge warning light ..............2-11
Console light ....................2-78
ExteriorandInteriorlights..........8-25
Foglightswitch .................2-47
Foglights......................8-24
Headlight and turn signal switch .....2-40
Headlights.....................8-24
Interiorlight....................2-78
Lightbulbs.....................8-24
Low tire pressure warning light ......2-14
Low windshield-washer fluid warning
light..........................2-26
Personal lights ..................2-79
Security indicator light .............2-13
Warning/indicator lights and audible
reminders ..................2-9,2-10
Lights ..........................8-24 Maplights .....................2-79
Lock ............................3-6
Child safety rear door lock ...........3-6
Door locks ......................3-4
Gloveboxlock ..................2-62 Liftgaterelease..................3-27
Power door locks
.................3-5
Loose fuel cap warning ..............2-26
Lowfuelwarninglight...............2-12
Low tire pressure warning light ........2-14
Low windshield-washer fluid warning
light............................ 2-26
Luggage (See vehicle loading
information)..................... 10-17
Luggage hook ..................... 2-65
Luggage rack (see roof rack) ..........2-66
M
Maintenance requirements............9-2
Maintenance schedules ...............9-7
Maintenance ......................9-2
General maintenance ...............9-2
Inside the vehicle ..................9-3
Maintenance precautions ...........8-2
Outside the vehicle ................9-2
Seat belt maintenance .............1-19
Under the hood and vehicle ..........9-4
Malfunction indicator light ............2-15
Maplights ....................... 2-79
Memoryseat .....................3-37
Meters and gauges ..................2-4
Instrument brightness control .......2-46
Mirror ..........................3-34
Automatic anti-glare inside mirror ....3-34
Heated mirrors .................. 3-36
Outside mirrors ..................3-35
Vanity mirror ...................3-33
11-4

Seat belt........................1-20
Childsafety ....................1-20
Infantsandsmallchildren ..........1-20
Injuredperson...................1-16
Largerchildren ..................1-21
Precautions on seat belt usage .......1-12
Pregnant women .................1-15
Seat belt extenders ...............1-19
Seat belt maintenance .............1-19
Seat belts ...................1-12,7-7
Three-pointtypewithretractor ......1-16
Seat ............................3-37
Memory seat ...............3-37,3-39
Seatback pockets ..................2-61
Seats/floormats....................7-6
Seats ............................1-2
Adjustment ......................1-2
Armrests........................1-5
Frontseats......................1-2
Heated seats ...................2-49
Rear bench seat ..................1-5
Security indicator light ...............2-13
Security system ...................2-34
(INFINITI vehicle immobilizer system),
engine start ............2-34,3-4,5-16
Security systems ...................2-33
Vehicle security system ............2-33
Self-adjusting brakes ................8-19
Service manual order form ...........10-37
Servicing air conditioner .............4-43
Spark plug replacement ..............8-15
Spark plugs .......................8-15
Specifications .....................10-9
Speedometer ......................2-4 SRS warning label
..................1-61
Stability control ...................5-142
Standard maintenance ...............9-9
Starting the engine .................5-16
Starting .........................5-16
Before starting the engine ..........5-16
Jump starting ...............6-5,8-14
Precautions when starting and
driving .....................5-4,5-10
Push starting ....................6-7
Starting the engine ...............5-16
Steering Assist switch (for vehicles with
ProPILOT Assist) ..................2-51
Steering wheel ....................3-31
Steering........................5-137 Power steering system ......5-137, 5-138
Stoplight........................8-25
Storagetray......................2-62
Storage .........................2-61
Sunvisors........................3-32
Sunglasses case ...................2-63
Sunglasses holder ..................2-63
Sunroof .........................2-75
Supplemental air bag warning labels .....1-61
Supplemental air bag warning light ......1-62
Supplemental front impact air bag
system..........................1-49
Supplemental restraint system
(Supplemental air bag system) .........1-41
Supplemental restraint system .........1-61
Information and warning labels ......1-61
Precautions on supplemental restraint
system ........................1-41 Switch
..........................2-40
Autolight switch .................
2-40
Automatic
power window switch .....2-74
Fog light switch .................2-47
Hazard warning flasher switch ........6-2
Headlight aiming control ...........2-45
Headlight and turn signal switch .....2-40
Instrument brightness control .......2-46
Power door lock switch .............3-5
Rear window wiper and washer
switches.......................2-38
Turn signal switch ................2-46
T
Tachometer.......................2-6
Temperature gauge ..................2-6
Engine coolant temperature gauge .....2-6
Theft ........................... 2-34
(INFINITI vehicle immobilizer system),
enginestart ............ 2-34, 3-4, 5-16
Three-way catalyst ..................5-4
Tire Pressure Monitoring System
(TPMS) ...........................5-5
Tirepressure......................2-14 Low tire pressure warning light ......2-14
Tire .............................6-3 Flat tire ........................6-3
Tire and Loading Information label . . .10-13
Tirechains.....................8-38
Tirepressure....................8-27
Tirerotation....................8-38
11-6
