Safety System3-46
Do Not Install a Child Restraint in the
Front Passenger’s Seat
1JBH3051
Even though your vehicle is equipped
with the OCS, never install a child
restraint in the front passenger’s seat.
An inflating air bag can forcefully strike a
child or child restraint resulting in serious
or fatal injury.
WARNING

[ NEVER place a rear-facing or front-
facing child restraint in the front
passenger’s seat of the vehicle.

[ An inflating frontal air bag could
forcefully strike a child resulting in
serious injury or death.

[ Always properly restrain children in
an appropriate child restraint in the
rear seat of the vehicle.
Why Didn’t My Air Bag Go Off in
a Collision?
Air bags are not designed to inflate in
every collision. There are certain types
of accidents in which the air bag would
not be expected to provide additional
protection. These include rear impacts,
second or third collisions in multiple
impact accidents, as well as low speed
impacts. Damage to the vehicle indicates
a collision energy absorption, and is not
an indicator of whether or not an air bag
should have inflated.
Air Bag Collision Sensors
WARNING
To reduce the risk of an air bag
deploying unexpectedly and causing
serious injury or death:

[Do not hit or allow any objects to
impact the locations where air bags
or sensors are installed.

[ Do not perform maintenance on or
around the air bag sensors. If the
location or angle of the sensors is
altered, the air bags may deploy
when they should not or may not
deploy when they should.

[ Do not install bumper guards or
replace the bumper with a non-
genuine HYUNDAI parts. This may
adversely affect the collision and air
bag deployment performance.

[ Place the ignition switch in the
LOCK/OFF or ACC position when the
vehicle is being towed to prevent
inadvertent air bag deployment.

[ Have all air bag repairs conducted by
an authorized HYUNDAI dealer.

03
3-51
Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON position
may cause the air bags to inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding Equipment to or Modifying
Your Air Bag equipped Vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
OQX039031N
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.

06
6-31

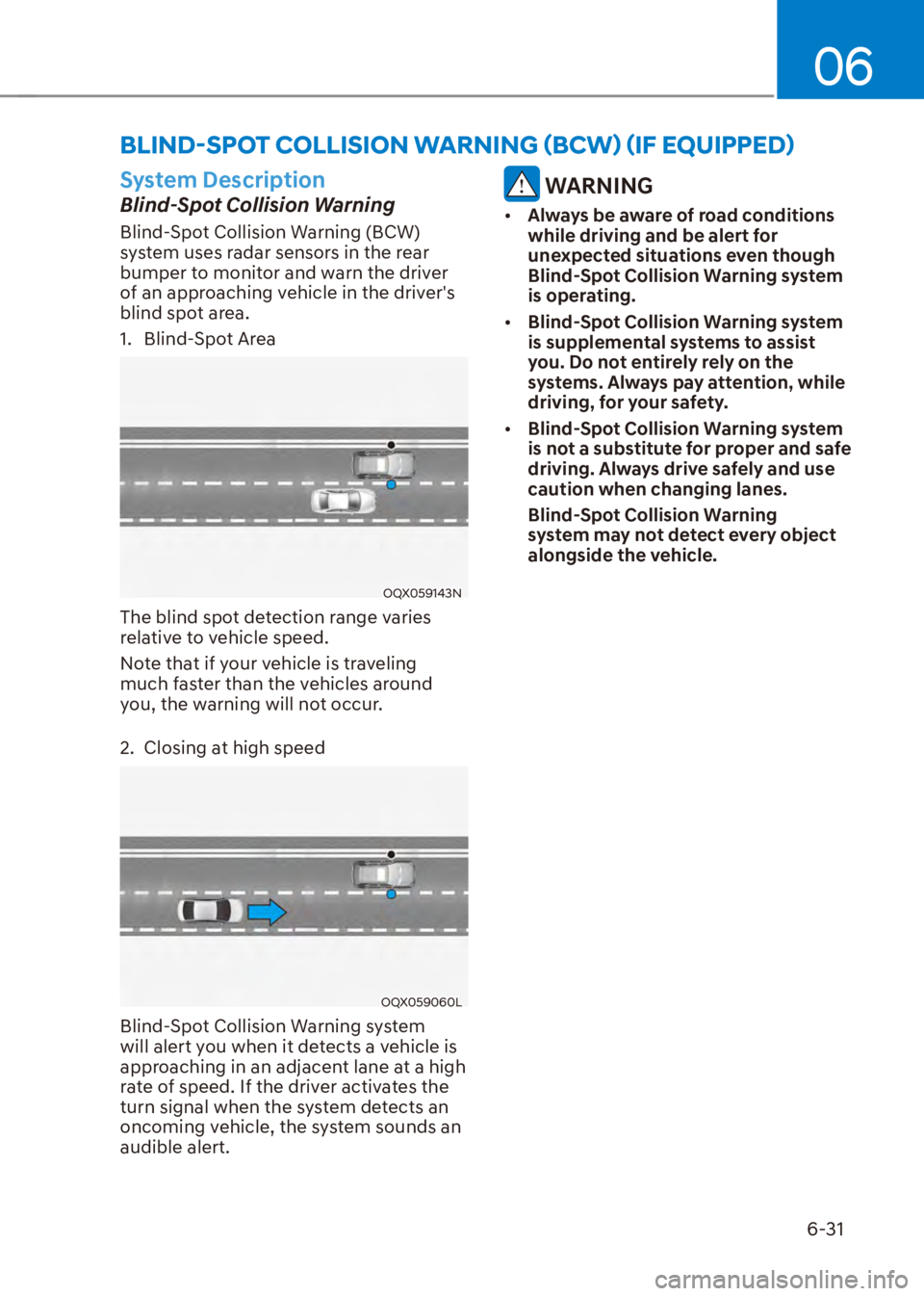

System Description
Blind-Spot Collision Warning
Blind-Spot Collision Warning (BCW)
system uses radar sensors in the rear
bumper to monitor and warn the driver
of an approaching vehicle in the driver's
blind spot area.
1. Blind-Spot Area
OQX059143N
The blind spot detection range varies
relative to vehicle speed.
Note that if your vehicle is traveling
much faster than the vehicles around
you, the warning will not occur.
2. Closing at high speed
OQX059060L
Blind-Spot Collision Warning system
will alert you when it detects a vehicle is
approaching in an adjacent lane at a high
rate of speed. If the driver activates the
turn signal when the system detects an
oncoming vehicle, the system sounds an
audible alert.
WARNING

[Always be aware of road conditions
while driving and be alert for
unexpected situations even though
Blind-Spot Collision Warning system
is operating.

[ Blind-Spot Collision Warning system
is supplemental systems to assist
you. Do not entirely rely on the
systems. Always pay attention, while
driving, for your safety.

[ Blind-Spot Collision Warning system
is not a substitute for proper and safe
driving. Always drive safely and use
caution when changing lanes.
Blind-Spot Collision Warning
system may not detect every object
alongside the vehicle.
%/,1'

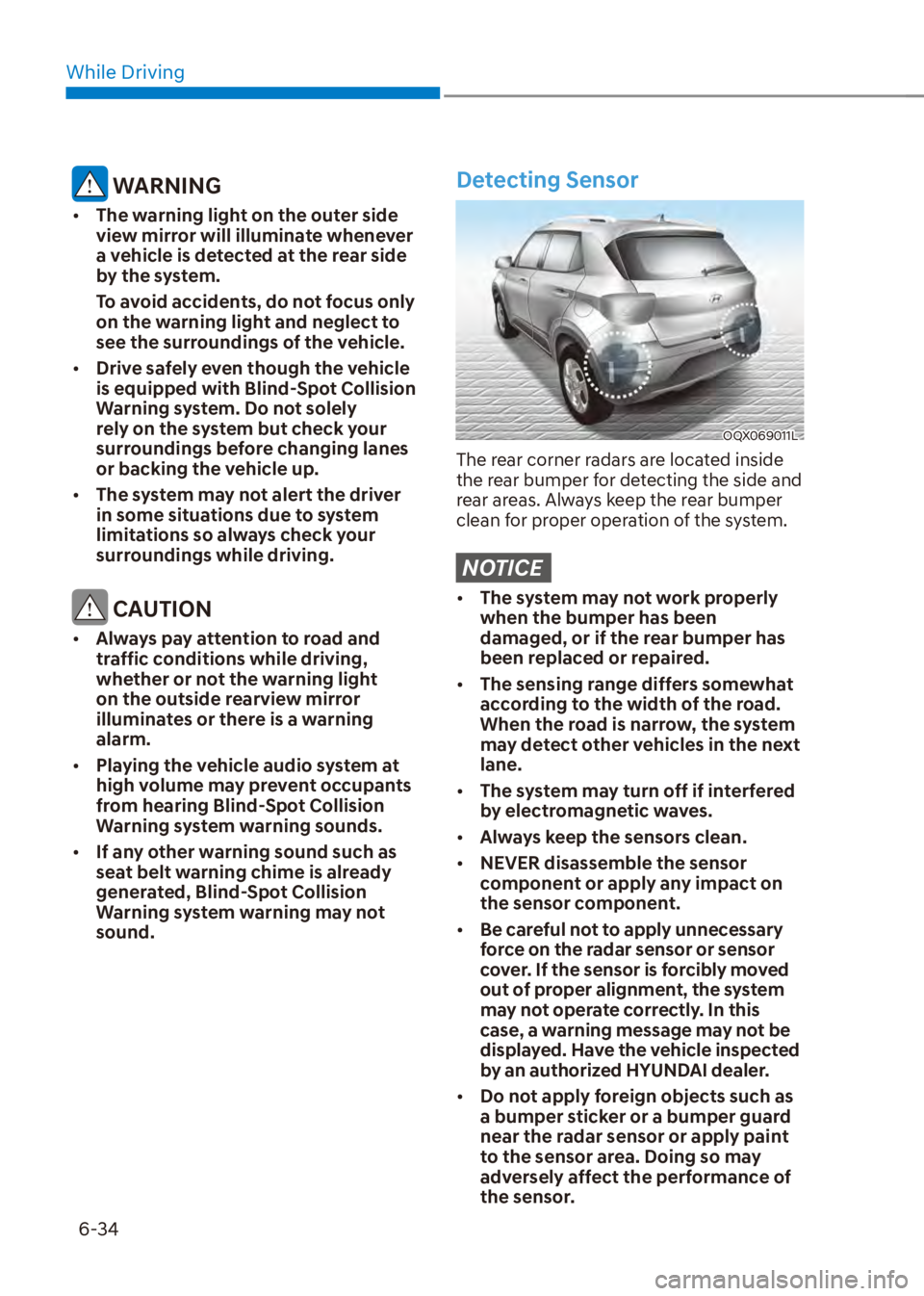

While Driving6-34
WARNING

[ The warning light on the outer side
view mirror will illuminate whenever
a vehicle is detected at the rear side
by the system.
To avoid accidents, do not focus only
on the warning light and neglect to
see the surroundings of the vehicle.

[ Drive safely even though the vehicle
is equipped with Blind-Spot Collision
Warning system. Do not solely
rely on the system but check your
surroundings before changing lanes
or backing the vehicle up.

[ The system may not alert the driver
in some situations due to system
limitations so always check your
surroundings while driving.
CAUTION

[Always pay attention to road and
traffic conditions while driving,
whether or not the warning light
on the outside rearview mirror
illuminates or there is a warning
alarm.

[ Playing the vehicle audio system at
high volume may prevent occupants
from hearing Blind-Spot Collision
Warning system warning sounds.

[ If any other warning sound such as
seat belt warning chime is already
generated, Blind-Spot Collision
Warning system warning may not
sound.
Detecting Sensor
OQX069011L
The rear corner radars are located inside
the rear bumper for detecting the side and
rear areas. Always keep the rear bumper
clean for proper operation of the system.
NOTICE

[The system may not work properly
when the bumper has been
damaged, or if the rear bumper has
been replaced or repaired.

[ The sensing range differs somewhat
according to the width of the road.
When the road is narrow, the system
may detect other vehicles in the next
lane.

[ The system may turn off if interfered
by electromagnetic waves.

[ Always keep the sensors clean.

[ NEVER disassemble the sensor
component or apply any impact on
the sensor component.

[ Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly moved
out of proper alignment, the system
may not operate correctly. In this
case, a warning message may not be
displayed. Have the vehicle inspected
by an authorized HYUNDAI dealer.

[ Do not apply foreign objects such as
a bumper sticker or a bumper guard
near the radar sensor or apply paint
to the sensor area. Doing so may
adversely affect the performance of
the sensor.

06
6-35

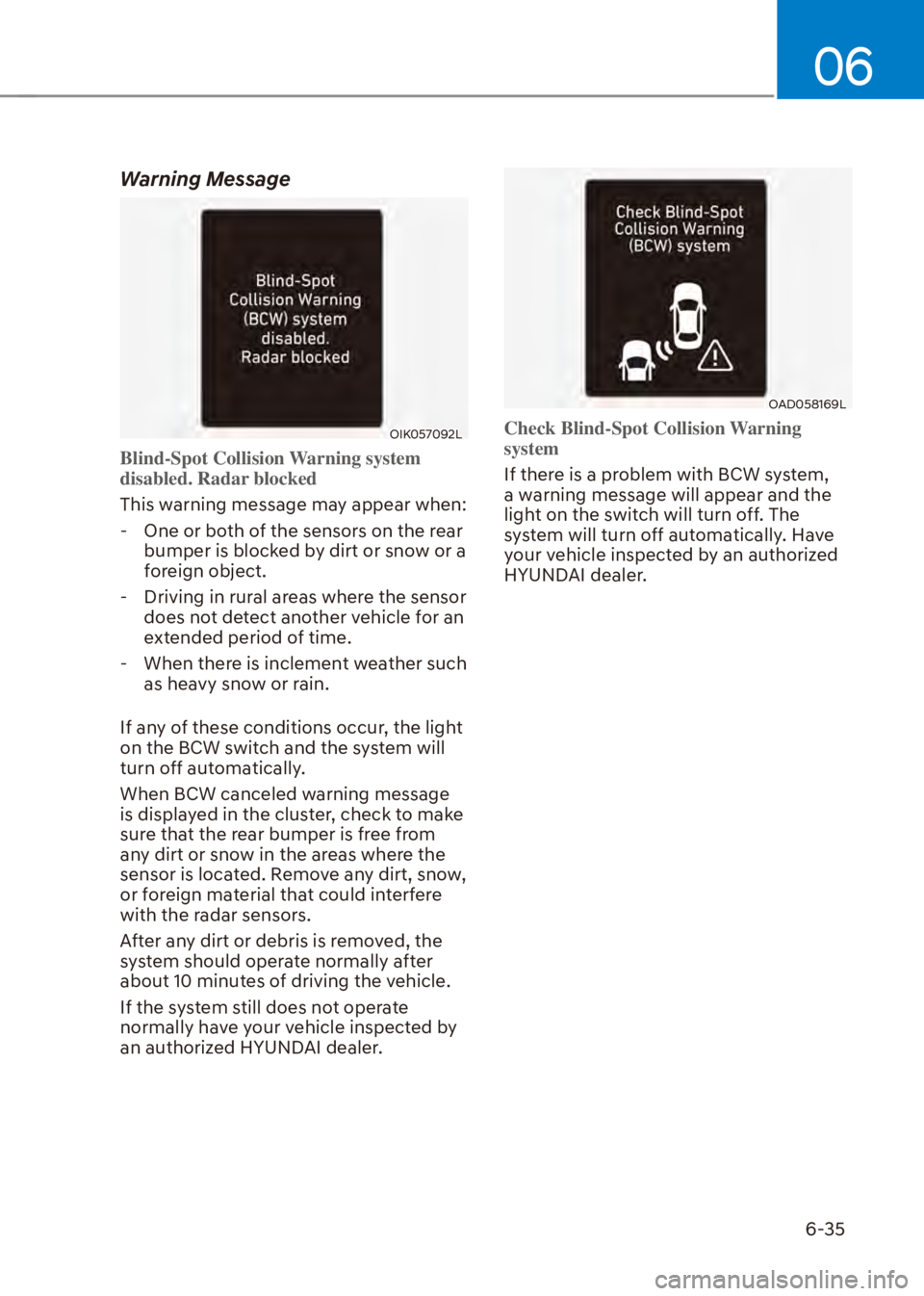

Warning Message
OIK057092L
Blind-Spot Collision Warning system
disabled. Radar blocked
This warning message may appear when: -
One or both of the sensors on the rear
bumper is blocked by dirt or snow or a
foreign object.
- Driving in rural areas where the sensor does not detect another vehicle for an
extended period of time.

- When there is inclement weather such
as heavy snow or rain.
If any of these conditions occur, the light
on the BCW switch and the system will
turn off automatically.
When BCW canceled warning message
is displayed in the cluster, check to make
sure that the rear bumper is free from
any dirt or snow in the areas where the
sensor is located. Remove any dirt, snow,
or foreign material that could interfere
with the radar sensors.
After any dirt or debris is removed, the
system should operate normally after
about 10 minutes of driving the vehicle.
If the system still does not operate
normally have your vehicle inspected by
an authorized HYUNDAI dealer.
OAD058169L
Check Blind-Spot Collision Warning
system
If there is a problem with BCW system,
a w
arning message will appear and the
light on the switch will turn off. The
system will turn off automatically. Have
your vehicle inspected by an authorized
HYUNDAI dealer.

While Driving6-36

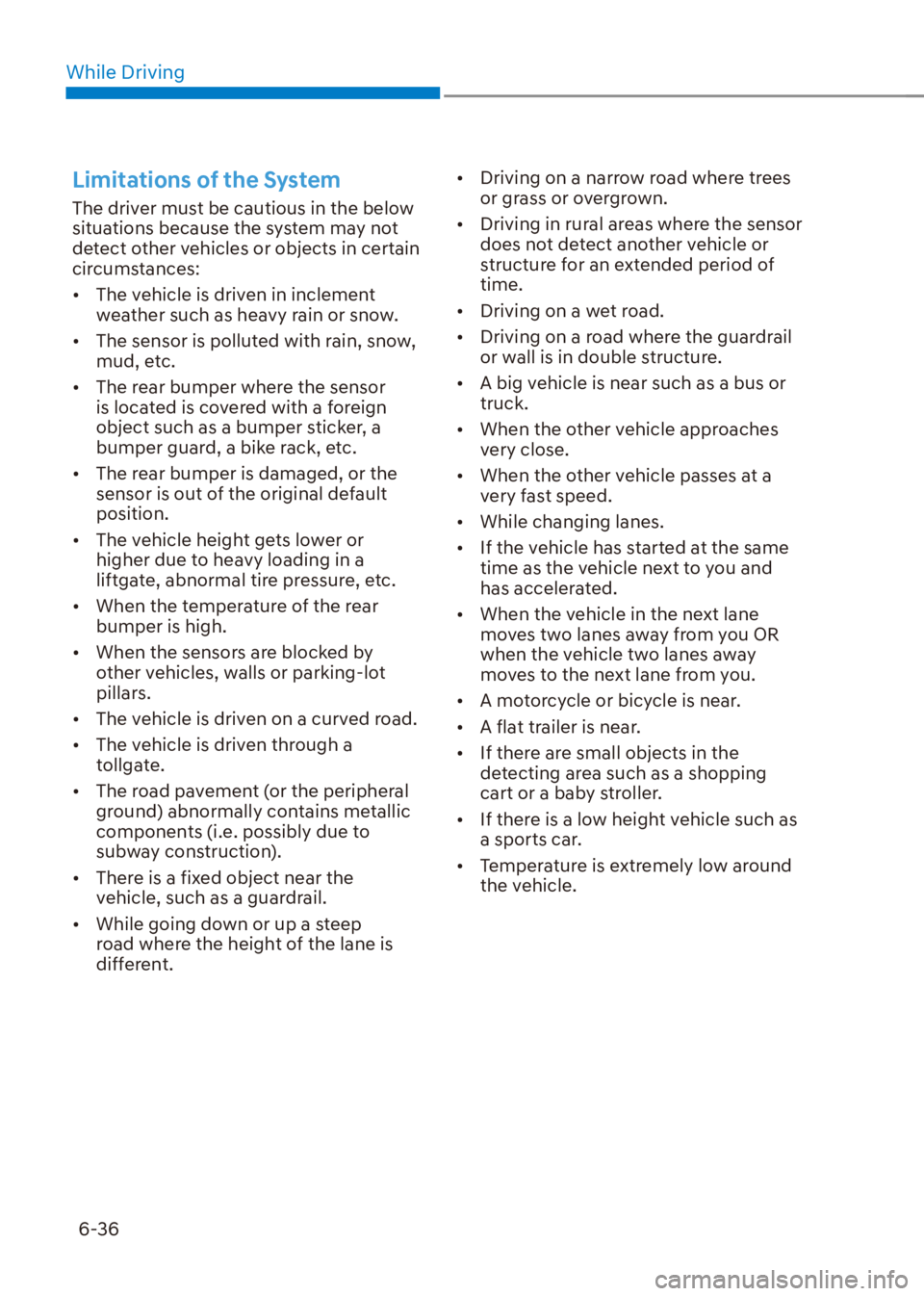

Limitations of the System
The driver must be cautious in the below
situations because the system may not
detect other vehicles or objects in certain
circumstances:

[ The vehicle is driven in inclement
weather such as heavy rain or snow.

[ The sensor is polluted with rain, snow,
mud, etc.

[ The rear bumper where the sensor
is located is covered with a foreign
object such as a bumper sticker, a
bumper guard, a bike rack, etc.

[ The rear bumper is damaged, or the
sensor is out of the original default
position.

[ The vehicle height gets lower or
higher due to heavy loading in a
liftgate, abnormal tire pressure, etc.

[ When the temperature of the rear
bumper is high.

[ When the sensors are blocked by
other vehicles, walls or parking-lot
pillars.

[ The vehicle is driven on a curved road.

[ The vehicle is driven through a
tollgate.

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (i.e. possibly due to
subway construction).

[ There is a fixed object near the
vehicle, such as a guardrail.

[ While going down or up a steep
road where the height of the lane is
different.
[
Driving on a narrow road where trees
or grass or overgrown.

[ Driving in rural areas where the sensor
does not detect another vehicle or
structure for an extended period of
time.

[ Driving on a wet road.

[ Driving on a road where the guardrail
or wall is in double structure.

[ A big vehicle is near such as a bus or
truck.

[ When the other vehicle approaches
very close.

[ When the other vehicle passes at a
very fast speed.

[ While changing lanes.

[ If the vehicle has started at the same
time as the vehicle next to you and
has accelerated.

[ When the vehicle in the next lane
moves two lanes away from you OR
when the vehicle two lanes away
moves to the next lane from you.

[ A motorcycle or bicycle is near.

[ A flat trailer is near.

[ If there are small objects in the
detecting area such as a shopping
cart or a baby stroller.

[ If there is a low height vehicle such as
a sports car.

[ Temperature is extremely low around
the vehicle.

While Driving6-42

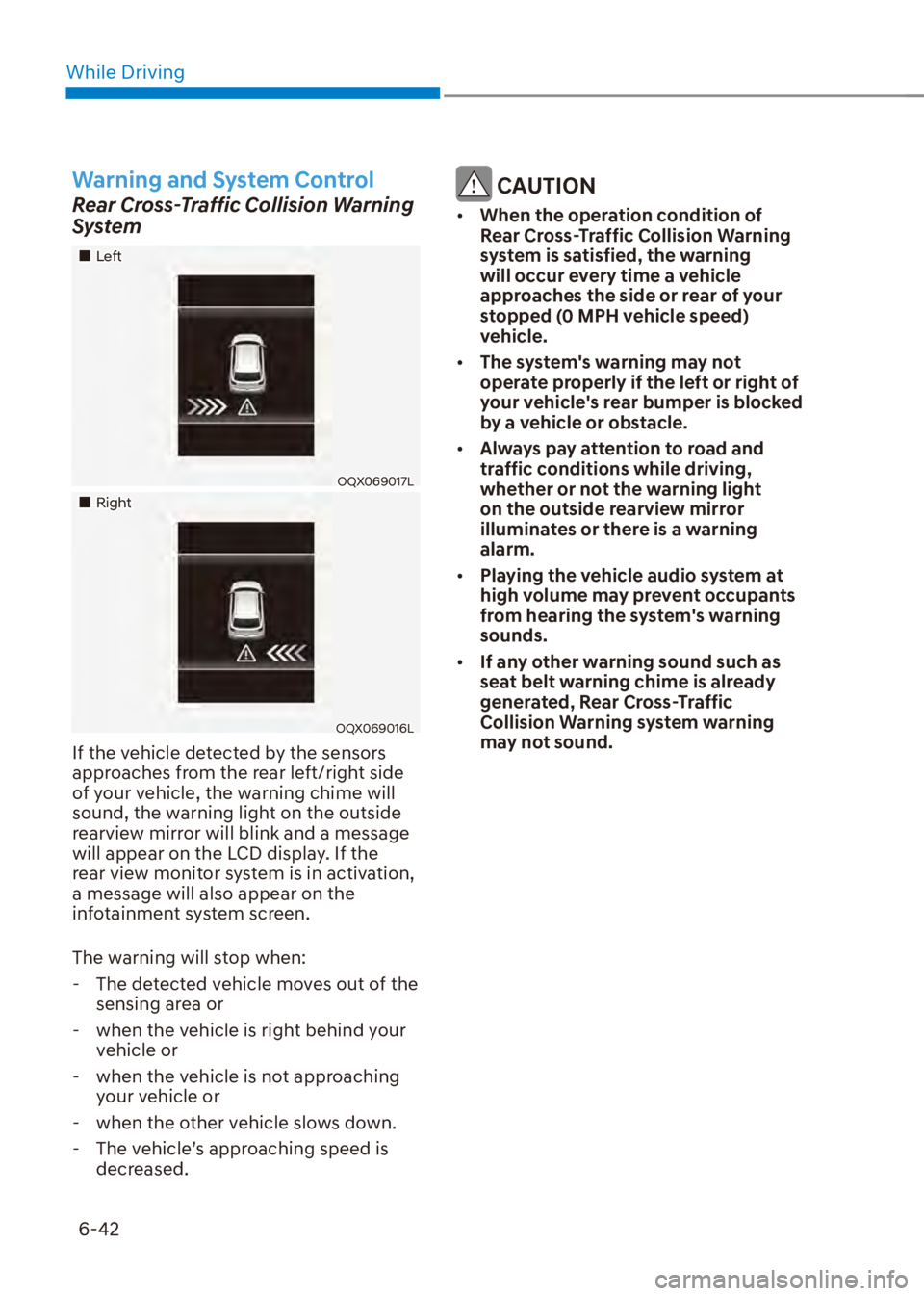

Warning and System Control
Rear Cross-Traffic Collision Warning
System
„Left
OQX069017L
„Right
OQX069016L
If the vehicle detected by the sensors
approaches from the rear left/right side
of your vehicle, the warning chime will
sound, the warning light on the outside
rearview mirror will blink and a message
will appear on the LCD display. If the
rear view monitor system is in activation,
a message will also appear on the
infotainment system screen.
The warning will stop when: - The detected vehicle moves out of the sensing area or

- when the vehicle is right behind your
vehicle or
- when the vehicle is not approaching your vehicle or
- when the other vehicle slows down.
- The vehicle’s approaching speed is decreased.
CAUTION

[ When the operation condition of
Rear Cross-Traffic Collision Warning
system is satisfied, the warning
will occur every time a vehicle
approaches the side or rear of your
stopped (0 MPH vehicle speed)
vehicle.

[ The system's warning may not
operate properly if the left or right of
your vehicle's rear bumper is blocked
by a vehicle or obstacle.

[ Always pay attention to road and
traffic conditions while driving,
whether or not the warning light
on the outside rearview mirror
illuminates or there is a warning
alarm.

[ Playing the vehicle audio system at
high volume may prevent occupants
from hearing the system's warning
sounds.

[ If any other warning sound such as
seat belt warning chime is already
generated, Rear Cross-Traffic
Collision Warning system warning
may not sound.

06
6-43

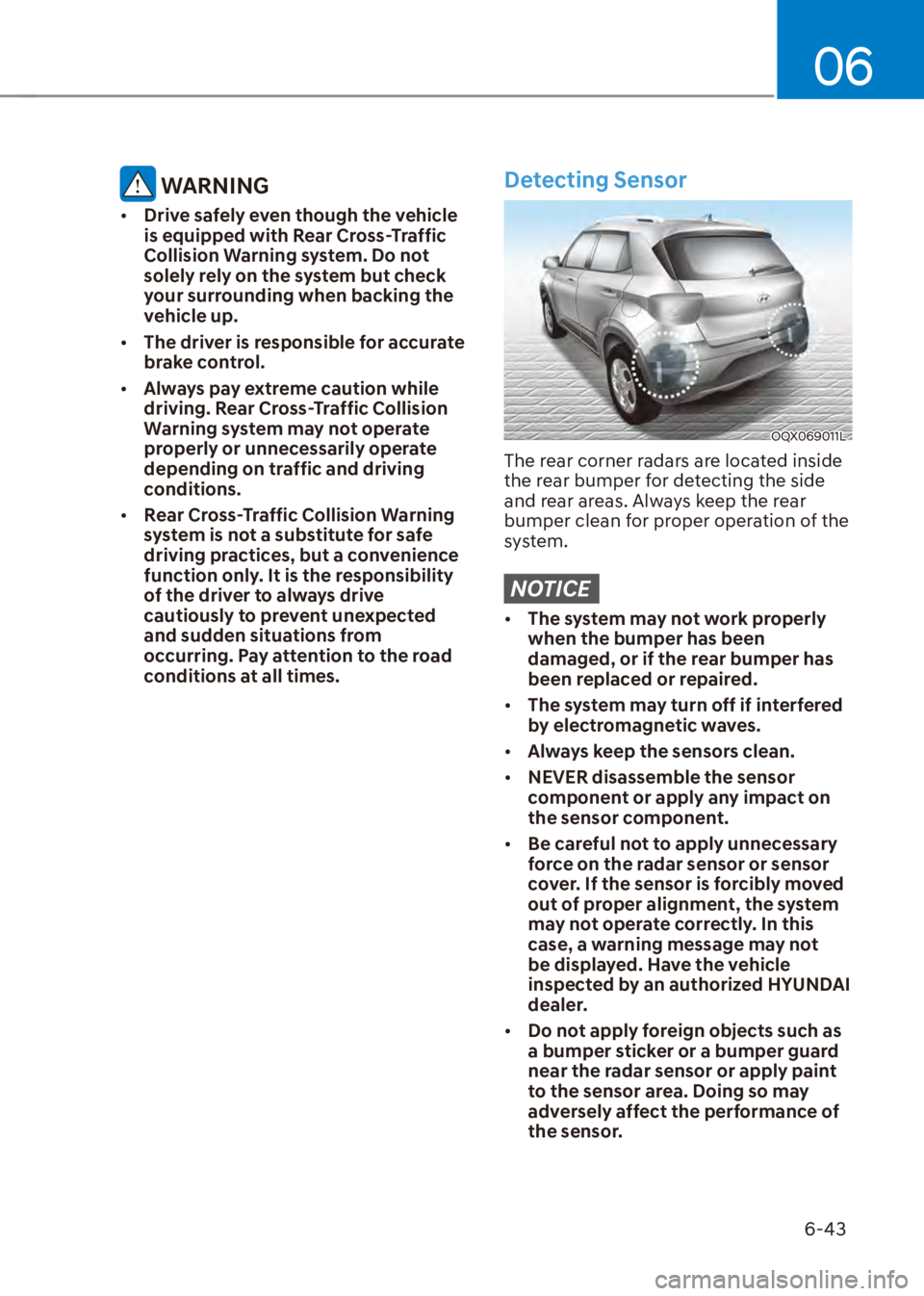

WARNING

[Drive safely even though the vehicle
is equipped with Rear Cross-Traffic
Collision Warning system. Do not
solely rely on the system but check
your surrounding when backing the
vehicle up.

[ The driver is responsible for accurate
brake control.

[ Always pay extreme caution while
driving. Rear Cross-Traffic Collision
Warning system may not operate
properly or unnecessarily operate
depending on traffic and driving
conditions.

[ Rear Cross-Traffic Collision Warning
system is not a substitute for safe
driving practices, but a convenience
function only. It is the responsibility
of the driver to always drive
cautiously to prevent unexpected
and sudden situations from
occurring. Pay attention to the road
conditions at all times.
Detecting Sensor
OQX069011L
The rear corner radars are located inside
the rear bumper for detecting the side
and rear areas. Always keep the rear
bumper clean for proper operation of the
system.
NOTICE

[The system may not work properly
when the bumper has been
damaged, or if the rear bumper has
been replaced or repaired.

[ The system may turn off if interfered
by electromagnetic waves.

[ Always keep the sensors clean.

[ NEVER disassemble the sensor
component or apply any impact on
the sensor component.

[ Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly moved
out of proper alignment, the system
may not operate correctly. In this
case, a warning message may not
be displayed. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

[ Do not apply foreign objects such as
a bumper sticker or a bumper guard
near the radar sensor or apply paint
to the sensor area. Doing so may
adversely affect the performance of
the sensor.
