05
5-71
NOTICE
To prevent damage to the Power
Outlets:

[Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12V electric accessories
which are less than 180 W in electric
capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger (if equipped)
OQX050010N
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the ignition switch or the Engine
Start/Stop button is in the ACC, ON or
START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.

[A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[ The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON an
audio or to play media on the AVN.

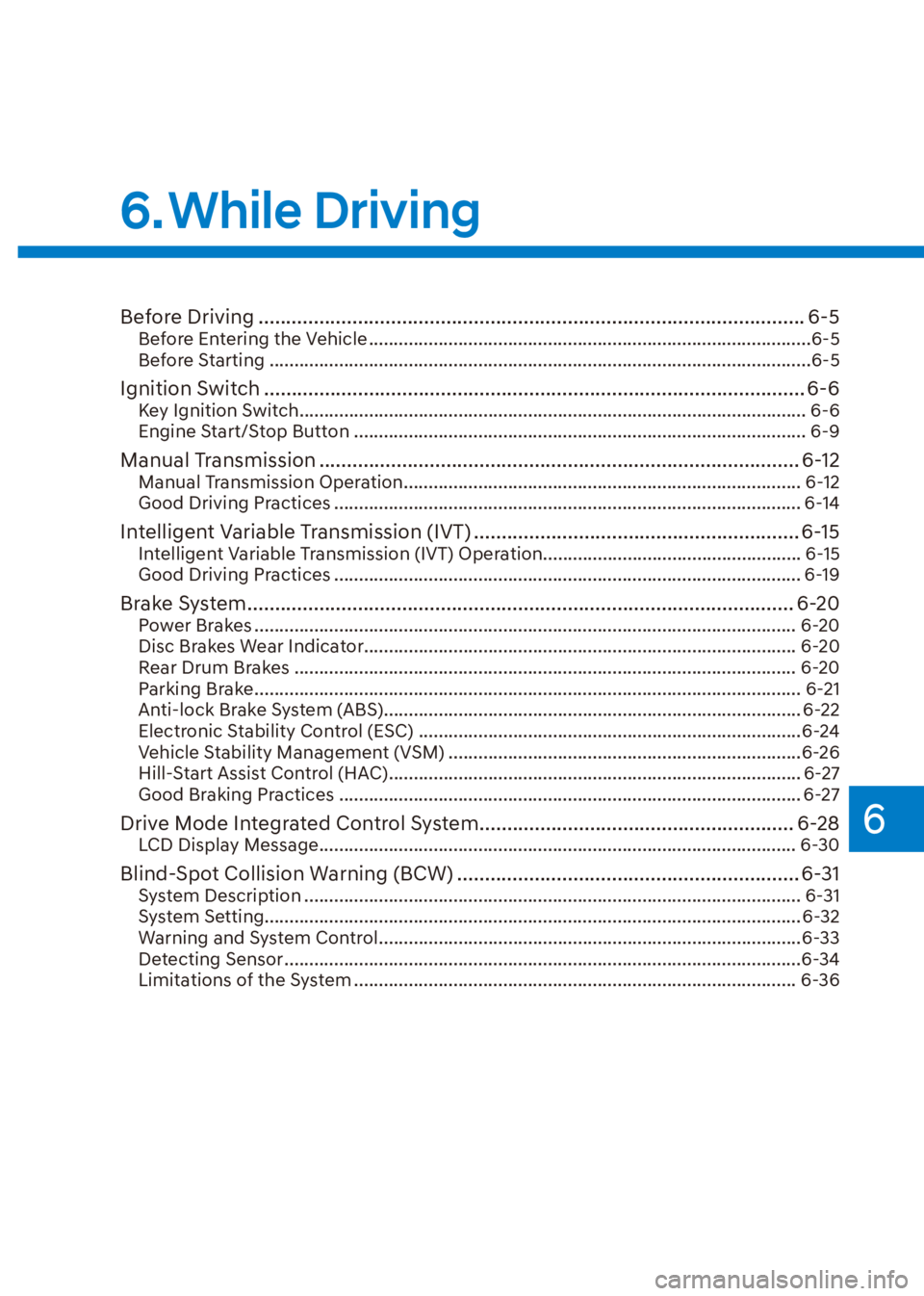

6
6. While Driving
Before Driving ........................................................................\
........................... 6-5Before Entering the Vehicle ........................................................................\
.................6-5
Before Starting ........................................................................\
.....................................6-5
Ignition Switch ........................................................................\
.......................... 6-6Key Ignition Switch ........................................................................\
.............................. 6-6
Engine Start/Stop Button ........................................................................\
................... 6-9
Manual Transmission ........................................................................\
............... 6-12Manual Transmission Operation ........................................................................\
........ 6-12
Good Driving Practices ........................................................................\
...................... 6-14
Intelligent Variable Transmission (IVT) ........................................................... 6-15Intelligent Variable Transmission (IVT) Operation .................................................... 6-15
Good Driving Practices ........................................................................\
...................... 6-19
Brake System ........................................................................\
........................... 6-20Power Brakes ........................................................................\
..................................... 6-20
Disc Brakes Wear Indicator......................................................................\
................. 6-20
Rear Drum Brakes .....................................................................\
................................ 6-20
Parking Brake ........................................................................\
...................................... 6-21
Anti-lock Brake System (ABS) ........................................................................\
............ 6-22
Electronic Stability Control (ESC) ........................................................................\
.....6-24
Vehicle Stability Management (VSM) .......................................................................6-26
Hill-Start Assist Control (HAC) ........................................................................\
........... 6-27
Good Braking Practices ................................................................\
............................. 6-27
Drive Mode Integrated Control System ......................................................... 6-28LCD Display Message ........................................................................\
........................ 6-30
Blind-Spot Collision Warning (BCW) .............................................................. 6-31System Description ........................................................................\
............................ 6-31
System Setting........................................................................\
.................................... 6-32
Warning and System Control ........................................................................\
.............6-33
Detecting Sensor ........................................................................\
................................6-34
Limitations of the System ........................................................................\
................. 6-36

06
6-9

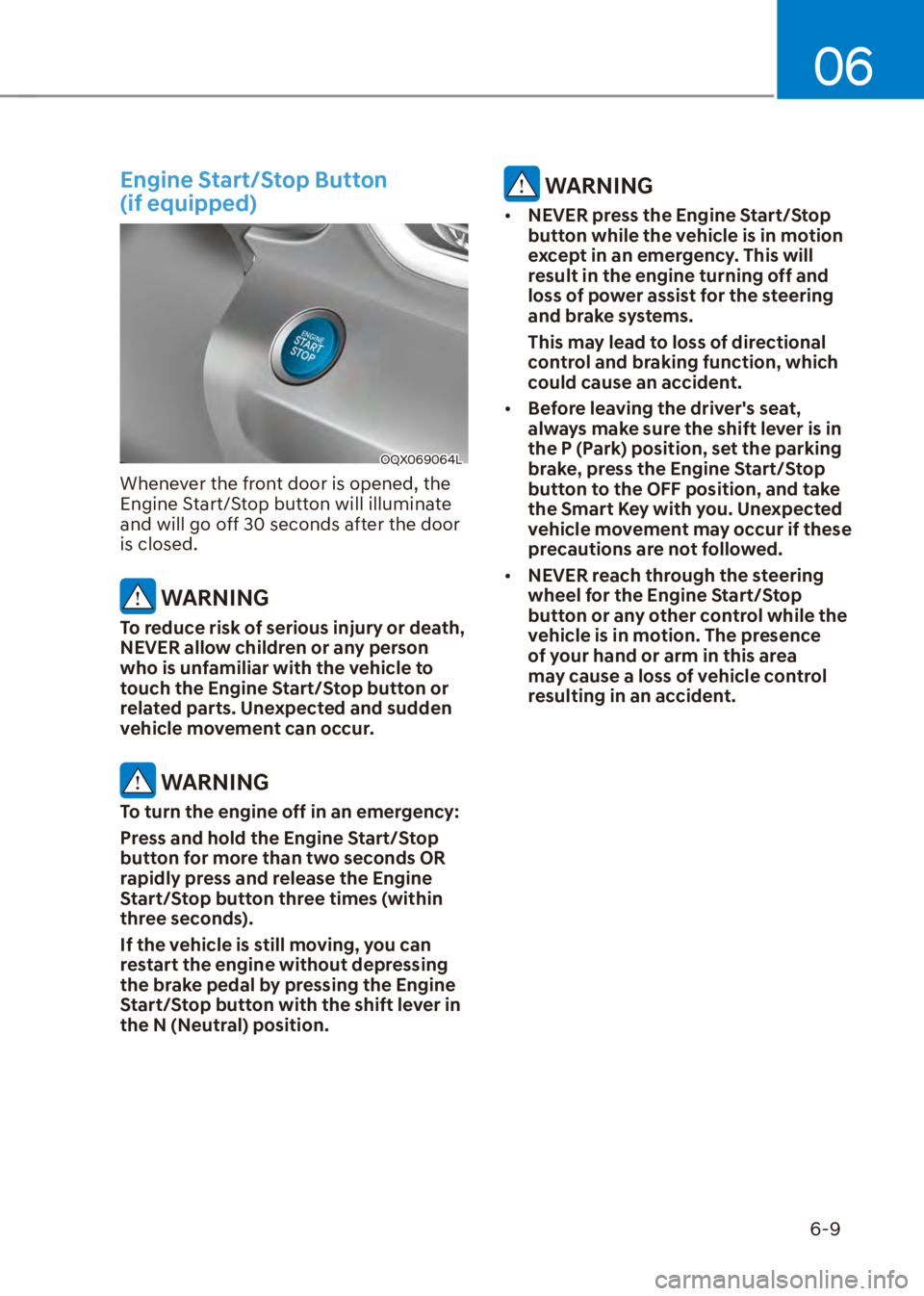

Engine Start/Stop Button
(if equipped)
OQX069064L
Whenever the front door is opened, the
Engine Start/Stop button will illuminate
and will go off 30 seconds after the door
is closed.
WARNING
To reduce risk of serious injury or death,
NEVER allow children or any person
who is unfamiliar with the vehicle to
touch the Engine Start/Stop button or
related parts. Unexpected and sudden
vehicle movement can occur.
WARNING
To turn the engine off in an emergency:
Press and hold the Engine Start/Stop
button for more than two seconds OR
rapidly press and release the Engine
Start/Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the engine without depressing
the brake pedal by pressing the Engine
Start/Stop button with the shift lever in
the N (Neutral) position.
WARNING

[NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the engine turning off and
loss of power assist for the steering
and brake systems.
This may lead to loss of directional
control and braking function, which
could cause an accident.

[ Before leaving the driver's seat,
always make sure the shift lever is in
the P (Park) position, set the parking
brake, press the Engine Start/Stop
button to the OFF position, and take
the Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[ NEVER reach through the steering
wheel for the Engine Start/Stop
button or any other control while the
vehicle is in motion. The presence
of your hand or arm in this area
may cause a loss of vehicle control
resulting in an accident.

While Driving6-10

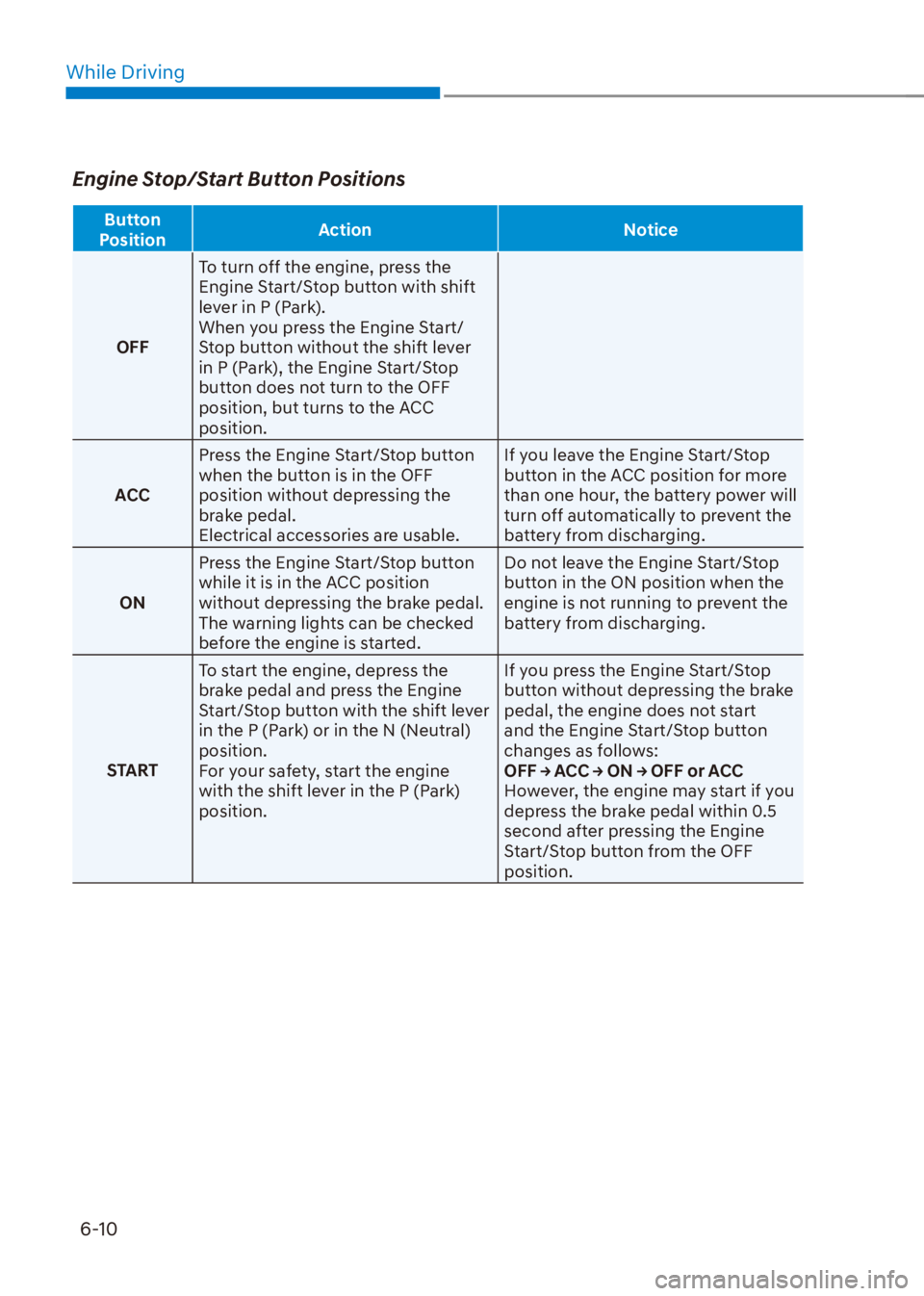

Engine Stop/Start Button Positions
Button
Position Action Notice
OFF T
o turn off the engine, press the
Engine Start/Stop button with shift
lever in P (Park).
When you press the Engine Start/
Stop button without the shift lever
in P (Park), the Engine Start/Stop
button does not turn to the OFF
position, but turns to the ACC
position.
ACC Press the Engine Start/Stop button
when the button is in the OFF
position without depressing the
brake pedal.
Electrical accessories are usable. If you leave the Engine Start/Stop
button in the ACC position for more
than one hour, the battery power will
turn off automatically to prevent the
battery from discharging.
ON Press the Engine Start/Stop button
while it is in the ACC position
without depressing the brake pedal.
The warning lights can be checked
before the engine is started. Do not leave the Engine Start/Stop
button in the ON position when the
engine is not running to prevent the
battery from discharging.
START To start the engine, depress the
brake pedal and press the Engine
Start/Stop button with the shift lever
in the P (Park) or in the N (Neutral)
position.
For your safety, start the engine
with the shift lever in the P (Park)
position. If you press the Engine Start/Stop
button without depressing the brake
pedal, the engine does not start
and the Engine Start/Stop button
changes as follows:
2))

06
6-11

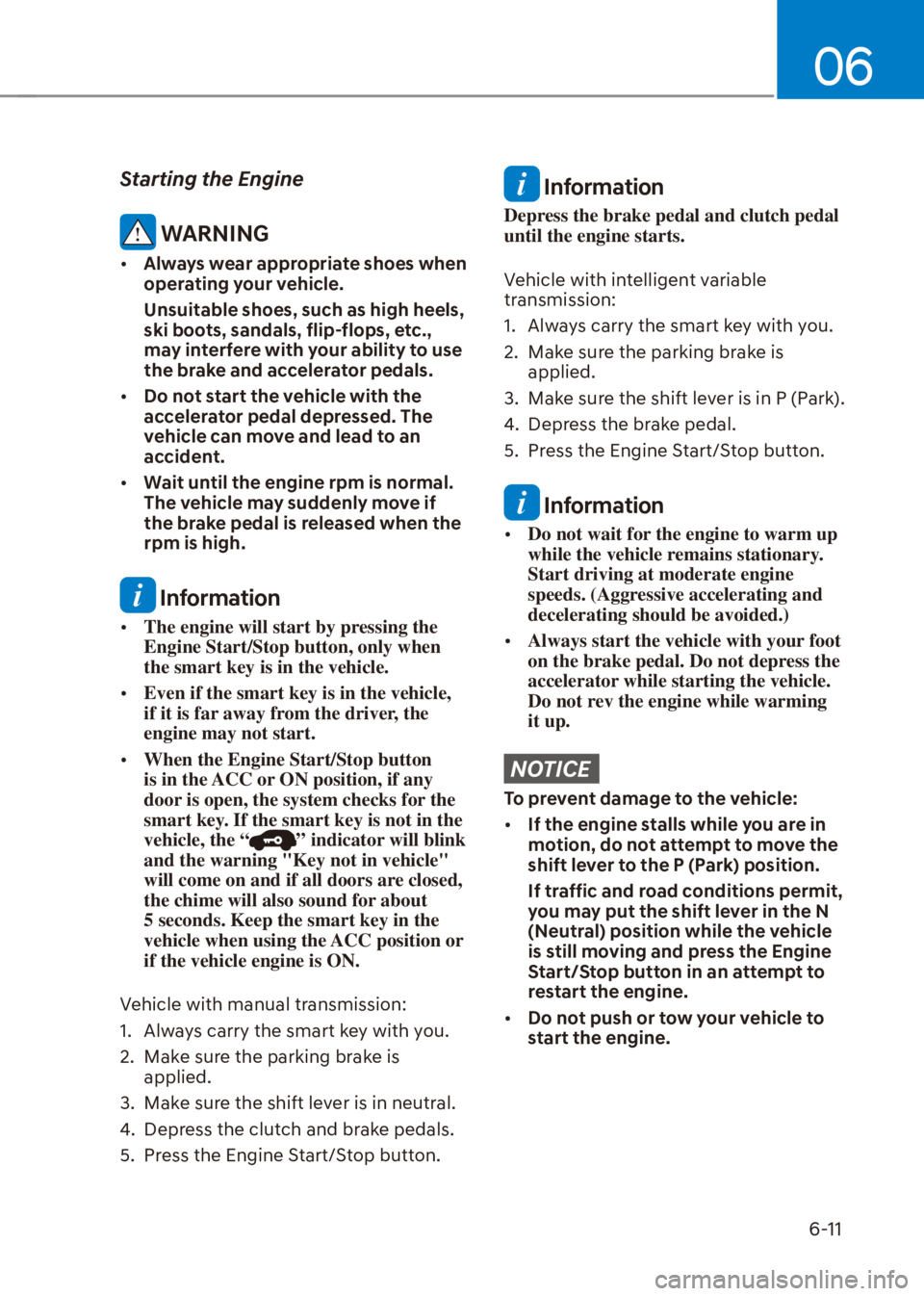

Starting the Engine
WARNING

[Always wear appropriate shoes when
operating your vehicle.
Unsuitable shoes, such as high heels,
ski boots, sandals, flip-flops, etc.,
may interfere with your ability to use
the brake and accelerator pedals.

[ Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.

[ Wait until the engine rpm is normal.
The vehicle may suddenly move if
the brake pedal is released when the
rpm is high.
Information

[The engine will start by pressing the
Engine Start/Stop button, only when
the smart key is in the vehicle.

[ Even if the smart key is in the vehicle,
if it is far away from the driver, the
engine may not start.

[ When the Engine Start/Stop button
is in the ACC or ON position, if any
door is open, the system checks for the
smart key. If the smart key is not in the
vehicle, the “
” indicator will blink
and the warning "Key not in vehicle"
will come on and if all doors are closed,
the chime will also sound for about
5 seconds. Keep the smart key in the
vehicle when using the ACC position or
if the vehicle engine is ON.
Vehicle with manual transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in neutral.
4. Depress the clutch and brake pedals.
5. Press the Engine Start/Stop button.
Information
Depress the brake pedal and clutch pedal
until the engine starts.
Vehicle with intelligent variable
transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.
Information

[ Do not wait for the engine to warm up
while the vehicle remains stationary.
Start driving at moderate engine
speeds. (Aggressive accelerating and
decelerating should be avoided.)

[ Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not rev the engine while warming
it up.
NOTICE
To prevent damage to the vehicle:

[If the engine stalls while you are in
motion, do not attempt to move the
shift lever to the P (Park) position.
If traffic and road conditions permit,
you may put the shift lever in the N
(Neutral) position while the vehicle
is still moving and press the Engine
Start/Stop button in an attempt to
restart the engine.

[ Do not push or tow your vehicle to
start the engine.

While Driving6-12

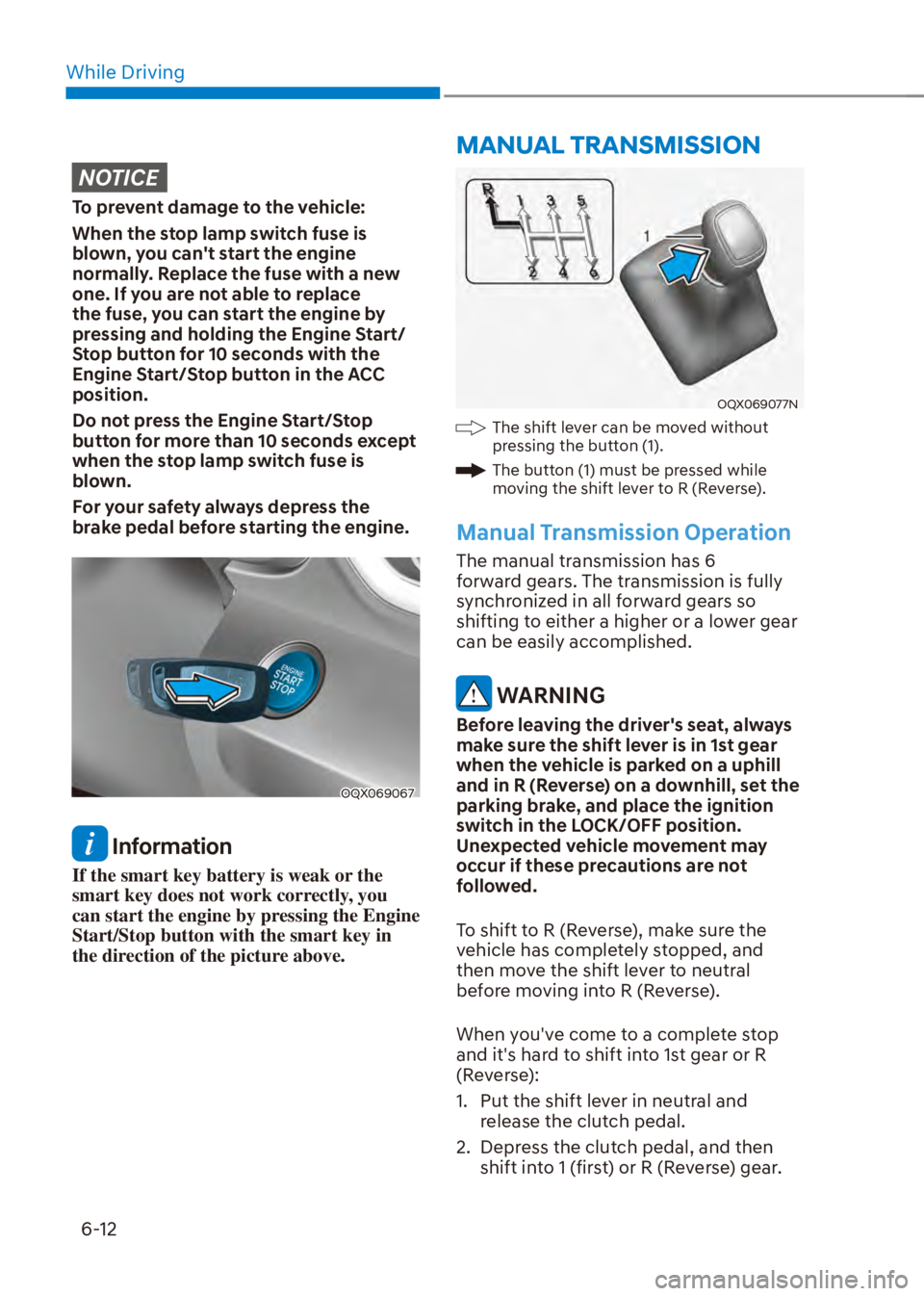

NOTICE
To prevent damage to the vehicle:
When the stop lamp switch fuse is
blown, you can't start the engine
normally. Replace the fuse with a new
one. If you are not able to replace
the fuse, you can start the engine by
pressing and holding the Engine Start/
Stop button for 10 seconds with the
Engine Start/Stop button in the ACC
position.
Do not press the Engine Start/Stop
button for more than 10 seconds except
when the stop lamp switch fuse is
blown.
For your safety always depress the
brake pedal before starting the engine.
OQX069067
Information
If the smart key battery is weak or the
smart key does not work correctly, you
can start the engine by pressing the Engine
Start/Stop button with the smart key in
the direction of the picture above.
MANUAL TRANSMISSION
OQX069077N
The shift lever can be moved without
pressing the button (1).
The button (1) must be pressed while
moving the shift lever to R (Reverse).
Manual Transmission Operation
The manual transmission has 6
forward gears. The transmission is fully
synchronized in all forward gears so
shifting to either a higher or a lower gear
can be easily accomplished.
WARNING
Before leaving the driver's seat, always
make sure the shift lever is in 1st gear
when the vehicle is parked on a uphill
and in R (Reverse) on a downhill, set the
parking brake, and place the ignition
switch in the LOCK/OFF position.
Unexpected vehicle movement may
occur if these precautions are not
followed.
To shift to R (Reverse), make sure the
vehicle has completely stopped, and
then move the shift lever to neutral
before moving into R (Reverse).
When you've come to a complete stop
and it's hard to shift into 1st gear or R
(Reverse):
1. Put the shift lever in neutral and release the clutch pedal.
2. Depress the clutch pedal, and then shift into 1 (first) or R (Reverse) gear.

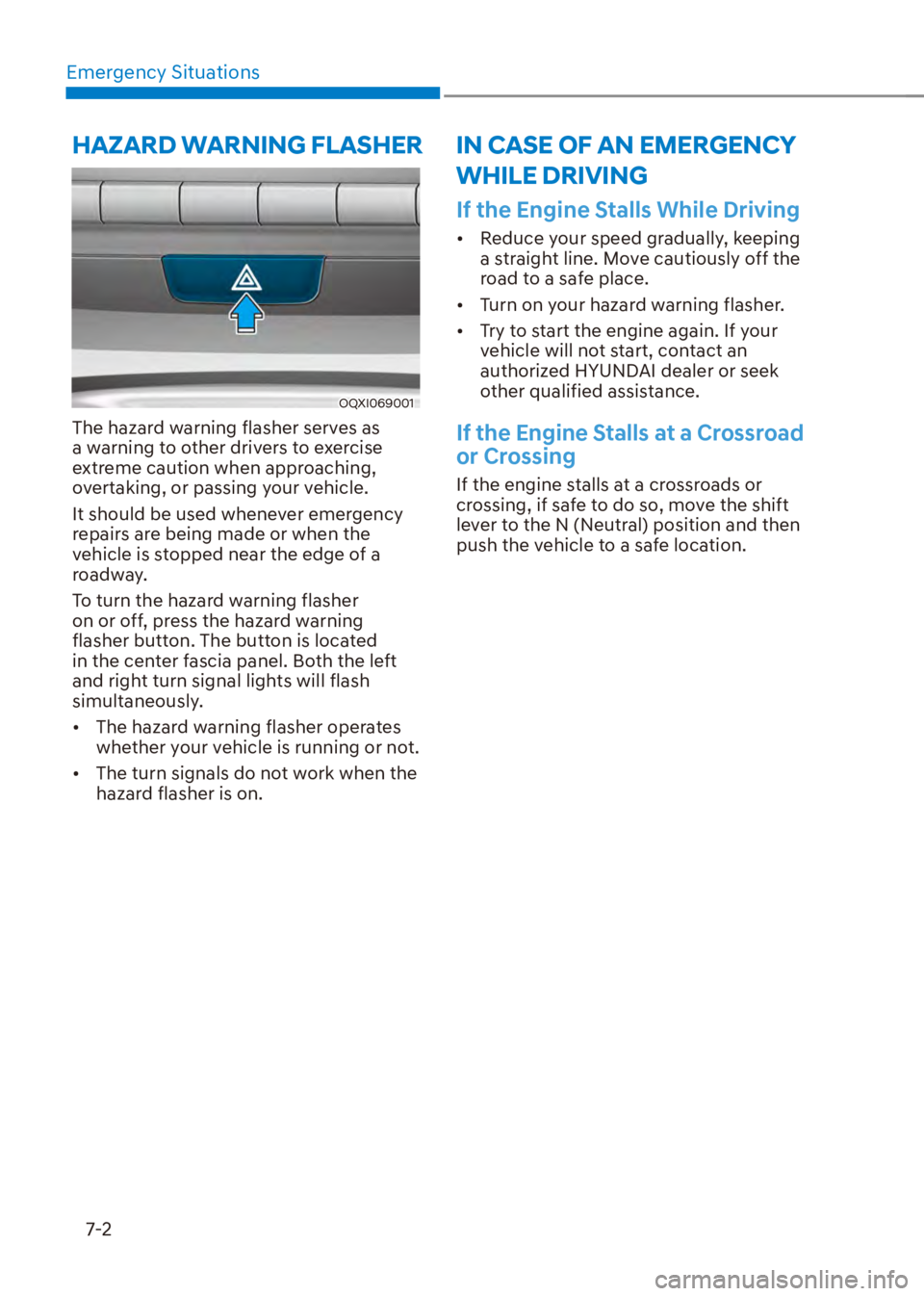

Emergency Situations7-2
If the Engine Stalls While Driving

[ Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[ Turn on your hazard warning flasher.

[ Try to start the engine again. If your
vehicle will not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Engine Stalls at a Crossroad
or Crossing
If the engine stalls at a crossroads or
crossing, if safe to do so, move the shift
lever to the N (Neutral) position and then
push the vehicle to a safe location.
IN CASE OF AN EMERGENCY
WHILE DRIVING
OQXI069001
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher
on or off, press the hazard warning
flasher button. The button is located
in the center fascia panel. Both the left
and right turn signal lights will flash
simultaneously.

[The hazard warning flasher operates
whether your vehicle is running or not.

[ The turn signals do not work when the
hazard flasher is on.
HAZARD WARNING FLASHER

07
7-3

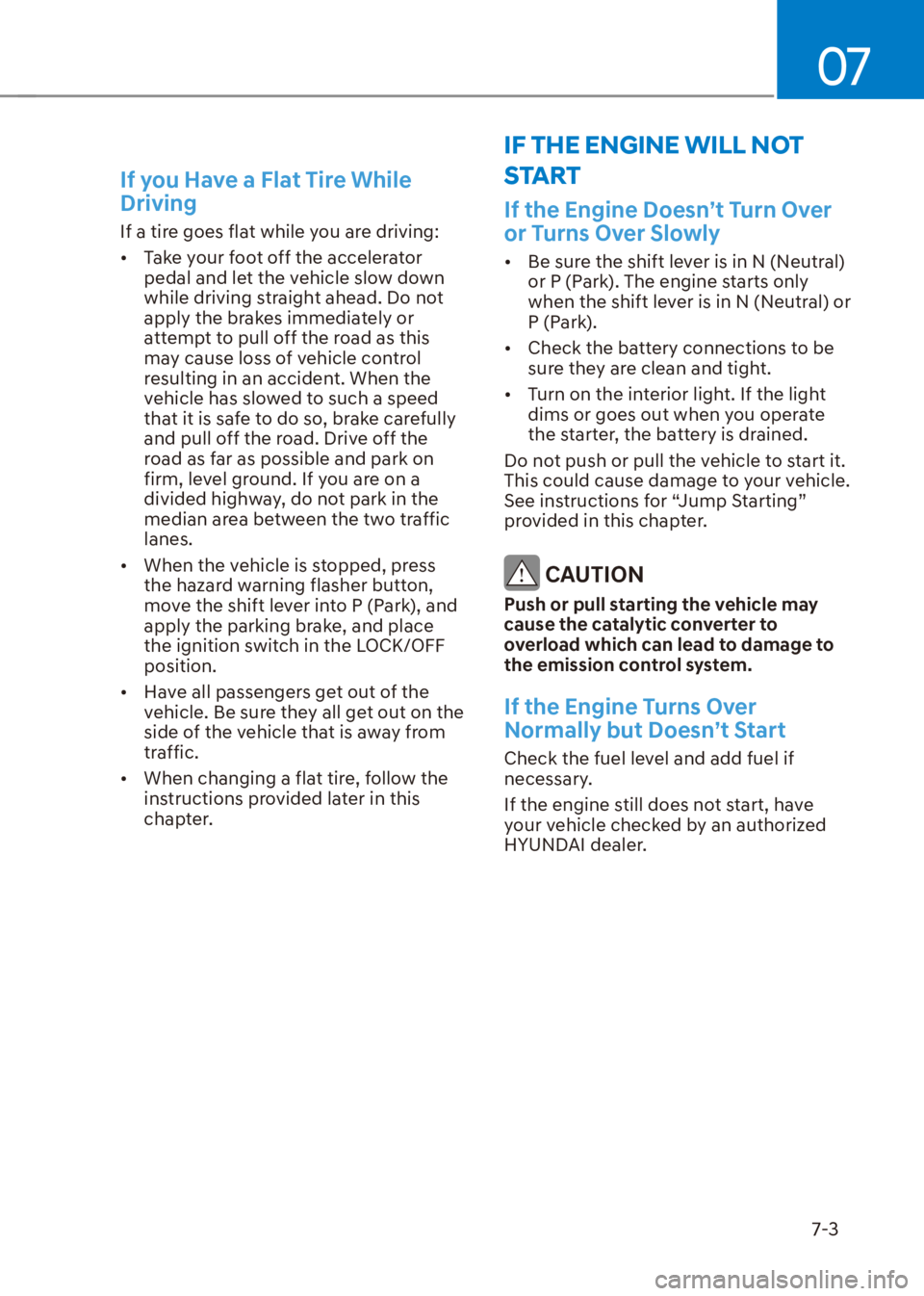

If you Have a Flat Tire While
Driving
If a tire goes flat while you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[ When the vehicle is stopped, press
the hazard warning flasher button,
move the shift lever into P (Park), and
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

[ Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[ When changing a flat tire, follow the
instructions provided later in this
chapter.
IF THE ENGINE WILL NOT
START
If the Engine Doesn’t Turn Over
or Turns Over Slowly

[Be sure the shift lever is in N (Neutral)
or P (Park). The engine starts only
when the shift lever is in N (Neutral) or
P (Park).

[ Check the battery connections to be
sure they are clean and tight.

[ Turn on the interior light. If the light
dims or goes out when you operate
the starter, the battery is drained.
Do not push or pull the vehicle to start it.
This could cause damage to your vehicle.
See instructions for “Jump Starting”
provided in this chapter.
CAUTION
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.
If the Engine Turns Over
Normally but Doesn’t Start
Check the fuel level and add fuel if
necessary.
If the engine still does not start, have
your vehicle checked by an authorized
HYUNDAI dealer.
