2023 HYUNDAI VENUE start stop button

04
4-17
LCD Display Messages
Shift to P or N to Start Engine
(for Smart Key System and
Intelligent Variable Transmission
(IVT))
This warning message is displayed if you
try to start the engine with the shift lever
not in the P (Park) or N (Neutral) position.
Information
You can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P
(Park) position.
Shift to P (for Smart Key System)
This message is displayed if you try to
turn off the engine without the shift lever
in P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position (If you
press the Engine Start/Stop button once
more, it will turn to the ON position).
Low Key Battery
(for Smart Key System)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Press Brake Pedal to Start Engine
(for Smart Key System)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key Not in Vehicle
(for Smart Key System)
This warning message is displayed if the
smart key is not in the vehicle when you
press the Engine Start/Stop button.
When attempting to start the vehicle,
always have the smart key with you.
Key Not Detected
(for Smart Key System)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START Button Again
(for Smart Key System)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
Battery Discharging Due to External
Electrical Devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer.

Instrument Cluster4-18
Press Clutch Pedal to Start Engine
(for Smart Key System and Manual
Transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START Button with Key
(for Smart Key System)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message "Key not detected"
is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH Fuse
(for Smart Key System)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Door, Hood, Liftgate Open Indicator
OQX049014L
This warning is displayed if any door or
the hood or the liftgate is left open. The
warning will indicate which door is open
in the display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate
is fully closed. Also, check there is no
door/hood/liftgate open warning light
or message displayed on the instrument
cluster.
Sunroof Open (if equipped)
OQX049015L
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.

Instrument Cluster4-28
2. Door
Items Explanation
Auto Lock
[
Disable: The aut
o door lock operation will be deactivated.

[ Enable on Speed: All doors will be automatically locked when the
vehicle speed exceeds 9.3 mph (15km/h).
[ Enable on Shift: All doors will be automatically locked if the
intelligent variable transmission shift lever is changed from the P
(Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
(Only when the engine is running)
Auto Unlock
[
Disable: The auto door unlock operation will be canceled.

[ On key out/Vehicle Off: All doors will be automatically unlocked
when the ignition key is removed from the ignition switch or the
Engine Start/Stop button is set to the OFF position.

[ On Shift to P: All doors will be automatically unlocked if the
intelligent variable transmission shift lever is changed to P (Park)
position.
(Only when the engine is running)
Two Press Unlock
[
Off: The two press unlock function will be deactivated. Therefore,
all doors will unlock if the door unlock button is pressed.

[ On: Only the driver’s door will unlock if the door unlock button is
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Horn Feedback To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing
the lock button on the remote key, and pressing it again within 4
seconds, the horn feedback sound will operate once to indicate that
all doors are locked (if equipped with remote key).

à The information provided may differ depending on which functions are applicable
to your vehicle.
3. Light
Items Explanation
One Touch Turn
Signal
[
Off: The one t
ouch turn signal function will be deactivated.

[ 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more information, refer to "Lighting" in chapter 5.
Headlight Delay
[
To activate or deactivate the headlamp delay function.
For more information, refer to "Lighting" in chapter 5.
High Beam Assist
[
To activate or deactivate the High Beam Assist (HBA) System.
For more details, refer to “High Beam Assist (HBA) system” in
chapter 5.

à The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster4-32

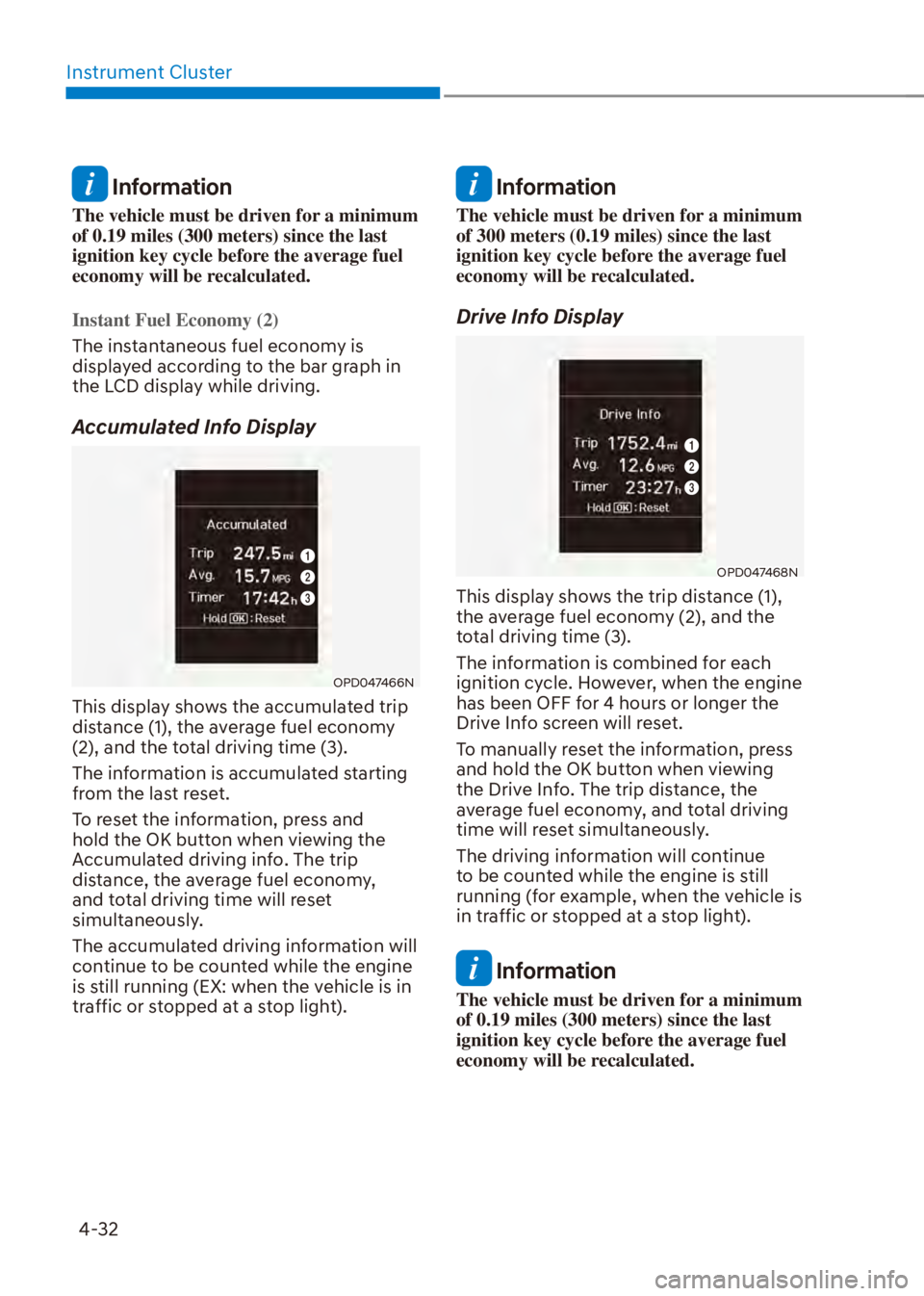

Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the average fuel
economy will be recalculated.
Instant Fuel Economy (2)
The instantaneous fuel economy is
displa
yed according to the bar graph in
the LCD display while driving.
Accumulated Info Display
OPD047466N
This display shows the accumulated trip
distance (1), the average fuel economy
(2), and the total driving time (3).
The information is accumulated starting
from the last reset.
To reset the information, press and
hold the OK button when viewing the
Accumulated driving info. The trip
distance, the average fuel economy,
and total driving time will reset
simultaneously.
The accumulated driving information will
continue to be counted while the engine
is still running (EX: when the vehicle is in
traffic or stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 300 meters (0.19 miles) since the last
ignition key cycle before the average fuel
economy will be recalculated.
Drive Info Display
OPD047468N
This display shows the trip distance (1),
the average fuel economy (2), and the
total driving time (3).
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 4 hours or longer the
Drive Info screen will reset.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average fuel economy, and total driving
time will reset simultaneously.
The driving information will continue
to be counted while the engine is still
running (for example, when the vehicle is
in traffic or stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the average fuel
economy will be recalculated.

05
5-7

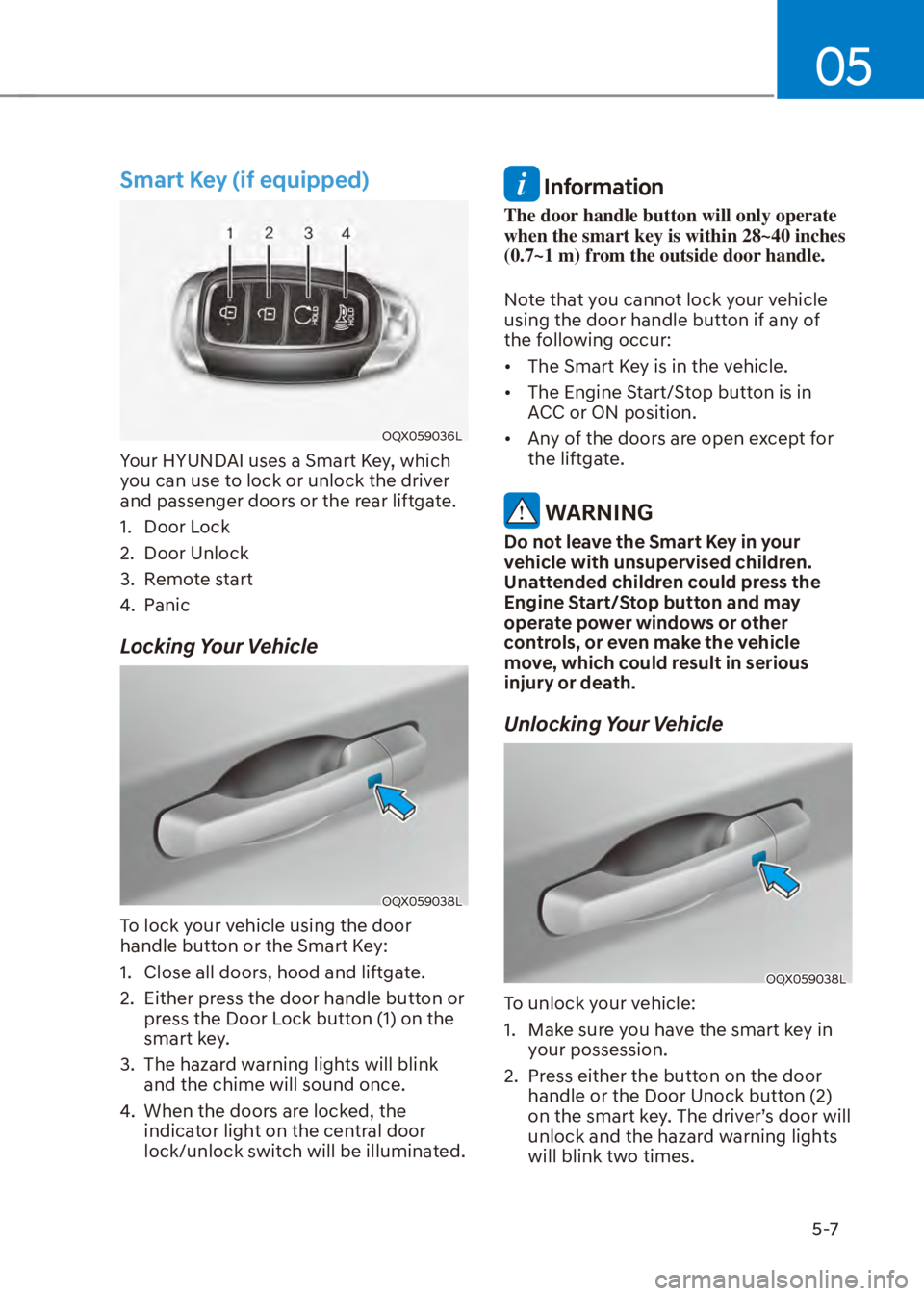

Smart Key (if equipped)
OQX059036L
Your HYUNDAI uses a Smart Key, which
you can use to lock or unlock the driver
and passenger doors or the rear liftgate.
1. Door Lock
2. Door Unlock
3. Remote start
4. Panic
Locking Your Vehicle
OQX059038L
To lock your vehicle using the door
handle button or the Smart Key:
1. Close all doors, hood and liftgate.
2. Either press the door handle button or press the Door Lock button (1) on the
smart key.
3. The hazard warning lights will blink and the chime will sound once.
4. When the doors are locked, the indicator light on the central door
lock/unlock switch will be illuminated.
Information
The door handle button will only operate
when the smart key is within 28~40 inches
(0.7~1 m) from the outside door handle.
Note that you cannot lock your vehicle
using the door handle button if any of
the following occur:

[The Smart Key is in the vehicle.

[ The Engine Start/Stop button is in
ACC or ON position.

[ Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking Your Vehicle
OQX059038L
To unlock your vehicle:
1. Make sure you have the smart key in
your possession.
2. Press either the button on the door handle or the Door Unock button (2)
on the smart key. The driver’s door will
unlock and the hazard warning lights
will blink two times.

Convenience Features5-8

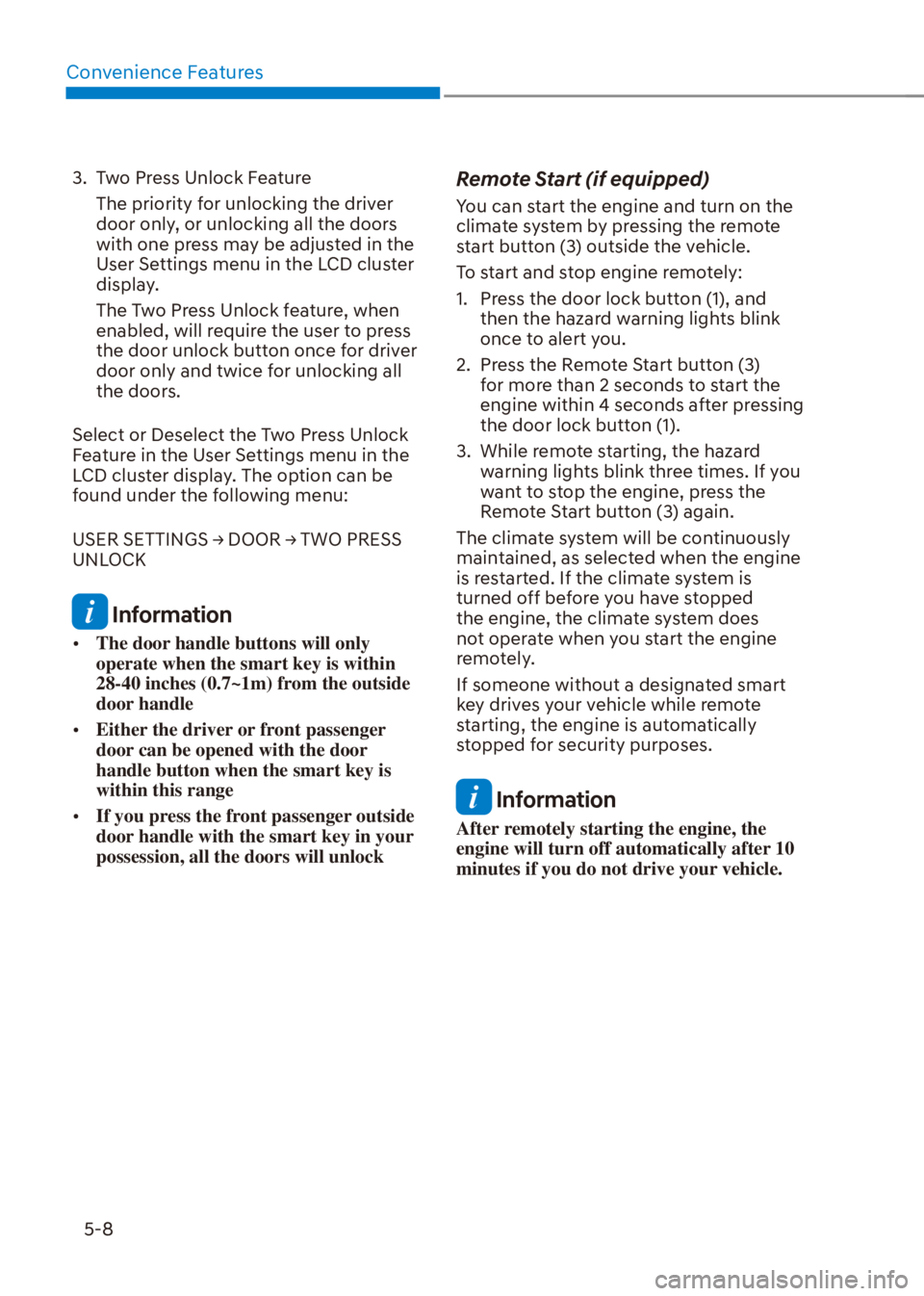

3. Two Press Unlock Feature The priority for unlocking the driver
door only, or unlocking all the doors
with one press may be adjusted in the
User Settings menu in the LCD cluster
display.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all
the doors.
Select or Deselect the Two Press Unlock
Feature in the User Settings menu in the
LCD cluster display. The option can be
found under the following menu:
86(56(77,1*6
Ÿ'225
Ÿ7:235(66
UNLOCK
Information

[ The door handle buttons will only
operate when the smart key is within
28-40 inches (0.7~1m) from the outside
door handle

[ Either the driver or front passenger
door can be opened with the door
handle button when the smart key is
within this range

[ If you press the front passenger outside
door handle with the smart key in your
possession, all the doors will unlock
Remote Start (if equipped)
You can start the engine and turn on the
climate system by pressing the remote
start button (3) outside the vehicle.
To start and stop engine remotely:
1. Press the door lock button (1), and
then the hazard warning lights blink
once to alert you.
2. Press the Remote Start button (3) for more than 2 seconds to start the
engine within 4 seconds after pressing
the door lock button (1).
3. While remote starting, the hazard warning lights blink three times. If you
want to stop the engine, press the
Remote Start button (3) again.
The climate system will be continuously
maintained, as selected when the engine
is restarted. If the climate system is
turned off before you have stopped
the engine, the climate system does
not operate when you start the engine
remotely.
If someone without a designated smart
key drives your vehicle while remote
starting, the engine is automatically
stopped for security purposes.
Information
After remotely starting the engine, the
engine will turn off automatically after 10
minutes if you do not drive your vehicle.

05
5-9
CAUTION

[The remote start will not work if you
exceed the operating distance limit
(about 10 m).

[ Avoid idling the engine for prolonged
periods to follow the emission
regulations in your country.

[ Laws in your country may restrict the
use of remote start. You should check
country regulations before using this
remote starting system.

[ It is only possible to start the engine
remotely when shifted to P (Park).

[ If the hood or the liftgate is opened,
you cannot start the engine
remotely.
Panic Button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.
Start-up
You can start the vehicle without
inserting the key.
For information, refer to the “Engine
Start/Stop Button” section in chapter 6.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.
Mechanical Key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
OPD046045
To remove the mechanical key from the
smart key FOB, slide the release lever in
the direction of the arrow (1) and then
pull the mechanical key (2) outward.
To unlock the vehicle using the
mechanical key. insert the mechanical
key into the key hole in the driver door.
To reinstall the mechanical key into the
FOB, insert the key in the top of the key
FOB and push inward until a click sound
is heard.
Loss of a Smart Key
A maximum of two Smart Keys can be
registered to a single vehicle. If you
happen to lose your smart key, you
should immediately take the vehicle
and remaining keys to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.

05
5-13

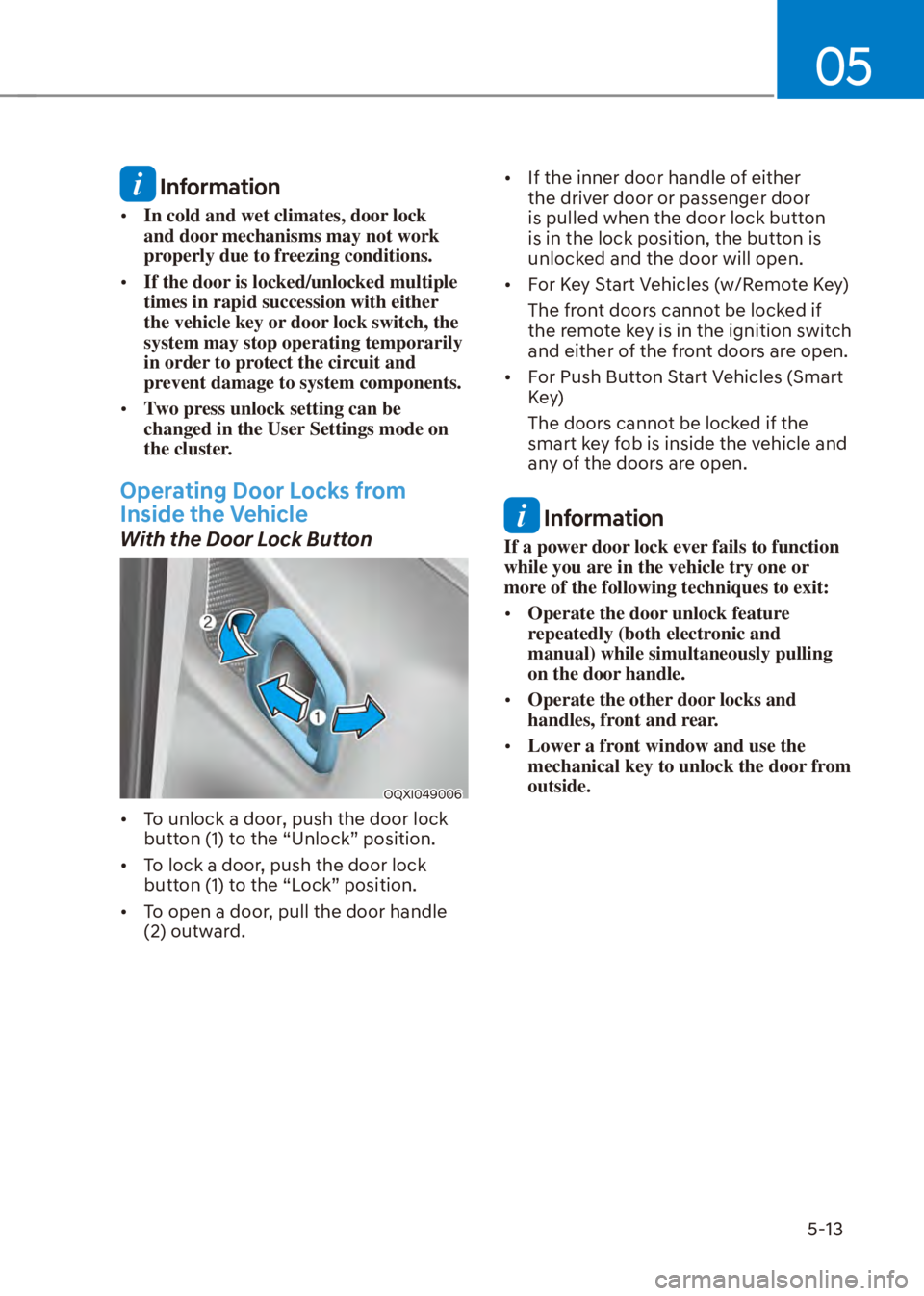

Information

[In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

[ If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.

[ Two press unlock setting can be
changed in the User Settings mode on
the cluster.
Operating Door Locks from
Inside the Vehicle
With the Door Lock Button
OQXI049006

[To unlock a door, push the door lock
button (1) to the “Unlock” position.

[ To lock a door, push the door lock
button (1) to the “Lock” position.

[ To open a door, pull the door handle
(2) outward.
[
If the inner door handle of either
the driver door or passenger door
is pulled when the door lock button
is in the lock position, the button is
unlocked and the door will open.

[ For Key Start Vehicles (w/Remote Key)
The front doors cannot be locked if
the remote key is in the ignition switch
and either of the front doors are open.

[ For Push Button Start Vehicles (Smart
Key)
The doors cannot be locked if the
smart key fob is inside the vehicle and
any of the doors are open.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

[Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

[ Operate the other door locks and
handles, front and rear.

[ Lower a front window and use the
mechanical key to unlock the door from
outside.
