07
7-65

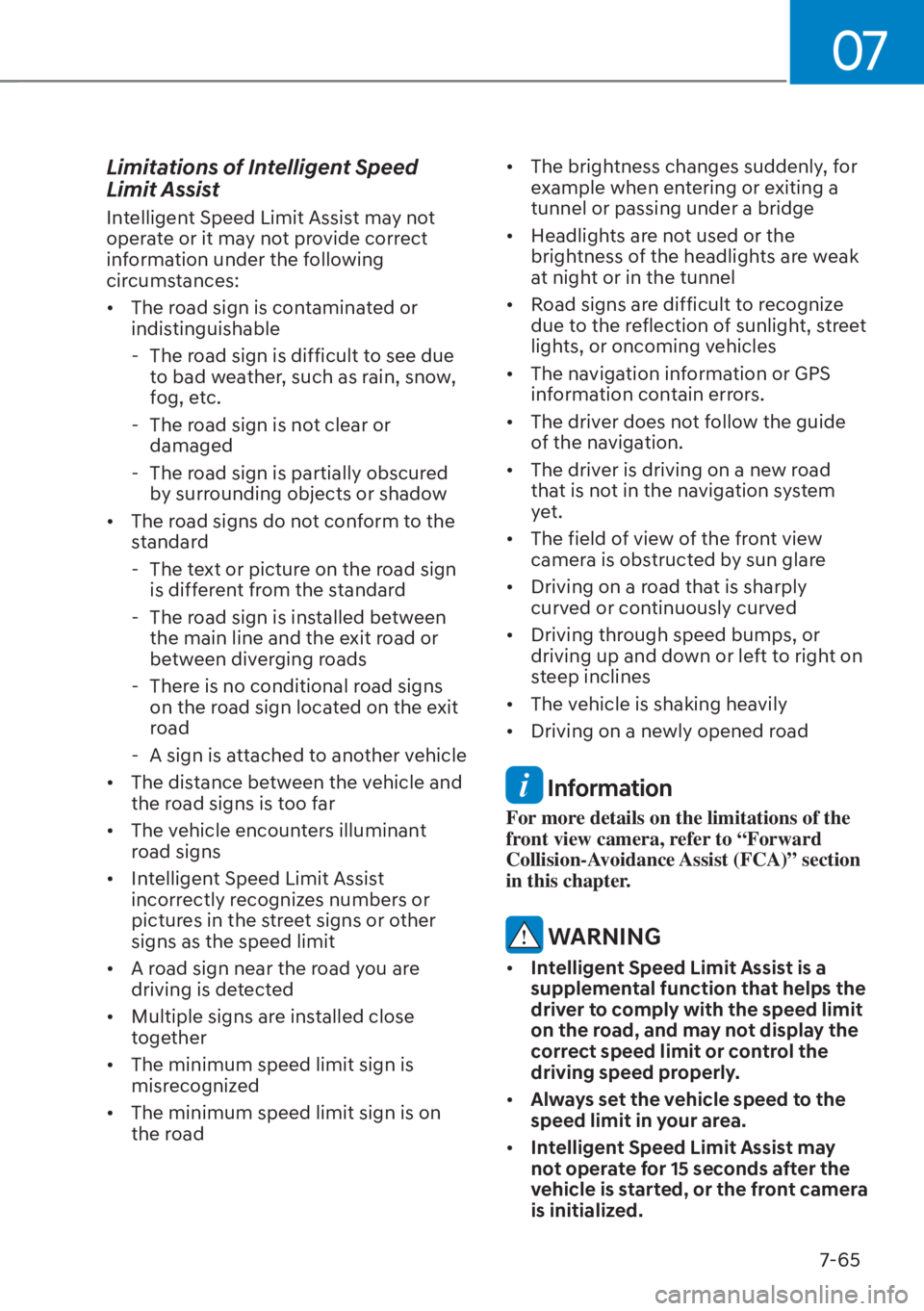

Limitations of Intelligent Speed
Limit Assist
Intelligent Speed Limit Assist may not
operate or it may not provide correct
information under the following
circumstances:
• The road sign is contaminated or indistinguishable
- The road sign is difficult to see due to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or damaged
- The road sign is partially obscured by surrounding objects or shadow
• The road signs do not conform to the standard
- The text or picture on the road sign is different from the standard
- The road sign is installed between the main line and the exit road or
between diverging roads
- There is no conditional road signs on the road sign located on the exit
road
- A sign is attached to another vehicle
• The distance between the vehicle and the road signs is too far
• The vehicle encounters illuminant road signs
• Intelligent Speed Limit Assist incorrectly recognizes numbers or
pictures in the street signs or other
signs as the speed limit
• A road sign near the road you are driving is detected
• Multiple signs are installed close together
• The minimum speed limit sign is misrecognized
• The minimum speed limit sign is on the road • The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge
• Headlights are not used or the brightness of the headlights are weak
at night or in the tunnel
• Road signs are difficult to recognize due to the reflection of sunlight, street
lights, or oncoming vehicles
• The navigation information or GPS information contain errors.
• The driver does not follow the guide of the navigation.
• The driver is driving on a new road that is not in the navigation system
yet.
• The field of view of the front view camera is obstructed by sun glare
• Driving on a road that is sharply curved or continuously curved
• Driving through speed bumps, or driving up and down or left to right on
steep inclines
• The vehicle is shaking heavily
• Driving on a newly opened road
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.
WARNING
• Intelligent Speed Limit Assist is a
supplemental function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the
driving speed properly.
• Always set the vehicle speed to the
speed limit in your area.
• Intelligent Speed Limit Assist may
not operate for 15 seconds after the
vehicle is started, or the front camera
is initialized.

Driver Assistance System7-90
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
normally, or it may operate unexpectedly
under the following circumstances:
• The detecting sensor or the surroundings are contaminated or
damaged
• Washer fluid is continuously sprayed, or the wiper is on
• The camera lens is contaminated due to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
• Moisture is not removed or frozen on the windshield
• The field of view of the front view camera is obstructed by sun glare
• Street light or light from an oncoming vehicle is reflected on the wet road
surface, such as a puddle on the road
• The temperature around the front view camera is high or low
• An object is placed on the dashboard
• The surrounding is very bright
• The surrounding is very dark, such as in a tunnel, etc.
• The brightness changes suddenly, for example when entering or exiting a
tunnel
• The brightness outside is low, and the headlights are not on or are not bright
• Driving in heavy rain or snow, or thick fog
• Driving through steam, smoke or shadow • Only part of the vehicle is detected
• The vehicle in front has no tail lights,
tail lights are located unusually, etc.
• The brightness outside is low, and the tail lamps are not on or are not bright
• The rear of the front vehicle is small or does not look normal (for example,
tilted, overturned, etc.)
• The front vehicle’s ground clearance is low or high
• A vehicle suddenly cuts in front
• Your vehicle is being towed
• Driving through a tunnel or iron bridge
• Driving near areas containing metal substances, such as a construction
zone, railroad, etc.
• A material is near that reflects very well on the front radar, such as a
guardrail, nearby vehicle, etc.
• The bumper around the front radar is impacted, damaged or the front radar
is out of position
• The temperature around the front radar is high or low
• Driving in large areas where there are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)
• The vehicle in front is made of material that does not reflect on the
front radar
• Driving near a highway (or motorway) interchange or tollgate
• Driving on a slippery surface due to snow, water puddle, ice, etc.
• Driving on a curved road
• The vehicle in front is detected late
• The vehicle in front is suddenly blocked by an obstacle
• The vehicle in front suddenly changes lane or suddenly reduces speed

09
9-31
Battery Capacity Label
„„Type AType A
OTM090063LOTM090063L
„„Type BType B
OTM090064LOTM090064L
1. MF68L-DIN : The HYUNDAI model name of battery
2. 12V : The nominal voltage
3. 68Ah (20HR) : The nominal capacity (in Ampere hours)
4. RC 110min : The nominal capacity (in Ampere hours)
5. 600A : The cold-test current in amperes by SAE/EN
Battery Recharging
By battery charger
Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged over a short time (because, for
example, the headlights or interior
lights were left on while the vehicle
was not in use), recharge it by slow
charging (trickle) for 10 hours.
• If the battery gradually discharges because of high electrical load while
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:
• Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
• Keep all flames, sparks, or smoking
materials away from the battery.
• Always work outdoors or in an area
with plenty of ventilation.
• Wear eye protection when checking
the battery during charging.
• The battery must be removed from
the vehicle and placed in a well
ventilated area.
• Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.

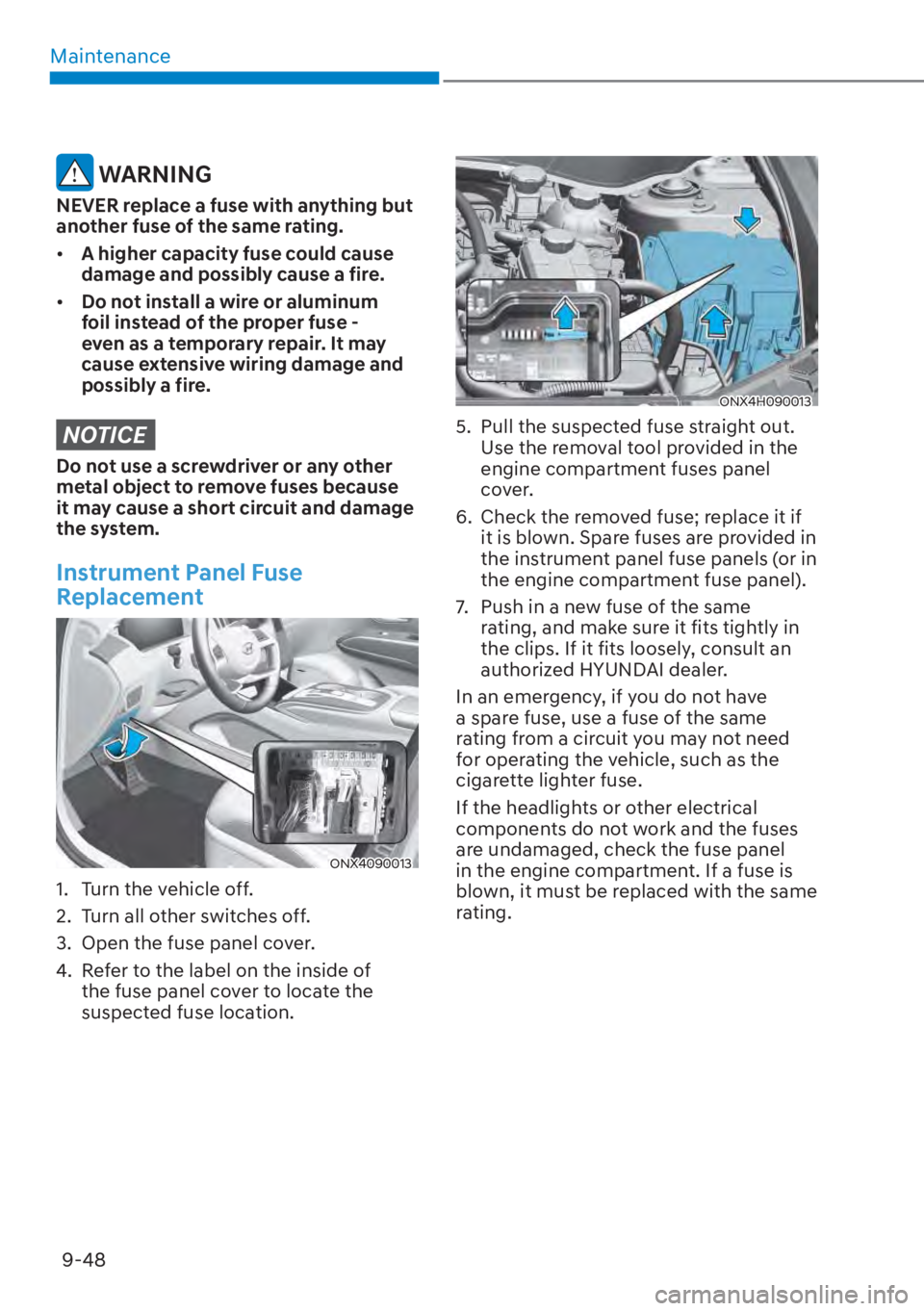

Maintenance9-48
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse could cause
damage and possibly cause a fire.
• Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
Instrument Panel Fuse
Replacement
ONX4090013ONX4090013
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
ONX4H090013ONX4H090013
5. Pull the suspected fuse straight out. Use the removal tool provided in the
engine compartment fuses panel
cover.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.
