Maintenance9-52
Fuse Name Fuse rating Circuit Protected
Module7 7.5A IBU
PT
G 10A Liftgate Relay
Multi Media 20A Audio, A/V & Navigation Head Unit Washer 15A Multifunction Switch
Module8 7.5A Front/Rear Seat Warmer Control Module, Front Air
Ventilation Seat Control Module
A/BAG1 15A SRS Control Module
A/C 7.5A Electronic A/C Compressor, Front/Rear A/C Control Switch
A/C Control Module, E/R Junction Block (RLY.10, RLY.13)
Module2 15A Front USB Charge Connector, Rear USB Charge Connector
Module1 10A E-Call Unit, Audio, A/V & Navigation Head Unit, AMP, Audio
Keyboard, A/V & Navigation Keyboard, IBU, BMS, ADAS
Parking ECU Unit, Power Outside Mirror Switch
Module6 10A Front Console Switch, EPB Switch
IBU1 7.5A IBU
Module5 10A Front/Rear Seat Warmer Control Module, E-Call Unit, AMP,
Driver IMS Control Module, Front/Rear A/C Control Switch,
Audio, A/V & Navigation Head Unit, Wireless Charger
Unit, Front Air Ventilation Seat Control Module, Data Link
Connector, A/C Control Module, Heat Lamp LH/RH, Electro
Chromic Mirror
A/BAG IND. 7.5A Instrument Cluster, Overhead Console Lamp
IG3 4 10A HPCUIG3 2 10A Electronic Water Pump (HEV)
Module4 7.5A Front View Camera, IBU, AWD ECM, VESS Unit, Crash Pad
Switch, ECS Unit, ADAS Parking ECU
E-Shifter 7.5A Electronic Shift Switch, SCU
09

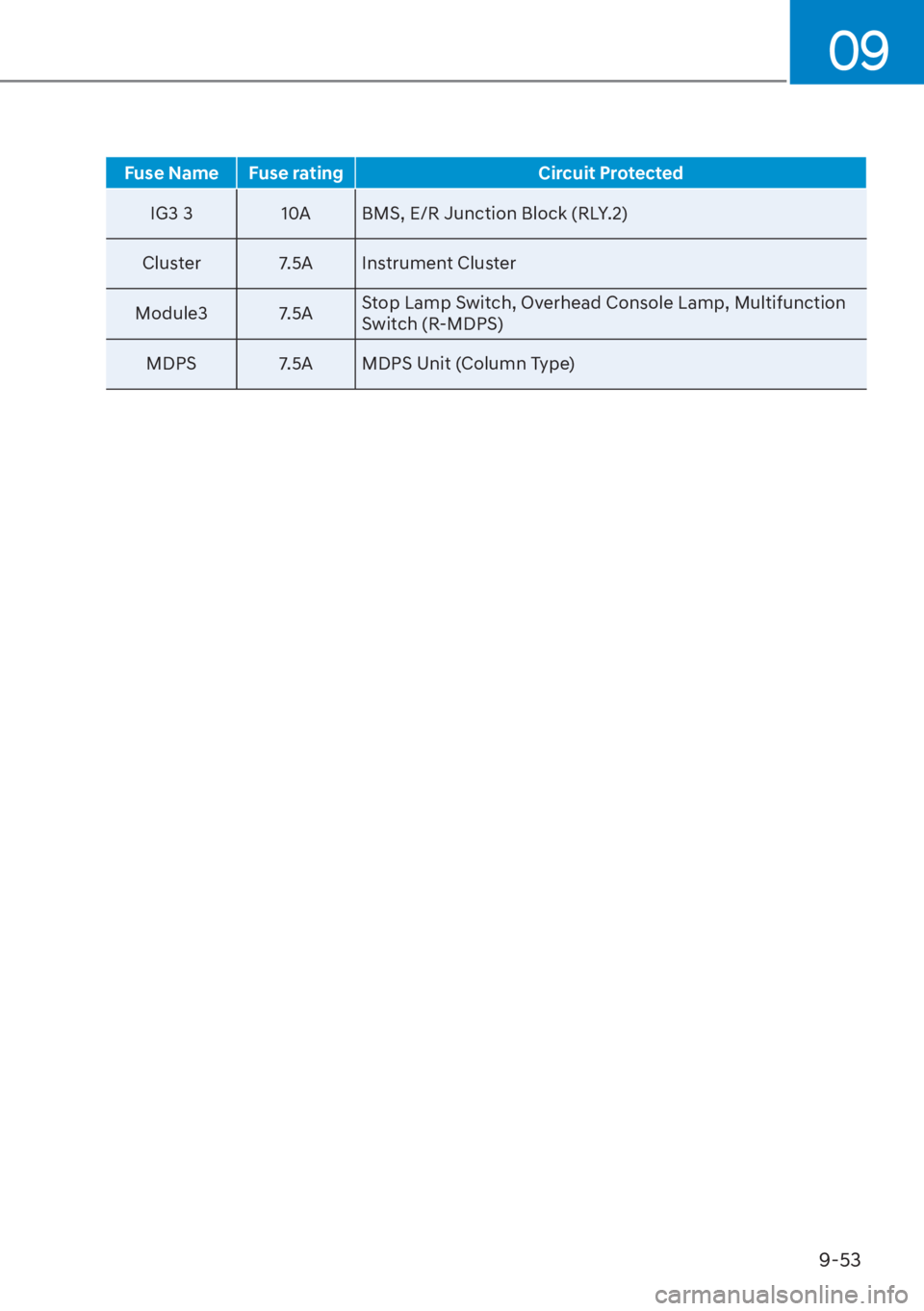

9-53
Fuse Name Fuse ratingCircuit Protected
IG3 3 10A BMS, E/R Junction Block (RLY.2)
Clus
ter 7.5A Instrument Cluster
Module3 7.5A Stop Lamp Switch, Overhead Console Lamp, Multifunction
Switch (R-MDPS)
MDPS 7.5A MDPS Unit (Column Type)
