2023 HYUNDAI SANTA FE HYBRID fuse box

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OTM010003[A] : Type A, [B] : Type B
1. Inside door handle ................................. 5-31
2. Power window switches ...................... 5-60
3. Power window lock switch ................. 5-62
/Electronic child safety lock button .... 5-33
4. Side view mirror folding button........... 5-56
5. Side view mirror control switch ........... 5-56
6. Central door lock switch ....................... 5-31
7. Instrument panel illumination control switch ...................................................... 4-5
8. Lane Safety button ................................7-30 9. Power Liftgate open/close button ....... 5-71
10. ESC (Electronic Stability Control) OFF
button .................................................... 6-29
11. EPB (Electronic Parking Brake) switch 6-20
12. Steering wheel ....................................... 5-41
13. Steering wheel tilt/telescopic switch.. 5-42
14. Fuse box ................................................ 9-44
15. Hood release lever ................................ 5-68
16. Seat .......................................................... 3-3
INTERIOR OVERVIEW

2-7
02
„Smartstream G 1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
OTMH090001
1. ECU
2. Engine coolant reservoir .......................9-18
3. Engine coolant reservoir cap ................9-18
4. Inverter coolant reservoir......................9-18
5. Brake fluid reservoir ............................. 9-22
6. Air cleaner ............................................. 9-247. Engine oil filler cap ................................ 9-16
8. Engine oil dipstick ................................. 9-16
9. Windshield washer fluid reservoir ....... 9-23
10. Fuse box ................................................ 9-43
11. Inverter coolant reservoir cap .............. 9-19
ENGINE COMPARTMENT

9-3
09

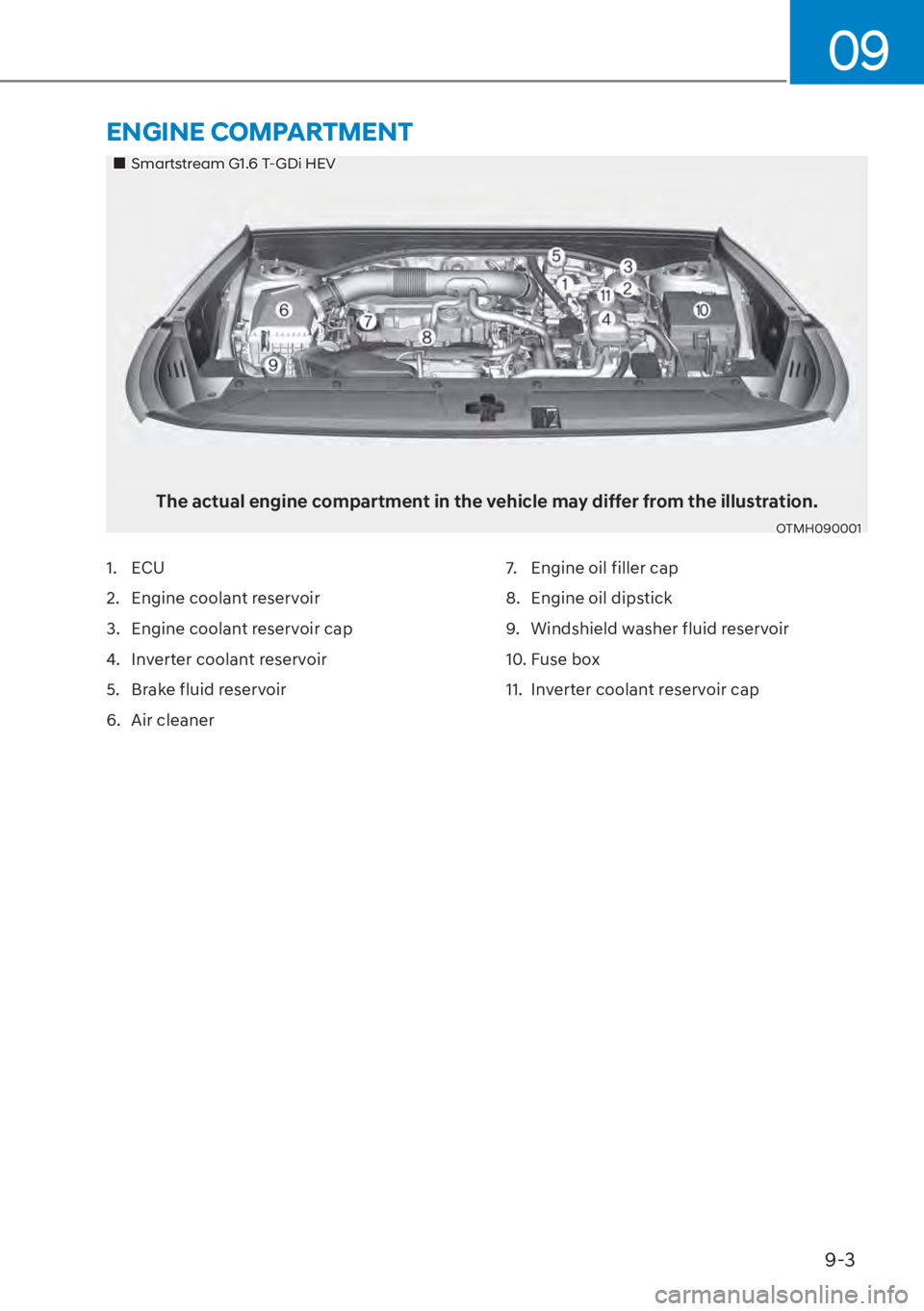

„Smartstream G1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
OTMH090001
1. ECU
2. Engine coolant reservoir
3. Engine coolant reservoir cap
4. Inverter coolant reservoir
5. Brake fluid reservoir
6. Air cleaner7. Engine oil filler cap
8. Engine oil dipstick
9. Windshield washer fluid reservoir
10. Fuse box
11. Inverter coolant reservoir cap
ENGINE COMPARTMENT

09
9-45

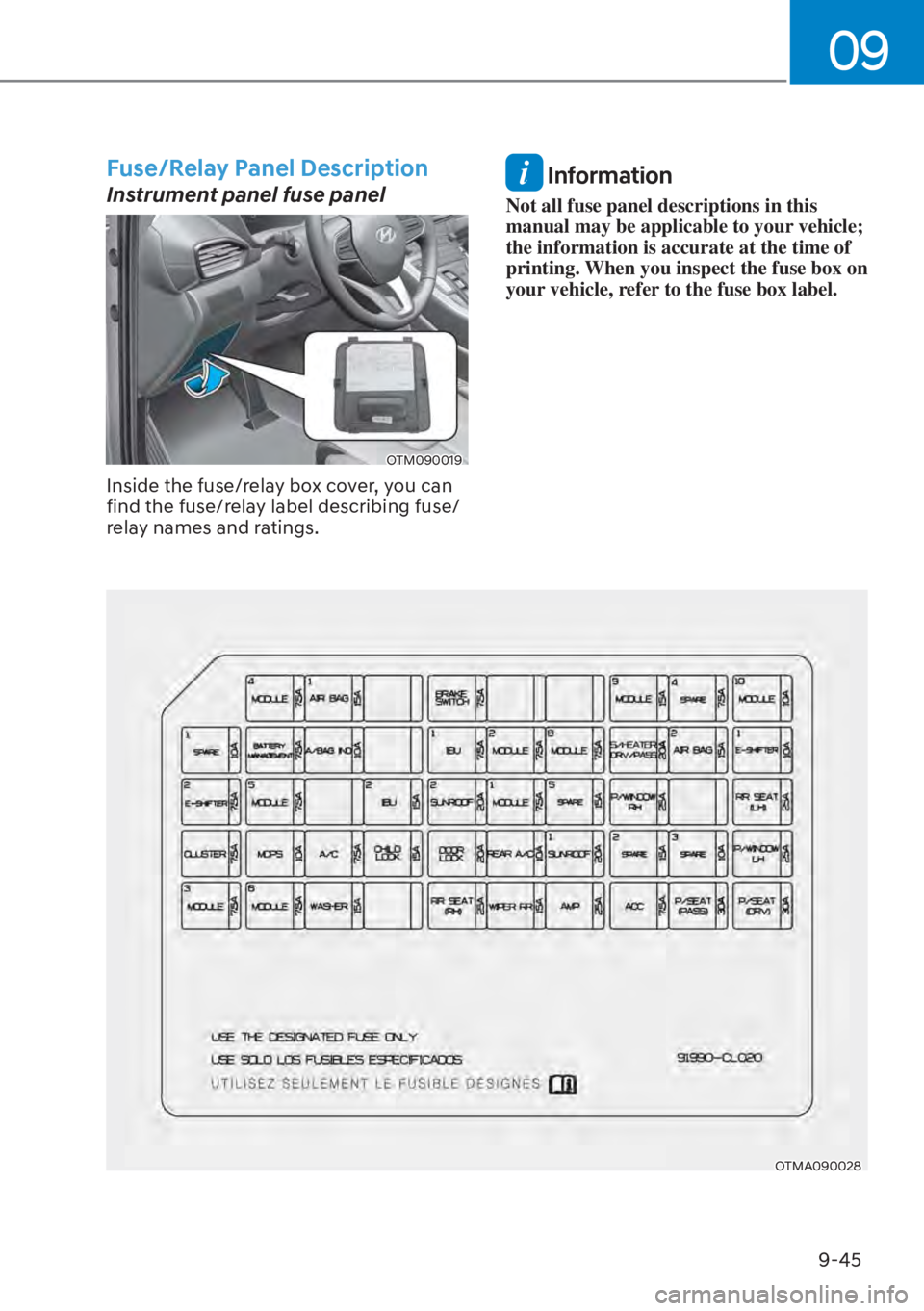

Fuse/Relay Panel Description
Instrument panel fuse panel
OTM090019
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OTMA090028

09
9-47
Instrument panel fuse panel
Fuse NameFuse
Rating Circuit Protected
AIR BAG 2 15A
SRS Control Module
E-SHIFTER 1 10A Electronic Shift Dial
E-SHIFTER 2 7.5A Electronic Shift Dial
MODULE 5 7.5ACrash Pad Switch,Upper Console Switch, Surround View
Monitor ECU, Steering Angle Sensor, IBU, ADAS Parking ECU,
Front View Camera, AWD ECM, VESS UNIT
IBU 2 15A IBU
SUNROOF 2 20A Panorama Sunroof
MODULE 1 7.5A IBU
P/WDW RH 25ADriver/Passenger Safety Power Window Module, Rear Safety
Power Window RH, Rear Power Window Switch RH, Passenger
Power Window Switch
RR S/HEATER LH 25A Rear Seat Heater LH
CLUSTER 7.5A Instrument Cluster, Head-Up Display
MDPS *
110A MDPS Unit
A/CON 7.5AE/R Junction Block (RLY. 4, RLY. 6, RLY. 9), Front A/C Control
Module, Electronic A/C Compressor HEV)
CHILD LOCK 15A ICM Relay Box (Child Lock/Unlock Relay)
DOOR LOCK 20ADoor Lock Relay, Door Unlock Relay, Tail Gate Relay, Dead
Lock Relay
*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

09
9-49

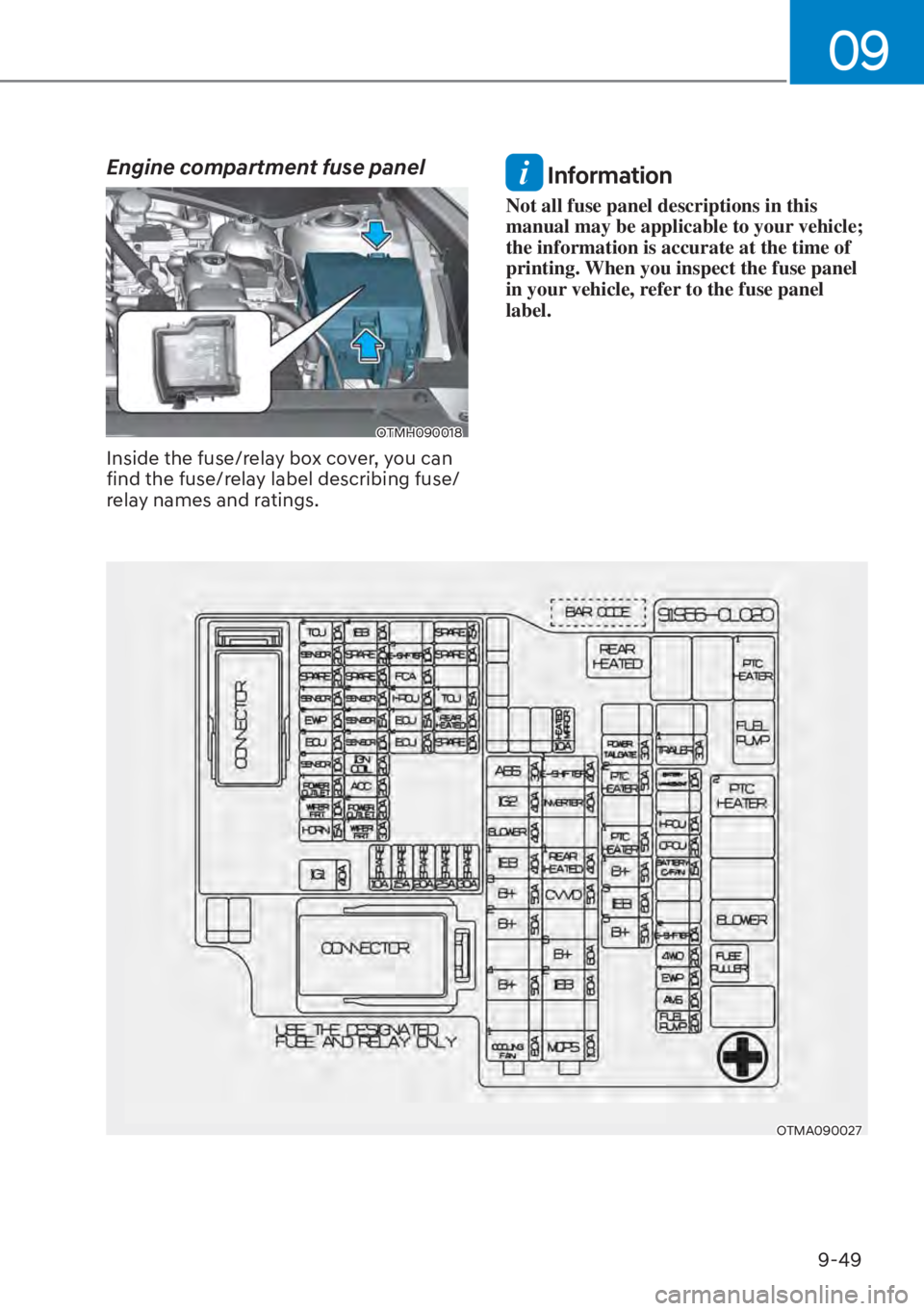

Engine compartment fuse panel
OTMH090018
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OTMA090027
