2023 HYUNDAI SANTA FE HYBRID display

Driver assistance system7-104
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
function is inspected by an authorized
HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

07
7-107

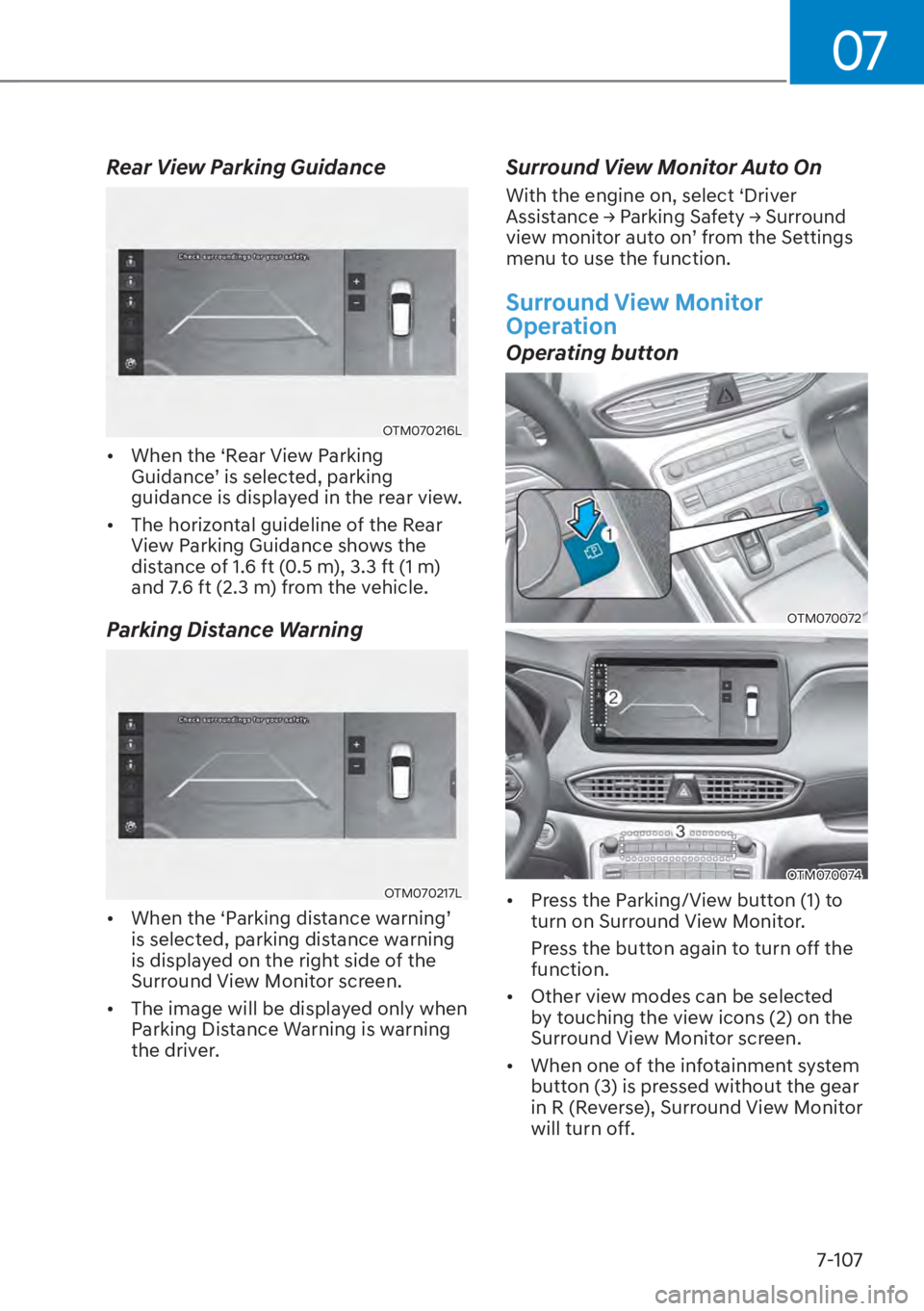

Rear View Parking Guidance
OTM070216L

[When the ‘Rear View Parking
*XLGDQFH
TLVVHOHFWHGSDUNLQJ
guidance is displayed in the rear view.

[ The horizontal guideline of the Rear
View Parking Guidance shows the
distance of 1.6 ft (0.5 m), 3.3 ft (1 m)
and 7.6 ft (2.3 m) from the vehicle.
Parking Distance Warning
OTM070217L

[ :KHQWKH
S3DUNLQJGLVWDQFHZDUQLQJ
T
is selected, parking distance warning
is displayed on the right side of the
Surround View Monitor screen.

[ The image will be displayed only when
Parking Distance Warning is warning
the driver.
Surround View Monitor Auto On
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system7-108

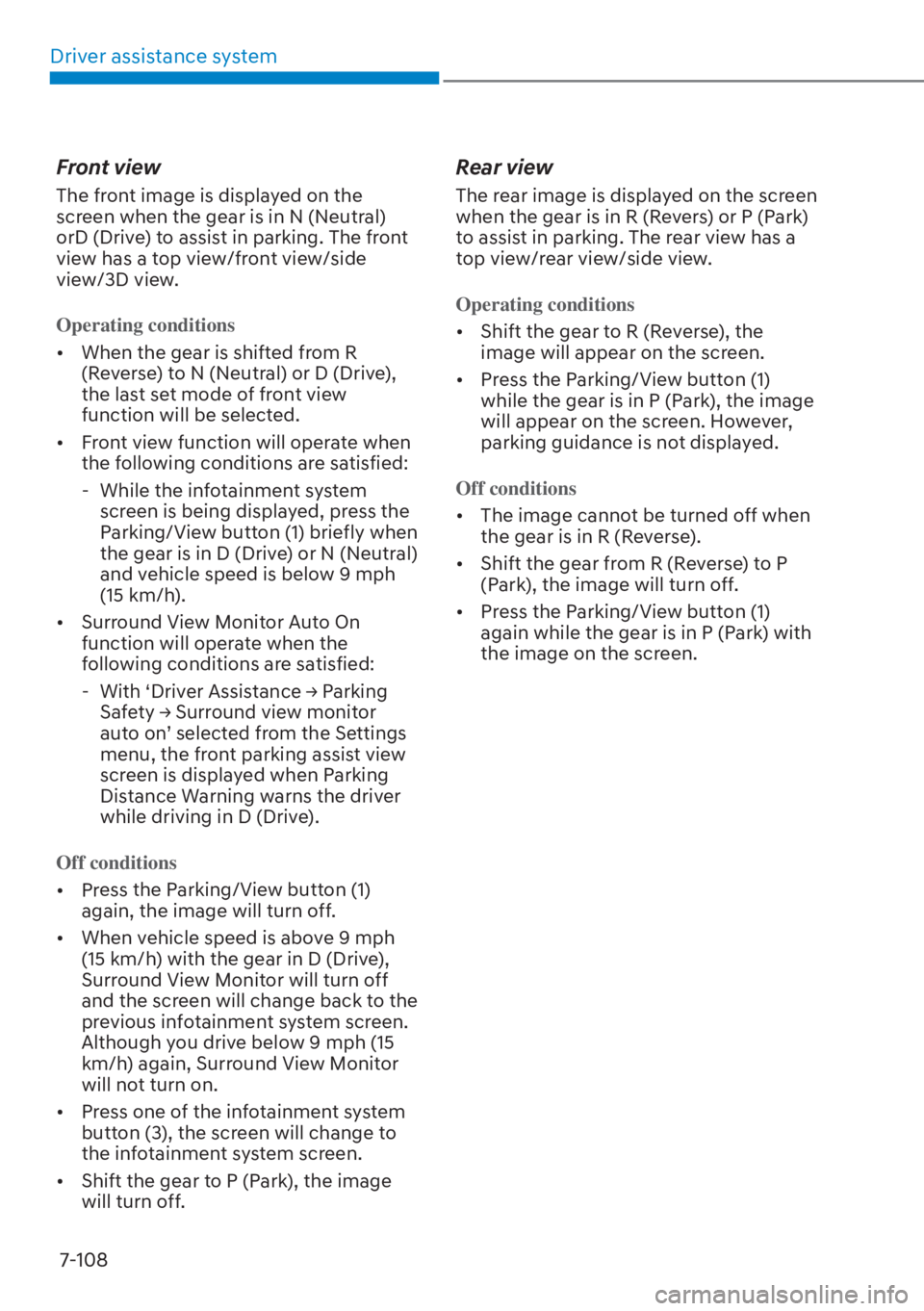

Front view
The front image is displayed on the
screen when the gear is in N (Neutral)
orD (Drive) to assist in parking. The front
view has a top view/front view/side
view/3D view.
Operating conditions

[ When the gear is shift
ed from R
(Reverse) to N (Neutral) or D (Drive),
the last set mode of front view
function will be selected.

[ Front view function will operate when
the following conditions are satisfied:
- While the infotainment system screen is being displayed, press the
Parking/View button (1) briefly when
the gear is in D (Drive) or N (Neutral)
and vehicle speed is below 9 mph
(15 km/h).

[ Surround View Monitor Auto On
function will operate when the
following conditions are satisfied:
- :LWK
S'ULYHU$VVLVWDQFH

07
7-109

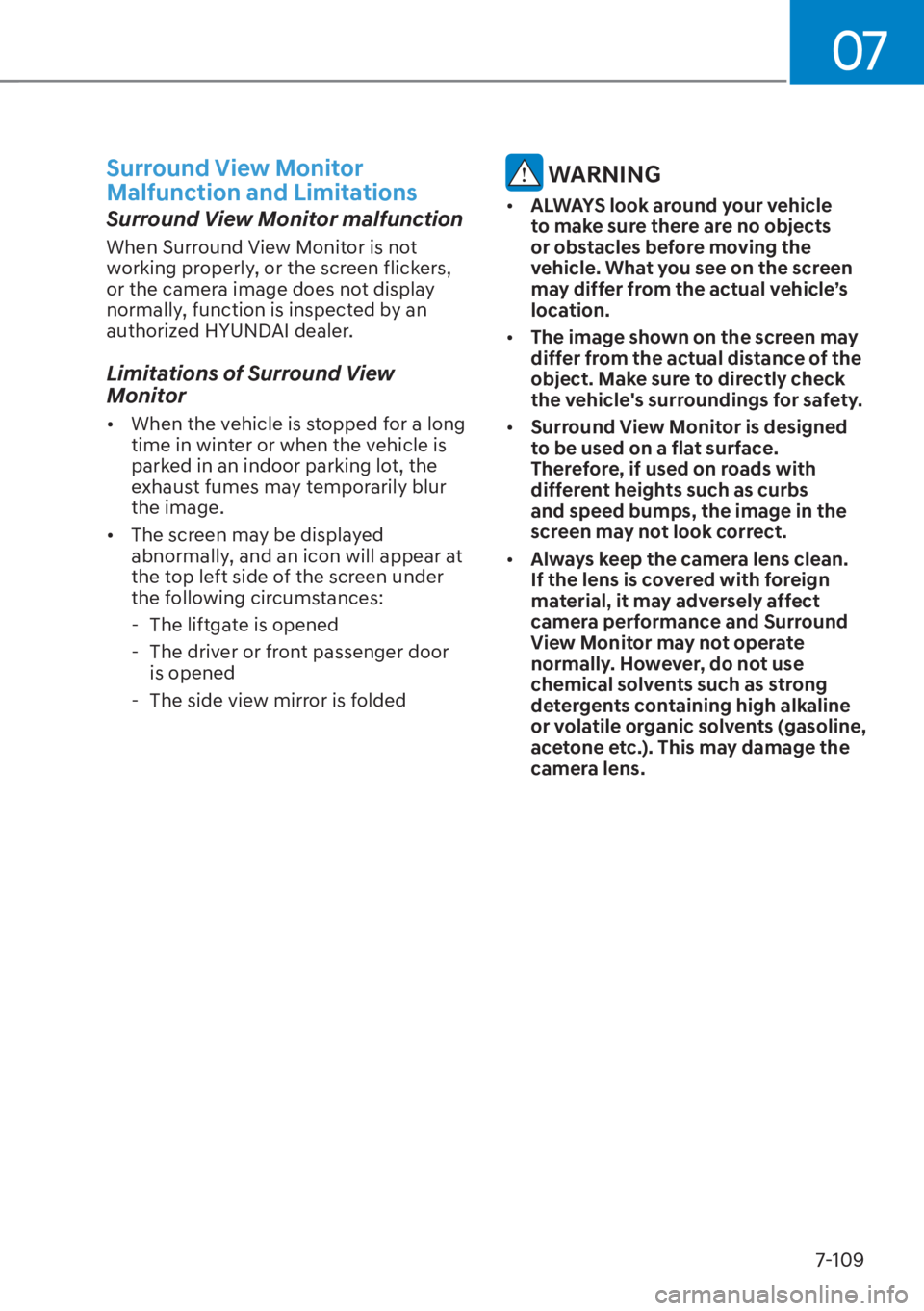

Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
normally, function is inspected by an
authorized HYUNDAI dealer.
Limitations of Surround View
Monitor

[When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.

[ The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The liftgate is opened

- The driver or front passenger door
is opened
- The side view mirror is folded
WARNING

[ ALWAYS look around your vehicle
to make sure there are no objects
or obstacles before moving the
vehicle. What you see on the screen
may differ from the actual vehicle’s
location.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Surround View Monitor is designed
to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs
and speed bumps, the image in the
screen may not look correct.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

07
7-115

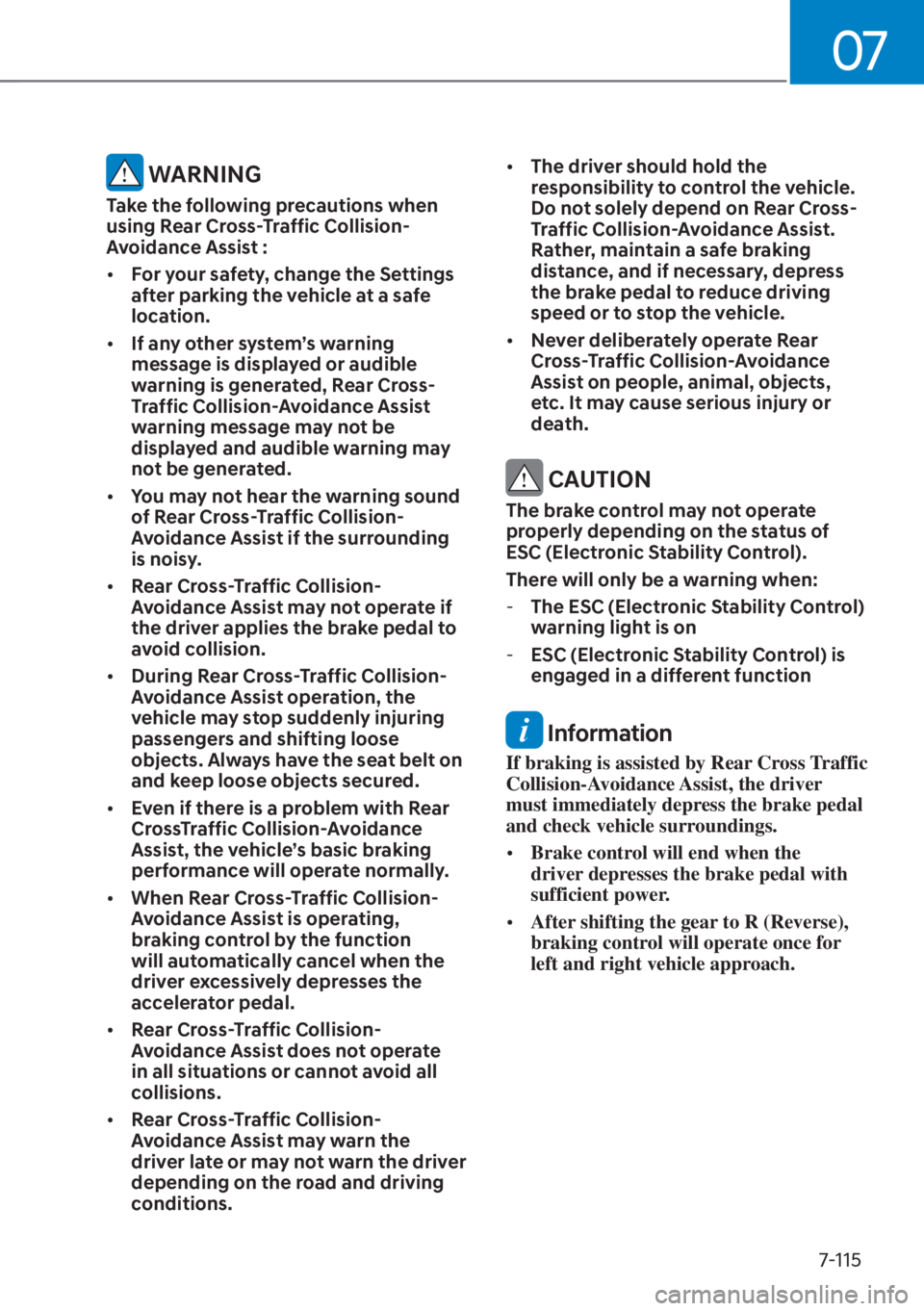

WARNING
Take the following precautions when
using Rear Cross-Traffic Collision-
Avoidance Assist :

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Collision-Avoidance Assist
warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning sound
of Rear Cross-Traffic Collision-
Avoidance Assist if the surrounding
is noisy.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate if
the driver applies the brake pedal to
avoid collision.

[ During Rear Cross-Traffic Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
passengers and shifting loose
objects. Always have the seat belt on
and keep loose objects secured.

[ Even if there is a problem with Rear
CrossTraffic Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate normally.

[ When Rear Cross-Traffic Collision-
Avoidance Assist is operating,
braking control by the function
will automatically cancel when the
driver excessively depresses the
accelerator pedal.

[ Rear Cross-Traffic Collision-
Avoidance Assist does not operate
in all situations or cannot avoid all
collisions.

[ Rear Cross-Traffic Collision-
Avoidance Assist may warn the
driver late or may not warn the driver
depending on the road and driving
conditions.
[
The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Rear Cross-
Traffic Collision-Avoidance Assist.
Rather, maintain a safe braking
distance, and if necessary, depress
the brake pedal to reduce driving
speed or to stop the vehicle.

[ Never deliberately operate Rear
Cross-Traffic Collision-Avoidance
Assist on people, animal, objects,
etc. It may cause serious injury or
death.
CAUTION
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
Information
If braking is assisted by Rear Cross Traffic
Collision-Avoidance Assist, the driver
must immediately depress the brake pedal
and check vehicle surroundings.

[ Brake control will end when the
driver depresses the brake pedal with
sufficient power.

[ After shifting the gear to R (Reverse),
braking control will operate once for
left and right vehicle approach.

Driver assistance system7-124
WARNING

[ Reverse Parking Distance Warning
is a supplemental system. The
operation of Reverse Parking
Distance Warning can be affected
by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the rear view before and while
parking.

[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Reverse Parking Distance Warning.

[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.
Limitations of Reverse Parking
Distance Warning

[Reverse Parking Distance Warning
may not operate normally when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign material, such as snow or water
(Reverse Parking Distance Warning
will operate normally when such
foreign material are removed.)

- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or an impact is applied with a
hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer
[
Reverse Parking Distance Warning
may malfunction when:

- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- $IIHFWHGE\DQRWKHUYHKLFOH
TV
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- Installing the license plate differently from the original location
- The vehicle bumper height or ultrasonic sensor installation has
been modified
- Attaching equipments or accessories around the ultrasonic
sensors

[ The following objects may not be
detected:

- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors

[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.

[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.

[ If Reverse Parking Distance Warning
needs repair, function is inspected by
an authorized HYUNDAI dealer.

07
7-129
Limitations of Forward/Reverse
Parking Distance Warning

[Forward/Reverse Parking Distance
Warning may not operate normally
when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign material, such as snow or water
(Forward/Reverse Parking Distance
- Warning will operate normally when such foreign material are removed.)

- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or an impact is applied with a
hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer

[ Forward/Reverse Parking Distance
Warning may malfunction when:

- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- $IIHFWHGE\DQRWKHUYHKLFOH
TV
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- Installing the license plate differently from the original location
- The vehicle bumper height or ultrasonic sensor installation has
been modified
- Attaching equipments or accessories around the ultrasonic
sensors
[
The following objects may not be
detected:

- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 10 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors

[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.

[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.

[ If Forward/Reverse Parking Distance
Warning needs repair, Forward/
Reverse Parking Distance Warning is
inspected by an authorized HYUNDAI
dealer.

08
8-9
OTM080002
OTMH080017N

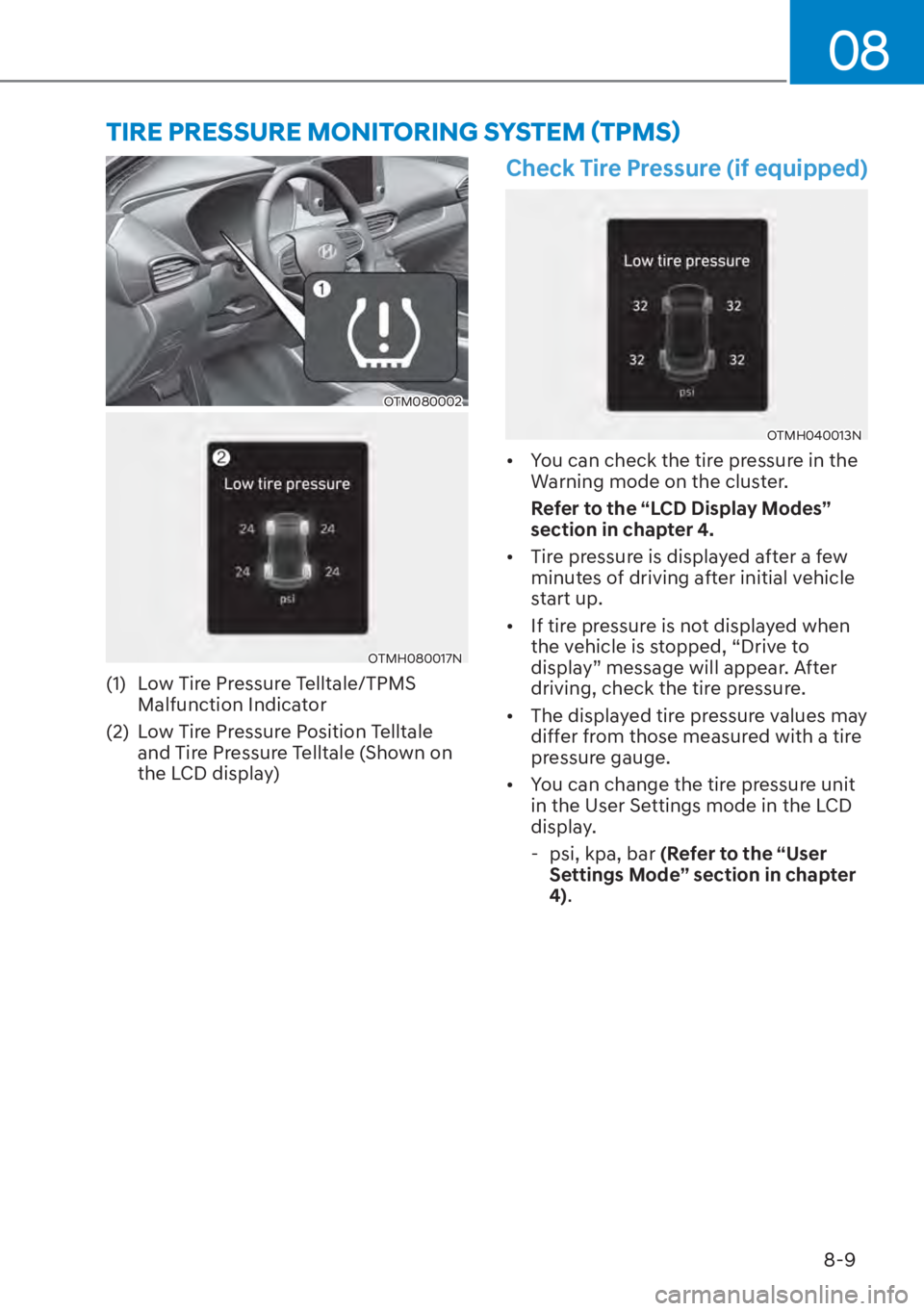

(1) Low Tire Pressure Telltale/TPMS Malfunction Indicator
(2) Low Tire Pressure Position Telltale and Tire Pressure Telltale (Shown on
the LCD display)
Check Tire Pressure (if equipped)
OTMH040013N

[You can check the tire pressure in the
Warning mode on the cluster.
Refer to the “LCD Display Modes”
section in chapter 4.

[ Tire pressure is displayed after a few
minutes of driving after initial vehicle
start up.

[ If tire pressure is not displayed when
the vehicle is stopped, “Drive to
display” message will appear. After
driving, check the tire pressure.

[ The displayed tire pressure values may
differ from those measured with a tire
pressure gauge.

[ You can change the tire pressure unit
in the User Settings mode in the LCD
display.
- psi, kpa, bar (Refer to the “User Settings Mode” section in chapter
4) .
7,5(35(6685(021,725,1*6<67(0
