2023 HYUNDAI SANTA CRUZ navigation

05
5-31
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
User’s Setting
ModeLamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice volume,
Welcome sound
Door Automatic door lock/unlock, Two Press Unlock
Infotainment
systemNavigationPreferred volume of the navigation system, Recent
destination
User preset My menu list settings, Radio preset
Phone
connectivityBluetooth preferential connect
CarPlay/Android Auto On/Off
Air conditioningOperating
conditionLatest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.

05
5-41
• Automatic Controls for the Driver
Based on Climate Control System
Settings (if equipped)
- The Automatic Comfort Control
feature can control the steering
wheel heater operation according
to the ambient temperature and
the set climate control temperature
while the engine is running.
If the heated steering wheel switch
is pressed while the Automatic
Comfort Control feature is
operating, then the heated steering
wheel operation will be controlled
manually.
The Auto Comfort Control feature
is enabled from the Vehicle
Settings menu on the navigation
infotainment screen.
- The heated steering wheel defaults
to the OFF position whenever the
ignition switch is ON. However, if
the Auto Comfort Control function
is ON, the heated steering wheel
will turn on and off depending on
the ambient temperature and the
set climate control temperature.
For more details, contact an authorized
HYUNDAI dealer.
Information
The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned
on.
NOTICE
Do not install any cover or accessory
on the steering wheel. This cover or
accessory could cause damage to the
heated steering wheel system.
Horn
OCN7050016OCN7050016
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
object.

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (Front view camera only) ................... 7-2
Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ................................... 7-14
Lane Keeping Assist (LKA) ...................................................................................... 7-30
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-36
Safe Exit Warning (6(:
î ......................................................................................... 7-50
Manual Speed Limit Assist (MSLA) ........................................................................ 7-56
Intelligent speed limit assist
í,6/$) ........................................................................ 7-59
Driver Attention Warning (DAW) ............................................................................ 7-64
Blind-Spot View Monitor (BVM) .............................................................................. 7-70
Driving ConvenienceCruise Control (CC) ..................................................................................................7-72
Smart Cruise Control (SCC) .................................................................................... 7-76
Navigation-based Smart Cruise Control (NSCC) ................................................... 7-93
Lane Following Assist (LFA) ................................................................................... 7-100
Highway Driving Assist (HDA) .............................................................................. 7-104
Parking SafetyRear View Monitor (RVM) ....................................................................................... 7-111
Surround View Monitor (SVM) ...............................................................................7-115
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ........................................7-120
Declaration of Conformity ............................................................................................7-131
7. Driver Assistance System
Driver Assistance System

07
7-63
Limitations of Intelligent Speed
Limit Assist
Intelligent Speed Limit Assist may not
operate or may not provide correct
information under the following
circumstances:
• The road sign is contaminated or
indistinguishable
- The road sign is difficult to see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or
damaged
- The road sign is partially obscured
by surrounding objects or shadow
• The road signs do not conform to the
standard
- The text or picture on the road sign
is different from the standard
- The road sign is installed between
the main line and the exit road or
between diverging roads
- There is no conditional road signs
on the road sign located on the exit
road
- A sign is attached to another vehicle
• The distance between the vehicle and
the road signs is too far
• The vehicle encounters illuminant
road signs
• Intelligent Speed Limit Assist
incorrectly recognizes numbers or
pictures in the street signs or other
signs as the speed limit
• A road sign near the road you are
driving is detected
• Multiple signs are installed close
together
• The minimum speed limit sign is
misrecognized
• The minimum speed limit sign is on
the road • The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge
• Headlamps are not used or the
brightness of the headlamps are weak
at night or in the tunnel
• Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles
• The navigation information or GPS
information contain errors
• The driver does not follow the guide
of the navigation
• The driver is driving on a new road
that is not in the navigation system yet
• The field of view of the front view
camera is obstructed by sun glare
• Driving on a road that is sharply
curved or continuously curved
• Driving through speed bumps, or
driving up and down or left to right on
steep inclines
• The vehicle is shaking heavily
• Driving on a newly opened road
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
WARNING
• Intelligent Speed Limit Assist is a
supplemental function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the
driving speed properly.
• Always set the vehicle speed under
the speed limit in your country.

Driver Assistance System
7-94
Navigation-based Smart Cruise
Control Settings
Setting features
ONX4OB071098ONX4OB071098
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-95
• Navigation-based Smart Cruise
Control operating
ONX4OB071099ONX4OB071099ONX4OB071101ONX4OB071101
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol illuminates on the
cluster.
If the Highway Auto Speed Change
function operates, the
symbol and
set speed illuminates in green on the
cluster, and an audible warning sounds.
WARNING
„„Type AType A„„Type BType B
ONX4OB071102ONX4OB071102ONX4OB071103ONX4OB071103
‘Drive carefully’ warning message
appears in the following circumstances:
-Navigation-based Smart Cruise
Control is not able to slow down your
vehicle to a safe speed
Information
Highway Auto Curve Slowdown and
Highway Auto Speed Change function
uses the same
symbol.
Highway Auto Curve Slowdown
• Depending on the curve ahead on the
highway, the vehicle will decelerate,
and after passing the curve, the
vehicle will accelerate to Smart Cruise
Control set speed.
• Vehicle deceleration time may differ
depending on the vehicle speed
and the degree of the curve on the
road. The higher the driving speed,
deceleration will start faster.
Highway Auto Speed Change
• Highway Auto Speed Change function
will operate when Smart Cruise
Control set speed and the highway
speed limit is matched.
• While Highway Auto Speed Change
function is operating, when the
highway speed limit changes,
Smart Cruise Control set speed
automatically changes to the changed
speed limit.
• If Smart Cruise Control set speed is
adjusted different from the speed
limit, Highway Auto Speed Change
function will be in the standby state.
• If Highway Auto Speed Change
function has changed to the standby
state by driving on a road other than
the highway main road, Highway Auto
Speed Change function will operate
again when you drive on the main
road again without setting the set
speed.

Driver Assistance System
7-96
• If Highway Auto Speed Change
function has changed to the standby
state by depressing the brake pedal
or pressing the
switch on the
steering wheel, press the switch
to restart the function.
• Highway Auto Speed Change
function does not operate on highway
interchanges or junctions.
Information
• Highway Auto Speed Change function
only operates based on the speed limits
of the highway, it does not work with
speed cameras.
• When Highway Auto Speed Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway speed limit changes.
• The maximum set speed for Highway
Auto Speed Change function is 86 mph
(140 km/h).
• If the speed limit of a new road is not
updated in the navigation, Highway
Auto Speed Change function may not
operate properly.
• If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Auto Speed Change
function may not operate properly.

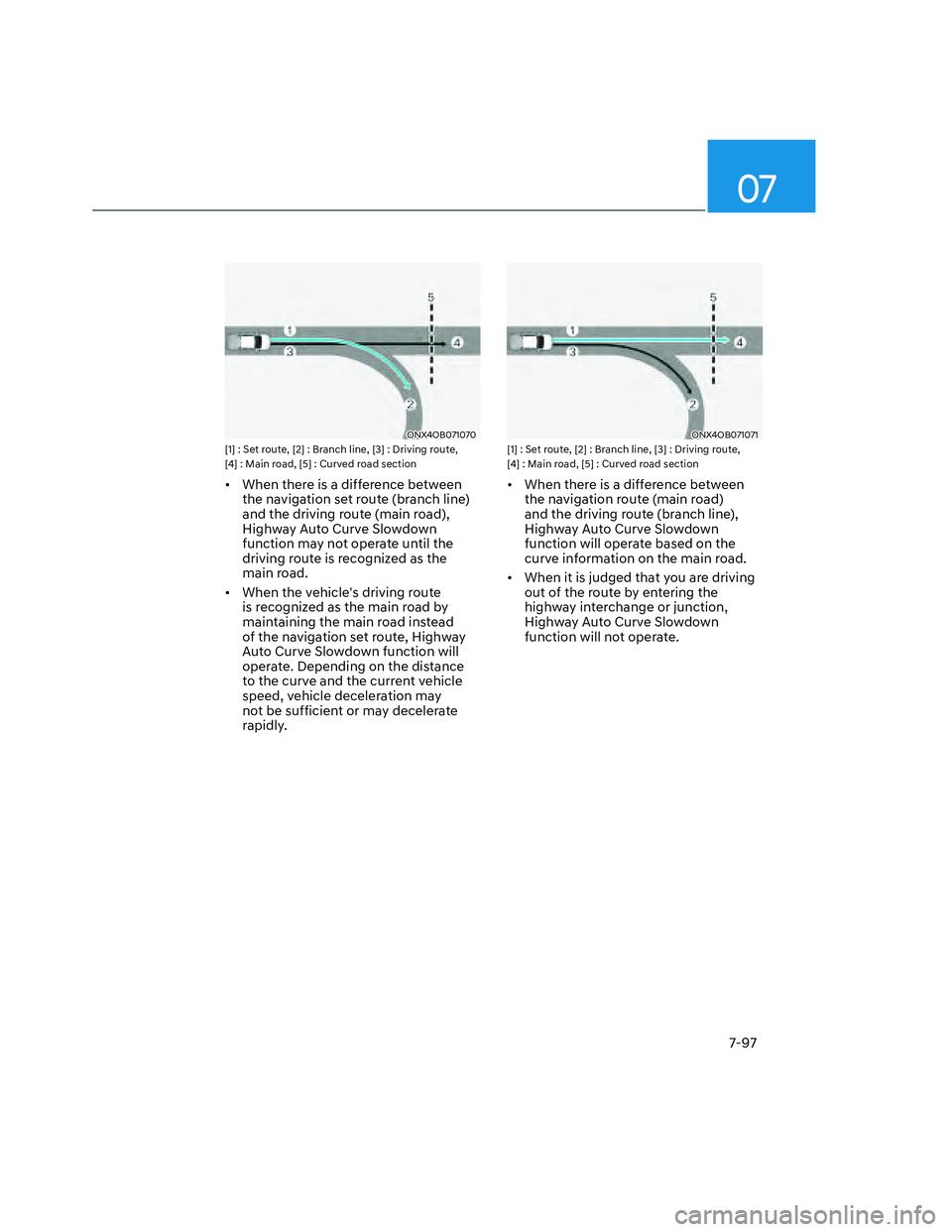

Limitations of Navigation-based
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:
• The navigation is not working properly
• Map information is not transmitted
due to infotainment system's
abnormal operation
• Speed limit and road information in
the navigation is not updated
• The map information and the actual
road is different because of real-time
GPS data or map information error
• The navigation searches for a route
while driving
• GPS signals are blocked in areas such
as a tunnel
• A road that divides into two or more
roads and joins again
• The driver goes off course the route
set in the navigation
• The route to the destination is
changed or canceled by resetting the
navigation
• The vehicle enters a service station or
rest area
• Android Auto or Car Play is operating
• The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)
• The navigation is being updated while
driving
• The navigation is being restarted while
driving
• The speed limit of some sections
changes according to the road
situations
• Driving on a road under construction
• Driving on a road that is controlled
• There is bad weather, such as heavy
rain, heavy snow, etc.
• Driving on a road that is sharply
curved

07
7-97
ONX4OB071070ONX4OB071070[1] : Set route, [2] : Branch line, [3] : Driving route,
[4] : Main road, [5] : Curved road section
• When there is a difference between
the navigation set route (branch line)
and the driving route (main road),
Highway Auto Curve Slowdown
function may not operate until the
driving route is recognized as the
main road.
• When the vehicle's driving route
is recognized as the main road by
maintaining the main road instead
of the navigation set route, Highway
Auto Curve Slowdown function will
operate. Depending on the distance
to the curve and the current vehicle
speed, vehicle deceleration may
not be sufficient or may decelerate
rapidly.
ONX4OB071071ONX4OB071071[1] : Set route, [2] : Branch line, [3] : Driving route,
[4] : Main road, [5] : Curved road section
• When there is a difference between
the navigation route (main road)
and the driving route (branch line),
Highway Auto Curve Slowdown
function will operate based on the
curve information on the main road.
• When it is judged that you are driving
out of the route by entering the
highway interchange or junction,
Highway Auto Curve Slowdown
function will not operate.
