2023 HYUNDAI SANTA CRUZ infotainment

Instrument Cluster
4-42
ONX4E040028ONX4E040028

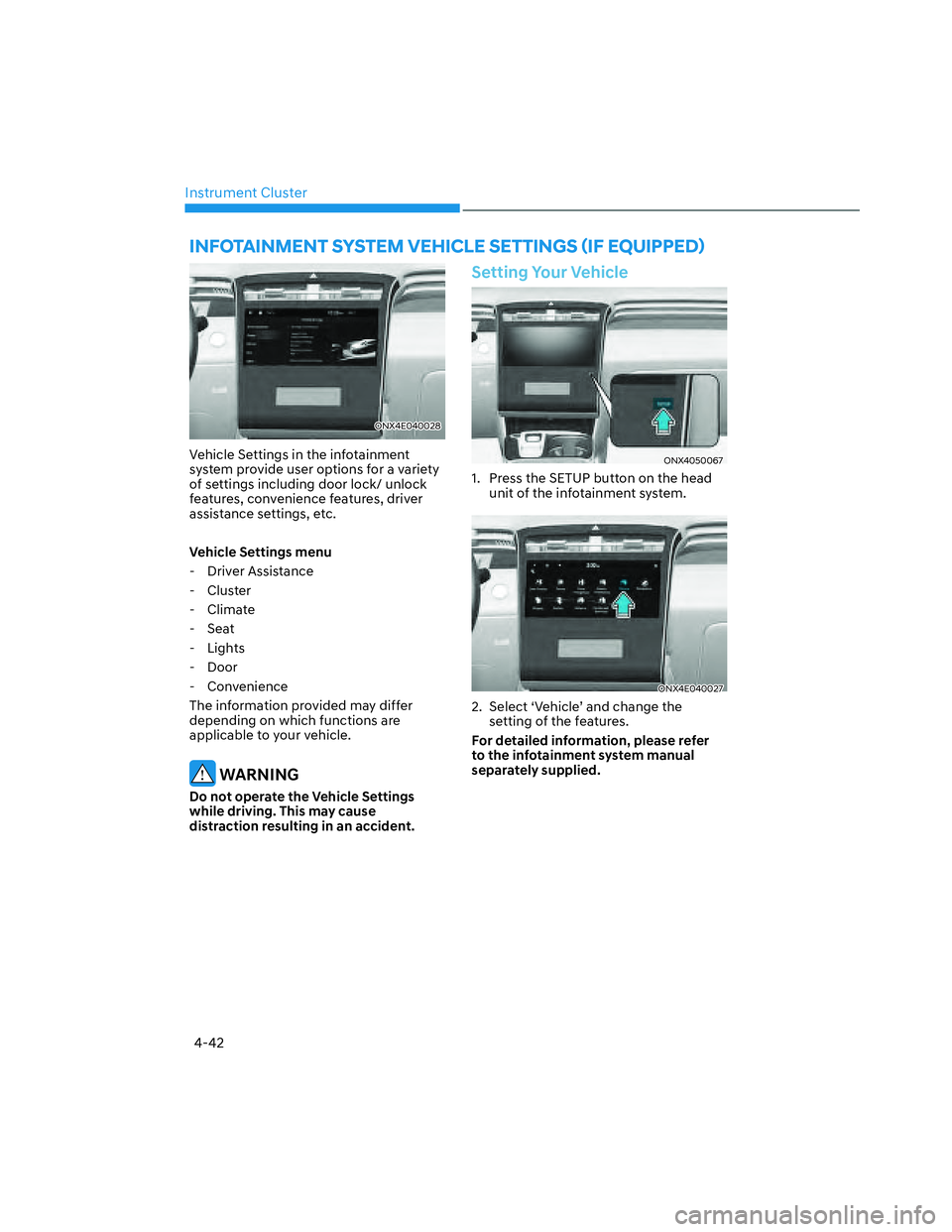

Vehicle Settings in the infotainment
system provide user options for a variety
of settings including door lock/ unlock
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
- Driver Assistance
- Cluster
- Climate
- Seat
- Lights
- Door
- Convenience
The information provided may differ
depending on which functions are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
while driving. This may cause
distraction resulting in an accident.
Setting Your Vehicle
ONX4050067ONX4050067
1. Press the SETUP button on the head
unit of the infotainment system.
ONX4E040027ONX4E040027
2. Select ‘Vehicle’ and change the
setting of the features.
For detailed information, please refer
to the infotainment system manual
separately supplied.
,1)27$,10(176<67(09(+,&/(6(77,1*6

5
Storage Compartment .................................................................................... 5-112Center Console Storage ............................................................................................ 5-112
Glove Box ................................................................................................................... 5-113
Storage Box Under the Rear Seat ............................................................................. 5-113
Luggage Compartment Features ..................................................................5-114Tonneau Cover ........................................................................................................... 5-114
Sidewall Molded in Features .................................................................................... 5-117
Underbed Storage ..................................................................................................... 5-119
Sidewall Side Storage ............................................................................................... 5-121
Tie Down ....................................................................................................................5-122
Rail and cleat system ................................................................................................5-123
Interior Features ............................................................................................. 5-124Cup Holder ................................................................................................................ 5-124
Sunvisor .....................................................................................................................5-125
Power Outlet ..............................................................................................................5-125
USB Charger ............................................................................................................. 5-126
Wireless Smart Phone Charging System ................................................................. 5-127
Clock .........................................................................................................................5-129
Coat Hook ................................................................................................................. 5-130
Floor Mat Anchor(s) .................................................................................................. 5-130
Exterior Features .............................................................................................5-131Roof Rack .................................................................................................................. 5-131
Infotainment System ..................................................................................... 5-132USB Port .....................................................................................................................5-132
Antenna ......................................................................................................................5-132
Steering Wheel Remote Controls ............................................................................ 5-133
Infotainment System ............................................................................................... 5-134
Voice Recognition .................................................................................................... 5-134
Bluetooth® Wireless Technology ............................................................................. 5-134
How Vehicle Radio Works .........................................................................................5-135
5. Convenient Features

Convenient Features
5-16
Digital key (smartphone)
ODN8A059129ODN8A059129
ONX4OB051004ONX4OB051004
Hyundai Digital Key (Smartphone)
Pairing
1. Turn the vehicle on with the Smart key
and make sure to keep the smart key
inside the vehicle during digital key
registration.
2. Select the vehicle to save on your
Digital key application and activate
the save mode.
ÃSave mode is available only on
the vehicle owner’s Digital key
application.
3. Place your smartphone on the
wireless charging pad. The charging
pad also functions as a vehicle
authentication pad. The vehicle will
recognize the smartphone within a
few seconds.
Information
The [Save] button will be disabled if the
digital key (Smartphone key) is already
saved.
Please refer to “Digital Key Delete” in this
manual and follow the digital key delete
procedure in your car before Digital key
save.
Please refer to the ‘Tutorial’ on your
Digital key app and delete the previous
saved key in your smartphone before save.
4. Register your Digital key from the
vehicle user setting menu as follows.
ÃWith Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Smart Phone Key] then select the
[Save] from submenu.
ÃWithout navigation screen :
From cluster menu, go to [Digital Key]
- [Smart Phone Key] and select [Save].
5. Once the digital key save is complete,
a message will be shown on the
infotainment screen or cluster.
6. Remove the smartphone from the pad
and complete the saving process.
ONX4OB051005ONX4OB051005
[A] : Wireless Charging Pad (In-vehicle Authentication
Pad)

05
5-17
ODN8A059129ODN8A059129
ONX4OB051006ONX4OB051006

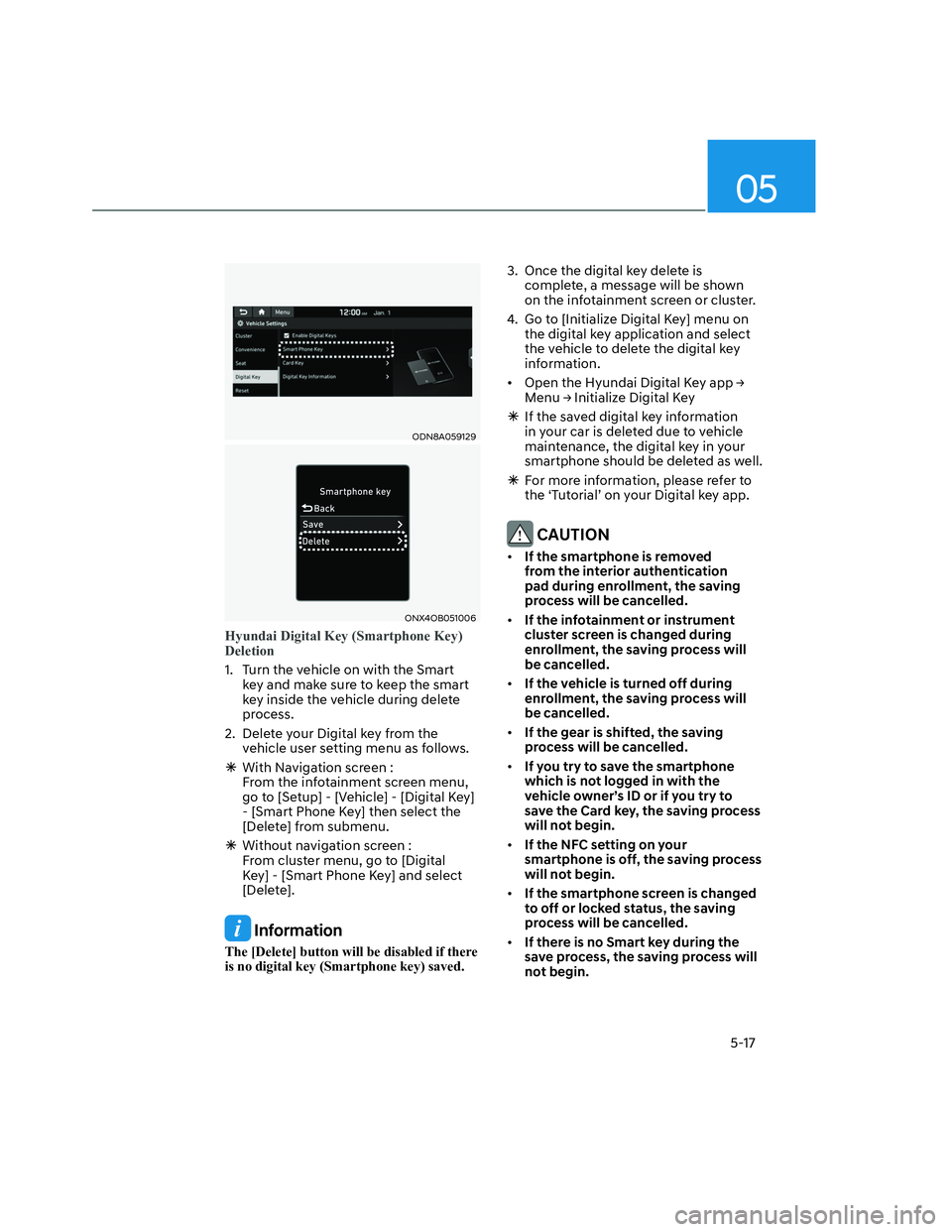

Hyundai Digital Key (Smartphone Key)
Deletion
1. Turn the vehicle on with the Smart
key and make sure to keep the smart
key inside the vehicle during delete
process.
2. Delete your Digital key from the
vehicle user setting menu as follows.
ÃWith Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Smart Phone Key] then select the
[Delete] from submenu.
ÃWithout navigation screen :
From cluster menu, go to [Digital
Key] - [Smart Phone Key] and select
[Delete].
Information
The [Delete] button will be disabled if there
is no digital key (Smartphone key) saved.3. Once the digital key delete is
complete, a message will be shown
on the infotainment screen or cluster.
4. Go to [Initialize Digital Key] menu on
the digital key application and select
the vehicle to delete the digital key
information.
• 2SHQWKH+\XQGDL'LJLWDO.H\DSS

05
5-25
ÃIf you have not registered the digital
key (smartphone), please register the
digital key (card key) with two smart
keys.
3. Place the NFC card key onto the
interior authentication pad (wireless
charger). The saving process will
begin automatically.
4. Register the NFC card key on the
User’s Settings menu after turning on
the vehicle.
ÃWith Navigation screen : From the
infotainment screen menu, go to
[Setup] - [Vehicle] - [Digital Key] -
[Card Key] then select the [Save] from
submenu.
ÃWithout navigation screen : From
cluster menu, go to [Digital Key] -
[Card Key] and select [Save].
The [Save] button will be disabled if
the digital key (Card key) is already
saved.
Please refer to “Digital Key Delete” in
this manual and follow the digital key
delete procedure in your car before
Digital key save.
5. If the key is enrolled, the message
will be displayed on the infotainment
screen or instrument cluster.
Information
• Once the card key registration mode
is activated, the process should be
completed within 5 minutes. After then,
you should reactivate once again for
registration.
• For the digital key(card key) saving, the
smart key(fob) must be exist inside of
vehicle.
• Once a Card key is registered, it cannot
be reuse onto another vehicle.
ODN8A059243ODN8A059243
ODN8A059132ODN8A059132
Digital key (Card key) deletion
Note that the remote Smart Key must be
in your possession and inside the vehicle
in order to delete the Digital Key Card.
1. Access the vehicle using the Smart
Key.
2. Start the vehicle and then access
the Digital Key Card Key functions in
the User Settings menu in either the
LCD display or from the Navigation
infotainment screen (on some
models.)
ÃWith Navigation screen : From the
infotainment screen menu, go to
[Setup] - [Vehicle] - [Digital Key] -
[Card Key] then select the [Delete]
from submenu.
ÃWithout navigation screen : From
cluster menu, go to [Digital Key] -
[Card Key] and select [Delete].
If there is no saved digital key(card key),
[Delete] menu will not be activated.

Convenient Features
5-28
„„Type AType A
ODN8A059133ODN8A059133
„„Type BType B
ONX4OB051007ONX4OB051007
Enabling or disabling the digital key
feature
If you want to temporarily disable the
digital key feature (smartphone app and
NFC card key), you can do so in the user
settings menu.
ÃWith Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Enable Digital Keys] (deselect)
ÃWithout navigation screen :
From cluster menu, go to [Digital Key]
- [Enable Digital Keys] (deselect)
Information
In order to disable the digital key feature
in the user settings menu, you must have
the smart key in your possession inside the
car.
CAUTION
If you uncheck Enable digital keys, it is
impossible to lock or unlock the doors
or start up the vehicle with digital keys
such as smartphone and card key. If
you check Enable digital keys again, the
registered digital keys(smartphone and
card key) are available. Even though
you stop the digital key function, the
registered keys (smartphone and card
key) are not deleted.
Personalized profile and vehicle
settings
You have the ability to set the registered
digital key with one of two personalized
profiles. Then, when you use the digital
card key or the Digital Key App, the
vehicle will be set to the user-defined
personalized profile (which includes
such items as driver settings, audio
preferences, etc.).
There are two profile connections and
personalization settings available for
Driver 1 and Driver 2.

Convenient Features
5-30

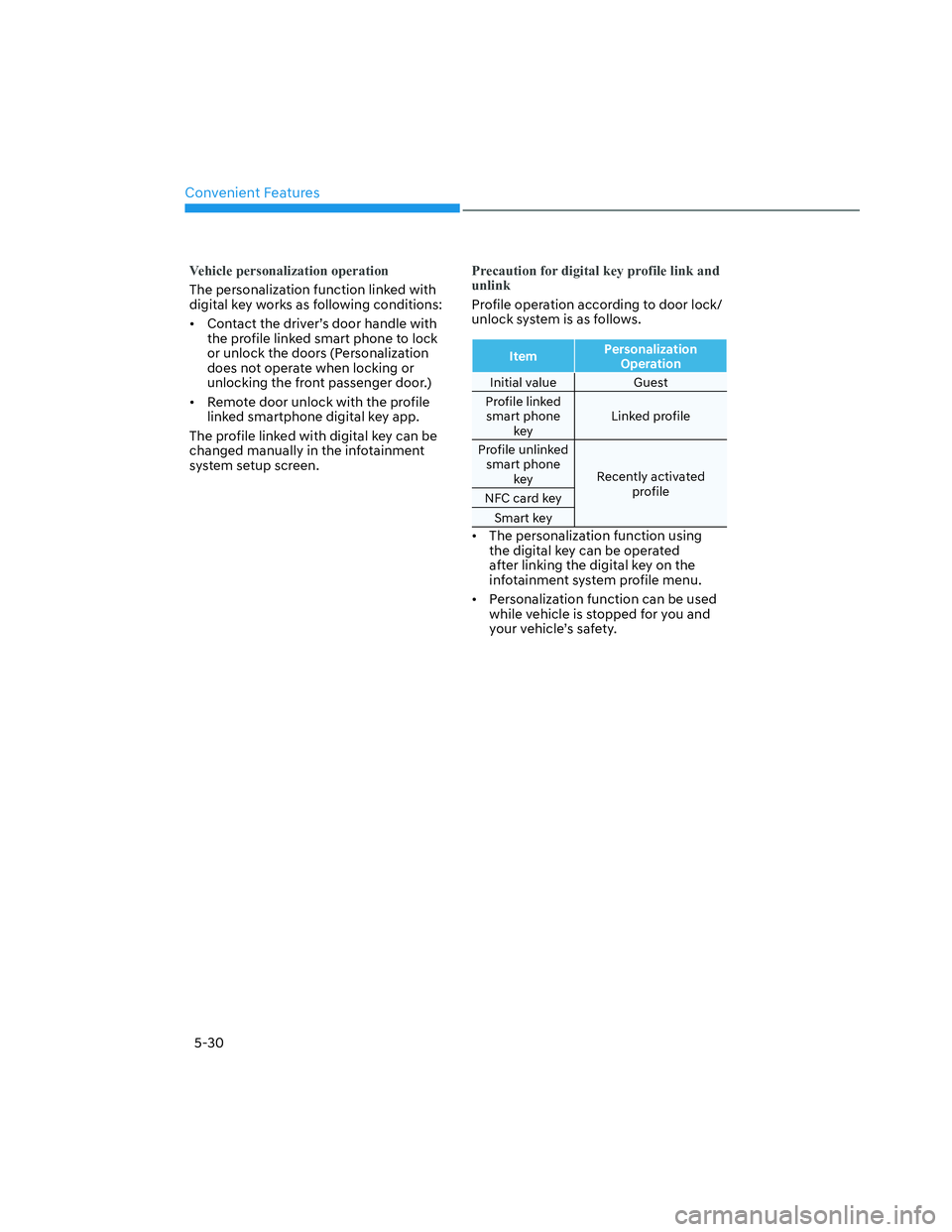

Vehicle personalization operation
The personalization function linked with
digital key works as following conditions:
• Contact the driver’s door handle with
the profile linked smart phone to lock
or unlock the doors (Personalization
does not operate when locking or
unlocking the front passenger door.)
• Remote door unlock with the profile
linked smartphone digital key app.
The profile linked with digital key can be
changed manually in the infotainment
system setup screen.
Precaution for digital key profile link and
unlink
Profile operation according to door lock/
unlock system is as follows.
ItemPersonalization
Operation
Initial value Guest
Profile linked
smart phone
keyLinked profile
Profile unlinked
smart phone
keyRecently activated
profile
NFC card key
Smart key
• The personalization function using
the digital key can be operated
after linking the digital key on the
infotainment system profile menu.
• Personalization function can be used
while vehicle is stopped for you and
your vehicle’s safety.

05
5-31
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
User’s Setting
ModeLamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice volume,
Welcome sound
Door Automatic door lock/unlock, Two Press Unlock
Infotainment
systemNavigationPreferred volume of the navigation system, Recent
destination
User preset My menu list settings, Radio preset
Phone
connectivityBluetooth preferential connect
CarPlay/Android Auto On/Off
Air conditioningOperating
conditionLatest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.
